The Drive

The drive is designed for the M.2 2280 form factor, which makes it 22 mm wide and 80 mm long.


PCI-Express 5.0 x4 is used as the host interface to the rest of the system, which doubles the theoretical bandwidth compared to PCIe 4.0 x4.

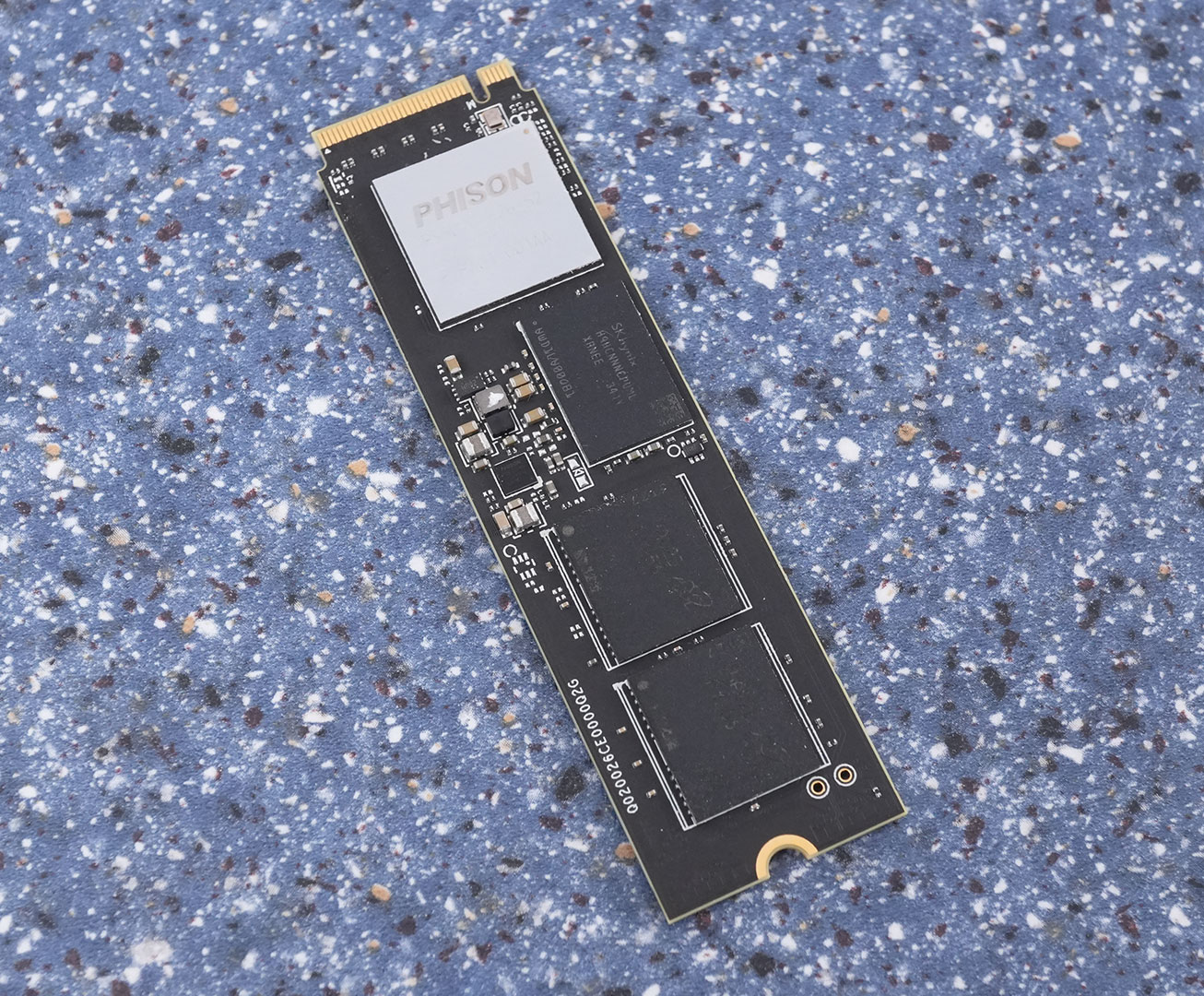

On the PCB you'll find the controller and four flash chips, two DRAM cache chips are included, too.


As mentioned before, there is no cooler included with the MP700 Pro SE, you are expected to use your own cooling solution. Running the drive with no additional cooling will certainly lead to thermal throttling under heavy loads.

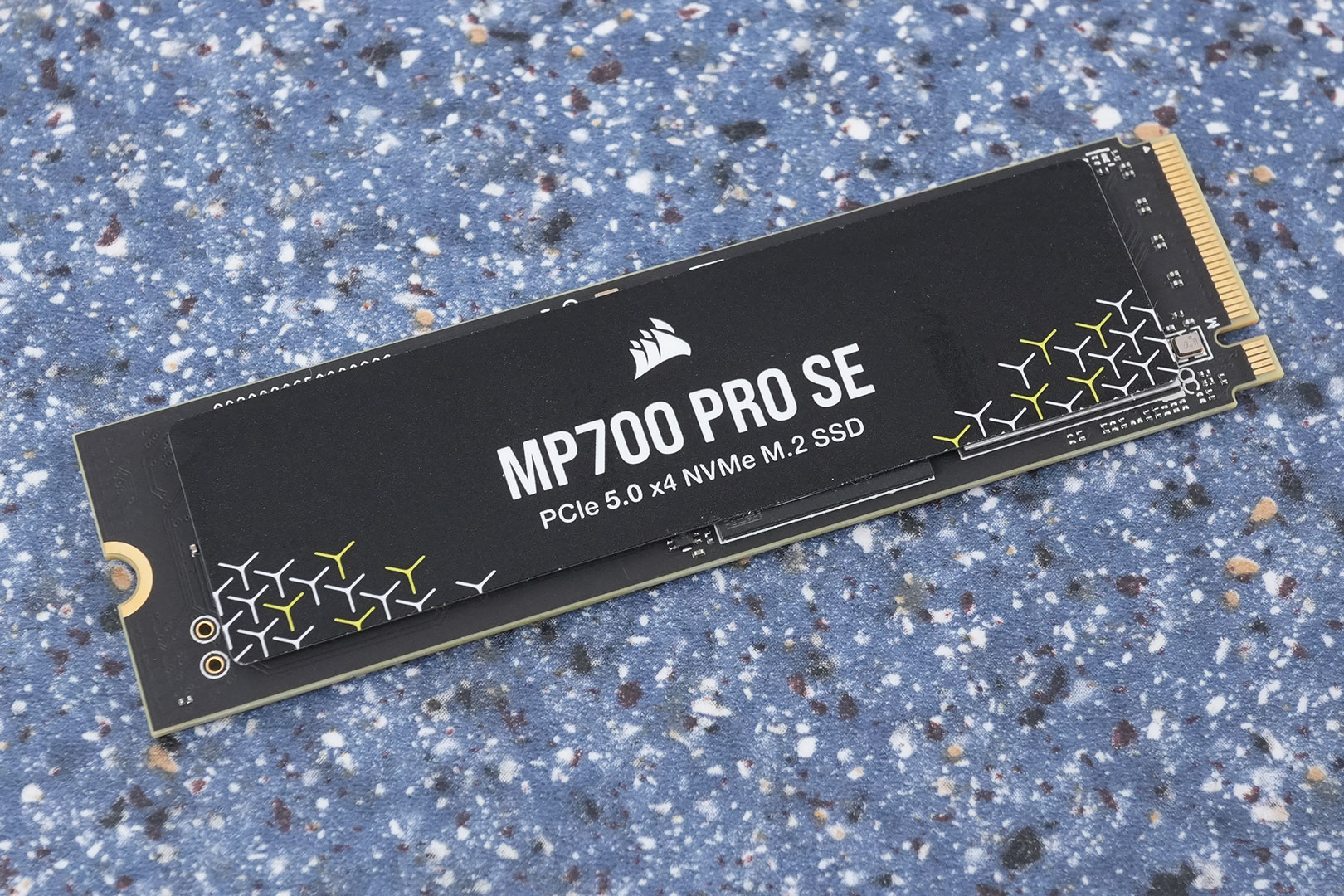

While the sticker does have a copper core it's still not sufficient to cool the drive alone.

Chip Component Analysis

The Phison PS5026-E26 is Phison's first PCI-Express 5.0 controller. It is the company's current flagship with support for eight flash channels and NVMe 2.0, using an Arm Cortex design. The controller itself is fabricated using a 12 nanometer process at TSMC Taiwan.


The four flash chips are Micron 232-layer 3D TLC NAND. Each chip has a capacity of 1 TB.


Two Hynix DDR4-4266 chips provide a total of 8 GB of fast DRAM storage for the controller to store the mapping tables.
