snuif09 · Dec 22, 2011, 09:43 PM

Wanted to go to bed at 11:00 then I found this thread...

Ah well I catched up on everything and it is looking GREAT! Will keep following from here on!

Ik wil ook gratis hardware =0

puma99dk| · Dec 24, 2011, 02:29 PM

i hope that custom made waterblock will do good on ur MARS II ^^

micropage7 · Dec 25, 2011, 08:14 AM

wow it must be 170% effort
cool, its like you build it from scratch

sub

l3p · Dec 29, 2011, 10:20 PM

Didn't plan to do anything today but received a package and my fingers started to tingle

Still in love with the red GT fins
Problem is I promised to watercool them. :P

But an idea popped in.
Hmm Corsair uses M2.5 ... Don't have them and certainly not longer ones :\

Ok re-tap them with M3 ...

That works, now the rest.

The fins work fine, they get pretty hot when cutting them

And done.

An EK block with some rad fins I love

BrooksyX · Dec 29, 2011, 10:44 PM

Nice, I love the black and red color scheme.

radrok · Dec 29, 2011, 11:09 PM

I effin love the Dominator GT colors, I can only buy them because the other RAM color schemes are ugly in comparison

Nifty job you did there with the heatsink

micropage7 · Dec 30, 2011, 06:58 AM

omg, you cut the ram fins?
i lost words..

Volkszorn88 · Dec 30, 2011, 07:37 AM

Fins gone?! You monster!!!!

Meant that in a good way. You monster.

puma99dk| · Dec 30, 2011, 10:49 AM

Quote:

Originally Posted by l3p

Didn't plan to do anything today but received a package and my fingers started to tingle

An EK block with some rad fins I love

http://www.l3p.nl/files/Hardware/L3p...%5B550x%5D.JPG

http://www.l3p.nl/files/Hardware/L3p...%5B550x%5D.JPG

nice EK blocks they r beautys in ur sys l3p and nice with the "tingle" fingers ^^

l3p · Jan 3, 2012, 10:16 PM

Small update

Drilling and tapping the small radiator to M4.

And back to the MarsII block

Daniel has been very busy with it last week.
Really this guy owns :P

Copper part done.

While he was busy with this I had to think of something for the POM part.
Got a spontaneous idea to recycle the red aluminum parts from the original cooler.
Off course with paint

Daniel didn't know what to think of it but we went for it
Time for me to measure again

And re-measuring. That guy thinks about everything.

And the result.

Daniel really liked it a lot at the end too, I'm completely in love!

Here the renders.

What do you guys think about it?

Only thing he wants from me is as much possible friends on Facebook, so please go ahead if you can guys

Mr3D a.k.a. Daniel!

radrok · Jan 3, 2012, 10:36 PM

I like it, a generic WB on it would make it blend into the other generic Video Cards, if you watch this one you get the feeling, and the certainty, that there is something with a strong kick under the hood

Awesome idea I'd say

puma99dk| · Jan 3, 2012, 10:58 PM

srsly i so gonna luv to see that waterblock, and taking does 2 pieces from the original cooler and put them on it, makes it look like look like u even like the Black and Red ROG colour scheme l3p ^^

OneMoar · Jan 4, 2012, 07:30 AM

man you are in a different league shit .. id trade my left nut for your resources
massive props

N-Gen · Jan 4, 2012, 01:21 PM

That waterblock looks amazing....can't wait for the end result. The only thing coming to my min now...is a plexi logo across the center...illuminated.

t_ski · Jan 4, 2012, 02:02 PM

Quote:

Originally Posted by N-Gen

That waterblock looks amazing....can't wait for the end result. The only thing coming to my min now...is a plexi logo across the center...illuminated.

That would be awesome with a custom L3p L4n logo, but would probably suck if you ever decided to resell it. Otherwise you could do an Asus Mars logo.

N-Gen · Jan 4, 2012, 02:19 PM

Quote:

Originally Posted by t_ski

That would be awesome with a custom L3p L4n logo, but would probably suck if you ever decided to resell it. Otherwise you could do an Asus Mars logo.

Just before reading your post I was thinking the same thing. Also the fact that you won't even need coloured coolant for it. You could go clear and have the plexi in red with white illumination. Although the clear plexi and tubing with red coolant and white lighting would look great.

l3p · Jan 4, 2012, 08:27 PM

Thanks a lot guys!
Still thinking about it

More to come but first need to focus at something else

Sir B. Fannybottom · Jan 4, 2012, 10:20 PM

copenhagen69 · Jan 4, 2012, 10:43 PM

Quote:

Originally Posted by Kevinheraiz

http://flabslapper.files.wordpress.c...-dad.jpg?w=600

This ^^^

Superb work as always!!

arnoo1 · Jan 6, 2012, 12:02 AM

L3p?
Is there seriously a dude that makes custom WC blocks?
I really like that idea, also i like this dude's mod:http://www.xtremesystems.org/forums/...-lots-of-pics.
If i'm right you allready knew this project

l3p · Jan 20, 2012, 11:32 PM

And another small update

The top panel.

Was walking around for a while with this idea. Want the plexi window to be flush with the black brushed aluminum.
But with only handwork I don't see it succeed. 0.5mm difference will be visible.
So decided to let the plexi be lasered and then try to get the window in by hand. (Thanks Brian!)
Will also take the opportunity to let the small logo's be lasered too, no names, just logo's.

This is the idea

Then first of all I want to thank Daniel and Ivo again for all the effort. Even till now ( :P ) they still have fun in doing this

Blocks for the POM Top and the aluminum backplate.

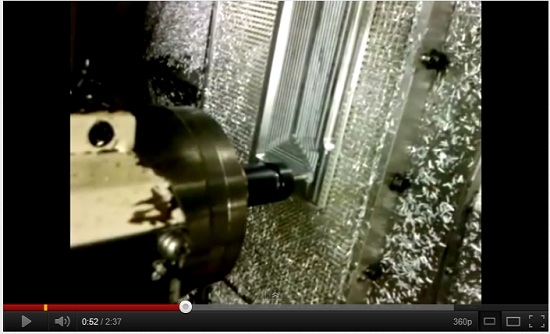

And the milling

Still a bit rough.

After some sanding.

Never saw a backplate without bolts or holes in sight before

(Daniel ftw!)

The plan is to get it anodized in black and then mill in something.

And then the POM block. Some more explaining here.
For example this is 1/100 of the code the machine will go to create the block.

G2X82.098Y1.193I0.J-5.5
G1X126.96Y-14.456
G3X127.125Y-14.484I.165J.472
G3X127.17Y-14.482I0.J.5
G1X134.562Y-13.804
G2X135.064Y-13.781I.502J-5.477
G2X140.359Y-17.791I0.J-5.5
G1X140.584Y-18.592
G3X140.917Y-18.934I.481J.135
G1X170.725Y-28.234
G3X170.874Y-28.257I.149J.477
G3X171.346Y-27.921I0.J.5
G1X176.469Y-13.198
G2X181.161Y-9.529I5.194J-1.808
G1X236.129Y-4.486
G3X236.437Y-4.342I-.046J.498
G1X240.668Y-.111
G2X244.557Y1.5I3.889J-3.889

First a rubber cord a little smaller then the block is placed on the workspace.
This so the machine can suck it vacuum to the plate, off course it shouldn't move a mm.

First the holes and the basis shape.

Then adjust the rubber cord so the machine can go on.

And milling again.

The result.

Till the next update... the copperblock

N-Gen · Jan 22, 2012, 12:00 PM

That's just amazing! Good work!

THE_EGG · Jan 22, 2012, 01:16 PM

Quote:

Originally Posted by l3p

Thanks my loyal follower :P

Lovely weather yesterday, so went out to lap my Cpu

This time I'm going to lap it faster then normal.
How to with extensive explanation can be found here:
http://www.l3p.nl/other-builds-mods/cpu-lapping/

http://www.l3p.nl/files/Hardware/Cpu...%5B550x%5D.JPG

Cpu still WITH warranty here

http://www.l3p.nl/files/Hardware/Cpu...%5B550x%5D.JPG

http://www.l3p.nl/files/Hardware/Cpu...%5B550x%5D.JPG

All you need..

http://www.l3p.nl/files/Hardware/Cpu...%5B550x%5D.JPG

Finding a way to protect the backside of the Cpu since Intel doesn’t
give a nice protection cap any more on boxed s1155 Cpu’s.

http://www.l3p.nl/files/Hardware/Cpu...%5B550x%5D.JPG

So we use marking / painters tape.

http://www.l3p.nl/files/Hardware/Cpu...%5B550x%5D.JPG

I’m using some rubber tape too.
This way you have a better grip and don’t get sore fingers.

http://www.l3p.nl/files/Hardware/Cpu...%5B550x%5D.JPG

Starting with P400.
Only a few “wipes” and … gone warranty.

The sanding with P400 is the most important and longest step.
Some people tape the sandpaper to the mirror, but if you hold it tight with your other hand you don’t have to.
Just go from left to right on the paper.
Don’t press on the cpu, just use the weight of your hand.
Every 2 minutes turn the cpu 90° clockwise.

http://www.l3p.nl/files/Hardware/Cpu...%5B550x%5D.JPG

2 Minutes with P400.
Nothing to see yet.

http://www.l3p.nl/files/Hardware/Cpu...%5B550x%5D.JPG

7 Minutes with P400.
You can see clearly this Cpu isn’t flat.

http://www.l3p.nl/files/Hardware/Cpu...%5B550x%5D.JPG

Another 3 Minutes with P400.
Total 10 Minutes.

http://www.l3p.nl/files/Hardware/Cpu...%5B550x%5D.JPG

Another 10 Minutes with P400.
Total 20 Minutes.

http://www.l3p.nl/files/Hardware/Cpu...%5B550x%5D.JPG

And another 10 Minutes with P400.
Total 30 Minutes.

http://www.l3p.nl/files/Hardware/Cpu...%5B550x%5D.JPG

You can see the IHS is completely flat copper now.
Now the real polishing comes.

http://www.l3p.nl/files/Hardware/Cpu...%5B550x%5D.JPG

10 Minutes with P600.
Total 40 Minutes.

http://www.l3p.nl/files/Hardware/Cpu...%5B550x%5D.JPG

Skipping P800.

Straightly to P1000.

http://www.l3p.nl/files/Hardware/Cpu...%5B550x%5D.JPG

10 Minutes with P1000.
Total 50 Minutes.
You can see it’s already starting to mirror.

http://www.l3p.nl/files/Hardware/Cpu...%5B550x%5D.JPG

Further on with P1500.

http://www.l3p.nl/files/Hardware/Cpu...%5B550x%5D.JPG

10 Minutes with P1500.
Total 1 hour.

http://www.l3p.nl/files/Hardware/Cpu...%5B550x%5D.JPG

P2000.

http://www.l3p.nl/files/Hardware/Cpu...%5B550x%5D.JPG

10 Minutes with P2000
Total 1 hours and 10 Minutes

http://www.l3p.nl/files/Hardware/Cpu...%5B550x%5D.JPG

Now we need to change our strategy.
First of all clean the mirror and the cpu.
This is because the old copper particles can ruin your polish job by rubbing them into the IHS.
Now you don’t go from left to right with the cpu.
Just move in a circle for 2 minutes and then turn the cpu 90° clockwise again.

http://www.l3p.nl/files/Hardware/Cpu...%5B550x%5D.JPG

10 Minutes with P2500.
Total 1 hours and 20 Minutes.

http://www.l3p.nl/files/Hardware/Cpu...%5B550x%5D.JPG

You can see the copper dust already starts to oxidise.

http://www.l3p.nl/files/Hardware/Cpu...%5B550x%5D.JPG

5 Minutes with P2500.
Total 1 hours and 25 Minutes.
Almost done. :P

http://www.l3p.nl/files/Hardware/Cpu...%5B550x%5D.JPG

Another 5 Minutes with P2500
Total One and a half hour!

http://www.l3p.nl/files/Hardware/Cpu...%5B550x%5D.JPG

Pictures are clickable for full resolution.

http://www.l3p.nl/files/Hardware/Cpu...%5B550x%5D.JPG

http://www.l3p.nl/files/Hardware/Cpu...%5B550x%5D.JPG

http://www.l3p.nl/files/Hardware/Cpu...%5B550x%5D.JPG

http://www.l3p.nl/files/Hardware/Cpu...%5B550x%5D.JPG

http://www.l3p.nl/files/Hardware/Cpu...%5B550x%5D.JPG

Back to the case tomorrow

truly outstanding :O Just out of curiousity, how much would this improve temperatures from the original state?

l3p · Jan 22, 2012, 03:33 PM

Here you go

http://www.l3p.nl/other-builds-mods/cpu-lapping/

l3p · Jan 26, 2012, 09:31 PM

Small update

(Slowly we're getting there)

First of all I want to announce a new sponsor .. Corsair!
After the Bit-Tech MOTY they contacted me for sponsoring this project.
(If you only knew how glad I am with this!)

Thanks Corsair!!

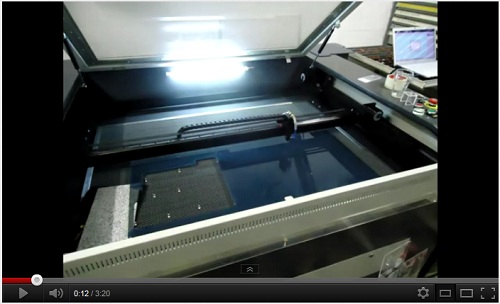

And ordered a laser cutted en engraved casewindow.

If I ever win the lotto ... :P

Done.

And one day later

Quick preview.

This weekend first saw it in and then a very lot of sanding I guess.

And another test.

System Name:	BTO Laptop
Processor:	i7 3630M
Memory:	8GB 1600MHz Team
Video Card:	GTX660M
Hard Disk:	Seagate Momentus 500gb
CRT/LCD Model:	BENQ G2420HD 24" 1920x1080 and 1920x1080 Laptop screen
Sound Card:	Line6 Toneport UX2 & onboard thingy
Software:	Windows 7 Ultimate 64 bit

Dec 24, 2011, 02:29 PM	#102
puma99dk\| Join Date: Aug 2005 Location: Denmark WTF xD Posts: 2,095 (0.73/day) Thanks: 244 Thanked 466 Times in 326 Posts System Specs	i hope that custom made waterblock will do good on ur MARS II ^^ __________________ i5-2500k @ 4785mhz \| ECS P67H2-A

System Name:	Lynni / Lynni-Win8-Test
Processor:	Intel Core i5-3750K @ 4.6ghz \| Bios: offset 0.045 \| CPU-Z: 1.232v \| Intel Pentium G860 @ 3,0ghz
Motherboard:	Asus Maximus V Extreme Bios 1707 \| ECS P67H2-A Black Series V1.1 \| SuperMicro C7Q67
Cooling:	Corsair H100 @ 2xNoctua NF-F12 PWM \| Intel Stock Cooler
Memory:	Corsair Vengeance LP 16gb (4x4gb) @ 1600mhz (9-9-9-24 T1) / Adata XPG™ Gaming v2.0 Series 2x2GB
Video Card:	Asus GTX670-DC2G-4GD5 @ 1015/1502mhz / EVGA GeForce 8800GTS 640mb / Asus EN9800GT/DI/1GD3/A
Hard Disk:	OS: Samsung 830Series 128gb SSD \| Gaming: WDC Green 500gb \| Anime/DATA: 2xWDC Green 2TB WD20EARX
Optical Drive:	Pioneer DVR-216DBK \| Samsung SH-B123L @ SATA
CRT/LCD Model:	Philips 221EL2 LED 21,5 inch Monitor & Philips 32inch LCD TV @ 1080p
Case:	Cooler Master HAF XB \| 1xNoctua NF-F12 PWM \| 2x Noctua NF-R8
Sound Card:	Asus Xonar Essence STX \| Creative Aurvana Live! \| Logitech Z-2300
PSU:	SeaSonic X-760 80PLUS \| Silverstone ST45SF-G Double GOLDIE :3
Software:	Windows 7 Ultimate SP1 x64 OEM - KIS2012CBE \o/ \| Win8 Pro 64bit @ Box - No SSD atm
Benchmarks:	3DMark11: Pxxxx - Unigine Heaven Benchmark: xxxx \| Nuth tested, yet!!!

Dec 25, 2011, 08:14 AM	#103
micropage7 Join Date: Mar 2010 Location: Jakarta, Indonesia Posts: 3,717 (3.15/day) Thanks: 193 Thanked 853 Times in 559 Posts System Specs	wow it must be 170% effort cool, its like you build it from scratch sub __________________ :: New Cases, Tips And All About Your Cases Visit CaseGear :: Don't Ever Ask About Love And Honesty That You Don't Ever Have

System Name:	micropage7
Processor:	phenom x4 955 Black Edition @ Stock
Motherboard:	Asrock 990FX
Cooling:	Xigmatek HDT-SD964
Memory:	8Gb Team Xtreem DDR3
Video Card:	Radeon 5570 CrossFire
Hard Disk:	Seagate 160Gb, 250Gb & 500Gb SATA
Optical Drive:	LG DVDRW, Samsung Combo
CRT/LCD Model:	LG 19 inch LCD Wide Screen
Case:	Lian Li PC-7FNW
Sound Card:	Creative Audigy Value
PSU:	VenomRX Red Diamond 650 Watt
Software:	Windows 7 64-bit
Benchmarks:	Classified

Dec 22, 2011, 09:43 PM	#101
snuif09 Join Date: Nov 2007 Location: hoorn, Netherlands Posts: 505 (0.25/day) Thanks: 173 Thanked 68 Times in 61 Posts System Specs	Wanted to go to bed at 11:00 then I found this thread... Ah well I catched up on everything and it is looking GREAT! Will keep following from here on! Ik wil ook gratis hardware =0

Dec 29, 2011, 10:20 PM	#104
l3p Join Date: Oct 2010 Location: Netherlands Posts: 279 (0.29/day) Thanks: 338 Thanked 576 Times in 155 Posts System Specs	Didn't plan to do anything today but received a package and my fingers started to tingle Still in love with the red GT fins Problem is I promised to watercool them. :P But an idea popped in. Hmm Corsair uses M2.5 ... Don't have them and certainly not longer ones :\ Ok re-tap them with M3 ... That works, now the rest. The fins work fine, they get pretty hot when cutting them And done. An EK block with some rad fins I love __________________ Other Projects : www.l3p.nl

System Name:	L3p D3sk
Processor:	Intel Core i7 980X Extreme Edition @ 4.5 Ghz
Motherboard:	ASUS Rampage 3 Extreme
Cooling:	H2o
Memory:	Corsair Dominator GT 6GB DDR3-2000 CL7 triple kit
Video Card:	2 x Asus GTX580
Hard Disk:	Intel 510 120GB - 3x Corsair F60 raid0 - 6x Hitachi 2TB raid5 @ Highpoint 3560 2GB cache
Optical Drive:	2x Optiarc AD-7240S-0B
CRT/LCD Model:	Dell Ultrasharp U2711 - 2 x Dell UltraSharp 1703FP
Case:	Aluminium plate 2000x1000x3
Sound Card:	Asus Xense + Sennheiser Xense
PSU:	2 x Coolermaster Silent Pro Gold 700W
Software:	Windows 7 Ulti
Benchmarks:	http://hwbot.org/community/user/l3p?tab=submissions

Dec 29, 2011, 10:44 PM	#105
BrooksyX Join Date: Jan 2008 Location: Vancouver, WA Posts: 3,572 (1.79/day) Thanks: 511 Thanked 570 Times in 527 Posts System Specs	Nice, I love the black and red color scheme.

System Name:	Main / Home Media Serever
Processor:	Intel i5 2500k @ 4.75ghz / AMD AM3 5200+ x2
Motherboard:	ASRock Fatal1ty P67 Performance / Biostar 790GX
Cooling:	Xigmatek Dark Knight / XIGMATEK Apache
Memory:	16gb of G.Skill Value Series DDR3 / 4x 1gb DDR2
Video Card:	XFX Radeon 6870 1gb / Asus Radeon 5450 512mb
Hard Disk:	2x Samsung 830 64gb SSD Raid 0 & 750gb WD Blue HDD / OCZ Vertex 30GB & 8TB of HDD Space
Optical Drive:	Blu-ray Rom & DVD-RW / DVD-RW
CRT/LCD Model:	2x Acer 20" LED 1600x900 / Samsung 40" LED
Case:	Xigmatek Asgard II / APEX PC-389-C
PSU:	OCZ Stealth Power 500w / Antec EArthwatts 380w
Software:	Windows 7 Professional x64 SP1 / XBMCBuntu 11.10

Dec 29, 2011, 11:09 PM	#106
radrok Join Date: Oct 2011 Location: Italy Posts: 1,980 (3.28/day) Thanks: 156 Thanked 487 Times in 388 Posts System Specs	I effin love the Dominator GT colors, I can only buy them because the other RAM color schemes are ugly in comparison Nifty job you did there with the heatsink

Processor:	Ci7 3930K
Motherboard:	RIVE + XSPC Wb
Cooling:	Dual 140x3 HTSF4 + MO-RA3 and TONS of Noctua fans (20+)
Memory:	Corsair Dominator GT 2133
Video Card:	Kryographics SLI Titans ;)
Hard Disk:	2x Corsair Force GT 120GB
Optical Drive:	wut
CRT/LCD Model:	Dell U3011 2560x1600 + Dell 2408WFP 1920x1200
Case:	Dimastech Bench EasyXL
Sound Card:	Xonar Essence STX with AKG K 701
PSU:	Corsair AX1200 (Enermax 1250+ Revo as backup)
Software:	Win7

Dec 30, 2011, 06:58 AM	#107
micropage7 Join Date: Mar 2010 Location: Jakarta, Indonesia Posts: 3,717 (3.15/day) Thanks: 193 Thanked 853 Times in 559 Posts System Specs	omg, you cut the ram fins? i lost words.. __________________ :: New Cases, Tips And All About Your Cases Visit CaseGear :: Don't Ever Ask About Love And Honesty That You Don't Ever Have

Dec 30, 2011, 07:37 AM	#108
Volkszorn88 Join Date: Jul 2010 Posts: 851 (0.79/day) Thanks: 115 Thanked 294 Times in 184 Posts System Specs	Fins gone?! You monster!!!! Meant that in a good way. You monster.

System Name:	Titan
Processor:	AMD FX-8350 4.6ghz
Motherboard:	AsRock 990FX Fatal1ty Professional
Cooling:	Corsair H100
Memory:	G.Skill RipjawsX 8gb
Video Card:	XFX Double D 7970 3gb
Hard Disk:	Western Digital Green 2TB 64mb Cache/ Western Digital 500gb
Optical Drive:	LG Dirve
CRT/LCD Model:	Samsung S27A750D 120hz 3D 1920x1080
Case:	NZXT Switch 810 White
Sound Card:	Megalodon
PSU:	Rocketfish 900w 80 Silver
Software:	Windows 7 64-bit

Jan 3, 2012, 10:16 PM	#110
l3p Join Date: Oct 2010 Location: Netherlands Posts: 279 (0.29/day) Thanks: 338 Thanked 576 Times in 155 Posts System Specs	Small update Drilling and tapping the small radiator to M4. And back to the MarsII block Daniel has been very busy with it last week. Really this guy owns :P Copper part done. While he was busy with this I had to think of something for the POM part. Got a spontaneous idea to recycle the red aluminum parts from the original cooler. Off course with paint Daniel didn't know what to think of it but we went for it Time for me to measure again And re-measuring. That guy thinks about everything. And the result. Daniel really liked it a lot at the end too, I'm completely in love! Here the renders. What do you guys think about it? Only thing he wants from me is as much possible friends on Facebook, so please go ahead if you can guys Mr3D a.k.a. Daniel! __________________ Other Projects : www.l3p.nl

Jan 3, 2012, 10:36 PM	#111
radrok Join Date: Oct 2011 Location: Italy Posts: 1,980 (3.28/day) Thanks: 156 Thanked 487 Times in 388 Posts System Specs	I like it, a generic WB on it would make it blend into the other generic Video Cards, if you watch this one you get the feeling, and the certainty, that there is something with a strong kick under the hood Awesome idea I'd say

Jan 3, 2012, 10:58 PM	#112
puma99dk\| Join Date: Aug 2005 Location: Denmark WTF xD Posts: 2,095 (0.73/day) Thanks: 244 Thanked 466 Times in 326 Posts System Specs	srsly i so gonna luv to see that waterblock, and taking does 2 pieces from the original cooler and put them on it, makes it look like look like u even like the Black and Red ROG colour scheme l3p ^^ __________________ i5-2500k @ 4785mhz \| ECS P67H2-A

Jan 4, 2012, 07:30 AM	#113
OneMoar Banned Join Date: Apr 2010 Posts: 2,345 (2.01/day) Thanks: 91 Thanked 442 Times in 380 Posts System Specs	man you are in a different league shit .. id trade my left nut for your resources massive props

System Name:	Waiting For Haswel
Processor:	Phenom II @ 4.0Ghz @ 1.480v 2600NB/1.25v
Motherboard:	MSI 990XA-GD55
Cooling:	Mugen RevB
Memory:	8GB DDR3 @ 1600
Video Card:	ATi 6870 @ 940/1100
Hard Disk:	WDBLUE 250GB && WD BLACK 500GB
Optical Drive:	x1 DVD
CRT/LCD Model:	HP w2071d
Case:	NZXT GAMMA
Sound Card:	RealtekHD
PSU:	Antec 520c
Software:	Windows 7 x64

Jan 4, 2012, 01:21 PM	#114
N-Gen Join Date: Oct 2007 Location: Paola, Malta Posts: 542 (0.26/day) Thanks: 91 Thanked 149 Times in 122 Posts System Specs	That waterblock looks amazing....can't wait for the end result. The only thing coming to my min now...is a plexi logo across the center...illuminated. __________________ Main Rig in Tech Specs Alienware Area-51 m9750 - Intel Core 2 Duo T7200 2.0GHz, 4GB DDR2 667MHz 4-5-5-9, Samsung 160GB Hybrid 256MB Flash Cache 5400RPM, nVidia GeForce GO 7950GTX 512MB Toshiba Satellite L650-13M - Intel Core i5-410M 2.26GHz, 4GB DDR3 1333MHz, Seagate 320GB 5400RPM, ATi Mobility Radeon HD5650 1GB Acer Aspire 5750G - Intel Core i5-2410M 2.3GHz, 8GB DDR3 1333MHz 9-9-9-24, Hitachi 750GB 5400RPM, nVidia GeForce GT540M 1GB (DDR3 ver.)

System Name:	F-Bomb
Processor:	Intel® Core™ i5 2500k @ 4.8GHz
Motherboard:	ASRock P67 Fatal1ty Profess1onal
Cooling:	EK H3O Supreme HF 240 Kit with EK Ekoolant Blood Red, 2 x EK-Silent Push/2 x Zalman ZM-F3-FDB Pull
Memory:	Corsair Vengeance 16GB (4 x 4GB) 1600MHz @ 1866MHz
Video Card:	2 x Powercolor AMD Radeon HD6870 in Crossfire @ 950/1170, nVidia 8400GS 512mb for extra display
Hard Disk:	OCZ Agility 3 120GB / 2xWD Scorpio Black 320 Raid 0 / 3xSeagate Barracuda 3TB 7.2K RPM / 7TB WD HDDs
Optical Drive:	LiteOn IHBS112-37 12x Blu-ray BD-RE
CRT/LCD Model:	2 x 23" LG IPS234V / 32" LG HD Ready TV
Case:	Coolermaster HAF 912 Plus
Sound Card:	Onboard Realtek 7.1
PSU:	Corsair TX850 V2 850 Watts
Software:	Windows 8 Professional 64-Bit

System Name:	My i7 Beast
Processor:	Intel Core i7 3930K
Motherboard:	Asus P9X79 Pro
Cooling:	Heatkiller 3.0 Nickel, three FC-7970 CSQ with an FC-link , D5 with EK X-top Rev2 & BIX Quad Radiator
Memory:	4 x 8GB Corsair Dominator GT DDR3-1866
Video Card:	Two Sapphire 7970's + Asus 7970
Hard Disk:	2 x 120GB Corsair Force 3 SSDs in Raid 0 + 500GB WD
Optical Drive:	Lite-On BR Reader
CRT/LCD Model:	Three Asus 24" VW246H LCD's
Case:	Silverstone TJ07
Sound Card:	Onboard
PSU:	Corsair AX1200
Software:	Windows 7 x64 Ultimate

Jan 4, 2012, 08:27 PM	#117
l3p Join Date: Oct 2010 Location: Netherlands Posts: 279 (0.29/day) Thanks: 338 Thanked 576 Times in 155 Posts System Specs	Thanks a lot guys! Still thinking about it More to come but first need to focus at something else __________________ Other Projects : www.l3p.nl

Jan 4, 2012, 10:20 PM	#118
Sir B. Fannybottom Join Date: Jun 2011 Location: Canadia Posts: 1,843 (2.47/day) Thanks: 1,768 Thanked 940 Times in 561 Posts System Specs	__________________ I do say, what is this madness?

System Name:	Sexy Vanilla Freshness / The Sister / The Mother / The Father
Processor:	Core i5 3570K @4.5ghz 1.25V/ Phenom II 925 @ 3.6ghz 1.2V / Phenom II 955 / A8-3850
Motherboard:	ASUS P8Z77-V / Asrock A770De+ / Asus M4A785-M / Gigabyte GA-A75-UD4H
Cooling:	Coolit ECO A.C.L / Corsair H40 / stock / 9700NT
Memory:	M379B5273DH0-YK0 2X4GB sticks/ 8 gigs 667 / 6 gigs 667 / 4 gigs of 2133 Gskill
Video Card:	Sapphire HD 6870 / XFX 5770 XXX edition / OEM 4670 / APU
Hard Disk:	Toshiba MK5065GSX+ST375052+WD10EZEX / 1x WD1500 Black / Seagate 160 gig/ old shitbox
Optical Drive:	who uses these?
CRT/LCD Model:	Acer S200HL+Acer P206HV / LG 22LD350 / Samsung Sync master / Dell I found in the trash once
Case:	HAF X 912 / NZXT Trinity / shit hp case I found on the curb / Thermaltake Mombo
Sound Card:	Onboard
PSU:	Seasonic 750X / ROSEWILL RG630-S12 630W RT / Bestec 400 / Ultra LSP750
Software:	Windows 7 Home Premium 64 bit / Windows 7 Ultimate / Windows 7 HP / Windows 7 Pro
Benchmarks:	one time I scored a 3 on 3dmark 11

Processor:	I7 920 @ 4.1
Motherboard:	ASUS Rampage III Extreme
Cooling:	Custom water cooling
Memory:	3x2GB Mushkin
Video Card:	580
Hard Disk:	320GB
CRT/LCD Model:	BenQ V2400W
Case:	Custom
Sound Card:	on board
PSU:	Antec TPQ 1200w

Jan 6, 2012, 12:02 AM	#120
arnoo1 Join Date: Oct 2009 Location: Netherlands Posts: 708 (0.53/day) Thanks: 98 Thanked 116 Times in 99 Posts System Specs	L3p? Is there seriously a dude that makes custom WC blocks? I really like that idea, also i like this dude's mod:http://www.xtremesystems.org/forums/...-lots-of-pics. If i'm right you allready knew this project __________________ intel + nvidia the best amd

System Name:	gaming system/ Moms pc
Processor:	2600k / i5 2300
Motherboard:	MSI Z77 MPower/ Zotac H67ITX-C-E
Cooling:	Thermalright ultra extreme 120 rev.C w/noctua NF-S12B push/pull/ stock
Memory:	8gb corsair vengeance 1600mhz c8 @1.5 v/ 4gb kinston ram 1333mhz
Video Card:	GB gtx670 WF3x @1080/1267/6420(core/boost/mem)
Hard Disk:	corsair F3 120gb SATA 6gb's OS ,2tb wd caviar black 64mb sata 6gb's(storage)/ corsair F3 60 @sata300
Optical Drive:	external samsung se s084/ none
CRT/LCD Model:	Samsung Syncmaster P2770FH, asus VH242t/19" lg 1440x900
Case:	tt armor modded 140mm fans 1200rpm@19 db/c m690 adv 2
Sound Card:	onboard/ onboard
PSU:	Corsair HX1050 / corsair cx430 v2
Software:	Windows SEVEN ultimate x64

Jan 20, 2012, 11:32 PM	#121
l3p Join Date: Oct 2010 Location: Netherlands Posts: 279 (0.29/day) Thanks: 338 Thanked 576 Times in 155 Posts System Specs	And another small update The top panel. Was walking around for a while with this idea. Want the plexi window to be flush with the black brushed aluminum. But with only handwork I don't see it succeed. 0.5mm difference will be visible. So decided to let the plexi be lasered and then try to get the window in by hand. (Thanks Brian!) Will also take the opportunity to let the small logo's be lasered too, no names, just logo's. This is the idea Then first of all I want to thank Daniel and Ivo again for all the effort. Even till now ( :P ) they still have fun in doing this Blocks for the POM Top and the aluminum backplate. And the milling Still a bit rough. After some sanding. Never saw a backplate without bolts or holes in sight before (Daniel ftw!) The plan is to get it anodized in black and then mill in something. And then the POM block. Some more explaining here. For example this is 1/100 of the code the machine will go to create the block. G2X82.098Y1.193I0.J-5.5 G1X126.96Y-14.456 G3X127.125Y-14.484I.165J.472 G3X127.17Y-14.482I0.J.5 G1X134.562Y-13.804 G2X135.064Y-13.781I.502J-5.477 G2X140.359Y-17.791I0.J-5.5 G1X140.584Y-18.592 G3X140.917Y-18.934I.481J.135 G1X170.725Y-28.234 G3X170.874Y-28.257I.149J.477 G3X171.346Y-27.921I0.J.5 G1X176.469Y-13.198 G2X181.161Y-9.529I5.194J-1.808 G1X236.129Y-4.486 G3X236.437Y-4.342I-.046J.498 G1X240.668Y-.111 G2X244.557Y1.5I3.889J-3.889 First a rubber cord a little smaller then the block is placed on the workspace. This so the machine can suck it vacuum to the plate, off course it shouldn't move a mm. First the holes and the basis shape. Then adjust the rubber cord so the machine can go on. And milling again. The result. Till the next update... the copperblock __________________ Other Projects : www.l3p.nl

Jan 22, 2012, 12:00 PM	#122
N-Gen Join Date: Oct 2007 Location: Paola, Malta Posts: 542 (0.26/day) Thanks: 91 Thanked 149 Times in 122 Posts System Specs	That's just amazing! Good work! __________________ Main Rig in Tech Specs Alienware Area-51 m9750 - Intel Core 2 Duo T7200 2.0GHz, 4GB DDR2 667MHz 4-5-5-9, Samsung 160GB Hybrid 256MB Flash Cache 5400RPM, nVidia GeForce GO 7950GTX 512MB Toshiba Satellite L650-13M - Intel Core i5-410M 2.26GHz, 4GB DDR3 1333MHz, Seagate 320GB 5400RPM, ATi Mobility Radeon HD5650 1GB Acer Aspire 5750G - Intel Core i5-2410M 2.3GHz, 8GB DDR3 1333MHz 9-9-9-24, Hitachi 750GB 5400RPM, nVidia GeForce GT540M 1GB (DDR3 ver.)

System Name:	Big Black Box \| The Orange Box
Processor:	Intel i5-2500k @ 4.8ghz (48x100) \| Intel i5-3570k @ 4.2ghz (42x100)
Motherboard:	Gigabyte G1.Sniper3 \| Asus P8Z77-I Deluxe
Cooling:	Antec Kuhler H20 620 Push-Pull (1X NF-P12 & stock fan) \| Antec Kuhler H20 620 Push-Pull (1X NF-P12 &
Memory:	G.Skill Ripjaws X 2X4GB 2133mhz 9-10-9-24 \| G.Skill Ripjaws X 2X4GB 2133mhz 9-10-9-24
Video Card:	Gigabyte GTX 570 OC @ 850/1700/2100 \| Gigabyte GTX 580 SOC @ 925/1810/2280 @1.125V
Hard Disk:	OCZ Agility 4 128gb, 3X WD RE4 24/7 2TB RAID 5 \| 1X OCZ Vertex 4 128GB & 2X WD 500GB Scorpio Black
Optical Drive:	Samsung BD reader combo \| USB external
CRT/LCD Model:	AOC i2757fh & BenQ FP241W (ANCIENT!) \| LG IPS235V
Case:	Silverstone Fortress FT02-B (no window) \| Bitfenix Prodigy 'atomic orange' limited edition
Sound Card:	Asus Essence ST -Denon Receiver -5.1 B&W CMC/DM601's/DM600's also a pair of B&W P5's \| ASUS Xonar U1
PSU:	Zalman ZM-1000HP \| Corsair TX-750v2
Software:	Windows 7 Ultimate 64-bit \| Windows 7 Ultimate 64-bit
Benchmarks:	Citroen DS3 THP155 DSport 6-speed manual

Jan 22, 2012, 03:33 PM	#124
l3p Join Date: Oct 2010 Location: Netherlands Posts: 279 (0.29/day) Thanks: 338 Thanked 576 Times in 155 Posts System Specs	Here you go http://www.l3p.nl/other-builds-mods/cpu-lapping/ __________________ Other Projects : www.l3p.nl

Jan 26, 2012, 09:31 PM	#125
l3p Join Date: Oct 2010 Location: Netherlands Posts: 279 (0.29/day) Thanks: 338 Thanked 576 Times in 155 Posts System Specs	Small update (Slowly we're getting there) First of all I want to announce a new sponsor .. Corsair! After the Bit-Tech MOTY they contacted me for sponsoring this project. (If you only knew how glad I am with this!) Thanks Corsair!! And ordered a laser cutted en engraved casewindow. If I ever win the lotto ... :P Done. And one day later Quick preview. This weekend first saw it in and then a very lot of sanding I guess. And another test. __________________ Other Projects : www.l3p.nl

Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)
