BIOS for TGT-460-A2-1024-UC GTX460-1024MB Ultra Charged

[Protagonist]

Please can any one post the original BIOS for TGT-460-A2-1024-UC GTX460-1024MB Ultra Charged, and even if any one has fro the TGT Beast Edition please post preferably in mediafire or a direct link

I have checked the bios collection they are not in the collection.

[W1zzard]

i just added all point of view 1 gb gtx 460 bioses to the collection. check again. there was one ultra charged there i think

[brandonwh64]

Let me guess... You flashed your card to a 560 like your other thread?

Have you tried these bioses?

http://www.techpowerup.com/vgabios/i...ace=&memSize=0

[Protagonist]

Originally Posted by brandonwh64

Let me guess... You flashed your card to a 560 like your other thread?

Have you tried these bioses?

http://www.techpowerup.com/vgabios/i...ace=&memSize=0

thanks for bioses.

and i haven't flashed it to 560, if you know how tell or mod a bios then post it i'll test it with my gpu

[Protagonist]

Thank you all, W1zzard & brandonwh64, i tried flashing it and it worked without a problem

My Card's Initial specs were: TGT-460-A2-1024-C also known as TGT Charged Edition
Graphics Processing Unit GeForce GTX460
Graphics core speed 780 MHz
Memory 1024 MB
Memory type GDDR5
Memory Speed 3800 MHz
Memory bus 256 bit
Shader processors 336
Shader clock 1560 MHz

and now they are: TGT-460-A2-1024-BST also known as TGT Beast Edition



and it is stable works perfectly

[Protagonist]

[QUOTE=brandonwh64;2579838]Let me guess... You flashed your card to a 560 like your other thread?

But Now i have GTX460 running spex higher than stock GTX560. so in a way iv got a GTX560

[brandonwh64]

My old GTX 460 would run 900+ core with a small voltage bump.

[Protagonist]

Originally Posted by brandonwh64

My old GTX 460 would run 900+ core with a small voltage bump.

That's nice, I wanted to try the bios first, now that it works well with TGT BST settings ill leave it at that, coz April is around the corner. and i am doing some upgrades, First I'll start off by changing Motherboard and processor to Intel DZ77RE & Core i7 3770K respectively, 8GB of my Corsair Vengeance 1600Mhz are still good enough.

Finally around May ill get a replacement for my GTX460 which has served me since 2010 to now, probably a Geforce or Radeon between $300 to $350, if not ill just get the GTX680 or HD7970 i'll decide when the time comes.

so probably no voltage bump for me, tho if you know of a way to flash it to GTX560 just for the sake of doing it, i'll buy a new card soon anyway

[Protagonist]

After successfully flushing bios to TGT BEAST settings, i have 1 final request regarding my POV GTX460 TGT 1GB.

This is to anyone with experience in GPU BIOS editing using whichever tool suits you the best, so here is the request

1. I would like to have the following settings edited into the TGT BEAST GTX460 1GB Bios then re uploaded back here so i can download and flush the edited bios into my card, the settings are
GPU Clock 905MHz, Memory 1065MHz, Shader 1810MHz only this values should be edited in the Bios for BEAST TGT 1GB GTX 460 which is available in this website.

2. No voltage changes or any other thing, only the above three sections should be changed, and i know it is all possible without voltage bump coz i got info from http://www.techpowerup.com/reviews/P..._Beast/31.html

3.I intend for the new values to be the default settings for my GTX460

4.Upload the edited bios back here, preferably in this thread

5.I will upload results.

[JrRacinFan]

Give me 5 minutes.

[Protagonist]

Originally Posted by JrRacinFan

Give me 5 minutes.

Thanks, waiting

[JrRacinFan]

Originally Posted by st.bone

Thanks, waiting

Here you are.

MD5

[Protagonist]

Originally Posted by JrRacinFan

Here you are.

Wait a sec, I will get you an MD5 to make sure your download is ok.

Downloaded, now to check it and try out, then maybe good results i hope

[Protagonist]

So far worked, results in a few...

[JrRacinFan]

Originally Posted by st.bone

So far worked, results in a few...

K let me know if you need/want a further bios edit. Say voltage/fan speeds/2d clocks.

[Protagonist]

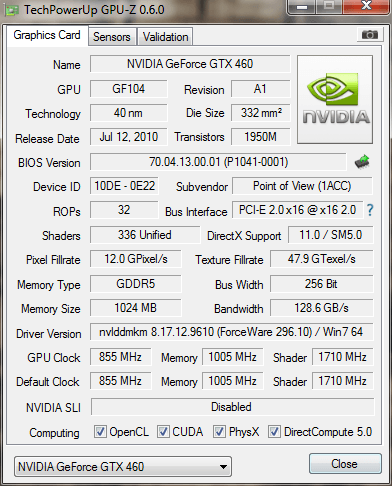

GPU-Z reports




I have noticed that the pixell fillrate does not go that high, why is it?

[JrRacinFan]

Originally Posted by st.bone

GPU-Z reports

http://gpuz.techpowerup.com/12/04/06/8yw.png


I have noticed that the pixell fillrate does not go that high, why is it?

W1zz(or someone that knows) will have to chime in, I'm unsure of how it's calculated.

[Protagonist]

Originally Posted by JrRacinFan

W1zz(or someone that knows) will have to chime in, I'm unsure of how it's calculated.

Well then we'll have to wait,... any one with an idea why, please chip in...

[Protagonist]

More results



Is indicating 904.5?, not 905 under the GPU-Z render test

[JrRacinFan]

Originally Posted by st.bone

Is indicating 904.5?, not 905 under the GPU-Z render test

0.5 Off? Weird, want me to make your shaders 1811? I mean it may not be exact 905.

[Protagonist]

Originally Posted by JrRacinFan

0.5 Off? Weird, want me to make your shaders 1811? I mean it may not be exact 905.

Currently leave it at that, and iv found interesting info on the pixell fillrate,

it appears to be not not proportional to the Texture Fillrate in most cards
http://www.techpowerup.com/163516/Sa...-Detailed.html

http://www.techpowerup.com/163386/AM...creenshot.html

I wonder why?

[Protagonist]

Originally Posted by JrRacinFan

0.5 Off? Weird, want me to make your shaders 1811? I mean it may not be exact 905.

or Mod this into the Bios, no voltage change just values

Performance Level 0
Core Clk: 51.00 MHz
Mem Clk: 68.00 MHz
Shader Clk: 101.00 MHz

Performance Level 1
Core Clk: 405.00 MHz
Mem Clk: 162.00 MHz
Shader Clk: 810.00 MHz

Performance Level 3
Core Clk: 925.00 MHz
Mem Clk: 1050.00 MHz
Shader Clk: 1850.00 MHz


Post it and ill try them out, still using the POV TGT GTX460 BEAST bios as the bios to mod, i think Performance Level 0, and Performance Level 1 are identical to the BEAST, if so the focus is on Performance Level 3

No Voltage Bump, Just Change Values

[W1zzard]

regarding the "low" pixel fillrate: http://www.techpowerup.com/forums/sh...d.php?t=155459

[JrRacinFan]

Originally Posted by st.bone

Performance Level 3
Core Clk: 925.00 MHz
Mem Clk: 1050.00 MHz
Shader Clk: 1850.00 MHz

No Voltage Bump, Just Change Values

Here you are.

[JrRacinFan]

Originally Posted by st.bone

Thanks W1zzard for that, now could you please mod this values in to TGT POV BEAST GTX 460 Bios and post it in this thread,

Core Clk: 925.00 MHz
Mem Clk: 1050.00 MHz
Shader Clk: 1850.00 MHz


Values only no voltage bump

Already done.
