Gskill F3-2400C9-8GTXD

SonDa5 · Nov 16, 2012, 04:05 AM

My Gskill F3-2400C9-8GTXD arrived today! Kit is dated to be made this month.

The kit is made up of 2x4GB sticks and the sticks are double sided IC with 8 on each side for a total of 16 IC per stick.

I'll be testing them later on. Will also remove heat shields and post photos of ICs later on.

SonDa5 · Nov 16, 2012, 06:11 AM

Some testing with i5-3570k@4.5GHZ
Stock XMP settings on ram CL 9-11-11-31 1.65v

http://valid.canardpc.com/2583978

Intel Burn Test and MaxMemm2

SuperPi 1.5 16m calculation

drdeathx · Nov 16, 2012, 06:56 AM

See if you can get the command rate at 1T. Maxmem scores are much higher than Aida in read/write/copy. Most use Aida for those benchmarks.

SonDa5 · Nov 16, 2012, 07:00 AM

Quote:

Originally Posted by drdeathx

See if you can get the command rate at 1T. Maxmem scores are much higher than Aida in read/write/copy. Most use Aida for those benchmarks.

I don't have Aida.

I will try the 1T but first I want to see if I can run XMP setting with less voltage. I just got done gaming for about 45 minutes straight in UT3 without any problems. Felt great.

drdeathx · Nov 16, 2012, 07:01 AM

Quote:

Originally Posted by SonDa5

I don't have Aida.

I will try the 1T but first I want to see if I can run XMP setting with less voltage. I just got done gaming for about 45 minutes straight in UT3 without any problems. Felt great.

Still great results. I run 16G of the Gskill Tridents. They look great.

SonDa5 · Nov 16, 2012, 07:17 AM

I lowered the voltage to 1.5v for XMP profile and it wouldn't boot to OS but booted to BIOS then
I adjusted to 1.55v and again it wouldn't boot to OS but it booted to BIOS so I tried 1.6v and it booted to BIOS and ran the same benchmarks and the benchmarks were just slightly lower in scores but appears to be stable.

Now I'm going to see if I can tighten timings at 2400mhz.

SonDa5 · Nov 16, 2012, 08:40 AM

I'm not very good at over clocking ram and my MSI Mpower MB has been extremely finicky with ram in the past and remains to be so. I think I may be able to do better with a 3770k since it supposed to be better for over clocking.

The best I'm able to get with this ram is 5GHZ CPU with 2500mhz CL9. That is with the XMP enabled with FSB bumped to 104. 48 multiplier. 1.7v on the ram.

http://valid.canardpc.com/2584111

Aquinus · Nov 16, 2012, 09:23 AM

Quote:

Originally Posted by SonDa5

1.7v on the ram.

Be careful here. Intel says that you really shouldn't increase memory voltage above 1.65v.

SonDa5 · Nov 16, 2012, 09:35 AM

Quote:

Originally Posted by Aquinus

Be careful here. Intel says that you really shouldn't increase memory voltage above 1.65v.

I bumped it down to 1.67v for 2500mhz CL9. I'll be careful.

SonDa5 · Nov 16, 2012, 12:56 PM

Naked

cadaveca · Nov 16, 2012, 02:17 PM

Nice samsungs.

wrathchild_67 · Nov 16, 2012, 04:00 PM

I'd be interested to see what they could do at 2133Mhz since I'm stuck on Sandy Bridge and that is the highest speed the memory divider allows without upping bclk. Here's what I've got on my Samsung Green's ($30 for 8GB, amazing!):

drdeathx · Nov 16, 2012, 04:02 PM

Quote:

Originally Posted by wrathchild_67

I'd be interested to see what they could do at 2133Mhz since I'm stuck on Sandy Bridge and that is the highest speed the memory divider allows without upping bclk. Here's what I've got on my Samsung Green's ($30 for 8GB, amazing!):

http://i.imgur.com/gCEdP.png

The Tridents do the same.

SonDa5 · Nov 16, 2012, 08:57 PM

I tried 4 different sets of the cheap Sammy 8 GB kits and at 5GHz CPU and above system was unstable.

SonDa5 · Nov 17, 2012, 04:56 AM

Quote:

Originally Posted by wrathchild_67

I'd be interested to see what they could do at 2133Mhz since I'm stuck on Sandy Bridge and that is the highest speed the memory divider allows without upping bclk. Here's what I've got on my Samsung Green's ($30 for 8GB, amazing!):

Those are a great value but they didn't work out well on my MSI motherboards. I tried them on a Z68 and Z77 MSI mother board and best I could get was 2133mhz CL9 and it was only stable at speeds below 5GHZ on CPU.

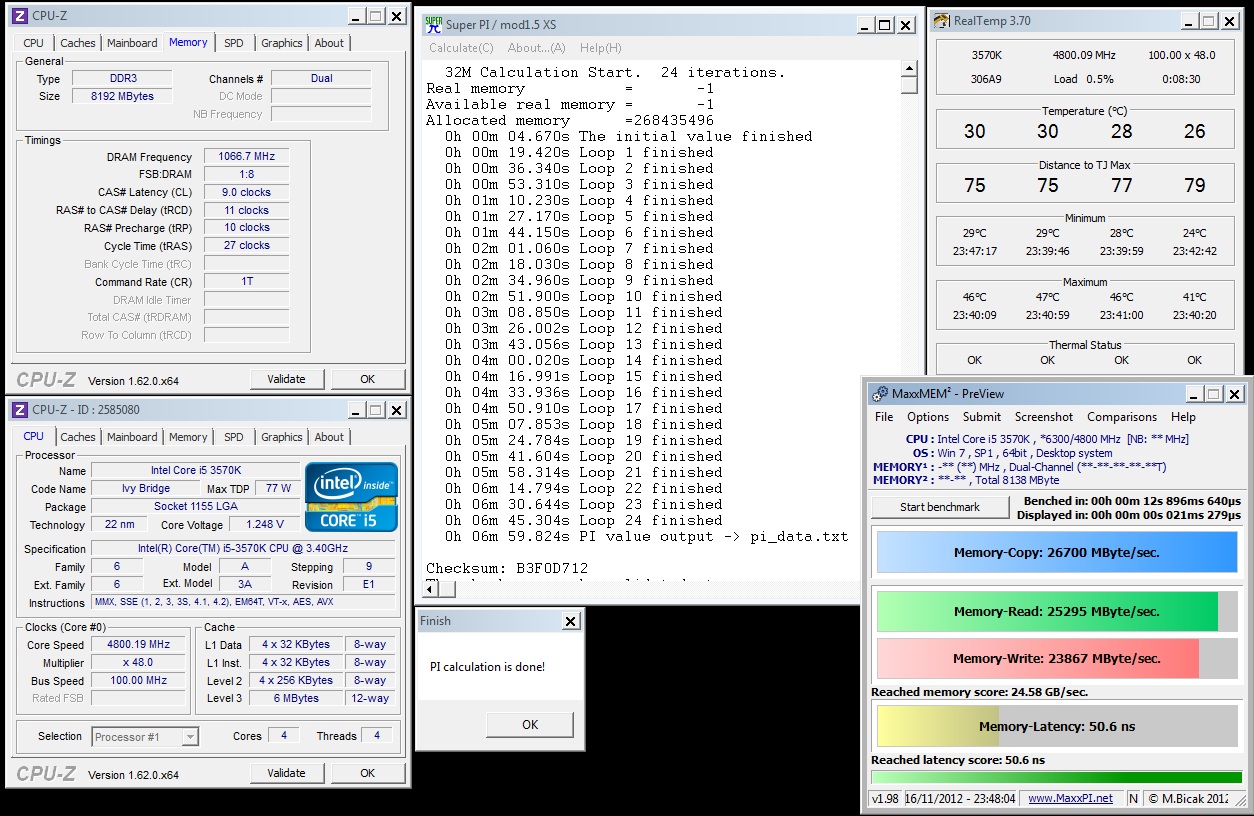

I just did a quick ram adjustment of 2133mhz CL 9-11-10-27 1T 1.5v and my new Gskill sticks are buttery smooth with these settings.

http://valid.canardpc.com/2585133

Ambient Temps 23.5C

SonDa5 · Nov 17, 2012, 08:30 AM

Found a sweet spot for 24/7 5ghz.

Ambient Temps 24C
RAM 2133mhz CL 9-11-10-27 1T @1.5v
3570k@5ghz with 1.376v

http://valid.canardpc.com/2585171

This ram rocks!

drdeathx · Nov 17, 2012, 11:18 PM

Quote:

Originally Posted by SonDa5

Found a sweet spot for 24/7 5ghz.

Ambient Temps 24C
RAM 2133mhz CL 9-11-10-27 1T @1.5v
3570k@5ghz with 1.376v

http://valid.canardpc.com/2585171

http://minidriven.com/BlacknBlueforI...47lowv5ghz.jpg

This ram rocks!

I get 9/10/10/20/1T at 2133MHz with 4 x 4G.

SonDa5 · Nov 18, 2012, 02:43 AM

Quote:

Originally Posted by drdeathx

I get 9/10/10/20/1T at 2133MHz with 4 x 4G.

Haven't tried that yet.

With 3770k or 3570k? What CPU core SPeed?

drdeathx · Nov 18, 2012, 02:51 AM

3770k, I run daily at 4.7Ghz but it is stable at 5Ghz too.

SonDa5 · Nov 18, 2012, 09:21 AM

Quote:

Originally Posted by drdeathx

3770k, I run daily at 4.7Ghz but it is stable at 5Ghz too.

I don't know for certain but some people in the over clocking community believe the IMC of the 3770k to be stronger than that of the 3570k.

DOM · Nov 18, 2012, 03:17 PM

im not a big fan of Gskill...

got one 2400 kit and it couldnt oc for nothing and dont like the 2T

wish they where still making the teamgroup 2400 9-11-11-28 1T

SonDa5 · Nov 18, 2012, 08:24 PM

My sticks do 2400 9-11-11-28 1T 1.65v.

SonDa5 · Nov 18, 2012, 09:06 PM

2600mhz 10-12-12-30 2T 1.7v.

http://valid.canardpc.com/2587006

DOM · Nov 18, 2012, 09:08 PM

Have you tried to find the max on these ?

How's your imc on this cpu ?

SonDa5 · Nov 18, 2012, 09:22 PM

Quote:

Originally Posted by DOM

Have you tried to find the max on these ?

How's your imc on this cpu ?

No.

Is there a method to do so?

Right now I'm stable with 5GHZ on 3570k and the memory at 2600mhz 10-12-12-30 2T 1.7v.

My IMC seems strong for 3570k.
