HD6950 recognised as Standard VGA Adapter

po1nt · Dec 29, 2010, 09:24 PM

Hi!
Please help me. I bought today a PowerColor's Radeon HD 6850 and my windows 7 x64 dont recognises it. In the device manager its says Standard VGA Graphics Adapter. My previous card was Radeon HD3850

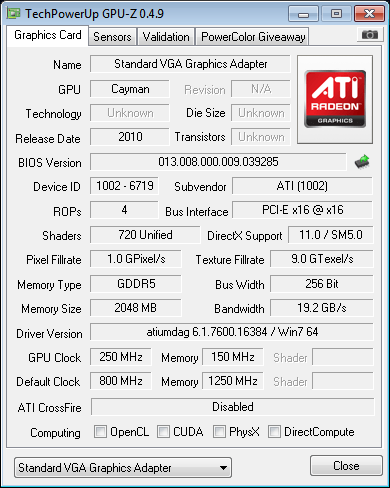

GPU-Z

wtf??

My specs:
Intel Quad Core Q8300
ASUS P5B (Bios 2104 newest)
RAM 2x2 GB 800 Mhz
Corsair TX650

I tried to clear CMOS (but i dont know i am doing it well) After clearing CMOS everytime i have error CMOS Cheksum Error, and CMOS Time and Date not set. f1 for settings and f2 for defaults. f2 and f1 doesnt help still it is vga adapter... I tried to install ATI Catalyst 10.10, 10.11 and 10.12 still nothing. Please help me i want to try out this card. I believe in you! Greetings

PS:
Additional Screens

http://img211.imageshack.us/i/ehhm.jpg/
http://img411.imageshack.us/i/ehh2.jpg/

Wrigleyvillain · Dec 29, 2010, 09:28 PM

Did you uninstall the drivers and reinstall the 10.12's once the new card was in?

po1nt · Dec 29, 2010, 09:29 PM

Yes i did it. I've unistalled drivers by program unistall in control pannel and erased data by Driver Sweeper.

Still doesnt work. Still Standard VGA Graphics Adapter

DannibusX · Dec 29, 2010, 09:38 PM

Try removing the card and reseating it. Also, did you use the appropriate power connectors? Your PSU should be more and good enough to push that thing.

kenkickr · Dec 29, 2010, 09:40 PM

I'd recommend grabbing Driver Sweeper and install it. Uninstall ATI/AMD drivers from within Add/Remove Programs and reboot into safe mode. Run Driver Sweeper and clean all ATI display drivers and reboot back to normal mode. Install your 10.10e drivers or newer, which ever you prefer, and see what happens.

po1nt · Dec 29, 2010, 09:44 PM

Quote:

Originally Posted by DannibusX

Try removing the card and reseating it. Also, did you use the appropriate power connectors? Your PSU should be more and good enough to push that thing.

Quote:

Originally Posted by kenkickr

I'd recommend grabbing Driver Sweeper and install it. Uninstall ATI/AMD drivers from within Add/Remove Programs and reboot into safe mode. Run Driver Sweeper and clean all ATI display drivers and reboot back to normal mode. Install your 10.10e drivers or newer, which ever you prefer, and see what happens.

Did it. Nothing, still Standard VGA. Power connectors are appropriate HD6850 is 2x6pin i plugged it like that.

DannibusX · Dec 29, 2010, 09:46 PM

Where did you buy it at?

Something really weird is going on here and the card isn't installing the driver correctly. Look at the driver version in your screen shot. It's not even close to, say, 10.11 like in the screen shot below. Ignore the red box, this is a screen posted by W1zzard in the 6950 unlock thread.

Are you sure the drivers are completing installation, or could it be saying that CCC is up to date. I had this issue yesterday when I was installing drivers for my 5970.

Did you just remove and delete the driver in Device Manager, or did you completely remove CCC? I would run the installer and select uninstall, and then reinstall the entire package.

niemion · Dec 29, 2010, 09:53 PM

I had the same problem today.

Don't download the AMD Catalyst 10.12 Preview for Windows 7– Featuring the new Catalyst Control Center, 110 MB, 10.12, 12/13/2010 (https://a248.e.akamai.net/f/674/9206..._Win7_Dec7.exe)

It doesn't contain the driver and thus doesn't install it.

Instead, download and install this: Catalyst Software Suite (64 bit) English Only, 72.6 MB, 10.12 12/13/2010 (https://a248.e.akamai.net/f/674/9206...dd_ccc_enu.exe)

Should fix your problems. If the cause is the same.

po1nt · Dec 29, 2010, 09:53 PM

It's retail from polish shop. komputronik.pl. New foliage never opened.

po1nt · Dec 29, 2010, 10:03 PM

Quote:

Originally Posted by niemion

I had the same problem today.

Don't download the AMD Catalyst 10.12 Preview for Windows 7– Featuring the new Catalyst Control Center, 110 MB, 10.12, 12/13/2010 (https://a248.e.akamai.net/f/674/9206..._Win7_Dec7.exe)

It doesn't contain the driver and thus doesn't install it.

Instead, download and install this: Catalyst Software Suite (64 bit) English Only, 72.6 MB, 10.12 12/13/2010 (https://a248.e.akamai.net/f/674/9206...dd_ccc_enu.exe)

Should fix your problems. If the cause is the same.

OMG Best man in the world

Thanks! Best regards for you!

niemion · Dec 29, 2010, 10:07 PM

Quote:

Originally Posted by po1nt

OMG Best man in the world

Thanks! Best regards for you!

No problem.

DarthElvis · Dec 30, 2010, 02:04 AM

Quote:

Originally Posted by po1nt

It's retail from polish shop. komputronik.pl. New foliage never opened.

I'd take my card back if it was wrapped in leaves and twigs and shit

Just messin' with ya. Glad you got it sorted.

Mussels · Dec 30, 2010, 02:09 AM

i got beaten to it, but some of the latest drivers dont have support for the latest cards.

its a bit contradictory i know, but you already found out about it.
