AMD Radeon HD 7900 Key Features Listed

Discussion in 'News' started by btarunr, Dec 19, 2011.

  1. btarunr

    btarunr Editor & Senior Moderator Staff Member

    Joined:
    Oct 9, 2007
    Messages:
    28,847 (11.09/day)
    Thanks Received:
    13,714
    Location:
    Hyderabad, India

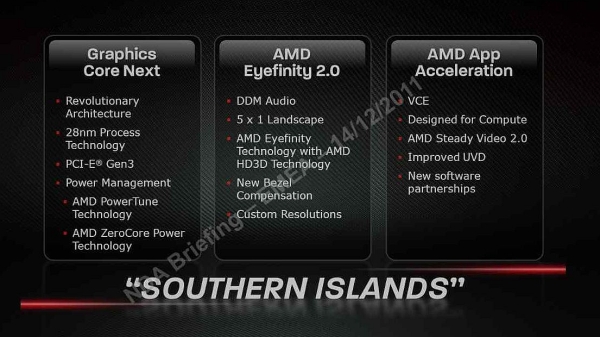

    We've already been through the specifications of HD 7970 "Tahiti" in some detail that matters to those who can draw a performance hunch looking at them. This latest slide shows you the feature-set this GPU comes with. To begin with, there are three main categories of feature updates: Graphics CoreNext, AMD Eyefinity 2.0, and AMD APP Acceleration. AMD claims CoreNext to be a "revolutionary" new architecture that changes the way the GPU crunches numbers.

    For the past five generations (since Radeon HD 2000), AMD GPUs have used the VLIW (very-long instruction word) core arrangement. Even the latest VLIW4 introduced by Radeon HD 6900 series, was an evolution, than a revolution of that. CoreNext replaces VLIW stream processors with super-scalar Graphics Compute cores. This should translate to higher performance per mm² die-area, resulting in smaller GPUs, giving AMD room for greater cost-cutting if the competition from NVIDIA for this generation takes effect. The GPU itself is built on TSMC's new 28 nm silicon fabrication process. Next up, AMD confirmed support for PCI-Express 3.0 interface, that nearly doubles system bus bandwidth over the previous generation.

    [​IMG] [​IMG]

    To manage power, there's AMD's PowerTune technology that adjusts clock speeds both ways (both below and above specifications), to remain within a set power envelope. Then there's talk of ZeroCore technology, a feature that completely turns off the GPU when the operating system instructs it to "turn off monitors" when idling. This reduces power draw of the graphics card to under 3W, that's a 10X idle power draw reduction over the previous generation. This feature is also said to send non-primary GPUs when in a CrossFire setup (the second, third and fourth) to ZeroCore state while keeping the primary GPU (to which displays are connected) awake, when the user isn't running 3D-intensive tasks.

    Moving on to Eyefinity 2.0, there's talk of some big changes. First is DDM audio, a directional audio system that outs independent 7.1 channel audio streams through each of the HDMI and DisplayPort connectors. When you move an audio output-producing application's window from one display to another, its audio stream dynamically shifts from one connector to another. A practical application of this could be running an extra-long HDMI cable from your PC to your living room. We'll leave your creativity to do the rest of the thinking. Eyefinity 2.0 will keep support for 5 x 1 landscape arrangement. The system will now support HD3D, display of stereoscopic 3D from each member display while compensating for the display's angle to the user's perspective and bezel.

    Moving on, the APP runtime gets some feature updates that take advantage of the more powerful GPU compute architecture these GPUs come with. It will be designed for [heavy] computing loads (bitcoin magnets?), will feature SteadyVideo 2.0, which will further enhance videos after compensating the camera shake, Improved UVD could mean more video decoding features. Home 3D video is the next big thing, so the new UVD engine could address some performance issues related to that. Finally AMD will expand its developer ecosystem, more applications will support AMD APP.

    Source: DonanimHaber

    Last edited: Dec 19, 2011
  2. chaotic_uk New Member

    Joined:
    Mar 28, 2008
    Messages:
    685 (0.28/day)
    Thanks Received:
    25
    small typo ?

  3. claylomax

    claylomax

    Joined:
    Apr 10, 2010
    Messages:
    1,612 (0.96/day)
    Thanks Received:
    261
    Location:
    London
    It's going to be a wicked graphics card, can't wait for the reviews. :)

  4. TheGuruStud

    TheGuruStud

    Joined:
    Sep 15, 2007
    Messages:
    1,641 (0.63/day)
    Thanks Received:
    172
    Location:
    Police/Nanny State of America
    Genius on the audio output. There's so many features packed in to this bad boy.

  5. ViperXTR

    ViperXTR

    Joined:
    Jan 31, 2011
    Messages:
    1,394 (1.00/day)
    Thanks Received:
    407
    im more interested in the GCN, wonder how effective this shift would be in real world apps.

  6. DrunkenMafia

    Joined:
    Jan 12, 2007
    Messages:
    2,277 (0.79/day)
    Thanks Received:
    232
    Location:
    Cairns QLD, Aussie
    I will love if one of the gpus turn off completely when on your desktop, it makes perfect sense. I wonder if the gpu fan will switch off as well? They better make sure it work properly if it does. :) lol.

    There are some really inovative features in the new card, lets hope there is some serious hp too...

  7. Damn_Smooth

    Damn_Smooth New Member

    Joined:
    May 16, 2011
    Messages:
    1,435 (1.11/day)
    Thanks Received:
    478
    Location:
    A frozen turdberg.
    So it would be safe to assume that W1zz is already playing with these right? If launch is the 22nd, he needs time for a review.

  8. btarunr

    btarunr Editor & Senior Moderator Staff Member

    Joined:
    Oct 9, 2007
    Messages:
    28,847 (11.09/day)
    Thanks Received:
    13,714
    Location:
    Hyderabad, India
    Yes.

  9. Damn_Smooth

    Damn_Smooth New Member

    Joined:
    May 16, 2011
    Messages:
    1,435 (1.11/day)
    Thanks Received:
    478
    Location:
    A frozen turdberg.
    Thanks. I wish I was W1zz right now.

  10. RejZoR

    RejZoR

    Joined:
    Oct 2, 2004
    Messages:
    4,777 (1.29/day)
    Thanks Received:
    1,003
    Location:
    Europe/Slovenia
    More than general computing, i'd like to know if it brings any new features to the graphics itself. Like HD6900 series brought EQAA anti-aliasing, new MLAA anti-aliasing which i totally like etc. Stuff like this. They just talk architecture but no one is mentioning such goodies which are at least for me far more important.

  11. btarunr

    btarunr Editor & Senior Moderator Staff Member

    Joined:
    Oct 9, 2007
    Messages:
    28,847 (11.09/day)
    Thanks Received:
    13,714
    Location:
    Hyderabad, India
    It brings DirectX 11.1.

  12. Fx

    Fx

    Joined:
    Oct 31, 2008
    Messages:
    512 (0.23/day)
    Thanks Received:
    88
    Location:
    Portland, OR
    I am very excited with this card and can hardly wait to see some reviews

  13. pantherx12

    pantherx12 New Member

    Joined:
    Jan 2, 2009
    Messages:
    9,714 (4.52/day)
    Thanks Received:
    1,699
    Location:
    ENGLAND-LAND-LAND
    Hopefully wizz runs a few open cl demos for the lulz to give us an idea of how much better these are at compute.

  14. ViperXTR

    ViperXTR

    Joined:
    Jan 31, 2011
    Messages:
    1,394 (1.00/day)
    Thanks Received:
    407
    Civ V for DirectCompute, i remember the HD 5000/6000 were poor at this compared to the nvidia counterparts

    pantherx12 says thanks.
  15. Trackr New Member

    Joined:
    Mar 18, 2011
    Messages:
    265 (0.20/day)
    Thanks Received:
    15
    The launch is in 3 days??

    Woah, where have I been..

  16. mediasorcerer New Member

    Joined:
    Sep 15, 2011
    Messages:
    979 (0.84/day)
    Thanks Received:
    225
    Location:
    coast ,melbourne
    Im having a chuckle to myself right now, i have absolutely no reason whatsoever to upgrade my current gpu to one of these new rads, but i really doubt that kinda logic is going to stop me in a week or two somehow, hahaha!
    ps anyone want to by a 6950?

  17. KashunatoR

    KashunatoR

    Joined:
    Sep 10, 2010
    Messages:
    107 (0.07/day)
    Thanks Received:
    6
    Location:
    Romania
    so i understand we will get the review on the 22nd, right?

  18. btarunr

    btarunr Editor & Senior Moderator Staff Member

    Joined:
    Oct 9, 2007
    Messages:
    28,847 (11.09/day)
    Thanks Received:
    13,714
    Location:
    Hyderabad, India
    Yes, there will be reviews from TPU on the 22nd.

    Easo, Frogger and KashunatoR say thanks.
  19. cdawall where the hell are my stars

    Joined:
    Jul 23, 2006
    Messages:
    20,683 (6.79/day)
    Thanks Received:
    2,984
    Location:
    some AF base
    Looks like a pretty packed card. Wonder if it will have enough kick for a 1080P movie on one screen and video games on another.

  20. phanbuey

    phanbuey

    Joined:
    Nov 13, 2007
    Messages:
    5,207 (2.03/day)
    Thanks Received:
    975
    Location:
    Miami
    well my 570 can currently do 720P netflix and play skyrim with no noticeable hit, so I dont see why not. I think that is more of a software thing though.

    Still have no idea how to bind programs to default sound devices in windows tho :shadedshu

  21. air_ii

    air_ii

    Joined:
    Nov 23, 2004
    Messages:
    129 (0.04/day)
    Thanks Received:
    21
    Location:
    POZ, PL
    HalfAHertz says thanks.
  22. radrok

    radrok

    Joined:
    Oct 26, 2011
    Messages:
    2,990 (2.66/day)
    Thanks Received:
    803
    Location:
    Italy
    The upgrade itch is sooo huge

    The possibility to have 120hz across eyefinity will be awesome, will need a lot of horsepower to run over 60fps though.

  23. devguy

    devguy

    Joined:
    Feb 17, 2007
    Messages:
    1,239 (0.44/day)
    Thanks Received:
    171
    Location:
    SoCal
    So much win! Finally!

  24. pantherx12

    pantherx12 New Member

    Joined:
    Jan 2, 2009
    Messages:
    9,714 (4.52/day)
    Thanks Received:
    1,699
    Location:
    ENGLAND-LAND-LAND
    [​IMG]



    Awwwwwwwww yeaaaaah!!!!!!!!!!!!!!


    Mixed matched resolutions!

  25. Delta6326

    Delta6326

    Joined:
    May 21, 2008
    Messages:
    3,840 (1.62/day)
    Thanks Received:
    670
    Location:
    Iowa, USA
    Awesome! I really like the new Eyefinity. Each connector gets its own sound. So I can have a movie running in the living room for the family while I game in my room!
