Aqua Computer Announces Radeon R9 295X2 Full Cover Block

Discussion in 'News' started by btarunr, Apr 22, 2014.

  1. btarunr

    btarunr Editor & Senior Moderator Staff Member

    Joined:
    Oct 9, 2007
    Messages:
    30,158 (10.69/day)
    Thanks Received:
    14,568
    Location:
    Hyderabad, India

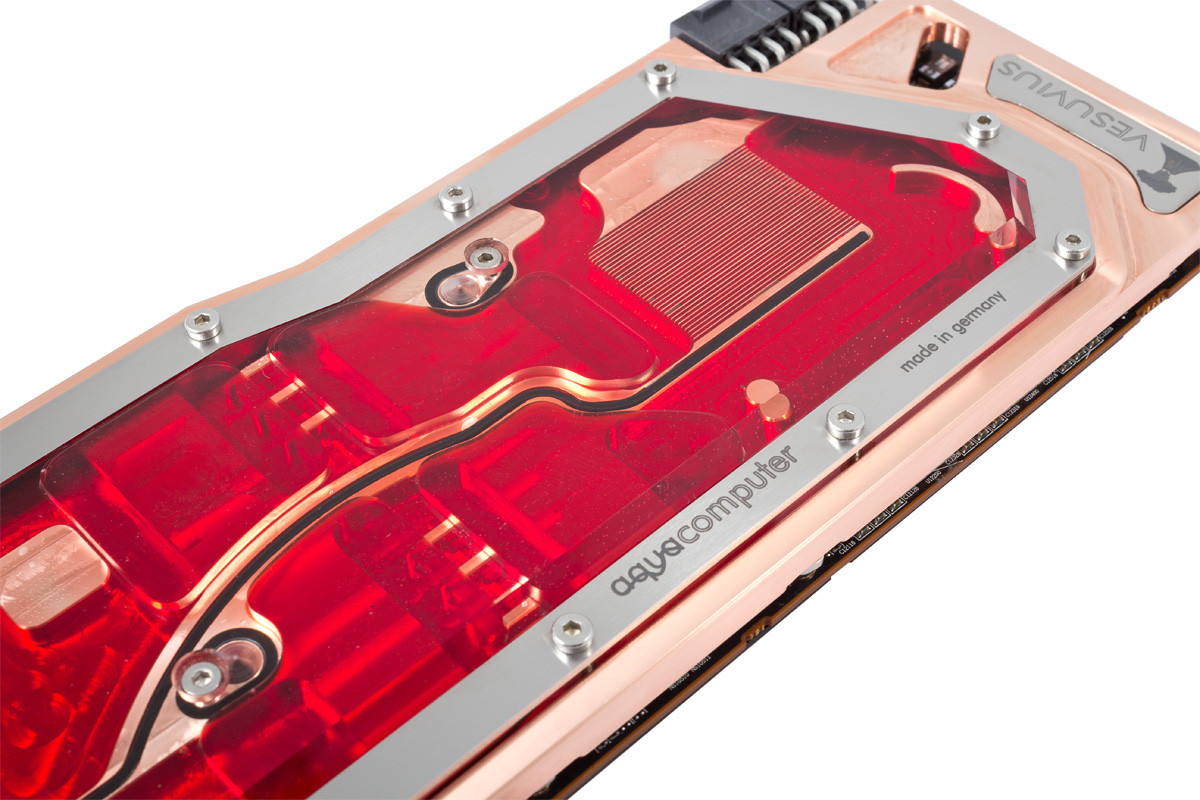

    The German-based liquid cooling specialist Aqua Computer has added the full cover water block kryographics Vesuvius for R9 295X2 cards to its portfolio. The block is entirely made in Germany and milled from 2.72kg high-purity electrolytic copper raw material. It covers the GPUs, all RAM chips, the voltage regulators and the PCIe bridge chip. All areas are covered by the flow path of the cooling liquid to provide an excellent cooling performance.

    Both GPUs are covered by a micro structure with a 0.5 mm grid. The water flows through both structures in parallel which allows an even temperature for both GPUs. To achieve this effect the cooling structures use a different depth which makes sure that the same amount of water flows through both of them.

    [​IMG] [​IMG] [​IMG] [​IMG]

    The contact surface of the base is high gloss polished. To gain the last bit of cooling performance the kryographics Vesuvius for R9 295X2 allows using thermal grease instead of thermal pads for the RAM chips. Like the base the Plexiglas cover is also milled from a solid block. To avoid the risk of cracks Aqua Computer uses casted Plexiglas and does not drill any threads inside the cover. The cover is held in place by a stainless steel frame which allows for an evenly distributed pressure.

    For an easy installation the block comes with preassembled distance pieces so the screws can be tightened as far as they will go to achieve an optimal contact pressure. The block can be used with regular G1/4" fittings and the connection terminal offers threads into both directions. The regular connection terminal can be also exchanged with the optional kryoconnect adapter which can be used for Crossfire setups. To honor the GPUs and graphics cards codenames the block also features a little map of Hawaii which is integrated into the flow path and a little engraved volcano can be found on a stainless steel insert.

    The block with a copper base is available for 169.90 Euro while a nickel plated variant will follow soon for 184.90 Euro. Both variants will be also available with a smoked Plexiglas top.

    Those who look for the ultimate cooling experience will be also able to purchase a passive and active backplate. They will be available later in May; prices are TBA.

    manofthem and INSTG8R say thanks.
  2. INSTG8R

    INSTG8R

    Joined:
    Nov 26, 2004
    Messages:
    3,227 (0.83/day)
    Thanks Received:
    676
    Location:
    Lost in Norway
    Handsome! I love Aqua Computers. I have been using them since I went water on my X1900's in Crossfire and currently run one of their Kryos blocks on my CPU.

  3. TheDeeGee

    TheDeeGee

    Joined:
    Aug 2, 2012
    Messages:
    215 (0.20/day)
    Thanks Received:
    39
    Location:
    Netherlands
    Now i'm not using Watercooling, nor am an expert at it.

    But should't the In/Out be in the middle of the Block? The second GPU is quite far away. Wouldn't it lose flow pressure?

  4. MaKCuMyC

    MaKCuMyC

    Joined:
    Mar 27, 2011
    Messages:
    63 (0.04/day)
    Thanks Received:
    8
    Location:
    Ukraine
    nice view.

  5. manofthem

    manofthem WCG-TPU Team All-Star!

    Joined:
    Jan 9, 2011
    Messages:
    7,646 (4.68/day)
    Thanks Received:
    13,284
    That's a nice looking block! It looks heavy, and I'd be grabbing a backplate for sure.
    Edit: that is, if I had the money for this setup ;)

    Last edited: Apr 22, 2014
    Crunching for Team TPU
  6. Animalpak

    Animalpak

    Joined:
    Feb 8, 2008
    Messages:
    2,235 (0.83/day)
    Thanks Received:
    643
    Location:
    Switzerland
    This will be a sold out !!

    Last edited: Apr 22, 2014
  7. haswrong

    Joined:
    Jun 11, 2013
    Messages:
    245 (0.33/day)
    Thanks Received:
    21
    i got it wrong.. i thought this was one way serial loop, but the pressure is indeed halved for both gpus (parallel flow). so your suggestion is relevant. moreover the right hand side chip will be warmed by half of vrms a bit.

    Last edited: Apr 22, 2014
  8. bogami

    bogami

    Joined:
    Jan 15, 2012
    Messages:
    377 (0.30/day)
    Thanks Received:
    17
    Location:
    Slovenia
    However, this is not a loupe but this is the only hitting each other and reduce the fluidity consequent, temperature rise!o_OSolutions is very worrying. :shadedshu: I have it on my 2x TGT GTX590. Efficiency is poor and it is not recommended. Of course it is always much better than the specified but would recommend a different solution flow through the processor.'s !!Nice looking it's not enough!:ohwell:

  9. chodaboy19

    Joined:
    Nov 23, 2010
    Messages:
    88 (0.05/day)
    Thanks Received:
    3
    Wow ridiculously good looking!

  10. night.fox

    night.fox

    Joined:
    Dec 23, 2012
    Messages:
    1,098 (1.19/day)
    Thanks Received:
    643
    Location:
    south korea
    hmmmm insteresting. now the 295x2 is a single slot card after water block....

  11. the54thvoid

    the54thvoid

    Joined:
    Dec 14, 2009
    Messages:
    3,990 (1.97/day)
    Thanks Received:
    2,364
    Location:
    Glasgow - home of formal profanity
    It's a shame they don't ship a single slot bracket with it.

  12. AsRock

    AsRock TPU addict

    Joined:
    Jun 23, 2007
    Messages:
    11,990 (4.09/day)
    Thanks Received:
    2,190
    Location:
    US
    Well they put some love in to that.. Best WC i have seen...

  13. Prima.Vera

    Prima.Vera

    Joined:
    Sep 15, 2011
    Messages:
    2,475 (1.79/day)
    Thanks Received:
    353
    Yep. For sure this is the best looking block ever build for a video card. I think it will be a best seller among rich guys who went for the 295X.

  14. radrok

    radrok

    Joined:
    Oct 26, 2011
    Messages:
    3,061 (2.28/day)
    Thanks Received:
    834
    Location:
    Italy
    Aquacomputer quality and details are unmatched. I recently swapped coolant in my loop and the waterblocks are pristine, like the day I bought them.

    Wouldn't buy another brand to be honest.

    AsRock and manofthem say thanks.
  15. eidairaman1

    eidairaman1

    Joined:
    Jul 2, 2007
    Messages:
    14,184 (4.86/day)
    Thanks Received:
    2,060
    how about the 290/290X? Its Nice and Matches the Radeon Red

  16. mhadina

    Joined:
    Mar 13, 2010
    Messages:
    23 (0.01/day)
    Thanks Received:
    1
    Giving 0,1 °C delta :)

  17. mhadina

    Joined:
    Mar 13, 2010
    Messages:
    23 (0.01/day)
    Thanks Received:
    1
    One slot with 3kg to carry, such a heavy thing to deal with.

  18. night.fox

    night.fox

    Joined:
    Dec 23, 2012
    Messages:
    1,098 (1.19/day)
    Thanks Received:
    643
    Location:
    south korea
    yeah. that would be nice. calling all waterblock manufacturers. Just a heads up. single slot bracket that comes with it should be nice. :)

  19. Vinska

    Vinska

    Joined:
    Jul 23, 2011
    Messages:
    1,506 (1.05/day)
    Thanks Received:
    1,416
    Location:
    Kaunas, Lithuania
    Whether this block is relatively awesome or not in terms of water-cooling, I cannot tell.
    But it sure as hell looks great!

    Crunching for Team TPU
  20. raptori

    Joined:
    Mar 20, 2008
    Messages:
    658 (0.25/day)
    Thanks Received:
    66
    German engineering .

  21. Bytales

    Joined:
    Oct 15, 2010
    Messages:
    66 (0.04/day)
    Thanks Received:
    4
    I know where my money goes.
