ASRock P55 Deluxe Bundles SATA III Addon-Card

Discussion in 'News' started by btarunr, Aug 18, 2009.

  1. btarunr

    btarunr Editor & Senior Moderator Staff Member

    Joined:
    Oct 9, 2007
    Messages:
    28,233 (11.37/day)
    Thanks Received:
    13,580
    Location:
    Hyderabad, India

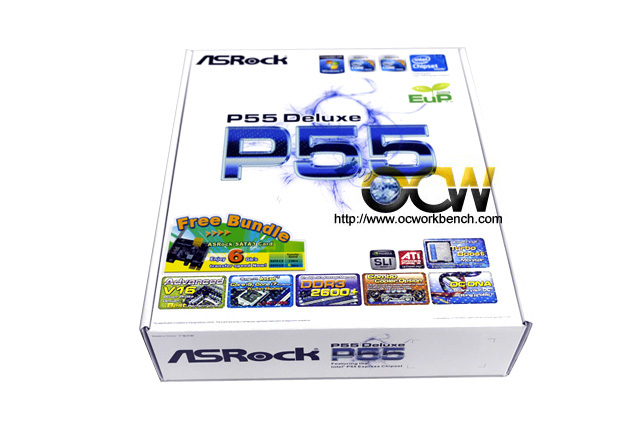

    ASRock chose a smart way to make SATA III part of its high-end motherboards' feature-set without modifying board design, or coming up with new SKUs, simply by bundling a SATA III addon-card. The company's upcoming P55 Deluxe advertises SATA III support, and packs a tiny, half-height card that uses PCI-Express (2.0?) x1 interface. At the heart of it is a Marvell 88SE9123 SATA III controller. The card has three ports in total, two angled internal ports, and one eSATA III. Headers are also provided for HDD status LEDs on the system chassis. While Marvell 88SE9123 has been at the center of controversy recently that reportedly caused some motherboard makers to pull out products that use it, Marvell maintains that the issue is only related to the controller's additional PATA-related functionality, and not SATA III. Now if only ASRock also bundles a USB 3.0 card.

    [​IMG] [​IMG]

    Source: OCWorkbench
  2. pr0n Inspector

    pr0n Inspector

    Joined:
    Dec 8, 2008
    Messages:
    1,332 (0.65/day)
    Thanks Received:
    164
    SATA Revision 3.0 ... :shadedshu
  3. DrPepper

    DrPepper The Doctor is in the house

    Joined:
    Jan 16, 2008
    Messages:
    7,483 (3.14/day)
    Thanks Received:
    813
    Location:
    Scotland (It rains alot)
    mmmm sata III and SSD action :D
  4. Mussels

    Mussels Moderprator Staff Member

    Joined:
    Oct 6, 2004
    Messages:
    41,983 (11.73/day)
    Thanks Received:
    9,390
    PCI-E 1x on SATA III? useless.

    1x slots can only do 125MB/s each way, which caps this at sata I speeds.


    Even if the card uses PCI-E 2.0, very few motherboards use 2.0 for the 1x slots, so unless they've made an exception here, this is a marketing gimmick (even at 2.0, it makes it SATA II speeds only)
  5. $ReaPeR$

    $ReaPeR$

    Joined:
    Jul 14, 2008
    Messages:
    142 (0.06/day)
    Thanks Received:
    10
    Location:
    Athens-Greece
    this is why i like AsRock :)
  6. Mussels

    Mussels Moderprator Staff Member

    Joined:
    Oct 6, 2004
    Messages:
    41,983 (11.73/day)
    Thanks Received:
    9,390
    for having cool features that dont do anything?


    Normally i like asrock for their addon stuff, but this one just doesnt work.
  7. Fitseries3

    Fitseries3 Eleet Hardware Junkie

    Joined:
    Oct 6, 2007
    Messages:
    15,509 (6.24/day)
    Thanks Received:
    3,106
    Location:
    Republic of Texas
    what a POS move.

    alot of the other boards are coming with onboard sata 3.
  8. DrPepper

    DrPepper The Doctor is in the house

    Joined:
    Jan 16, 2008
    Messages:
    7,483 (3.14/day)
    Thanks Received:
    813
    Location:
    Scotland (It rains alot)
    ugh never thought about that.

    What boards have SATA III anyway ?
  9. satelitko

    satelitko

    Joined:
    Mar 13, 2009
    Messages:
    116 (0.06/day)
    Thanks Received:
    13
    :ohwell:
    Mussels says thanks.
  10. boogerlad

    Joined:
    Jun 29, 2006
    Messages:
    219 (0.07/day)
    Thanks Received:
    12
    not enough bandwidth is a bad move for people wanting this to run ssd.
  11. LittleLizard

    LittleLizard New Member

    Joined:
    Nov 22, 2008
    Messages:
    3,775 (1.82/day)
    Thanks Received:
    575
    Location:
    Latin America, Uruguay
    and when they add it on board, which interface do you think it uses? PCI bus. NO. Pci-e 1x.

    Is a good move by asrock in my opinion
  12. [I.R.A]_FBi

    [I.R.A]_FBi New Member

    Joined:
    May 19, 2007
    Messages:
    7,664 (2.92/day)
    Thanks Received:
    540
    Location:
    c:\programs\kitteh.exe
    Not necessarily, it uses some of the same lanes which pic-e 1x happens to be on as well
  13. Mussels

    Mussels Moderprator Staff Member

    Joined:
    Oct 6, 2004
    Messages:
    41,983 (11.73/day)
    Thanks Received:
    9,390
    if it was onboard, they could have given it more lanes. not every onboard device uses a 1x lane.
  14. [I.R.A]_FBi

    [I.R.A]_FBi New Member

    Joined:
    May 19, 2007
    Messages:
    7,664 (2.92/day)
    Thanks Received:
    540
    Location:
    c:\programs\kitteh.exe
    ^ what he said
  15. Mussels

    Mussels Moderprator Staff Member

    Joined:
    Oct 6, 2004
    Messages:
    41,983 (11.73/day)
    Thanks Received:
    9,390
    also, the onboard ones usually only have one port for an e-sata, which is fine for one lane. 125MB/s doesnt limit modern HDDs (non SSD) so it made sense, until now.

    This thing has three ports with double the bandwidth per port, so its downright sparta to put it on a 1x.
  16. REVHEAD New Member

    Joined:
    Aug 27, 2005
    Messages:
    300 (0.09/day)
    Thanks Received:
    28
    Location:
    Sydney/ Australia
    All P55 boards are Sata 3 as far as I was aware, Asrock must have forgot and added it as an after thought, "oh gee were nice lets give these guys a crippled PCIE version running @ 1X", wait for the big guns to release there boards.
  17. btarunr

    btarunr Editor & Senior Moderator Staff Member

    Joined:
    Oct 9, 2007
    Messages:
    28,233 (11.37/day)
    Thanks Received:
    13,580
    Location:
    Hyderabad, India
    Firstly the Marvell controller is PCI-E 2.0 compliant, secondly, PCI-E 2.0 is 500 MB/s per lane, per direction.
  18. Mussels

    Mussels Moderprator Staff Member

    Joined:
    Oct 6, 2004
    Messages:
    41,983 (11.73/day)
    Thanks Received:
    9,390
    i'm gunna wiki that.

    I was under the impression its 250MB/s each way, 500MB/s total 'per lane' - its like wifi and USB, where they add both directions to the bandwidth


    edit: having trouble finding information either way.


    http://www.directron.com/expressguide.html
    Each 1x lane in PCI Express can transmit in both directions at once. In the table the first number is the bandwidth in one direction and the second number is the combined bandwidth in both directions.


    yay i was right :D (i hate being wrong)
    Last edited: Aug 19, 2009
  19. btarunr

    btarunr Editor & Senior Moderator Staff Member

    Joined:
    Oct 9, 2007
    Messages:
    28,233 (11.37/day)
    Thanks Received:
    13,580
    Location:
    Hyderabad, India
    And you are wrong. Did you even see this chart in the same page?

    [​IMG]

    PCI-E 1x 250 MB/s [500]: means that the total bandwidth is 500 MB/s and 250 MB/s per direction. And yes, that old article is talking about PCI-E 1.x, not 2.0.
  20. Mussels

    Mussels Moderprator Staff Member

    Joined:
    Oct 6, 2004
    Messages:
    41,983 (11.73/day)
    Thanks Received:
    9,390
    no it isnt. see the part i put in bold.

    ^ thats FROM THE ARTICLE.

    edit: ah i get your point. you're saying the article is about 1.0/1.1.

    I will confirm.
  21. btarunr

    btarunr Editor & Senior Moderator Staff Member

    Joined:
    Oct 9, 2007
    Messages:
    28,233 (11.37/day)
    Thanks Received:
    13,580
    Location:
    Hyderabad, India
    Yes, and get your comprehension of the same quoted text right. For PCI-E 1.1, it pushes 250 MB/s per direction.
  22. Mussels

    Mussels Moderprator Staff Member

    Joined:
    Oct 6, 2004
    Messages:
    41,983 (11.73/day)
    Thanks Received:
    9,390
    i saw the article was last updated in 2008, and assumed it was about PCI-E 2.0

    he doesnt actually say if he's talking about 1.1, or 2.0... damnit, that does take us back to ground zero :p


    In fact, after googling i'm starting to lean your direction. every damned google seems to be coming up with graphics card crap, and i did indeed make the mistake with that article thinking it was 2.0 based.


    My testing did seem to show otherwise, when it came to my PCI-E 1x E-SATA card, (with numbers exactly where i'd expect them) but maybe thats just a coincidence.
  23. btarunr

    btarunr Editor & Senior Moderator Staff Member

    Joined:
    Oct 9, 2007
    Messages:
    28,233 (11.37/day)
    Thanks Received:
    13,580
    Location:
    Hyderabad, India
    It does not. There's no mention of PCI-E 2.0 anywhere, and it's talking about PCI-E vs. AGP, so it's the default 1.x standard. It does't take us back to to ground zero. PCI-E 1.1 is 250 MB/s per direction, and 2.0 is 500 MB/s per direction. Ask any expert you want to.
  24. Mussels

    Mussels Moderprator Staff Member

    Joined:
    Oct 6, 2004
    Messages:
    41,983 (11.73/day)
    Thanks Received:
    9,390
    god, stop quoting me before i finish editing :p

    you dont even get enough time to let me agree with you!

    yes folks, thats it: BTA has proven me wrong.
    I am beaten, weak and feeble and submit to his authority. (for about an hour...)
    Last edited: Aug 19, 2009
  25. REVHEAD New Member

    Joined:
    Aug 27, 2005
    Messages:
    300 (0.09/day)
    Thanks Received:
    28
    Location:
    Sydney/ Australia
    No point gys , rember sata 3 is 600mbps so even is 1X pcie was 500mbps its still a fail for pple who want to raid there ssds, they will still be starving for bandwidth with this half baked card.
