ASRock Z68 Extreme4 Motherboard Pictured

Discussion in 'News' started by btarunr, Apr 25, 2011.

  1. btarunr

    btarunr Editor & Senior Moderator Staff Member

    Joined:
    Oct 9, 2007
    Messages:
    30,509 (10.58/day)
    Thanks Received:
    14,791
    Location:
    Hyderabad, India

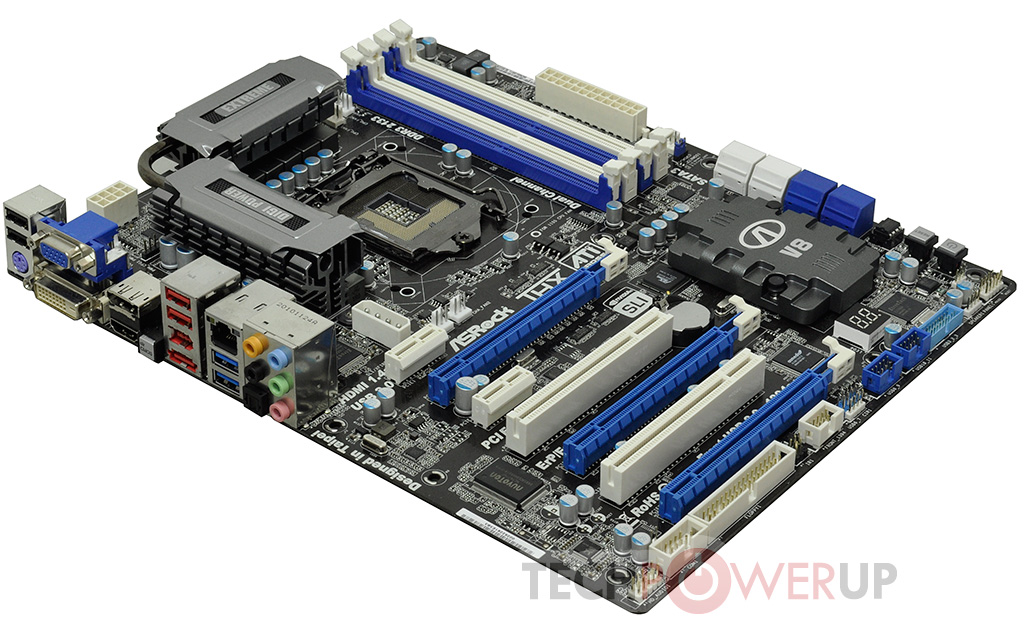

    ASRock is ready with its latest performance motherboard based on the upcoming Intel Z68 chipset, the ASRock Z68 Extreme4. The Z68 chipset combines the overclocking features of P67 with integrated graphics support of H67, and adds a few more features such as SSD boost. The Z68 Extreme4 uses a V8 power phase design for the CPU socket, the board supports dual-DDR3 memory with memory multipliers supporting DDR3-2133 MHz. The onboard display connectivity includes DVI, D-Sub, HDMI 1.4a, and DisplayPort. Expansion slots include three PCI-Express x16 (x16/NC/x4 or x8/x8/x4), two each of PCI-E x1 and PCI.

    The "4" in Extreme4 denotes four each of USB 3.0 and SATA 6 Gb/s ports. There are two SATA 6 Gb/s from the PCH, and two from an additional controller; and two EtronTech USB 3.0 controllers that drive two ports on the rear panel, and two by internal headers (for front-panel or bracket). The Z68 Extreme4 features a new GUI-driven UEFI BIOS that allows booting from volumes over 3 TB in capacity. Other connectivity features include 8-channel HD audio with optical SPDIF output and THX TruStudio Pro, eSATA 3 Gb/s, Firewire, and a number of USB 2.0 ports. There are a few nice overclocker-friendly touches such as high DRAM multipliers, rear clear CMOS, and power/reset buttons on board. ASRock's new board will reach stores in mid-May.

    [​IMG]

    AlienIsGOD says thanks.
  2. Jstn7477

    Jstn7477

    Joined:
    Aug 30, 2009
    Messages:
    3,960 (1.81/day)
    Thanks Received:
    1,624
    Location:
    Sarasota, Florida, USA
    Looks neat. I don't have a desktop currently, but I'm sure many Intel fans have probably been waiting for Z68 to arrive.

    Crunching for Team TPU More than 25k PPD
  3. craigo

    craigo

    Joined:
    Jun 1, 2006
    Messages:
    686 (0.20/day)
    Thanks Received:
    90
    Location:
    Australia
    I have recently been checking reviews and previews on the existing and new intel chipset mainboards and have been quite surprised by Asrock`s offerings they seem to be offering veryh feature rich mainboards for the price of the other Taiwanese manufacturers (Asus,Gigabyte) low end to mid range boards (case in point why the hell would i buy a ud5 in the p6 range when i can have the much better specced Asrock for ud3 prices). If this trend continues i may even consider an Asrock board for my next upgrade (which will be socket 2011 and not a moment beforehand) instead of my usual Intel board...if i can bring myself to buy a non-Intel board that is.. iether way these Asrock boards are scary well specced at the best price-point in the market

  4. micropage7

    micropage7

    Joined:
    Mar 26, 2010
    Messages:
    6,858 (3.45/day)
    Thanks Received:
    1,671
    Location:
    Jakarta, Indonesia
    unfortunately it doesnt tell us what socket it is

  5. erixx

    erixx

    Joined:
    Mar 24, 2010
    Messages:
    3,724 (1.87/day)
    Thanks Received:
    579
    the 3 headsinks look like not air flow friendly....

  6. heky

    heky

    Joined:
    Sep 9, 2009
    Messages:
    896 (0.41/day)
    Thanks Received:
    145
    Location:
    Slovenia, Europe
    @micropae7

    Its socket 1155, all z68 are.

  7. btarunr

    btarunr Editor & Senior Moderator Staff Member

    Joined:
    Oct 9, 2007
    Messages:
    30,509 (10.58/day)
    Thanks Received:
    14,791
    Location:
    Hyderabad, India
    LGA1155, Lotes-made.

    micropage7 says thanks.
  8. micropage7

    micropage7

    Joined:
    Mar 26, 2010
    Messages:
    6,858 (3.45/day)
    Thanks Received:
    1,671
    Location:
    Jakarta, Indonesia
    thanks. btw since intel told us they gonna change the socket on the future would the 1155 last long?

  9. btarunr

    btarunr Editor & Senior Moderator Staff Member

    Joined:
    Oct 9, 2007
    Messages:
    30,509 (10.58/day)
    Thanks Received:
    14,791
    Location:
    Hyderabad, India
    No, Intel never told us of any socket that would succeed LGA1155.

  10. micropage7

    micropage7

    Joined:
    Mar 26, 2010
    Messages:
    6,858 (3.45/day)
    Thanks Received:
    1,671
    Location:
    Jakarta, Indonesia
    i mean it just a while since 1156 replaced with 1155. i hope 1155 would last longer before any new socket out

  11. craigo

    craigo

    Joined:
    Jun 1, 2006
    Messages:
    686 (0.20/day)
    Thanks Received:
    90
    Location:
    Australia
    @micropage7


    Attached Files:

  12. _JP_

    _JP_

    Joined:
    Apr 16, 2010
    Messages:
    2,685 (1.37/day)
    Thanks Received:
    745
    Location:
    Portugal
    The motherboard looks awesome, but I don't like that molex (like I also don't like every other board that has it, especially in that spot) and I have doubts about those heatsinks.
    FYI, I what that molex is there for.

  13. pantherx12

    pantherx12 New Member

    Joined:
    Jan 2, 2009
    Messages:
    9,714 (3.99/day)
    Thanks Received:
    1,699
    Location:
    ENGLAND-LAND-LAND
    Heatsinks should be fine, lots of phases so even distribution.

    Gigabyte use the same crappy heatsinks.

    And everyone loves gigabyte XD

  14. craigo

    craigo

    Joined:
    Jun 1, 2006
    Messages:
    686 (0.20/day)
    Thanks Received:
    90
    Location:
    Australia
    ..I dont like Gigabyte mainboards!...legs it

  15. pantherx12

    pantherx12 New Member

    Joined:
    Jan 2, 2009
    Messages:
    9,714 (3.99/day)
    Thanks Received:
    1,699
    Location:
    ENGLAND-LAND-LAND
    Nor do I ;)

    They're okay, just not brilliant.

  16. _JP_

    _JP_

    Joined:
    Apr 16, 2010
    Messages:
    2,685 (1.37/day)
    Thanks Received:
    745
    Location:
    Portugal
    Didn't know/noticed that.
    I never owned a motherboard from them.

  17. Dave65

    Dave65

    Joined:
    Mar 7, 2010
    Messages:
    152 (0.08/day)
    Thanks Received:
    30
    Location:
    Michigan
    I had the Extreme 6 before the recall and it was a great board,overclocked as good as my Maximus 4 does now,the only reason I don't have one now it wasn't available in time and I wasn't prepared to wait:)
    But ASROCK boards are great..

  18. Dave65

    Dave65

    Joined:
    Mar 7, 2010
    Messages:
    152 (0.08/day)
    Thanks Received:
    30
    Location:
    Michigan
    Extra power for the PCI-E,it has shown on X58 that some using SLI was burning up the 24 pin socket,I don't remember the specifics but trust me I would not buy a board without one..

  19. _JP_

    _JP_

    Joined:
    Apr 16, 2010
    Messages:
    2,685 (1.37/day)
    Thanks Received:
    745
    Location:
    Portugal
    Dude, I know what the molex is there for. Just read what I wrote.
    I just wish that the manufacturers would find a better place for it or, at least, include a cable extension for it.

  20. Wastedslayer

    Wastedslayer

    Joined:
    Dec 7, 2005
    Messages:
    884 (0.25/day)
    Thanks Received:
    50
    You could probably make one really easy out of an old fan extension cable.

  21. pantherx12

    pantherx12 New Member

    Joined:
    Jan 2, 2009
    Messages:
    9,714 (3.99/day)
    Thanks Received:
    1,699
    Location:
    ENGLAND-LAND-LAND
    See, slightly different design but same diecast heat-sinks with silly covers. :laugh:
    [​IMG]

    _JP_ says thanks.
  22. btarunr

    btarunr Editor & Senior Moderator Staff Member

    Joined:
    Oct 9, 2007
    Messages:
    30,509 (10.58/day)
    Thanks Received:
    14,791
    Location:
    Hyderabad, India
    Doubt this :p :
    [​IMG]

    _JP_ says thanks.
  23. pantherx12

    pantherx12 New Member

    Joined:
    Jan 2, 2009
    Messages:
    9,714 (3.99/day)
    Thanks Received:
    1,699
    Location:
    ENGLAND-LAND-LAND
  24. Wile E

    Wile E Power User

    Joined:
    Oct 1, 2006
    Messages:
    24,324 (7.47/day)
    Thanks Received:
    3,778
    They were most certainly brilliant on X58.

  25. Dave65

    Dave65

    Joined:
    Mar 7, 2010
    Messages:
    152 (0.08/day)
    Thanks Received:
    30
    Location:
    Michigan
    Yep I read it wrong..My bad..
    But I agree could be in a better spot..
