Breaking Limitations! CPU OC on ECS H87, B85, and H81 Motherboards

Discussion in 'News' started by Sin, Jul 5, 2013.

  1. Sin

    Sin News Editor

    Joined:
    Mar 28, 2011
    Messages:
    244 (0.19/day)
    Thanks Received:
    70
    Location:
    under the bed
    Now your K-Series CPUs don't necessarily need to go along with Z-Series chipsets to experience the joy of overclocking. ECS recently announced that its motherboards with all Intel 8 Series chipsets, including H87, B85, and H81, have the CPU overclocking ability, giving non Z-Series motherboard users the benefit of additional performance through CPU overclocking.

    ECS has achieved Non-Z Series CPU overclocking with H87, B85, and H81 motherboards by simply adjusting the CPU Ratio inside the BIOS, offering an extremely easy way of overclocking your CPU. More importantly, H87, B85, and H81 CPU overclocking ability provides an affordable solution for seasoned or casual overclockers at a wide range or price levels.

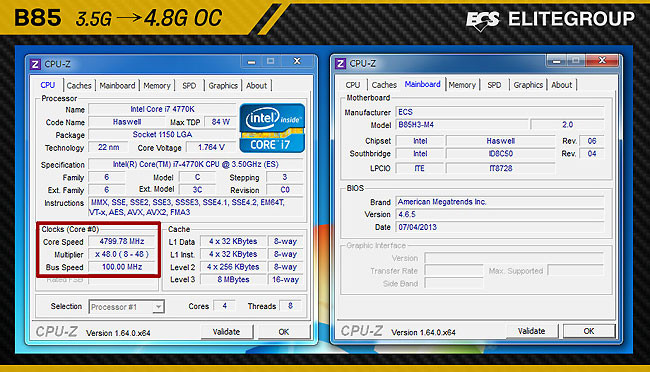

    [​IMG] [​IMG] [​IMG]

    Last edited: Jul 5, 2013
    cadaveca says thanks.
  2. RCoon

    RCoon Forum Gypsy

    Joined:
    Apr 19, 2012
    Messages:
    6,908 (7.81/day)
    Thanks Received:
    3,166
    Location:
    Gypsyland, UK
    Safely overclock with 1.776v?! Yeah. No.

    ChristTheGreat says thanks.
  3. fullinfusion

    fullinfusion 1.21 Gigawatts

    Joined:
    Jan 11, 2008
    Messages:
    8,263 (3.38/day)
    Thanks Received:
    2,058
    I was thinking the same thing.

    How are they able to clock the non K chip up so high? I thought the non K's were locked on the multi :confused:

  4. Random Murderer

    Random Murderer The Anti-Midas

    Joined:
    Dec 6, 2006
    Messages:
    6,445 (2.27/day)
    Thanks Received:
    1,153
    Two reasons.
    1) they are K chips,
    2) even if they weren't, they're ES chips so the multi is unlocked anyway.

    This news isn't about overclocking non-K chips, it's about overclocking on non Z-series chipsets. And yes, that VCore is way too high or not being read correctly.

    fullinfusion says thanks.
  5. fullinfusion

    fullinfusion 1.21 Gigawatts

    Joined:
    Jan 11, 2008
    Messages:
    8,263 (3.38/day)
    Thanks Received:
    2,058
    Yaa I see, I should have looked a little harder. Thanks for clearing that up.
    I didn't realize that non Z boards lacked the overclocking ability. :wtf:

  6. Sin

    Sin News Editor

    Joined:
    Mar 28, 2011
    Messages:
    244 (0.19/day)
    Thanks Received:
    70
    Location:
    under the bed
    Edited for clarification.
    Indeed, the Voltage is just slightly beyond utterly ridiculous, probably poorly read, otherwise this looks like a suicide run (going by the voltage alone).

  7. Steven B

    Joined:
    Sep 4, 2005
    Messages:
    598 (0.18/day)
    Thanks Received:
    53
    i cant believe your name is Sin. haha lol

    So 1.77 or 1.78v would be the CPU Input voltage or VIN on some boards. CPUz is reading the output of the motherboard VRM, not the vcore of the CPU.

    GBT also released BIOSes for their B85 and H87 boards today i think too.

    Random Murderer says thanks.
  8. Sempron Guy

    Sempron Guy

    Joined:
    Feb 2, 2011
    Messages:
    249 (0.19/day)
    Thanks Received:
    79
    1.7v? Is that safe for Haswell? And what's up with these non-z overclocking implemented on boards lately? Asrock is doing it and now ECS. Doesn't it violate any terms with Intel? I mean won't this hurt z77 board sales?

  9. iO

    iO

    Joined:
    Jul 18, 2012
    Messages:
    70 (0.09/day)
    Thanks Received:
    15
    Location:
    Germany
    Nice to see they finally figured out a way to re-enable all these fused off features.

  10. mystikl New Member

    Joined:
    Jan 31, 2009
    Messages:
    100 (0.05/day)
    Thanks Received:
    12
    Overclocking on cheap boards...but who was VRM?

  11. TheLostSwede

    TheLostSwede

    Joined:
    Nov 11, 2004
    Messages:
    932 (0.26/day)
    Thanks Received:
    164
    Gigabyte just announced that they're doing it too... just saying...


  12. Random Murderer

    Random Murderer The Anti-Midas

    Joined:
    Dec 6, 2006
    Messages:
    6,445 (2.27/day)
    Thanks Received:
    1,153
    Do you really have to ask? 1.7VCore has been suicide-run voltage for a few generations now. No, 1.7VCore is absolutely not safe for a chip you don't plan on blowing up somehow.
    Probably not. They'd get sued if it violated any terms/agreements.
    Probably a small bit, but will it really hurt any of the companies involved? A sale is a sale. Board manufacturers get to offload a mobo and Intel gets another chipset sold.

    Sempron Guy says thanks.
  13. badtaylorx

    badtaylorx

    Joined:
    Aug 19, 2011
    Messages:
    478 (0.42/day)
    Thanks Received:
    152
    guys, come on....

    you know damn well somethings fishy here...

    Haswell, an already toasty chip @ 1.7+ would turn even the biggest of water loops into a boiling cauldron of hot mess......

  14. Sempron Guy

    Sempron Guy

    Joined:
    Feb 2, 2011
    Messages:
    249 (0.19/day)
    Thanks Received:
    79
    I'm just amazed how ECS thought this out. :p Maybe it's under LN2, which somehow deviates the purpose of enabling the oc feature on a board intended for "casual" overclocking


  15. cadaveca

    cadaveca My name is Dave

    Joined:
    Apr 10, 2006
    Messages:
    13,943 (4.52/day)
    Thanks Received:
    7,065
    Location:
    Edmonton, Alberta
    CPU voltage IS ~1.8V, fed to the VRM< known issue with that version of CPU-Z.

    Nothing surprising to be found here with the voltage.

    Random Murderer says thanks.
  16. cdawall where the hell are my stars

    Joined:
    Jul 23, 2006
    Messages:
    20,684 (6.94/day)
    Thanks Received:
    2,984
    Location:
    some AF base
    Don't worry 3-5 more people will question it without reading the entire thread since this has been said twice now.

    Random Murderer says thanks.
  17. Random Murderer

    Random Murderer The Anti-Midas

    Joined:
    Dec 6, 2006
    Messages:
    6,445 (2.27/day)
    Thanks Received:
    1,153
    Is ~1.8VCore safe?:roll:

  18. cdawall where the hell are my stars

    Joined:
    Jul 23, 2006
    Messages:
    20,684 (6.94/day)
    Thanks Received:
    2,984
    Location:
    some AF base
    Sure why not. :laugh:

    xvi says thanks.
  19. xvi

    xvi

    Joined:
    Nov 10, 2006
    Messages:
    1,987 (0.69/day)
    Thanks Received:
    1,158
    Location:
    Washington, US
    After re-reading this a few times, the tl;dr version seems to be "We enabled CPU multiplier adjustments on our entry/mid level boards." Nothing more.

    Was confused about the whole "can it raise multi on non-k-series CPUs" thing too.

    Only one way to find out.
    [​IMG]

    Crunching for Team TPU
  20. Frick

    Frick Fishfaced Nincompoop

    Joined:
    Feb 27, 2006
    Messages:
    10,604 (3.39/day)
    Thanks Received:
    2,226
    Now make the Pentiums and Celerons overclockable.

  21. Hood

    Hood

    Joined:
    Sep 25, 2012
    Messages:
    816 (1.13/day)
    Thanks Received:
    246
    Yeah, that's clever - unlock the multiplier on a board with 4 power phases and no heat sinks and drop in the CPU with the highest TDP - "CAUTION; Overclocking damage is NOT covered under your warranty!" - this warning should be on a large sticker covering the whole board, but instead will be in the microscopic print on page 3 of the warranty booklet. Can't wait to see the burning motherboard videos on YouTube.

  22. cdawall where the hell are my stars

    Joined:
    Jul 23, 2006
    Messages:
    20,684 (6.94/day)
    Thanks Received:
    2,984
    Location:
    some AF base
    You do understand that 4 phase boards used to be high end right? They used to be high end when AMD/Intel were pushing out 89W CPU's and people were overclocking them quite a bit with tons of voltage and they likely pulled more wattage than these do. They did all of that without mosfet heat sinks. These Intel chips with the highest TDP are still less than AMD/Intel chips of old with older lesser designed power sections.

  23. Hood

    Hood

    Joined:
    Sep 25, 2012
    Messages:
    816 (1.13/day)
    Thanks Received:
    246
    Yeah, but it would still be hilarious...

  24. haswrong

    Joined:
    Jun 11, 2013
    Messages:
    178 (0.38/day)
    Thanks Received:
    13
    intel likely supports this move, since the worse overclockability of tim'med k-haswells implies lousy sales of those. all in all, 4 gigahertz should be attainable without fuss on an acceptable budget.

  25. Mussels

    Mussels Moderprator Staff Member

    Joined:
    Oct 6, 2004
    Messages:
    42,220 (11.61/day)
    Thanks Received:
    9,520
    wait, you need a Z series to OC the K chips?


    damnit, this screws with my upgrade plans.
