[Case Mod] Project Imagination - CM Storm Trooper Mod by adamski07 [Completed]

Discussion in 'Project Logs' started by adamski07, Jul 5, 2013.

  1. adamski07 New Member

    Joined:
    Jul 2, 2013
    Messages:
    27 (0.04/day)
    Thanks Received:
    12
    Location:
    USA/Philippines
    UPPPDDDAAAAAAAAAAAAATTTTTTTTTTESSSSSSSSSSSSSS!!!!!!!!!!

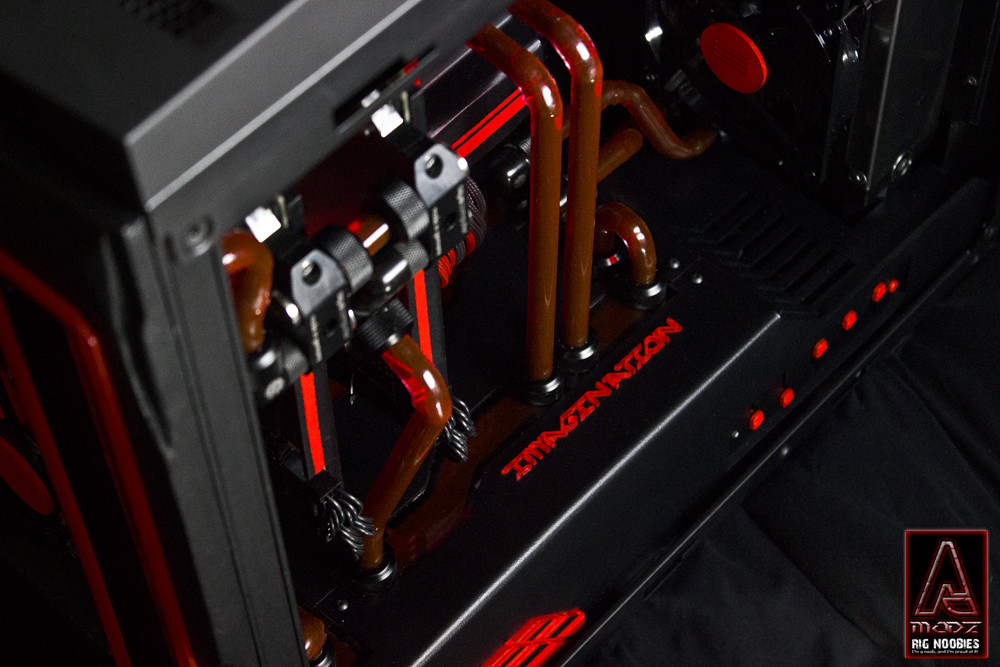

    Shroud-Channel-bay. This is the PSU shroud I made for Project Imagination. It's just like your regular PSU Shroud, but it has built-in floor channel and 5.25" bay mount for fan controllers/etc. Enjoy! (Please ignore the protective tape on the channel)

    More coming for Project Imagination! [​IMG]

    [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG]

  2. BiggieShady

    BiggieShady

    Joined:
    Feb 8, 2012
    Messages:
    1,449 (1.17/day)
    Thanks Received:
    720
    Location:
    Zagreb, Croatia
    This is going to be great :D subbed :toast:

  3. adamski07 New Member

    Joined:
    Jul 2, 2013
    Messages:
    27 (0.04/day)
    Thanks Received:
    12
    Location:
    USA/Philippines
    UPPPPPPDDDDDDDDDDDDAAAAAAAAAAATTTTTTTTTTTTEEEEEEEEEEEESSSSSSSSSSSSSSSSSSSSSSSSSSS!!!!!

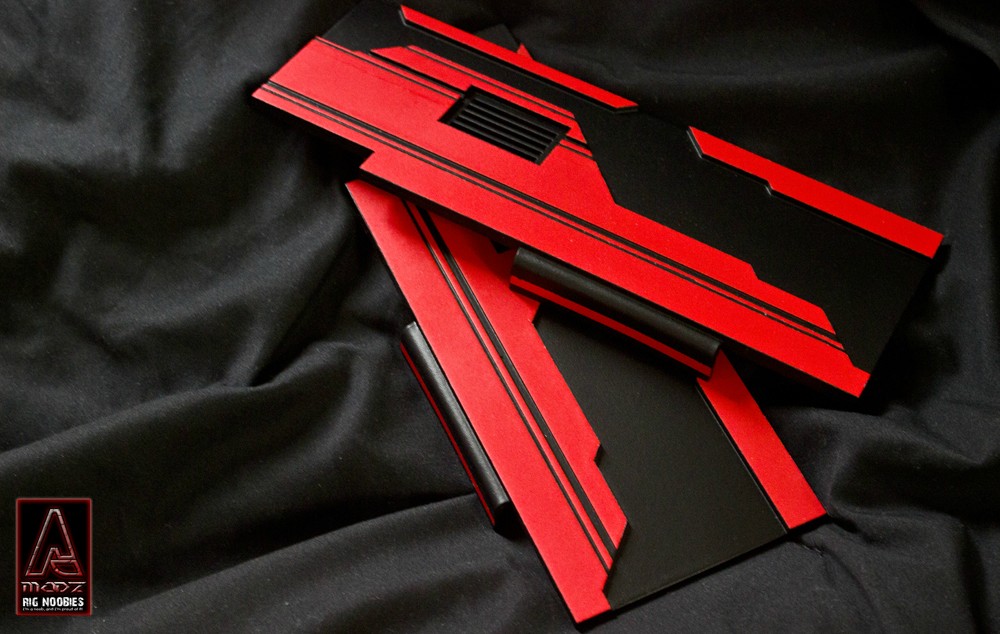

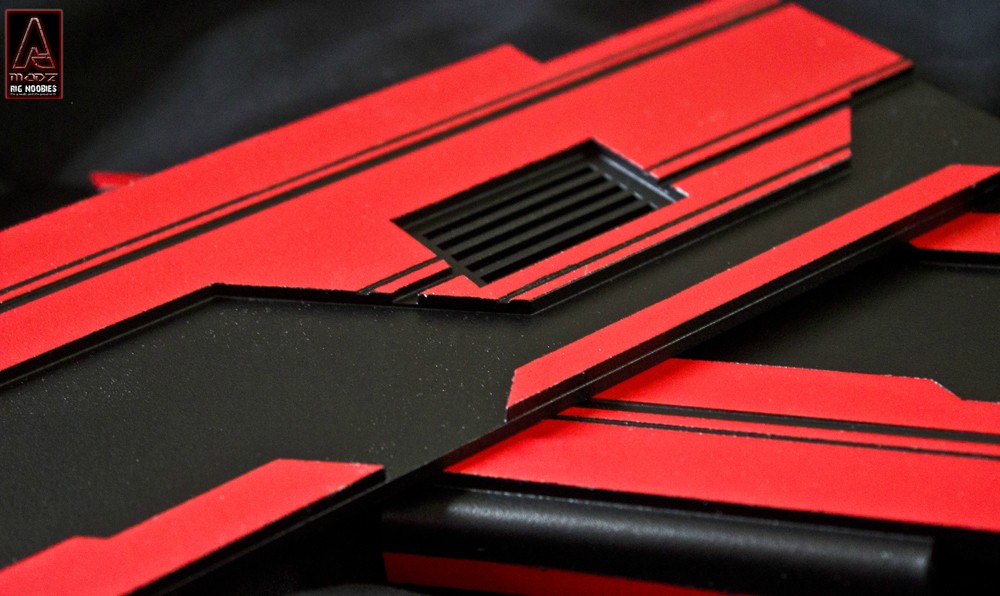

    These are the backplates for my two gtx 780 and a cover for my CPU. Enjoy! More coming for Project Imagination- ROG!

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  4. adamski07 New Member

    Joined:
    Jul 2, 2013
    Messages:
    27 (0.04/day)
    Thanks Received:
    12
    Location:
    USA/Philippines
    Final photos later tonight! Stay tuned!



    Sorry for flood updates. Just updated all 7 different build log threads all over the net. lol

    Zakin says thanks.
  5. adamski07 New Member

    Joined:
    Jul 2, 2013
    Messages:
    27 (0.04/day)
    Thanks Received:
    12
    Location:
    USA/Philippines
    Well, here it is guys! Project Imagination is done. This is my 2nd case mod project and it is pretty challenging to modify a bigger case. Took me a while, but it was all worth it. First, I'd like to thank Cooler Master for giving me the chance to modify their Trooper case. I'd also like to thank Aquacomputer and ASUS for their support.

    There's so much more I wanted to do on the case, but unfortunately I have to finish it now and share it with you all. I hope you all like it.

    I apologize for picture's quality. I am not that great in photography. My setup was just a couple light bulbs, my comforter(lol) as background, and my sister's camera. :D

    Also, please take time to visit my project log on CoolerMaster's forum and support me for the upcoming Cooler Master's Case Mod competition 2013.

    Let me know what you think of it and you have any questions about my project. :)

    PLEASE DON'T FORGET TO SHARE IT WITH YOUR FRIENDS! :D


    [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG]

    PHaS3 says thanks.
  6. adamski07 New Member

    Joined:
    Jul 2, 2013
    Messages:
    27 (0.04/day)
    Thanks Received:
    12
    Location:
    USA/Philippines
    Thank you. Hope you like it! :)

    XSI says thanks.
  7. XSI

    XSI

    Joined:
    Sep 4, 2012
    Messages:
    335 (0.33/day)
    Thanks Received:
    151
    Location:
    Vilnius. Lithuania
    WOW are u fcuking kidding me !!! What a beauty :) Hope you win mate. One of the best mods!

  8. BiggieShady

    BiggieShady

    Joined:
    Feb 8, 2012
    Messages:
    1,449 (1.17/day)
    Thanks Received:
    720
    Location:
    Zagreb, Croatia
    Yeah, let's be realistic, what's not to like :toast:
    ... and the reservoir embedded in back of the case - looks great

  9. adamski07 New Member

    Joined:
    Jul 2, 2013
    Messages:
    27 (0.04/day)
    Thanks Received:
    12
    Location:
    USA/Philippines
    Thank you. I hope so, but having this project finished is a big win already for me. :)
    :D Thanks again.

  10. adamski07 New Member

    Joined:
    Jul 2, 2013
    Messages:
    27 (0.04/day)
    Thanks Received:
    12
    Location:
    USA/Philippines
    Sorry, I spent the last 4 weeks on modding and finishing the project instead of taking lots of photos for the work log. Here are some of the photos together with explanations. I'am a student and working at the same time. I only have few hours a day and few days a week to mod. I cant really spend my time taking photos instead. Maybe on my project, ill share more of my worklog. I wish I have a buddy who can do all the photography for me. lol. Anyway, enjoy the photos. Tools used : Jigsaw, Rotary tool, different sizes of bits, router, metal saw, and etc. If you have any questions, please feel free to ask. Thank you!

    First 360 RAD I custom made for the project.
    [​IMG]
    New custom made 360 RAD mount.
    [​IMG]
    The Case : CM Storm Trooper Case.
    [​IMG]
    Disassembled the case and test fit of the mobo in 90 degrees orientation.
    [​IMG]
    [​IMG]
    Custom MOBO tray, top layer.
    [​IMG]
    Double-layeedr custom mobo tray.
    [​IMG]
    Measuring where to make the bend for the side strip cover.
    [​IMG]
    Some tools! :D
    [​IMG]
    Top view.
    [​IMG]

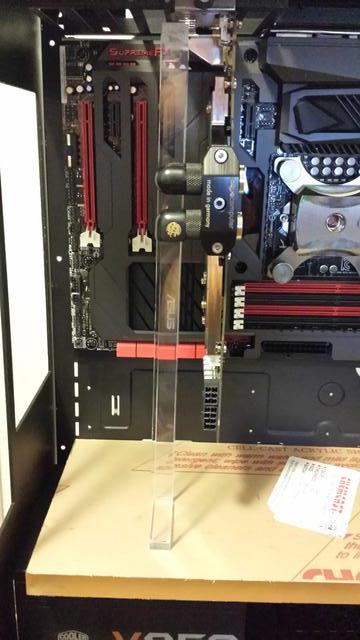

    Manually measuring the placement of holes for custom water channel
    [​IMG]
    [​IMG]
    [​IMG]
    Acrylic pieces!
    [​IMG]
    [​IMG]
    Cementing a small piece on each plate for added support on fittings.
    [​IMG]
    Just.... my legs. lol
    [​IMG]
    [​IMG]
    arm and leg worth of fittings.
    [​IMG]
    PSU Shroud in 2D lol.
    [​IMG]
    Home made acrylic bender.
    [​IMG]
    First stage of the PSU shroud
    [​IMG]
    [​IMG]
    [​IMG]
    It fits perfectly!
    [​IMG]
    [​IMG]
    [​IMG]
    With the fittings, looks good at this stage.
    [​IMG]
    [​IMG]
    Tapping the acrylic pieces. One of the most intense and toughest part of this mod. Luckily, it didnt break.
    [​IMG]
    [​IMG]
    Cementing the acrylic pieces to the water channel block.
    [​IMG]
    Just some crafting. First time doing this. Covering the back panel cover with plastic resin.
    [​IMG]
    [​IMG]
    Time for painting!
    [​IMG]
    Sexy black. Love the result of this air can paint. The end results always looks like a powdered covered paint.
    [​IMG]
    [​IMG]
    Done with the last coating!
    [​IMG]
    Custom routed plate for the PSU shroud.
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    Was so excited at this point to finish it!
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    IMAGINATION pieces for the PSU shroud. They're so small and pain in the ass gluing it on the shroud!
    [​IMG]
    Used the cutout on the acrylic to place and glue each pieces on the shroud.
    [​IMG]
    IMAGINATION: [R]OG
    [​IMG]
    Painted!
    [​IMG]
    Almost done with the custom back panel cover.
    [​IMG]
    [​IMG]
    [​IMG]
    Time for painting!
    [​IMG]
    Mounted the SSD at the back!
    [​IMG]
    HELL YEAH! LOVE THIS! MATTE BLACK is <3
    This custom back panel cover is reinforced with a aluminum plate at the back.
    [​IMG]
    Custom back plate with the built in reservoir and two 120mm exhaust fan.
    [​IMG]
    [​IMG]
    Cementing the custom reservoir to the back panel!
    [​IMG]
    my 5TB HDDs as weights when cementing the custom reservoir!
    [​IMG]
    Done and ready for painting!
    [​IMG]
    Added a red accent to the custom back panel cover.
    [​IMG]
    done painting the back panel! Read for the coolant and the fans.
    [​IMG]
    [​IMG]
    [​IMG]
    Perfect result. No leak!
    [​IMG]
    [​IMG]
    Installed the two 120mm fans inside the custom back panel.
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    Starting to look finished.
    [​IMG]
    [​IMG]
    Glued some acrylic pieces for the custom GPU Plate.
    [​IMG]
    Painted it with Fiery red!
    [​IMG]
    GPU backplates and the custom CPU plate
    [​IMG]
    [​IMG]
    Covered the red part with modders tape and cut the details using xacto knife.
    [​IMG]
    BLACK again!
    [​IMG]
    Custom cover for the double layered mobo tray for a cleaner look!
    [​IMG]
    [​IMG]
    Done bending the tubings!
    [​IMG]
    Its ALIVE!
    [​IMG]
    [​IMG]
