Gigabyte First with USB 3.0 and SATA 6 Gbps on the AMD Platform

Discussion in 'News' started by btarunr, Nov 24, 2009.

  1. btarunr

    btarunr Editor & Senior Moderator Staff Member

    Joined:
    Oct 9, 2007
    Messages:
    28,713 (11.16/day)
    Thanks Received:
    13,669
    Location:
    Hyderabad, India
    Gigabyte is readying the industry's first socket AM3 motherboard that offers the new connectivity features combo that is turning out to be quite a selling point in itself: USB 3.0 and SATA 6 Gbps. Enter GA-790FXTA-UD5P, a high-end socket AM3 motherboard based on the AMD 790FX + SB750 chipset, that isn't just a revised GA-MA790FXT-UD5P. Apart from the star attractions of USB 3.0 and SATA 6 Gbps, the board features a redesigned expansion slot layout, among other new features. The socket AM3 motherboard supports AMD Phenom II AM3 and Athlon II series processors with support for dual-channel DDR3 memory.

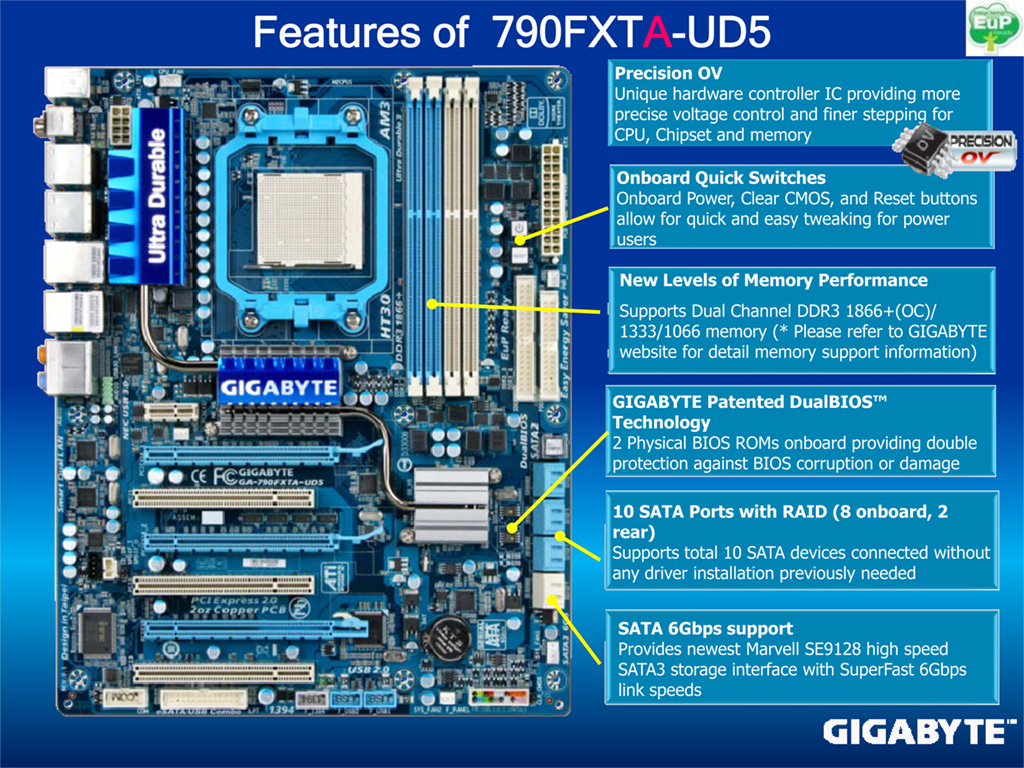

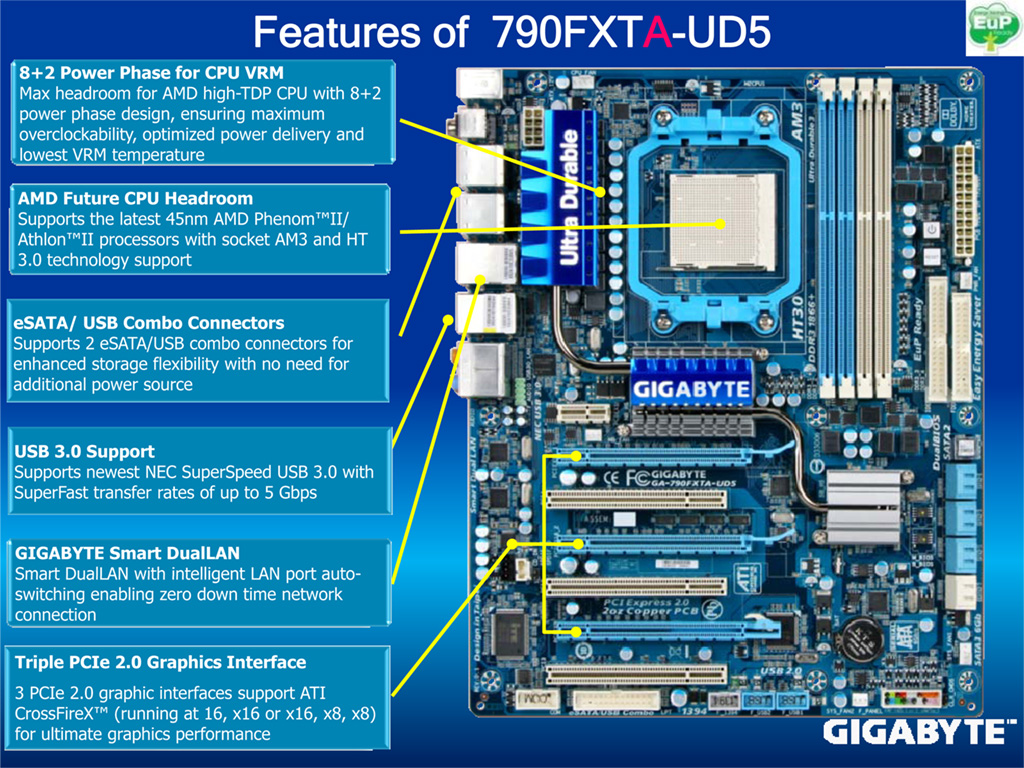

    To begin with, the CPU is powered by a 8+2 phase VRM supporting 140W processors, with a 2 phase VRM powering the four DDR3 DIMM slots. The board supports DDR3-1866 by overclocking, while DDR3-1333 and DDR3-1066 are naturally supported. A Precision OV controller provides fine (small step) voltage control for the CPU, memory and chipset voltages. Instead of two PCI-Express 2.0 x16 slots on the MA-790FXT-UD5P, this board features three PCI-Express 2.0 x16 slots (electrical x16, x16, NC, or x16, x8, x8, depending on how they're populated). Each x16 slot as one slot spacing which is occupied by a PCI slot. A lone PCI-E x1 slot heads the pack.

    [​IMG] [​IMG]

    The component cooling is similar to its predecessor, heatsinks that are interconnected by a heatpipe, cover the CPU VRM, northbridge, and southbridge. All six SATA 3 Gbps ports the SB750 provides are assigned as internal, while an additional controller (usual suspect being the Marvell 88SE9123-NAA2) provides two internal SATA 6 Gbps ports color-coded white. Another additional controller (suspected to be NEC µPD720200), provides two USB 3.0 ports on the rear-panel. 8-channel audio with optical and co-axial SPDIF outputs, eSATA/USB Combo connectors that eliminate need for additional power input on some eSATA thumb drives, a number of more USB 2.0 ports and two gigabit Ethernet connections make for the rest of the rear-panel. Gigabyte is planning more models that feature USB 3.0 and SATA 6 Gbps, namely GA-790XTA-UD4, and GA-770TA-UD3.

    Source: The Tech Report

    Last edited: Nov 24, 2009
    WarEagleAU says thanks.
  2. HalfAHertz

    HalfAHertz

    Joined:
    May 4, 2009
    Messages:
    1,893 (0.95/day)
    Thanks Received:
    380
    Location:
    Singapore
    The price will probably be in the 200-250$ area?

  3. btarunr

    btarunr Editor & Senior Moderator Staff Member

    Joined:
    Oct 9, 2007
    Messages:
    28,713 (11.16/day)
    Thanks Received:
    13,669
    Location:
    Hyderabad, India
    I'm expecting less than $230.

  4. Zubasa

    Zubasa

    Joined:
    Oct 1, 2006
    Messages:
    3,980 (1.35/day)
    Thanks Received:
    457
    Location:
    Hong Kong
    It this is so, this is gonna be my new target :laugh:

  5. kenkickr

    kenkickr

    Joined:
    Dec 5, 2007
    Messages:
    4,827 (1.92/day)
    Thanks Received:
    1,452
    I think I'll just wait to see what SB800 brings to the table for SATA III. Nice looking board though, no more of that umpa-loompa shit from gigabyte!?

    Crunching for Team TPU
  6. Zubasa

    Zubasa

    Joined:
    Oct 1, 2006
    Messages:
    3,980 (1.35/day)
    Thanks Received:
    457
    Location:
    Hong Kong
    As far as I know most umpa-loompa shit comes from Asus.:roll:

  7. WarEagleAU

    WarEagleAU Bird of Prey

    Joined:
    Jul 9, 2006
    Messages:
    10,797 (3.56/day)
    Thanks Received:
    546
    Location:
    Gurley, AL
    I like the board, the color scheme, the layout and the inclusion of sata 6.0 and Usb 3.0 IF I hadnt gotten this awesome mobo I have now, I would jump all over this. Considering my board came out at 199.99 on the egg, I wonder if Gigabyte will follow suit. They usually are pretty good on prices.

  8. AsphyxiA

    AsphyxiA New Member

    Joined:
    Oct 2, 2005
    Messages:
    632 (0.19/day)
    Thanks Received:
    15
    Location:
    Omaha, NE
    why only two SATA3 ports and two USB 3.0 ports? I think I'll wait for a little while longer.

  9. MRCL

    MRCL

    Joined:
    May 31, 2008
    Messages:
    5,791 (2.48/day)
    Thanks Received:
    860
    Location:
    Switzerland, Heart of Europe
    At least this time no salmon colored slots.
    And: Umpa-Loompa shit, wtf :roll.

    t77snapshot says thanks.
  10. btarunr

    btarunr Editor & Senior Moderator Staff Member

    Joined:
    Oct 9, 2007
    Messages:
    28,713 (11.16/day)
    Thanks Received:
    13,669
    Location:
    Hyderabad, India
    Yes, the Marvell controller takes the place of Gigabyte's GSATA2 controller, if that's what you were referring to as "umpa-loompa shit from gigabyte".

  11. A Cheese Danish

    A Cheese Danish

    Joined:
    Nov 18, 2006
    Messages:
    2,963 (1.02/day)
    Thanks Received:
    413
    Location:
    your local vending machine
    Possibly due to the lack of parts that will take full advantage of the speed? That's my guess.
    But I agree though, I may wait for others to release boards with more of these options.

    Although, if the price is right...maybe...:rolleyes:

  12. HalfAHertz

    HalfAHertz

    Joined:
    May 4, 2009
    Messages:
    1,893 (0.95/day)
    Thanks Received:
    380
    Location:
    Singapore
    Or because of limitations in the controlers they used.

  13. Zubasa

    Zubasa

    Joined:
    Oct 1, 2006
    Messages:
    3,980 (1.35/day)
    Thanks Received:
    457
    Location:
    Hong Kong
    Most likely the PCi-E bus that is used for the onboard controller ;)

  14. FlanK3r

    Joined:
    May 18, 2009
    Messages:
    231 (0.12/day)
    Thanks Received:
    150
    Location:
    czech republic
    im waiting at 890FX UD6....

  15. wiak

    wiak

    Joined:
    Sep 5, 2004
    Messages:
    1,747 (0.47/day)
    Thanks Received:
    200
    Location:
    Norway
    the GSATA2 isnt shit its a jmicron and i found out that its actually good
    but i prefer my 790FXT-UD5P, it has 10 SATA and a eSATA bracket, Dual x16 slots and three x1 slots ;P

  16. devguy

    devguy

    Joined:
    Feb 17, 2007
    Messages:
    1,239 (0.44/day)
    Thanks Received:
    171
    Location:
    SoCal
    I like that slot layout. Like anyone is going to actually run Quad Fire with four separate cards... I don't know why ASUS put 4 pcie x16 (x8) slots on the M4A79/T boards. Then, on the crosshair 3, they only put 6 slots (and one only works with the SupremeFX card- which sucks if you already have something better) on the board.

    Gigabyte leads the pack for best slot configurations IMHO. That top pcie 1x slot is absolutely perfect for tiny pcie wireless cards or NICs (although I'd avoid putting a long card there- right above a hot GPU slot).

  17. Jakl

    Jakl New Member

    Joined:
    Nov 18, 2008
    Messages:
    515 (0.24/day)
    Thanks Received:
    50
    Location:
    Home
    doh waiting a little longer for all USB ports to be USB3

  18. wiak

    wiak

    Joined:
    Sep 5, 2004
    Messages:
    1,747 (0.47/day)
    Thanks Received:
    200
    Location:
    Norway
    and you can allways buy a USB3 and a SATA3 PCIe addon card, heck both the USB3 and SATA3 on this board use x1 PCIe 2.0 lanes as the 790FX only gives 6 x1 2.0 lanes for expansion slots, and the rest is 2x x16 lanes for graphics and 4x lanes to SB750

    AMD realy hit this off, heck intel P55 with USB3/SATA 6Gbps still has to use PCIe 1.1 slots LOLz

    Last edited: Nov 24, 2009
  19. chew* New Member

    Joined:
    Apr 5, 2009
    Messages:
    22 (0.01/day)
    Thanks Received:
    4
    Hmmmmmm :respect: I think it's time for some more 3d benching + ln2 :D

  20. wiak

    wiak

    Joined:
    Sep 5, 2004
    Messages:
    1,747 (0.47/day)
    Thanks Received:
    200
    Location:
    Norway
    chew* you dirty boy :D
    good luck :p

  21. Raiderman New Member

    Joined:
    Dec 10, 2008
    Messages:
    34 (0.02/day)
    Thanks Received:
    2
    Isnt USB 3.0 going to be backward compatible?? If so, wouldnt it make sense to make them all USB 3.0?

  22. Jstn7477

    Jstn7477

    Joined:
    Aug 30, 2009
    Messages:
    3,884 (2.06/day)
    Thanks Received:
    1,562
    Location:
    Sarasota, Florida, USA
    The system probably doesn't have enough PCIe lanes to drive a bunch of USB 3.0 chips. You'll probably have to wait for a chipset with USB 3.0 controllers inside the southbridge chip.

    Crunching for Team TPU More than 25k PPD
  23. kenkickr

    kenkickr

    Joined:
    Dec 5, 2007
    Messages:
    4,827 (1.92/day)
    Thanks Received:
    1,452
    No, I was referring to the color scheme of the board. Gigabyte boards use to look like a mix of Crayola crayons or "Umpa-Loompa" shit.

    Crunching for Team TPU
  24. Hayder_Master

    Hayder_Master

    Joined:
    Apr 21, 2008
    Messages:
    5,177 (2.18/day)
    Thanks Received:
    638
    Location:
    IRAQ-Baghdad
    maybe in first say release we see 230$ , but there is cheap core i5 mobo's and there is new SB800 so after month drop under 200$

  25. NeSeNVi New Member

    Joined:
    Dec 2, 2008
    Messages:
    93 (0.04/day)
    Thanks Received:
    3
    "Hell, it's about time", but I will wait for GA-790XTA-UD4, because I'm not gonna oc.
