Gigabyte Readies GA-P55A-UD7 to Lead P55A Series

Discussion in 'News' started by btarunr, Nov 9, 2009.

  1. btarunr

    btarunr Editor & Senior Moderator Staff Member

    Joined:
    Oct 9, 2007
    Messages:
    28,231 (11.38/day)
    Thanks Received:
    13,580
    Location:
    Hyderabad, India
    Closely trailing the GA-X58A-UD7, Gigabyte is preparing a new high-end socket LGA-1156 motherboard based on the Intel P55 chipset. The GA-P55A-UD7 is touted to lead the new pack of motherboards under the P55A series, which bring technologies such as USB 3.0 and SATA 6 Gb/s integrated for the LGA-1156 platform. Observantly, after a very long time, Gigabyte has made use of an NVIDIA nForce chip on its high-end motherboards, certainly the first time it has made use of the nForce 200 PCI-Express bridge chip. Gigabyte made some clever use of its real-estate, especially with regards to the PCI-Express bandwidth.

    The LGA-1156 socket is powered by a 24+3 phase circuit. It connects to four DDR3 DIMM slots for dual-channel memory. Its PCI-Express 2.0 x16 link is wired to an NVIDIA nForce 200 chip, which gives out 32 PCI-Express 2.0 lanes to ensure support for 3-way NVIDIA SLI, ATI CrossFireX is naturally supported. There are three PCI-Express x16 slots (which arrange into x16, x16, NC; or x16, x8, x8, depending on how they're populated). A PLX-made PCI-Express bridge chip (probably connected to the PCH) ensures full-bandwidth PCI-Express 2.0 x1 connections to the NEC two port USB 3.0 controller, and the two port SATA 6 Gb/s controller made by Marvell. Apart from the six (color-coded blue) SATA 3 Gb/s ports the PCH provides, the two color-coded white ports on the south are SATA 6 Gb/s, while the two on the north are connected to a Gigabyte GSATA2 SATA 3 Gb/s controller, which also gives out an IDE connector.

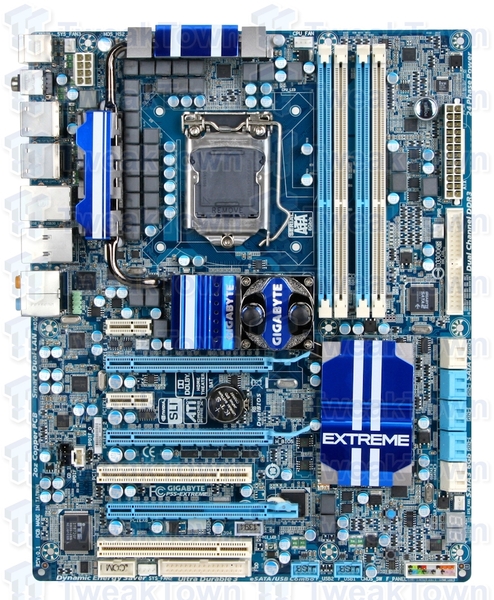

    [​IMG] [​IMG]

    Other expansion slots include two PCI-E x1, and two PCI. Connectivity options include two color-coded blue USB 3.0 ports, several USB 2.0 ports, Firewire, two gigabit Ethernet interfaces, and 8-channel HD Audio with optical and coaxial SPDIF outputs. Apart from large heatsinks that cover the CPU VRM and PCH, a water-block cools the area which covers the two PCI-Express bridge chips, south of the CPU socket. This board should carry some of Gigabyte's top of the line overclocker-friendly features to make it deserve the UD7 identifier. With its LGA-1156 socket, it supports Intel Core i5 and Core i7 "Lynnfield" processors. It is expected to be out this shopping season.

    Source: Tweaktown
  2. Arrakis+9

    Arrakis+9

    Joined:
    Aug 10, 2007
    Messages:
    1,462 (0.58/day)
    Thanks Received:
    501
    nicely layed out and good looking... but does it really need ALL of those phases ? i think its rediculious
  3. DanishDevil

    DanishDevil

    Joined:
    Oct 6, 2005
    Messages:
    10,203 (3.17/day)
    Thanks Received:
    2,090
    Location:
    Newport Beach, CA
    No, it doesn't. IMO, anything over 12 or so phases is just marketing and doesn't really give you a whole lot more than 12 would. For extreme overclockers on LN2 and DICE, they might help, but for the average power user, they're needless extras.
  4. Imsochobo New Member

    Joined:
    Feb 19, 2009
    Messages:
    514 (0.26/day)
    Thanks Received:
    35
    Location:
    I live in Norway, in the province Buskerud.
    wasnt P55 ( LGA1156) supposed to have onboard NB.

    Why is it still there? or w/e thats there.
  5. Imsochobo New Member

    Joined:
    Feb 19, 2009
    Messages:
    514 (0.26/day)
    Thanks Received:
    35
    Location:
    I live in Norway, in the province Buskerud.
    Gigabytes 16 < DFI's 4.

    Only way i can say it, thats AMD. dunno how the absolute newest fare, bad experience on extreme clock, how the hell can they burn up when the cooler is -20 ?
  6. freaksavior

    freaksavior To infinity ... and beyond!

    Joined:
    Dec 11, 2006
    Messages:
    8,055 (2.89/day)
    Thanks Received:
    895
    why the hell is there p55 board layed out better for tri sli? and there ud5 isn't
    Crunching for Team TPU
  7. DanishDevil

    DanishDevil

    Joined:
    Oct 6, 2005
    Messages:
    10,203 (3.17/day)
    Thanks Received:
    2,090
    Location:
    Newport Beach, CA
    Read the post. That's an nForce 200 chip for more PCI-E lanes.
  8. Imsochobo New Member

    Joined:
    Feb 19, 2009
    Messages:
    514 (0.26/day)
    Thanks Received:
    35
    Location:
    I live in Norway, in the province Buskerud.
    That means you get 16 PCi-E 1.x ....

    Well basicly it got 32 2.0 lanes but communicates with the old(interconnect), and when all of the guys are at it, they can just buy a I7 and enjoy the trichannel, good chipset, and well, mobo probally will cost the same...
  9. theorw

    theorw New Member

    Joined:
    Jul 5, 2007
    Messages:
    771 (0.30/day)
    Thanks Received:
    50
    Location:
    Athens GREECE
    What do u mean???
    I ve read somewhere that they are actually 12 phases just in half or something that filters better,something like that...:rolleyes:
  10. aj28 New Member

    Joined:
    Jun 18, 2008
    Messages:
    352 (0.16/day)
    Thanks Received:
    35
    With the whole idea of the P55 being the integration of the northbridge into the processor, the way this board looks without its heatsinks makes me laugh. I mean really, how many auxiliary chips do you need? Is it necessary to have three separate SATA controllers? Way to confuse the masses. I may not like the idea, but if nVidia were licensed to compete in this chipset space, they would be kicking Intel around like nobody's business.
  11. DanishDevil

    DanishDevil

    Joined:
    Oct 6, 2005
    Messages:
    10,203 (3.17/day)
    Thanks Received:
    2,090
    Location:
    Newport Beach, CA
    It is completely necessary to have multiple SATA controllers if you're running lots of HDDs. Keep in mind, this is their high-end flagship board.
  12. 1Kurgan1

    1Kurgan1 The Knife in your Back

    Joined:
    Dec 8, 2008
    Messages:
    10,321 (5.02/day)
    Thanks Received:
    2,371
    Location:
    Duluth, Minnesota
    Interesting to see full x16 PCI-E 16x on P55.
  13. DanishDevil

    DanishDevil

    Joined:
    Oct 6, 2005
    Messages:
    10,203 (3.17/day)
    Thanks Received:
    2,090
    Location:
    Newport Beach, CA
  14. MN12BIRD

    MN12BIRD

    Joined:
    Mar 9, 2009
    Messages:
    471 (0.24/day)
    Thanks Received:
    78
    Holly processor VRM phases Batman!
  15. btarunr

    btarunr Editor & Senior Moderator Staff Member

    Joined:
    Oct 9, 2007
    Messages:
    28,231 (11.38/day)
    Thanks Received:
    13,580
    Location:
    Hyderabad, India
    That's not a northbridge.
  16. Hayder_Master

    Hayder_Master

    Joined:
    Apr 21, 2008
    Messages:
    5,173 (2.26/day)
    Thanks Received:
    638
    Location:
    IRAQ-Baghdad
    nforce :shadedshu

    but i still confused how nforce mobo can run ATI crossfire
  17. DanishDevil

    DanishDevil

    Joined:
    Oct 6, 2005
    Messages:
    10,203 (3.17/day)
    Thanks Received:
    2,090
    Location:
    Newport Beach, CA
    This is not an nForce motherboard. It is an Intel P55 motherboard with an nForce 200 chip, which serves the sole purpose of additional PCI-Express slots.

    Even more so than that, any nForce motherboard can run crossfire. If you have multiple PCI-E slots of x4 bandwidth or higher, you can run crossfire. SLIa requires an SLI-certified chipset (which P55 and X58 are, with or without an nForce chip onboard).
    Hayder_Master says thanks.
  18. MN12BIRD

    MN12BIRD

    Joined:
    Mar 9, 2009
    Messages:
    471 (0.24/day)
    Thanks Received:
    78
    yeah I think its just hanging over the board unattached to anything. So we don't freak out "OMG Where are my Northbridges?"
  19. M.Beier New Member

    Joined:
    Nov 13, 2009
    Messages:
    24 (0.01/day)
    Thanks Received:
    2
    Location:
    Copenhagen, Denmark
    Gigabyte had to make sure that NF200 was of suffecient quality before implanting, and that it could be delivered in volume.... The sales numbers between evga and gigabyte motherboards is noticable ;)

    Gigabyte announced their reasoning through Raymond Tseng (Associate Vice President, Firmware Division) 27th October in Paris. :pimp:
    sno.lcn says thanks.
  20. yincfu

    yincfu New Member

    Joined:
    Feb 10, 2010
    Messages:
    1 (0.00/day)
    Thanks Received:
    0
    Raid speed

    Anyone check that raid 0 speed will decrease when no CD/DVD ROM connect to the GSATA port (Marvell)?

    Lab 1
    2 x HD at SATA2_0 / SATA2_1
    1 x ROM at SATA2_5 (Intel chipset)
    Load default in BIOS
    Set raid 0 in BIOS
    install windows / driver
    download HD tune 4.01 trail version
    check raid HD read speed
    result

    Lab 2
    continue above
    shutdown
    unplug the rom
    power on and run HD tune
    check raid HD read speed
    result

    Lab 3
    shutdown
    connect ROM to GSATA6 or GSATA7 (marvell chipset)
    run HD tune
    check raid HD read speed
    result

    Lab 4
    continue above
    open Intel Matrix storage software
    click action / advance
    enable write back cache
    run HD tune
    check raid HD read speed
    result


    (enable write back cache see follow link)
    see follow link
    http://fileshosts.com/intel/Gigabyt...raid0/128GBarray/storagemanager_ssd_array.png

    Lab 1 and 2 result is very slow
    Lab 3 result is faster
    Lab 4 result is the most faster

    But the problem is - IF connect the rom to GSATA port(Marvell) the raid HD speed will increase.
  21. Wrigleyvillain

    Wrigleyvillain PTFO or GTFO

    Joined:
    Oct 13, 2007
    Messages:
    7,644 (3.09/day)
    Thanks Received:
    1,763
    Location:
    Chicago
    We have a winner!
