Intel Core "Haswell" Easier to Overclock

Discussion in 'News' started by btarunr, Apr 15, 2013.

  1. btarunr

    btarunr Editor & Senior Moderator Staff Member

    Joined:
    Oct 9, 2007
    Messages:
    28,601 (11.22/day)
    Thanks Received:
    13,646
    Location:
    Hyderabad, India
    At the Intel Developer Forum (IDF) 2013 event held in Beijing last week, the company ran two separate seminars related to "Haswell," one related to the micro-architecture itself, and the other overclocking it. The company detailed improvements to the ways in which you can overclock these chips, without necessarily having to shell out dough for the base clock multiplier unlocked "-K" parts.

    To begin with, tweaking Core "Haswell" processors will be similar to tweaking Core "Sandy Bridge-E" high-end desktop (HEDT) platform. Naturally then, overclocking "non-K" parts will be similar to overclocking the Core i7-3820. The chips ship with a base clock speed of 100 MHz. As with "Ivy Bridge," not just CPU cores, but also certain uncore components rely on this frequency. Also, as with "Ivy Bridge," overclockers will be given 5 to 7 percent headroom for tweaking this frequency, but it doesn't end there.

    [​IMG] [​IMG] [​IMG]

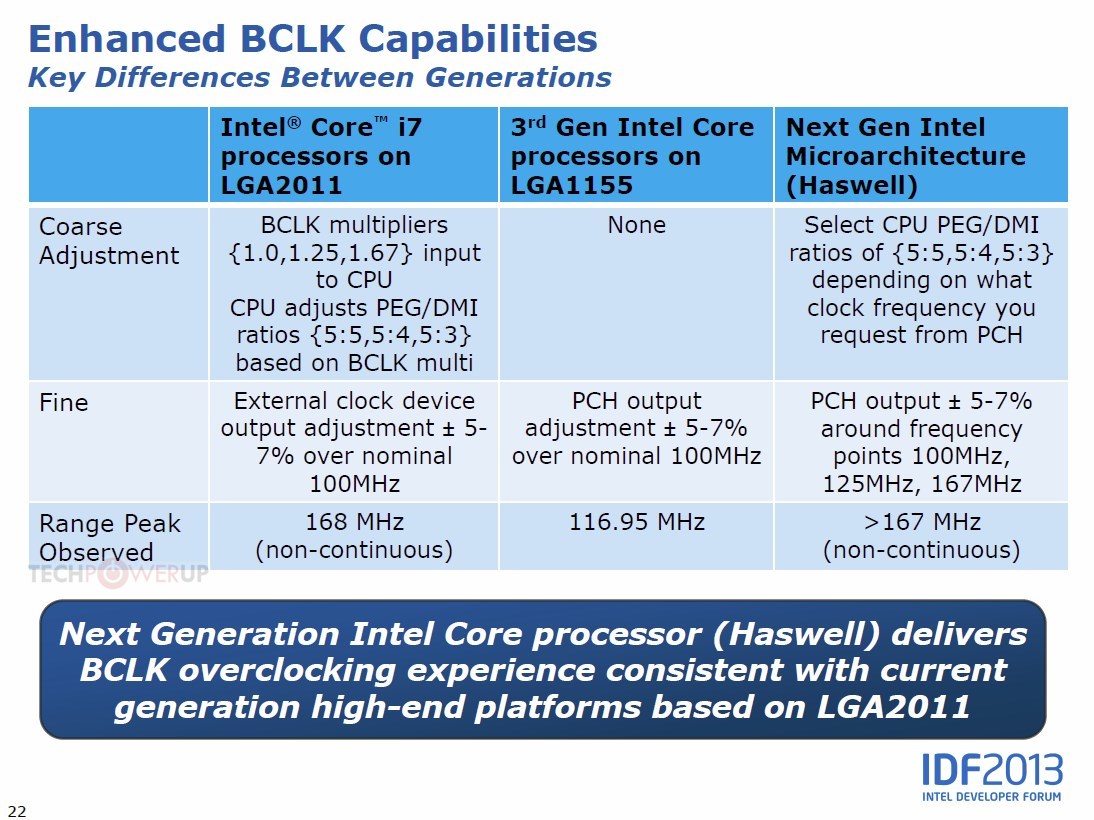

    As with Intel's HEDT platforms, not only will you be given up to 7 percent overclocking headroom to the 100 MHz default base clock, but also given the freedom to choose between three base clocks: 100 MHz, 125 MHz, and 166 MHz. The various other uncore frequency ratios will adjust themselves to compensate, and stability of these uncore components will remain unaffected.

    At each of these base clocks, you will be given the same 5 to 7 percent overclocking headroom, so in theory, you could get a chip to run with a base clock of 173 MHz, while adjusting other ratios. The reason Intel cites you can't deviate from the 7 percent headroom, is that it could destabilize two important clock domains, PCI-Express and DMI-PLL. With unlocked "-K" chips, you get the freedom to step up base clock multiplier for the CPU cores all the way up to 80.0x for 100 MHz, up to 64.0x for 125 MHz, and up to 48.0x for 166 MHz; which if used right, could result in some awesome CPU clock speeds in the neighborhood of 8.00 GHz.

    Clock speeds, multiplers, and ratios are only a part of the overclocking story, keeping them stable is the job of skillfully selecting the right voltages for the various power domains. With "Haswell," Intel is introducing integrated voltage regulation (iVR). Simply put, each processor comes with an integrated VRM controller, which ensures overclockers don't have to keep up with the ways in which VRM is implemented on different brands of motherboards. You'd still need a high-end motherboard with high-grade VRM components (chokes, capacitors, and FETs), yet the ways in which you tweak them will be more standardized. So just don't expect to be able to chase an 8.00 GHz record with a $60 motherboard.

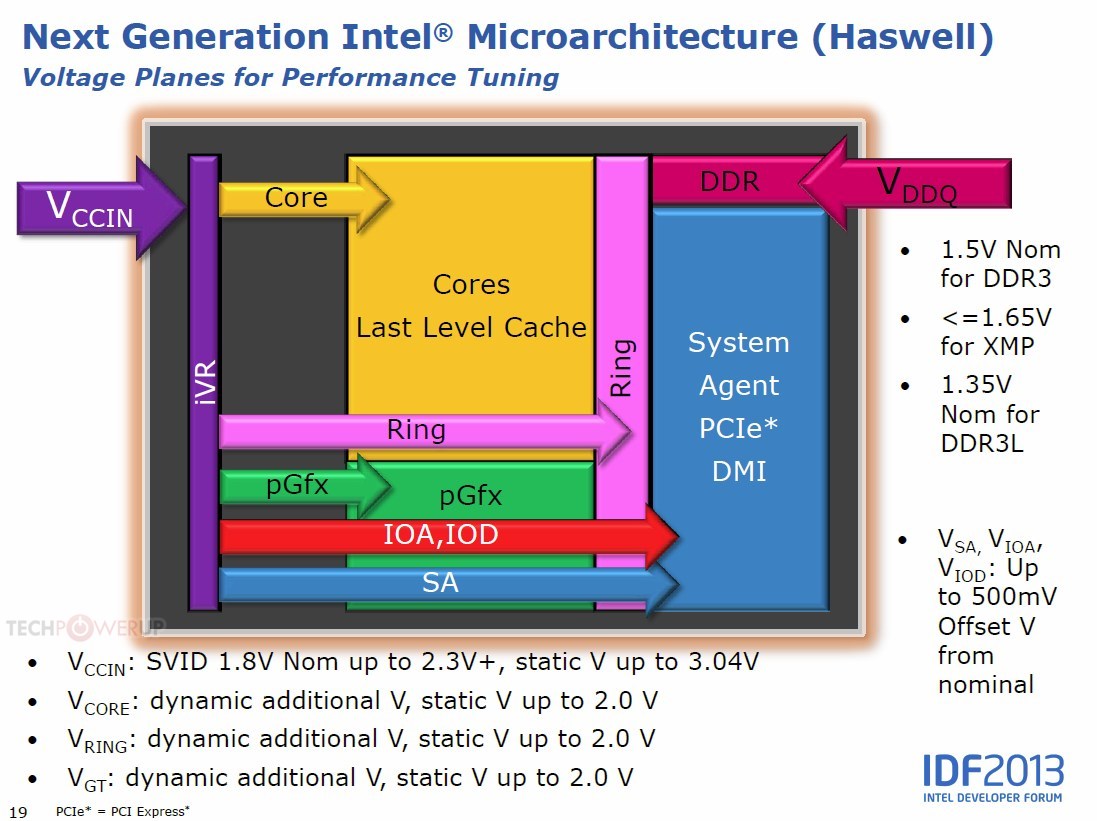

    The iVR design ensures that motherboards feed processors with just two power domains, vCCIN, and vDDQ. iVR takes input from vCCIN, and regulates it to vCORE (feeds CPU cores), vRING (feeds the ring-bus that interconnects everything on the processor), vSA/vIOA/vIOD (feed system agent or integrated-northbridge, and certain other uncore components), and vGT (feeds the integrated graphics processor). Ranges for these domains are detailed in the slide below.

    [​IMG] [​IMG]

    Ikaruga says thanks.
  2. Ikaruga

    Ikaruga

    Joined:
    Feb 18, 2011
    Messages:
    870 (0.66/day)
    Thanks Received:
    183
    So i3s will be overclockable again? This is awesome news....:toast:
    ,but I wonder how the temp profiles will turn out when OC-ing i5s and i7s with the built in voltage regulator and that larger IGP? I’m kinda worried about the too much heat, to be honest.

    Ps.: It’s great that Haswell is really going to be better than Ivy after all, but I think they need to give the staff back to the Haifa division for the next architecture again, or move some of the key „brain" guys from there to Oregon perhaps, because Sandy was the real deal, and they „just” slowly improving things since…. We want 16 Intel cores ASAP;)

  3. james888

    james888

    Joined:
    Jun 27, 2011
    Messages:
    4,454 (3.74/day)
    Thanks Received:
    1,581
    Sounds great!

    Crunching for Team TPU
  4. Bunchies New Member

    Joined:
    Feb 24, 2012
    Messages:
    133 (0.14/day)
    Thanks Received:
    5
    Sounds awesome :D

    im probably going to wait till the next line of cpu's after haswell to upgrade everything

  5. Kast

    Joined:
    Jan 4, 2011
    Messages:
    172 (0.13/day)
    Thanks Received:
    134
    Interesting

  6. Massman

    Joined:
    Nov 7, 2009
    Messages:
    38 (0.02/day)
    Thanks Received:
    26
    To clarify,

    The Core i7 3820 is a non-K product for the most high-end X79 platform. Haswell is mainstream. Overclocking and its features (such as BCLK Gear Ratio) are for premium priced products .

    In other words, I would not expect to get gear ratios on the non-K non-premium mainstream products.

  7. MaKCuMyC

    MaKCuMyC

    Joined:
    Mar 27, 2011
    Messages:
    59 (0.05/day)
    Thanks Received:
    4
    Location:
    Ukraine
    what about heat spreader? in what way now?

  8. Enmitynz

    Joined:
    Dec 12, 2012
    Messages:
    91 (0.14/day)
    Thanks Received:
    41
    Location:
    Aotearoa, the land of the thieving bees
    ^^this, theoretical oc doesnt mean squat to me, and needing ln2 to sufficiently cool an acceptable oc means nothing to me too. I mean yeah if haswell can break over 8ghz on ln2 thats great but what are real everyday consumers with mid range aircooling and self contained water cooling going to achieve? I would love to see 5.5ghz on highend air. Make it happen intel we all know you can!

  9. Aquinus

    Aquinus Resident Wat-man

    Joined:
    Jan 28, 2012
    Messages:
    6,349 (6.50/day)
    Thanks Received:
    2,115
    Location:
    Concord, NH
    I see nothing that says that only K-edition chips are going to get this. X79 has it before the platform supports it, not because the processor does. I suspect that the base clock straps will be available for most CPUs. Weather or not the CPU can handle that higher "uncore" ratio or not is dependent on the CPU.

    A good example is my 3820, It will run 100Mhz, 125Mhz, and 130Mhz bclk (5Mhz over 125Mhz strap), but forget 166Mhz.

    I'm not going to count on it, but if I find that Celeron/Pentiums/i3s are overclockable again, I might need to build a new machine just to overclock it.

    Ikaruga says thanks.
  10. Ikaruga

    Ikaruga

    Joined:
    Feb 18, 2011
    Messages:
    870 (0.66/day)
    Thanks Received:
    183
    That's what I meant in my first post; looks like Pentiums and i3s will be options for budget builds again finally (, but they will require decent cooling ofc).

  11. Frick

    Frick Fishfaced Nincompoop

    Joined:
    Feb 27, 2006
    Messages:
    10,670 (3.40/day)
    Thanks Received:
    2,262
    If low end chips can be decently overclocked even i will be interested again.

  12. nikko New Member

    Joined:
    Dec 16, 2011
    Messages:
    42 (0.04/day)
    Thanks Received:
    2
    Pentiums and celerons don't offer memory ratios above 1066Mhz, same could apply to the DMI PCIe ratios. So motherboard-chipset may not be able to overcome this limitation. Why the chipset holds the clock generator and oc abilities is unclear but at some point say 14/10nm it will be small enough to fit on the same package/die as cpu.

  13. KashunatoR

    KashunatoR

    Joined:
    Sep 10, 2010
    Messages:
    107 (0.07/day)
    Thanks Received:
    6
    Location:
    Romania
    if 4770k can do 4.8 ghz @ 1.3V using my noctua NH D14, that's an instant buy for me!!!

  14. blibba

    blibba

    Joined:
    Oct 10, 2009
    Messages:
    829 (0.46/day)
    Thanks Received:
    183
    Location:
    Oxford, UK
    You won't know whether the particular one you end up with can do that until you've bought it. You also don't know for sure that the safe voltage range will be the same on Haswell, or how good the IHS TIM/solder will be.

  15. Sasqui

    Sasqui

    Joined:
    Dec 6, 2005
    Messages:
    7,664 (2.38/day)
    Thanks Received:
    1,409
    Location:
    Manchester, NH
    So, will they still have 'K' versions for the ultimate in overclocking flexibility?

    It is so damn easy just to change the multiplier.

  16. happita

    happita

    Joined:
    Aug 7, 2007
    Messages:
    2,361 (0.90/day)
    Thanks Received:
    398
    Sweeeet. That means I can get myself a 4770T and when I feel like clocking it, it shouldn't be too difficult to get to 4.1 or 4.2 :cool:

  17. Massman

    Joined:
    Nov 7, 2009
    Messages:
    38 (0.02/day)
    Thanks Received:
    26
    That's because the news post is not correct. If you understand that Intel looks at overclocking as a premium feature, you'll understand that the BCLK gear ratios will only come with the products that are considered premium. Which is K/X-sku and X79/X89/X99 based products. Remember: unlike in the old days, where the clock generator was decided by the mainboard vendor, all (over)clocking tools are on the CPU. Multipliers, CLKgen and Ratios - Intel has all the on/off switches for that.

    Not sure why the author assumes the gear ratio to be for non-K skus too. I hope it doesn't create too much hopes for the enthusiasts.

    MetalRacer says thanks.
  18. eidairaman1

    eidairaman1

    Joined:
    Jul 2, 2007
    Messages:
    12,616 (4.76/day)
    Thanks Received:
    1,526
    prefabricated overclocking is a joke

  19. james888

    james888

    Joined:
    Jun 27, 2011
    Messages:
    4,454 (3.74/day)
    Thanks Received:
    1,581
    Wouldn't it be just as easy to get a 4770k and downclock it to the 4770t levels, and up higher if needed.

    Crunching for Team TPU
  20. Aquinus

    Aquinus Resident Wat-man

    Joined:
    Jan 28, 2012
    Messages:
    6,349 (6.50/day)
    Thanks Received:
    2,115
    Location:
    Concord, NH
    Once again. You can say the news post is wrong as much as you want but until I see another source that confirms your story I will have a hard time believing it. Intel isn't going to change how their processors work just to make it work with some CPUs and not with others. Intel hasn't done this in the past which is why I don't think that they're doing it now. Consider for a moment that the only thing that made SB/IVB overclock-able is the multiplier. Even on X79, you're going to have trouble going above 5-7% above whatever bclk strap ratio you're at.

    So, maybe some CPUs won't be able to be overclocked in this form because the CPU might just not be able to handle it but on the other side it's very possible since for Haswell this is a PCH feature since the clock gen is there, like X79 where the clockgen is external to the CPU/PCH on the motherboard.

    I think we're going to have to wait and see to really know what's going to happen here, this is all speculation until the platform is released.

    The 4770T might actually generate less leakage in general compared to the 4770k. I don't know this for sure but it's possible that the T edition runs cooler for other reasons than clock speed/voltage. Some CPUs generate more heat than others.
