New Intel Atom Processor Platform Significantly Lowers Power for Tablet and Handheld

Discussion in 'News' started by btarunr, May 5, 2010.

  1. btarunr

    btarunr Editor & Senior Moderator Staff Member

    Joined:
    Oct 9, 2007
    Messages:
    28,590 (11.22/day)
    Thanks Received:
    13,644
    Location:
    Hyderabad, India
    Benefitting from the company's power-saving architecture, transistor and circuit design expertise, plus unique manufacturing process techniques, Intel Corporation today unveiled its newest Intel Atom processor-based platform (formerly "Moorestown").

    The technology package provides significantly lower power consumption and prepares the company to target a range of computing devices, including high-end smartphones, tablets and other mobile handheld products. The chips bring Intel's classic product strengths – outstanding performance to run a comprehensive and growing number of rich media and Internet applications, a choice of software, and the ability to easily multitask – across a number of applications, including HD video and multi-point videoconferencing.

    [​IMG] [​IMG] [​IMG]

    "Intel has delivered its first product that is opening the door for Intel Architecture [IA] in the smartphone market segment," said Anand Chandrasekher, Intel senior vice president and general manager of the Ultra Mobility Group. "Through "Moorestown," Intel is scaling the benefits of IA while significantly reducing the power, cost and footprint to better address handheld market segments. As a result of our efforts, the Intel Atom processor is pushing the boundaries of higher performance at significantly lower power to show what's possible as handheld devices become small, powerful mobile computers."

    Architected for Low Power and Industry Leading Performance

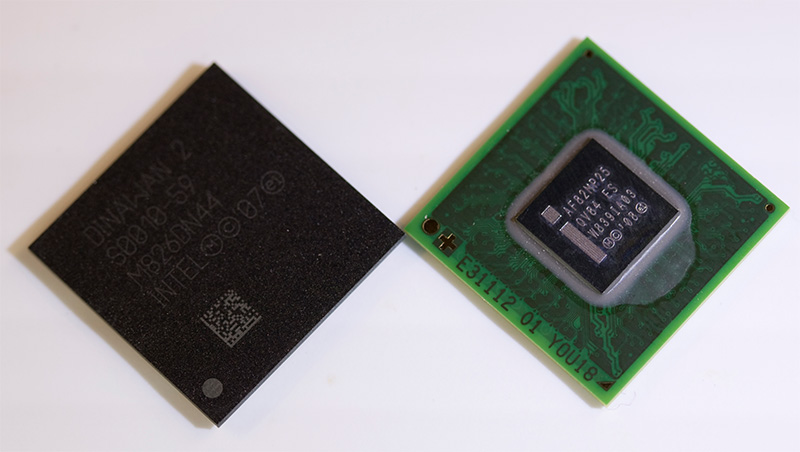

    The platform includes the Intel Atom Processor Z6xx Series Family (formerly "Lincroft" system-on-chip [SoC]), the Intel Platform Controller Hub MP20 (formerly "Langwell") and a dedicated Mixed Signal IC (MSIC), formerly "Briertown."

    The platform has been repartitioned to include the Intel Atom Processor Z6xx, which combines the 45nm Intel Atom processor core with 3-D graphics, video encode and decode, as well as memory and display controllers into a single SoC design. It also includes the MP20 Platform Controller Hub which supports a range of system-level functions and I/O blocks. Additionally, a dedicated MSIC integrates power delivery and battery charging, and consolidates a range of analog and digital components.

    Collectively these new chips deliver significantly lower power including >50x reduction in idle power, >20x reduction in audio power, and 2-3x reductions across browsing and video scenarios – all at the platform level when compared to Intel's previous-generation product1. These power savings translate into >10 days of standby, up to 2 days of audio playback and 4-5 hours of browsing and video battery life3. When combined with 1.5-3x higher compute performance, 2-4x richer graphics, >4x higher JavaScript performance, and support for full HD 1080p high-profile video decoding and 720p HD video recording, these low-power innovations bring a rich, PC-like visual experience to powerful handheld computers.

    Building on the C6 state in the original Intel Atom processor design, the SoC incorporates new ultra-low-power states (S0i1 and S0i3), which take the SoC to 100 micro-watts. At the platform level, Intel implemented a new, fine grain OS power management approach that manages the idle and active power states across all aspects of the system based on usage scenarios. This software-managed technique applies aggressive power and clock gating across the SoC's power islands and system voltage rails. Additionally, Intel used a new high-K 45 nm LP SOI process to support a multiple transistor design with a range of high-voltage I/Os.

    These power management capabilities, when combined with Intel Burst Performance Technology for high-performance on demand, and Intel's Bus Turbo Mode for high-bandwidth on demand, help to deliver industry leading performance and power efficiency across a range of handheld devices.

    "After we delivered the first-generation Intel Atom processor with 10x thermal power reduction, we challenged ourselves to achieve 50x power reduction at the platform level," said Belli Kuttanna, chief Intel Atom processor architect. "We are delighted to have exceeded this goal while increasing performance and are proud of the architects and designers who consistently reinvent the possibilities of Intel Architecture."

    Availability
    The Intel Atom Processor Z6xx Series Family, Intel Platform Controller Hub MP20 and the dedicated Mixed Signal IC are available today.

    The new platform supports a range of scalable frequencies, up to 1.5 GHz for high-end smartphones and up to 1.9 GHz for tablets and other handheld designs. The chips also bring support for Wi-Fi, 3G/HSPA, and WiMAX, as well as a range of operation systems, including Android, Meego and Moblin. Intel is bringing together a breadth of applications and ecosystem support across these platforms to enable a software- and Internet-compatible user experience for developers and consumers.

    HIGHLIGHTS
    • Based on Intel's leading silicon technology and manufacturing capabilities, chips deliver >50x platform idle power reduction while increasing performance and reducing size1.
    • Platform brings unlimited "PC-like" experience with fast Internet, multi-tasking, full 1080p video, 3-D graphics, multi-point videoconferencing and voice in pocketable designs.
    • New Intel Atom Processor Z6xx based on Intel's new 45nm low-power process, packs 140 million transistors into the SoC. The platform also includes a Controller Hub (MP20) and a dedicated Mixed Signal IC.
    • Highly integrated platform capable of scaling a range of operating systems and market segments including high-end smartphones, tablets and handheld devices.

    digibucc says thanks.
  2. digibucc

    digibucc

    Joined:
    May 21, 2009
    Messages:
    4,923 (2.51/day)
    Thanks Received:
    1,493
    it's gonna be sci fi before too long :)

  3. v12dock

    v12dock

    Joined:
    Dec 18, 2008
    Messages:
    1,563 (0.74/day)
    Thanks Received:
    306
    I'm going to have to get a phone with one of these

  4. Fourstaff

    Fourstaff Moderator Staff Member

    Joined:
    Nov 29, 2009
    Messages:
    9,185 (5.20/day)
    Thanks Received:
    1,976
    Location:
    Home
    Can it play Crysis?

    EnergyFX and TIGR say thanks.
  5. mtosev

    mtosev New Member

    Joined:
    Mar 21, 2005
    Messages:
    1,463 (0.42/day)
    Thanks Received:
    145
    Location:
    Maribor, Slovenia
    sure, @1 trillion FPS :D

  6. mdm-adph

    mdm-adph New Member

    Joined:
    Mar 28, 2007
    Messages:
    2,478 (0.90/day)
    Thanks Received:
    340
    Location:
    Your house.
    Keep your x86 out of our smartphone market, Intel. It's not wanted. :p

  7. Imsochobo New Member

    Joined:
    Feb 19, 2009
    Messages:
    514 (0.25/day)
    Thanks Received:
    35
    Location:
    I live in Norway, in the province Buskerud.
    Let me ask.

    Do you want it ?

    X86 means supporting dead tech, using transistors on something useless.
    Less effecient.

    You dont want it!

    Intel is threatened by ARM, and loosing licencing money from AMD and VIA and a monopoly!

  8. Fourstaff

    Fourstaff Moderator Staff Member

    Joined:
    Nov 29, 2009
    Messages:
    9,185 (5.20/day)
    Thanks Received:
    1,976
    Location:
    Home
    x86 refers to the instruction set, not dead tech. Foe example all processors (Intel, AMD, VIA etc) found in computers have the x86 instructions. ARM is another set of instruction, so they should be threatened by Intel rather than the other way around, because by releasing this chip, Intel is threatening the ARM's traditional market.

    Last edited: May 5, 2010
  9. mdm-adph

    mdm-adph New Member

    Joined:
    Mar 28, 2007
    Messages:
    2,478 (0.90/day)
    Thanks Received:
    340
    Location:
    Your house.
    I don't think Intel is threatening at all (just desperate). And it's not the instruction set that's bad, it's the licensing that really only allows 3 companies, worldwide, to make them.

    How many hundreds of companies are now making ARM chips? ARM is the the practically-open way of the future, and Intel's probably worried. If we're still using x86 in 20 years, I'd be surprised.

  10. kid41212003

    kid41212003

    Joined:
    Jul 2, 2008
    Messages:
    3,584 (1.57/day)
    Thanks Received:
    533
    Location:
    California
    It supports Android OS, Android isn't x86 is it?

  11. Fourstaff

    Fourstaff Moderator Staff Member

    Joined:
    Nov 29, 2009
    Messages:
    9,185 (5.20/day)
    Thanks Received:
    1,976
    Location:
    Home
    We have been using x86 for the past 30+ years, I believe we will still use them for the next 30+ years at least. Indeed, the x86 instructions is so robust that it relegated the ARM to only "lesser" devices.

    1c3d0g says thanks.
  12. MikeMurphy

    Joined:
    Feb 3, 2005
    Messages:
    381 (0.11/day)
    Thanks Received:
    52
    The x86 instruction set is archaic and only remains for backwards compatibility. It won't be dissapearing anytime soon because its Intel's most significant asset.

    ARM is a totally different architecture which was engineered with a large consideration towards power consumption. Intel now sees ARM as a significant threat and is scrambling to get a foothold in the ultra mobile consumer space.

  13. Fourstaff

    Fourstaff Moderator Staff Member

    Joined:
    Nov 29, 2009
    Messages:
    9,185 (5.20/day)
    Thanks Received:
    1,976
    Location:
    Home
    I believe that we are still using the x86 instructions and its extensions (SSE and so on). so its not archaic as you suggested. Also, I think the x86 instruction is "open source" now, so I don't think Intel will profit from people using the x86.

  14. aj28 New Member

    Joined:
    Jun 18, 2008
    Messages:
    352 (0.15/day)
    Thanks Received:
    35
    Pardon my skepticism, but is that technically an SoC then?

    I look forward to performance and battery life numbers.

  15. R_1

    Joined:
    Dec 1, 2006
    Messages:
    449 (0.16/day)
    Thanks Received:
    39
    Well, an average ARM SoC consists of many cores, and most of them are not general purpose ones, but built by ARM licensee like TI, Qualcomm, Imagination Technologies etc. Some are providing 3G radio-modem/WLAN/Bluetooth function, others - GPS functionality. There is a camera DSP, capturing 20MP still images or 1080p video. Even combined DVB S/T tuner can be found inside an ARM SoC. Entire ARM SoC has peak consumption of 2 Watts and power saving mode at around 0.01 Watt. Can this new Intel SoC do that much?

  16. AsphyxiA

    AsphyxiA New Member

    Joined:
    Oct 2, 2005
    Messages:
    632 (0.19/day)
    Thanks Received:
    15
    Location:
    Omaha, NE
    android can be compiled into what ever instruction you want, it's a linux distro. That said, I think there is an SDK floating around somewhere that is set up for x86

  17. R_1

    Joined:
    Dec 1, 2006
    Messages:
    449 (0.16/day)
    Thanks Received:
    39
    "The chips also bring support for Wi-Fi, 3G/HSPA, and WiMAX..." What does it means? Is there built in radio part? How is this "full HD 1080p high-profile video decoding and 720p HD video recording" implemented? Can we expect 5-6 hours 720p HD video decoding on a single battery charge as seen in recent ARM smartphones?

  18. TheGuruStud

    TheGuruStud

    Joined:
    Sep 15, 2007
    Messages:
    1,615 (0.63/day)
    Thanks Received:
    168
    Location:
    Police/Nanny State of America
    Intel must be paying people to use these things.

  19. Bundy

    Bundy

    Joined:
    Oct 27, 2007
    Messages:
    1,121 (0.44/day)
    Thanks Received:
    157
    I recently changed phone from a Nokia to HTC. Wasn't really looking forward to using a different brand of phone but the change was forced on me (its a work phone). OMG, they are really good! Having full featured browser so I can log on to TPU is great.

    This new offering from Intel is whats coming. It's a good thing to effectively package a netbook into a phone, and significantly more useful than an iPad.

  20. theonedub

    theonedub habe fidem

    Joined:
    Apr 30, 2009
    Messages:
    7,139 (3.61/day)
    Thanks Received:
    3,664
    Looks like SnapDragon has some competition coming.

    Crunching for Team TPU
  21. R_1

    Joined:
    Dec 1, 2006
    Messages:
    449 (0.16/day)
    Thanks Received:
    39
    How can I say this more simple : A smartphone SoC is not only a general purpose CPU!!! In fact entire smartphone functionality is packed in a single chip. I am not sure if Intel can build a decent 3G radio-modem and a flock of specialized DSPs.

  22. EarlZ New Member

    Joined:
    Jan 10, 2006
    Messages:
    339 (0.11/day)
    Thanks Received:
    6
    What smartphones are currently powered by Intel Atom ?

  23. TheGuruStud

    TheGuruStud

    Joined:
    Sep 15, 2007
    Messages:
    1,615 (0.63/day)
    Thanks Received:
    168
    Location:
    Police/Nanny State of America
    None and they never will if they know what's good for them. The power requirements are too massive. They hype the low power, but that's while idle. Plus, it doesn't include any other chips (unlike the qualcomms that have everything in them and use half a watt).

    And we all know how intel rates their power consumption...basically lies.

  24. Scrizz

    Scrizz

    Joined:
    Aug 22, 2007
    Messages:
    2,919 (1.12/day)
    Thanks Received:
    395
    Location:
    Florida, US
    I welcome Intel into the smartphone world.
    One more chip to choose from.

  25. btarunr

    btarunr Editor & Senior Moderator Staff Member

    Joined:
    Oct 9, 2007
    Messages:
    28,590 (11.22/day)
    Thanks Received:
    13,644
    Location:
    Hyderabad, India
    Intel Core i7 980X...is an x86 processor, so is Phenom II X6.

    You would absolutely want it because the same software that runs on the PC will run on your smartphone. This Atom 1.5 GHz will be as fast as a Pentium 4 @ 2 GHz, which is insanely powerful and fast compared to ARM which celebrates being slow. How fast did ARM processors get over the decade, anyway.

    Intel never was into embedded processors, so it never was into the market ARM was. In fact it's ARM that needs to be threatened by Intel's entry into the market it caters to.

    As for AMD and VIA, Intel holds over 80% of the PC processor market. It's been like this for years. It's not losing any licensing money.
