Noctua Unveils Noise-Canceling Fan, and More Innovations at Computex

Discussion in 'News' started by btarunr, Jun 14, 2012.

  1. btarunr

    btarunr Editor & Senior Moderator Staff Member

    Joined:
    Oct 9, 2007
    Messages:
    28,713 (11.16/day)
    Thanks Received:
    13,669
    Location:
    Hyderabad, India
    Noctua's booth at last week's Computex Taipei not only hosted world's first public demonstration of a PC fan with integrated Active Noise Cancellation (ANC) but also gave a stage to upcoming Noctua products such as the new A-series fans, third generation NF-S12 fan and 37mm low profile CPU coolers. In addition to these upcoming products, Noctua also gave an exclusive insight on some of its current development projects for its D-, U-, C- and L-series heatsinks.

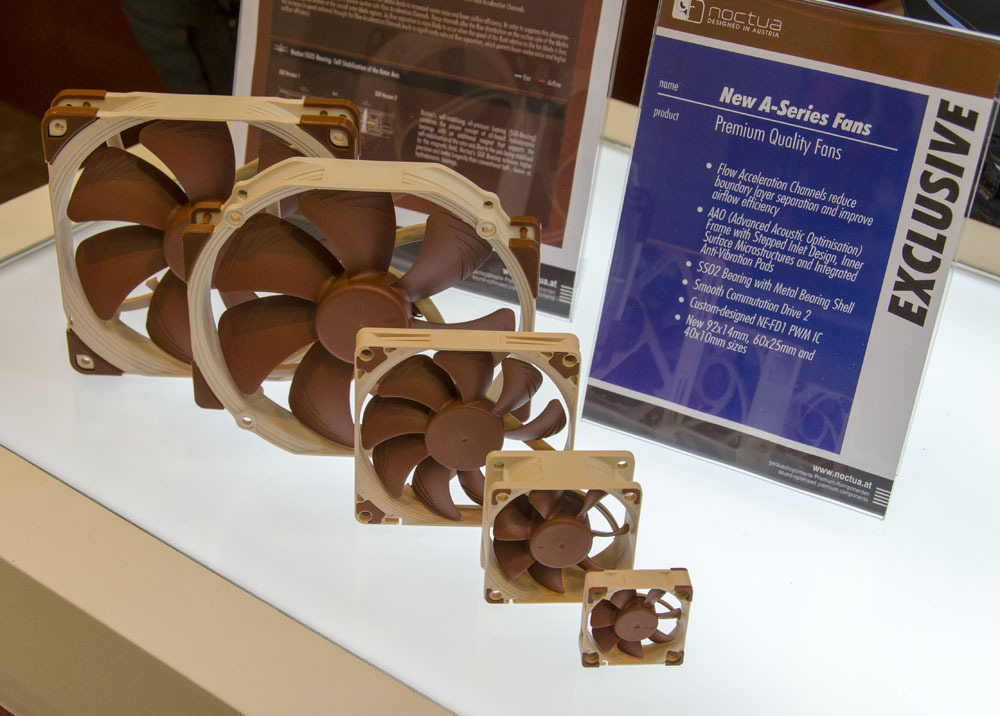

    Firstly, Noctua has displayed its completely new A-series fans that feature a novel aerodynamic design measure called Flow Acceleration Channels to reduce boundary layer separation as well as Noctua's AAO (Advanced Acoustic Optimisation) frames. The new A-series fans are scheduled for launch in September/October and will come in square 140mm, round 140mm, slim 92mm plus 60 and 40mm sizes.

    [​IMG] [​IMG] [​IMG]

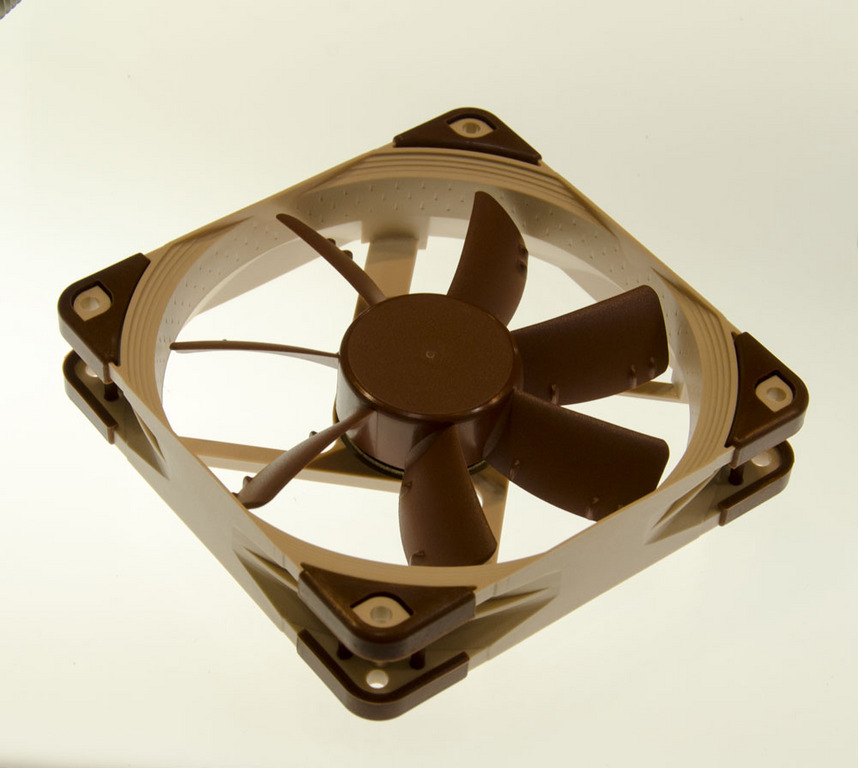

    In the 120mm line-up, the pressure-oriented NF-F12 will be complemented by a new, third evolution of the airflow-oriented NF-S12 series for case cooling. Due its Anti-Stall Knobs and the new AAO frame, the third generation S12 provides up to 8% better airflow to noise ratio and an improved performance curve compared to its renowned predecessor NF-S12B. Like the new A-series fan, the next generation NF-S12 is scheduled for release in September/October.

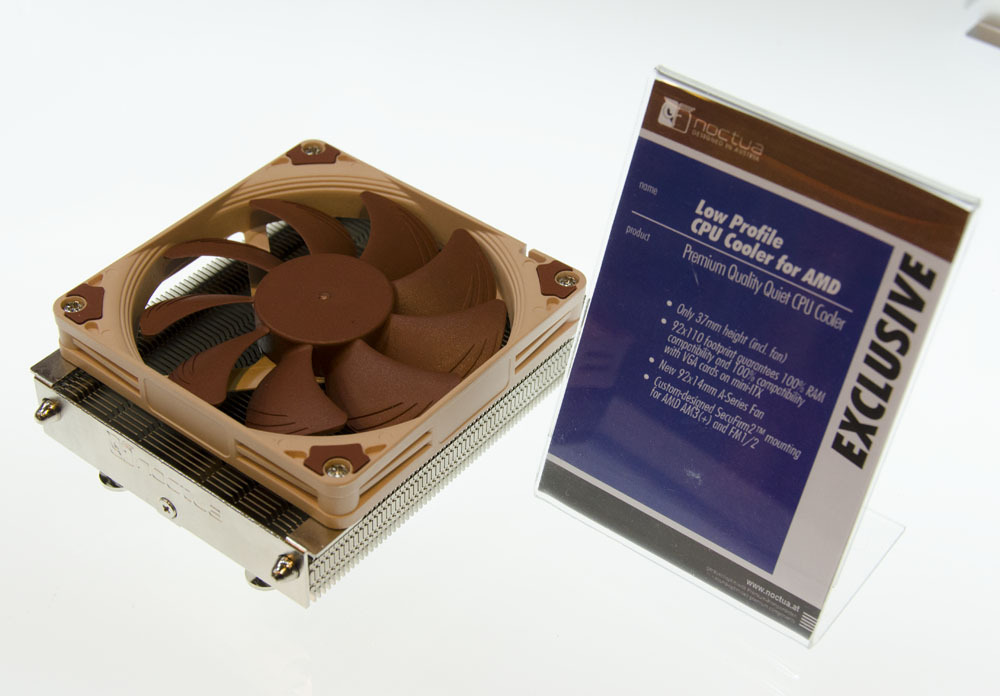

    In addition to its upcoming fans, Noctua showed new D-series, U-series, C-series and L-series CPU cooler prototypes as well as its upcoming new low profile heatsinks for Intel and AMD. Using the new slim 92mm A-series fan, the low profile coolers stand only 37mm tall in order to fit small mini-ITX cases and HTPC enclosures.

    [​IMG] [​IMG] [​IMG] [​IMG]

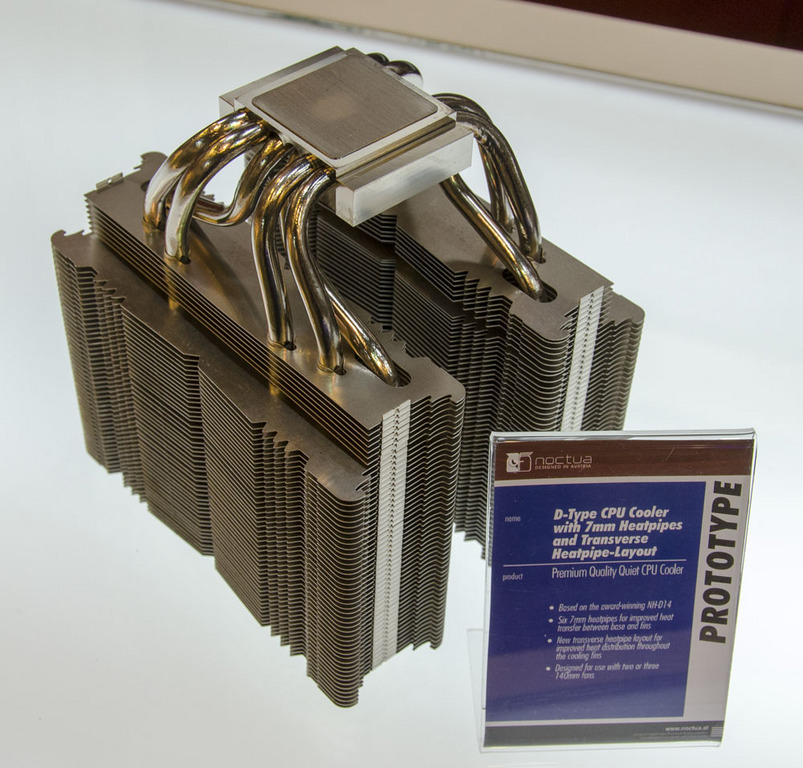

    The two D-type dual tower prototypes both pursue the goal of further improving the award winning quiet cooling performance of Noctua's NH-D14. While one uses two second-layer heatpipes to remove more heat from the base at high heatloads, the other employs 7mm heatpipes and a transverse heatpipe layout for more even heat distribution throughout the cooling fins.

    [​IMG] [​IMG] [​IMG]

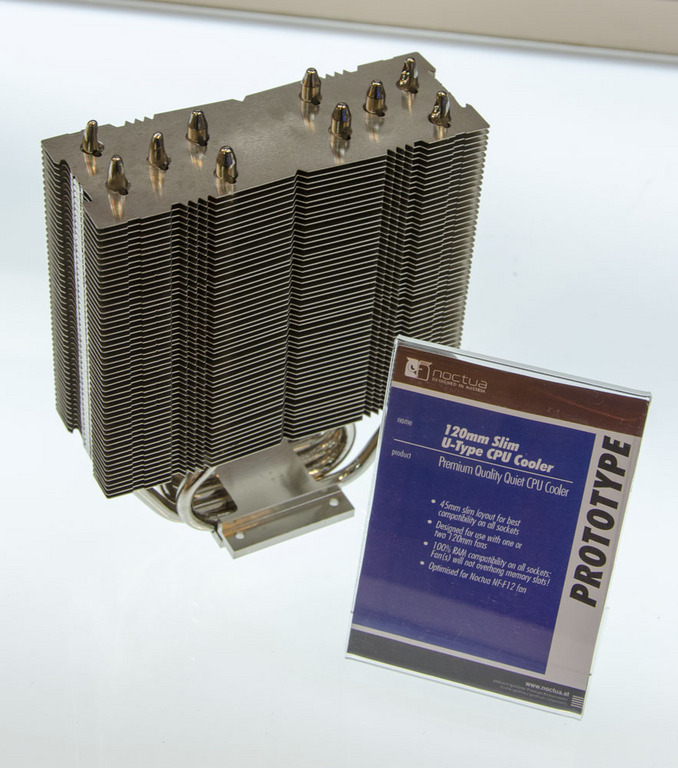

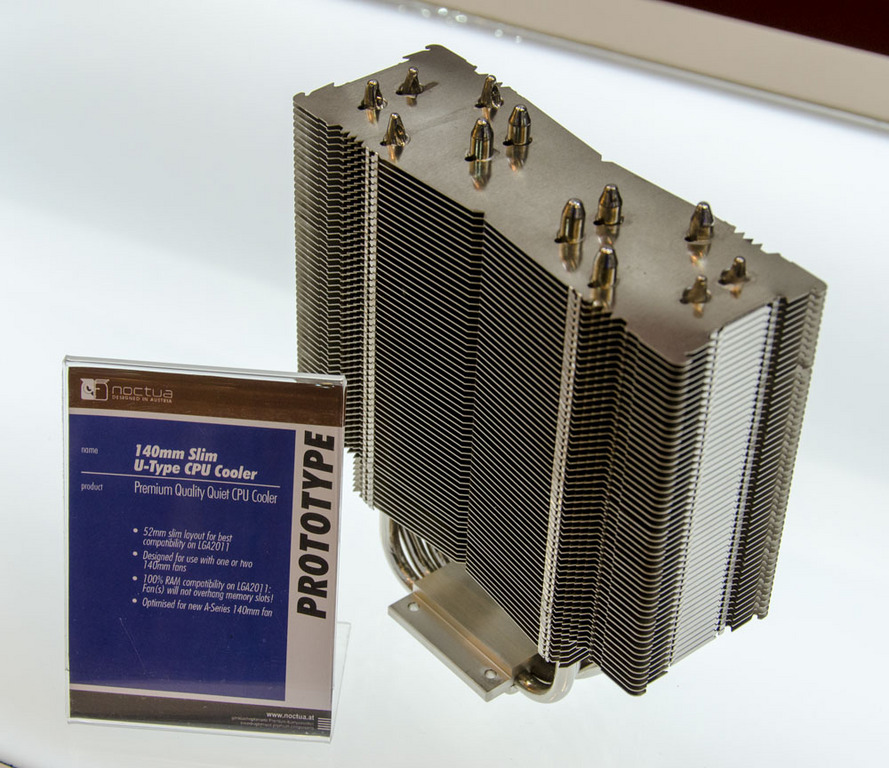

    The 140mm, 120mm and 92mm U-type single tower coolers share the idea of combining further improved performance with better RAM compatibility. Measuring only 52mm thick, the 140mm model will ensure full access to the RAM slots on both sides of the LGA2012 socket. The two smaller prototypes are 45mm slim and guarantee 100% RAM compatibility on all current sockets. Both the D- and U-type prototypes are currently scheduled for Q4 2012.

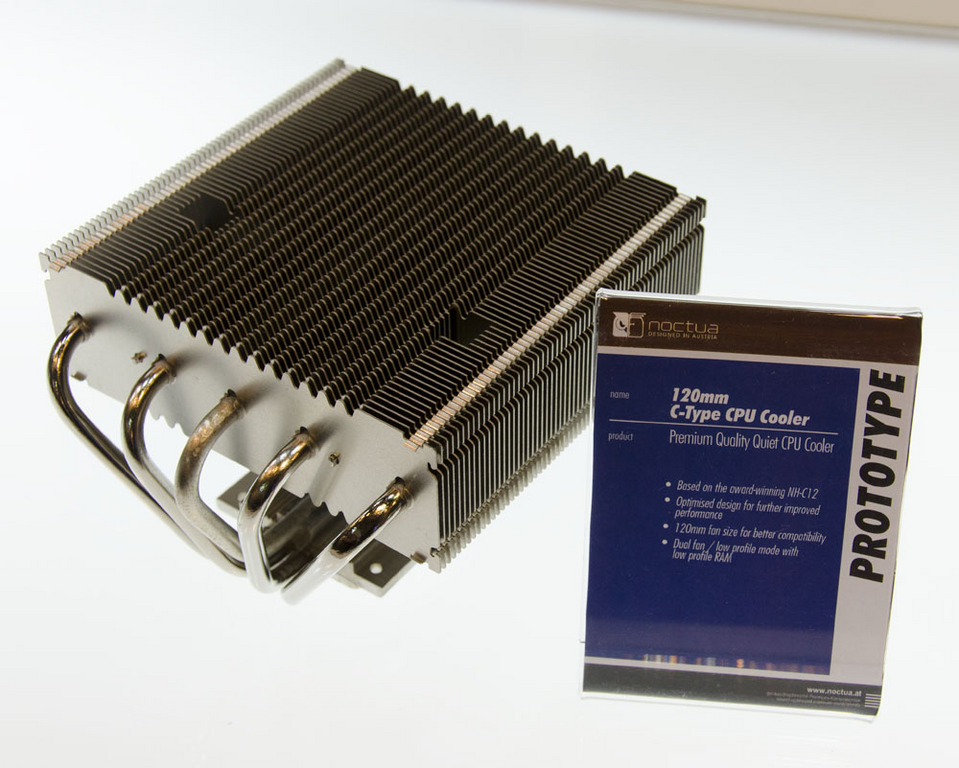

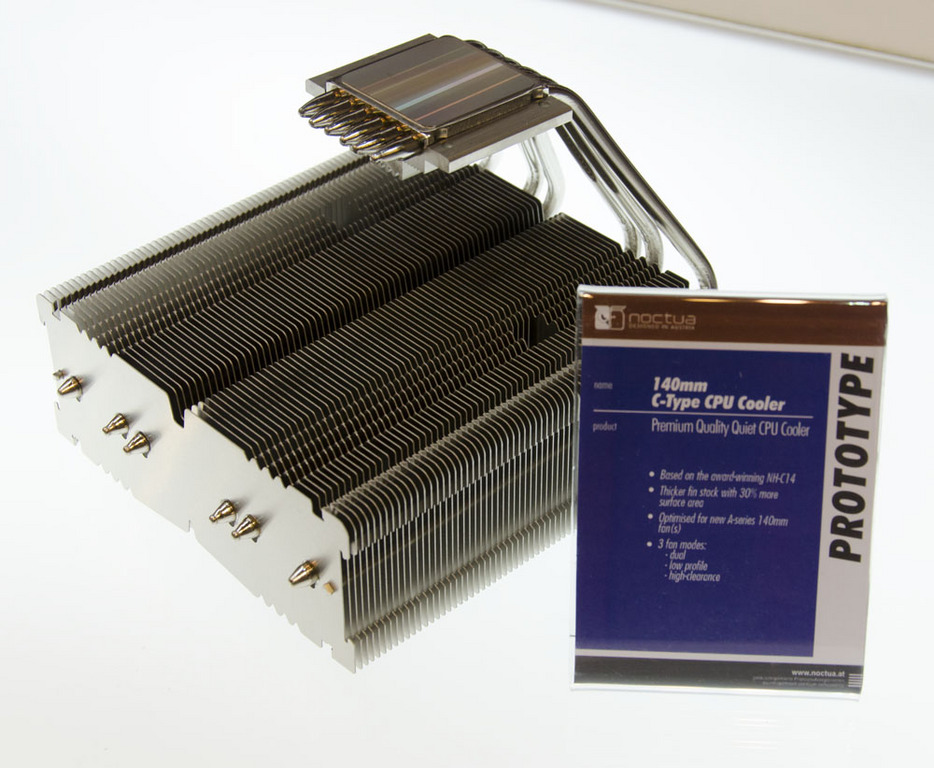

    The C- and L-series prototypes shown at Computex represent development projects for updating the existing NH-C14, NH-C12P SE14 and NH-L12 in 2013. In addition to the new heatsink prototypes, Noctua presented a SecuFirm2 mounting solution for Narrow ILM Xeon E5 2600 platforms as well as IP66 compliant dust and waterproof fans for industrial applications.

    [​IMG] [​IMG]

    The highlight at this year's line-up was the first public demonstration of a working prototype of Noctua's NF-F12 fan with integrated RotoSub Active Noise Cancellation (ANC) technology. The development goal for Noctua's recently announced partnership with RotoSub is to speed up the award-winning NF-F12 120mm fan from 1500 to 2500rpm and to achieve a broadband sound signature that sounds more agreeable to the human ear as well as a similar overall sound pressure level as the original 1500rpm NF-F12 fan, resulting in 80% more airflow and 120% higher static pressure at the same noise level. The first prototype shown at Computex 2012 represents a first proof of concept that demonstrates how tonal noise components can be reduced using RotoSub ANC. Noctua and RotoSub aim to have first products with this technology ready for the market by Q3/Q4 2013.


    Kei says thanks.
  2. TheMailMan78

    TheMailMan78 Big Member

    Joined:
    Jun 3, 2007
    Messages:
    21,140 (7.82/day)
    Thanks Received:
    7,669
    Gotta love Noctua!

    -----Waits for everyone to chime and and say how over priced Noctua's are. Not because they are but because they can't afford them.

  3. Velvet Wafer

    Velvet Wafer New Member

    Joined:
    Jun 16, 2009
    Messages:
    5,123 (2.62/day)
    Thanks Received:
    990
    Location:
    North of Germany
    Sweet Stuff! Prices will enormous tho, i think! :laugh:

  4. Fourstaff

    Fourstaff Moderator Staff Member

    Joined:
    Nov 29, 2009
    Messages:
    9,197 (5.14/day)
    Thanks Received:
    1,982
    Location:
    Home
    They are actually somewhat a bit more expensive for what you get. You pay for the good service and unique colours I guess.

  5. WhiteLotus

    WhiteLotus

    Joined:
    Jul 30, 2007
    Messages:
    6,551 (2.48/day)
    Thanks Received:
    857
    Brown on brown?

    I did have a Noctua fan/heatsink once, was very nice. Got rid of it for some monies though.

  6. Hilux SSRG

    Hilux SSRG

    Joined:
    May 1, 2012
    Messages:
    990 (1.09/day)
    Thanks Received:
    161
    Location:
    New Jersey, USA
    That video was nice!

    Has anyone replaced their stock fans in a Cooler Master HAF 932 case with Noctua? or using Cooler Master replacments is the way to go?

    I think one of my front panel fans is going.

  7. TheMailMan78

    TheMailMan78 Big Member

    Joined:
    Jun 3, 2007
    Messages:
    21,140 (7.82/day)
    Thanks Received:
    7,669
    I did on my 922. No regrets.

  8. Random Murderer

    Random Murderer The Anti-Midas

    Joined:
    Dec 6, 2006
    Messages:
    6,469 (2.25/day)
    Thanks Received:
    1,170
    it'll be interesting to see if this noise-cancelling tech will affect airflow and/or static pressure.

  9. sneekypeet

    sneekypeet Unpaid Babysitter Staff Member

    Joined:
    Apr 12, 2006
    Messages:
    21,621 (6.93/day)
    Thanks Received:
    6,143
    the paragraph above the video states that the plan was to speed up existing fans using the ANC to keep noise levels the same as before. Says it allows these fans to deliver 80% more air flow and 120% more static pressure with the same sound levels as they had without ANC.

  10. LAN_deRf_HA

    LAN_deRf_HA

    Joined:
    Apr 4, 2008
    Messages:
    4,556 (1.90/day)
    Thanks Received:
    952
    I wouldn't. Ignoring the sickly blood snot paint scheme their noise to CFM ratio is mediocre in practice. Their one strength is with their coolers which is what they're optimized for. I cringe every time I see them used as case fans. Much better options out there.

    My current rules are avoid ball bearings as I now notice bearing noise on all of them, and avoid cheap sleeve bearing fans as I've had too many of them leak/die.

  11. phanbuey

    phanbuey

    Joined:
    Nov 13, 2007
    Messages:
    5,205 (2.05/day)
    Thanks Received:
    975
    Location:
    Miami
    so wait... is the 120mm noise canceling or not?

  12. No_Asylum New Member

    Joined:
    Mar 30, 2012
    Messages:
    83 (0.09/day)
    Thanks Received:
    22
    Hmmm lets see..

    Spend $75-$100+ on a hideously ugly fan with fairly decent performance ..
    Spend $10-$20 on any other fan on the market with equal or better performance ..

    Not even remotely worth the money, and I can afford to buy as many as I wish.

  13. Hilux SSRG

    Hilux SSRG

    Joined:
    May 1, 2012
    Messages:
    990 (1.09/day)
    Thanks Received:
    161
    Location:
    New Jersey, USA
    So what brands do you recommend? I'm sure me checking newegg reviews will suffice but forum responses are appreciative!

  14. Random Murderer

    Random Murderer The Anti-Midas

    Joined:
    Dec 6, 2006
    Messages:
    6,469 (2.25/day)
    Thanks Received:
    1,170
    It also says it's a proof of concept, and all we can see is the sound level and a button being pressed.
    Judging from the noise level measurements in the background, the air movement is the same, it just cuts out some tonality towards the left of the graph.
    The sound level also drops in the video, which directly contradicts "80% more airflow and 120% higher static pressure at the same noise level."
    I'm not challenging what's said in the news post or what you've said, merely pointing out that that is not necessarily what they'll be selling and I'm curious about the final product.

  15. sneekypeet

    sneekypeet Unpaid Babysitter Staff Member

    Joined:
    Apr 12, 2006
    Messages:
    21,621 (6.93/day)
    Thanks Received:
    6,143
    I agree. I am not sure if the plan is to be dead silent at normal 120mm Noctua levels, or if they plan to use it to allow them to "juice" the fans a bit and still have near silent usage.

    @ No_Asylum I have yet to see a $75 Noctua fan, $25-30 sure, but I think you are stretching it a bit.

    Scrizz and Zubasa say thanks.
  16. GC_PaNzerFIN

    GC_PaNzerFIN

    Joined:
    Oct 9, 2009
    Messages:
    511 (0.28/day)
    Thanks Received:
    500
    Location:
    Finland
    Noctua's are not the best in terms of cooling or price. But they do excel in low rpm use. I simply can't get the Gentle Typhoons to run as quiet as Noctuas do at <850rpm. And the cooling performance is still ok although not as good as GT's.

  17. catnipkiller

    catnipkiller

    Joined:
    Apr 14, 2010
    Messages:
    1,493 (0.90/day)
    Thanks Received:
    502
    Location:
    canada
    Dont care how good the fan is if it looks like shit.

  18. dickobrazzz New Member

    Joined:
    May 19, 2011
    Messages:
    43 (0.03/day)
    Thanks Received:
    2
    Location:
    Russia, Moscow
    [​IMG] [​IMG]
    hmmm..

  19. GC_PaNzerFIN

    GC_PaNzerFIN

    Joined:
    Oct 9, 2009
    Messages:
    511 (0.28/day)
    Thanks Received:
    500
    Location:
    Finland
  20. dickobrazzz New Member

    Joined:
    May 19, 2011
    Messages:
    43 (0.03/day)
    Thanks Received:
    2
    Location:
    Russia, Moscow
    Unfortunately i haven`t got another pictures of ty140&150, but they are very similar

  21. sneekypeet

    sneekypeet Unpaid Babysitter Staff Member

    Joined:
    Apr 12, 2006
    Messages:
    21,621 (6.93/day)
    Thanks Received:
    6,143
    dickobrazzz says thanks.
  22. Sp33d Junki3

    Sp33d Junki3

    Joined:
    Jan 19, 2012
    Messages:
    200 (0.20/day)
    Thanks Received:
    13
    I like the 40mm fan. Perfect for the Z77 Saberooth I/O port.
    Now they need a 35mm version too for the mobo side.

  23. dickobrazzz New Member

    Joined:
    May 19, 2011
    Messages:
    43 (0.03/day)
    Thanks Received:
    2
    Location:
    Russia, Moscow
    no no, i`m about new noctua 140 :)

    it would be better, if you will take off this shield from the board :)

  24. sneekypeet

    sneekypeet Unpaid Babysitter Staff Member

    Joined:
    Apr 12, 2006
    Messages:
    21,621 (6.93/day)
    Thanks Received:
    6,143
    Hey RM, I got with my rep to see what the final plan was all about straight from the horses mouth if you will. Here is what I was given:

    So it seems the plan it to increase performance while not moving the noise levels, win-win to me:D

    Wile E and Random Murderer say thanks.
  25. GC_PaNzerFIN

    GC_PaNzerFIN

    Joined:
    Oct 9, 2009
    Messages:
    511 (0.28/day)
    Thanks Received:
    500
    Location:
    Finland
    Different blade design, different mounting, different material on the outer ring, different bearing... What else can you change in a fan, perhaps you expect to see 14cm radial fan huh?
