PCCooler OC3 W120 Combines Tower-Type Air Cooler with Water Block

Discussion in 'News' started by btarunr, Jun 10, 2011.

  1. btarunr

    btarunr Editor & Senior Moderator Staff Member

    Joined:
    Oct 9, 2007
    Messages:
    28,972 (10.99/day)
    Thanks Received:
    13,758
    Location:
    Hyderabad, India

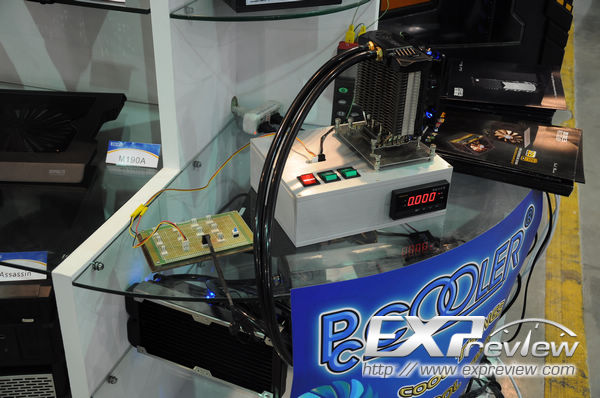

    What happens when you mash up a CPU tower-type air-cooler with a water-block? You get PCCooler OC3 W120. This innovative cooler combines a tower-type air cooler design with a water block. First, there's a typical heatsink that has a polished copper base and heat pipes originating from the base, conveying heat to a aluminum fin stack; next, at the top of the stack are fittings that connect the cooler to a liquid-cooling loop. The water tubes pass through the aluminum fin stack just like heat pipes, before reaching the base of the heatsink. At the base, a micro-fin plate and block chamber makes direct contact with the heat pipes and the base below.

    The aluminum fin stack holds one 120 mm fan to ventilate it. The fins are of irregular shape and are dimpled to increase surface area and turbulence. With its unique hybrid design, the PCCooler OC3 W120 can handle thermal loads of up to 500W. PCCooler OC3 W120 is made by Chinese company Shenzhen Fluence Technology, its products are exclusively sold in the Asian markets.

    [​IMG] [​IMG] [​IMG] [​IMG] [​IMG]

    Source: Expreview

    WarEagleAU and Damn_Smooth say thanks.
  2. mlee49

    mlee49

    Joined:
    Dec 27, 2007
    Messages:
    8,497 (3.32/day)
    Thanks Received:
    2,107
    So, I wonder when it's connected to a 120mm rad if it preforms better than a dual 120mm rad.

    Interesting design.

  3. xsever

    xsever New Member

    Joined:
    Apr 7, 2009
    Messages:
    120 (0.06/day)
    Thanks Received:
    11
    Very interesting and innovative design indeed.

    We need some benchmarks to see whether that translates into practical results or not.

  4. scaminatrix

    scaminatrix

    Joined:
    Mar 1, 2010
    Messages:
    3,579 (2.03/day)
    Thanks Received:
    794
    Location:
    By the Channel Tunnel, Kent, England
    Why is some if the craziest looking stuff for the Asian market only? We like teh crazies too!

    Clever idea, and looks nice too.

  5. freaksavior

    freaksavior To infinity ... and beyond!

    Joined:
    Dec 11, 2006
    Messages:
    8,075 (2.75/day)
    Thanks Received:
    909
    because the asians are awesome. Simply put.

    I like this design, I can see it leading to much lower temps. Has anyone else created anything similar to this?

    Crunching for Team TPU
  6. arterius2

    Joined:
    May 21, 2011
    Messages:
    524 (0.40/day)
    Thanks Received:
    105
    START rant

    I'm sorry to rain on the parade... but

    1. Too bad its a PCCooler product, Mainland Chinese brand, situated in my local city (Shenzhen). Horrible brand, tried a couple of their "top end" HSF products, when I first came to China(2 years ago), was the most expensive HSF in the store, my first (called "Red Sea3") warped (and destroyed) the motherboard and CPU due to lack of back-plate bracing in their retention mechanism, and each of the spring-loaded screws would continue to tighten without you knowing how much you've gone or any indication of a maximum pressure reached, 2nd one reached 95C load on a i7 920 causing it to down-throttle (re-pasted several times with IC Diamond/AS5 etc. not pasting issue, just horrible HSF), at this point, I stopped buying their brand. 3rd one was purchased by a friend of mine, its humid here, and after 2 month of use, the copper fins was all rusted (turned brownish-green) due to lack of (nickel-plate) coating on the fins.

    2. Watercooling in a HSF is gimmicky, if you are in business for watercooling, you would of purchased a real watertooling setup(less noise, less dust). If you wanted a good air-cooler, you would of purchased a reputable air cooler such as Prolimatech SuperMega, or TR SilverArrow, or Noctua NH-D14 etc. Not this third rate junk.

    3. Their coolers aren't the cheapest considering their horrible performance, you could easily get imports (foreign brands, meaning non-Chinese) cheaper and better performance.

    4. PCCooler tends to blatantly clone other brands, notably Zalman, so a breach of copyright issue here.. So I wouldn't be too surprised if this was copied from somewhere.
    this is PCCooler "BlueBird" (my company uses this in every machine):
    http://www.pccooler.cn/en/proview.php?pro_typeid=248&pro_typeid2=250&pro_id=1653
    this is Zalman CNPS7000:
    http://www.zalman.com/ENG/product/Product_Read.asp?idx=311

    looks familiar??!?

    /rant

    Last edited: Jun 10, 2011
    mstenholm says thanks.
  7. Cold Storm

    Cold Storm Battosai

    Joined:
    Oct 7, 2007
    Messages:
    15,014 (5.69/day)
    Thanks Received:
    2,999
    Location:
    In a library somewhere on this earth
    Makes me want to buy one of the Hw lab stealth 120mm rad's and see how it would do stuck to my tower..

    If that design does well, I bet it'll have a good market.

    Here's to hoping.

    :toast:

  8. pantherx12

    pantherx12 New Member

    Joined:
    Jan 2, 2009
    Messages:
    9,714 (4.45/day)
    Thanks Received:
    1,699
    Location:
    ENGLAND-LAND-LAND
    Pccooler I think haev stepped up their game recently.

    I've got two pccooler gpu heatsinks, and the one I have on at the moment the k100 is easily the best GPU cooler I've owned.

    Although it's a bitch to install lol

    Excuse the poor photo, just grabbed my phone to take it.

    [​IMG]

    Also check out my ghetto mod ;) didn't have any copper mosfet heatsinks so chopped off the mosfet cooling plate :D


    2x 100mm fans for those who wonder.

    The cpu heatsink looks like fun.

  9. scaminatrix

    scaminatrix

    Joined:
    Mar 1, 2010
    Messages:
    3,579 (2.03/day)
    Thanks Received:
    794
    Location:
    By the Channel Tunnel, Kent, England
    Spoilsport :p thanks for the info though :)

    Nice, looks like a beasty-ish, where did you get it? Was it a UK source or did you have to fandangle a way of sourcing it?

  10. Hayder_Master

    Hayder_Master

    Joined:
    Apr 21, 2008
    Messages:
    5,180 (2.12/day)
    Thanks Received:
    639
    Location:
    IRAQ-Baghdad
    The idea is great, and they can do many new ideas too from this like combine it with ready made water cooler like H70 or H100. It will be awesome.

  11. Bjorn_Of_Iceland

    Bjorn_Of_Iceland

    Joined:
    Jan 2, 2008
    Messages:
    3,176 (1.25/day)
    Thanks Received:
    376
    Are those pre installed barbs? Because if it is, its already a fail on my part. The water tube passing through the fins looks like have a small id as well.. bad for flow. And I doubt if the base is on par with modern cpu blocks today.. it looks like it doesnt even have a jet plate (no mention of it) which is the norm for todays cpu blocks. Having just microfins just wont cut it. And how about maintenance? Can the block be opened up?

    If id want to go liquid, I'd buy a cpu block. If i want to go air, id buy a normal tower cooler.

    Last edited: Jun 10, 2011
    mstenholm says thanks.
  12. pantherx12

    pantherx12 New Member

    Joined:
    Jan 2, 2009
    Messages:
    9,714 (4.45/day)
    Thanks Received:
    1,699
    Location:
    ENGLAND-LAND-LAND

    Got from ebay, cost £30 quid delivered from china, it's worth the money.

    1000core 1.2v +furmark with all the extra options to ruin your card turned out the card won't go over 60 degrees.

    That's about a 30-40 degree difference :laugh: ( vs stock cooling)

    scaminatrix says thanks.
  13. entropy13

    entropy13

    Joined:
    Mar 2, 2009
    Messages:
    4,978 (2.34/day)
    Thanks Received:
    1,221
    PCCooler doesn't have that much of a presence here, mostly small GPU heatsinks, one of the few 92mm case fans available, and cheap CPU HSFs.


    Deep Cool, on the other hand...can't wait to see the Assassin (or maybe even the Fiend Shark, which is apparently available here already at a good price, still not reviewed though).

  14. twilyth Guest

    I'm assuming that part of the idea behind the combo is so that if your loop dies, you have enough cooling with just the fan and heatsink that you don't get a thermal fault. If that's really their intention, and it works, I think it's genius. It's the sort of thing you look at and wonder why no one ever came up with this before.

    On the other hand, there is such a thing as trying to do too much and doing everything poorly. If you need absolute fault tolerance 24/7, then I can see going with this, but how many people does that actually apply to? Maybe it will work well as a stand alone air cooler, but as was already mentioned, those look like some awfully tiny pipes for wc, at least compared to any of the rigs I've seen here. But if you look at a Hydro 70, that has pretty small diameter hoses too and works really well (as far as I'm concerned anyway), so IDK.

  15. pantherx12

    pantherx12 New Member

    Joined:
    Jan 2, 2009
    Messages:
    9,714 (4.45/day)
    Thanks Received:
    1,699
    Location:
    ENGLAND-LAND-LAND
    I came up with this before, I'm sure a whole bunch of people have.

    We just don't have access to work shops lol

    theJesus says thanks.
  16. theJesus

    theJesus

    Joined:
    Jul 20, 2008
    Messages:
    3,976 (1.69/day)
    Thanks Received:
    864
    Location:
    Ohio
    Yup, I've thought of this as well. Or at least slapping a heatsink on top of a waterblock and seeing if it makes any difference :laugh:

  17. Jizzler

    Jizzler

    Joined:
    Aug 10, 2007
    Messages:
    3,464 (1.28/day)
    Thanks Received:
    650
    Location:
    Geneva, FL, USA
    [​IMG]

    Yup. Back in the day overheat protection didn't always protect your CPU if the pump died.

  18. PopcornMachine

    PopcornMachine

    Joined:
    Aug 17, 2009
    Messages:
    1,563 (0.80/day)
    Thanks Received:
    459
    Location:
    Los Angeles/Orange County CA
    Brand aside, it is an interesting concept. Might be great for small cases where adding a 2nd radiator could be difficult or impossible. Don't think the fan would have to be loud to be effective.

    Looking forward to how it works.

  19. mstenholm

    Joined:
    Nov 7, 2009
    Messages:
    2,141 (1.14/day)
    Thanks Received:
    1,276
    If you want to sail, buy a boat, if you want to drive, buy a car.

    BUCK NASTY says thanks.
    Crunching for Team TPU More than 25k PPD
  20. scaminatrix

    scaminatrix

    Joined:
    Mar 1, 2010
    Messages:
    3,579 (2.03/day)
    Thanks Received:
    794
    Location:
    By the Channel Tunnel, Kent, England
    [​IMG]

    Some people want the benefits of both...

  21. mstenholm

    Joined:
    Nov 7, 2009
    Messages:
    2,141 (1.14/day)
    Thanks Received:
    1,276
    Sure and they got a bad boat and a crappy car....

    I see the benefit of having the air back-up but any claim about 500 Watt heat disposal makes me wonder about the engineering quality. We are talking about + 1 m/s in these tiny pipes and thats led me to make the car/boat statement.

    BUCK NASTY and scaminatrix say thanks.
    Crunching for Team TPU More than 25k PPD
  22. WarraWarra New Member

    Joined:
    Nov 23, 2010
    Messages:
    268 (0.18/day)
    Thanks Received:
    14
    Yeah like the 3 and 4 sim quad band phones that eats iphone5 up for breakfast for USD$124 + has a tv and 5G etc.

    Topic:
    Bloody marvelous concept. Small footprint large cooling effect.

  23. scaminatrix

    scaminatrix

    Joined:
    Mar 1, 2010
    Messages:
    3,579 (2.03/day)
    Thanks Received:
    794
    Location:
    By the Channel Tunnel, Kent, England
    I was just joking, don't take me seriously :p

    I agree with you on worrying about the quality, and there's the fact that certain types of solder and other materials aren't allowed to be used in products that are aimed at EU (and probably US). Probably why some of these things (aswell as all these cheap arse PSU's from Mexico, etc.) are never sold here - they don't pass certain safety tests I suppose.

    Yea they really interested me, some of them are bloody epic!!

  24. Yellow&Nerdy?

    Yellow&Nerdy?

    Joined:
    Oct 7, 2009
    Messages:
    392 (0.21/day)
    Thanks Received:
    57
    Might not work very well as it is, but the idea itself is interesting. Further development is definitely needed, but this could turn out to be pretty neat. They will no doubt have to make thicker "heatpipes" for liquid transfer in the "air cooled" part. Plus they need to modify the base to something that is similar to a CPU-block in a water-cooling loop.

  25. Bjorn_Of_Iceland

    Bjorn_Of_Iceland

    Joined:
    Jan 2, 2008
    Messages:
    3,176 (1.25/day)
    Thanks Received:
    376
    They are chinese, they do crazy stuff like.. umm.. claiming sovereignty to a place thousands of kilometers far off from their land.
