[Project] L3p D3sk

Discussion in 'Project Logs' started by l3p, Oct 22, 2010.

  1. l3p

    l3p

    Joined:
    Oct 22, 2010
    Messages:
    316 (0.21/day)
    Thanks Received:
    656
    Location:
    Netherlands
    [Project] L3p D3sk (Check the 2013 Update!)

    [​IMG]

    ---> 2013 Update! <---


    Hi there:)

    I'm quite new to this forum, but since they liked my build at some Dutch hardware sites, i wanted to post it here too.

    My other build came to an end and didn't know what to improve, but my old desk almost fell apart.

    [​IMG]

    Really want to thank Pascal for his pc-in-a-desk idea. After seeing it I couldn't even sleep that night :)

    I started sketching it with Google Sketchup
    After 9 hours of non-stop drawing it finally had some shape.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]


    Hardware to be used:
    (Most of it comes out of my old build)

    [​IMG]


    Intel Core i7 980X @ 4.5 Ghz
    Corsair Dominator GT 6GB DDR3-2000 CL7 (Elpida) @ 2000 7-7-7-20-1T
    ASUS Rampage III Extreme
    2 x ASUS GTX580
    ASUS Xense
    Sennheiser Xense
    Highpoint RocketRAID 3560 24x SATA-300 2 GB
    Bigfoot Networks™ Killer™ 2100 Gaming Network Card
    1x Intel 510 120GB
    3x Corsair F60 raid0
    6x Hitachi Deskstar 7K2000 2TB raid5
    2x Optiarc AD-7241S-0B
    2 x Coolermaster Silent Pro 700W
    Dell U2711 27″ IPS
    2x Dell 1703 FPt 17″ portrait

    Blocks
    1 x EK Supreme HF Nickel CPU Block
    2 x EK-FC580 GTX – Nickel
    2 x EK-FC580 GTX Backplate – Nickel plated
    1 x EK RAM Dominator Nickel
    1 x EK-FB RE3 – Nickel
    1 x EK-FB RE3 – TOP Acetal – Level 2
    2 x Bitspower HDD Acetal Liquid Cooling Block – Silver

    Pumps
    2 x Laing D5-MCP655
    2 x Bitspower D5/MCP655 Mod Pump Top V2
    2 x Bitspower Black Sparkle D5/MCP655 Mod Kit

    Reservoir
    1 x Aquacomputer Aquatube G1/4 brass

    Radiator
    1 x Aquacomputer evo 1080

    Fans

    6 x Nanoxia DX Series 120MM DX12 - 1200RPM @ 5V
    11 x Scythe Gentle Typhoon 120MM 1450RPM @ 12V

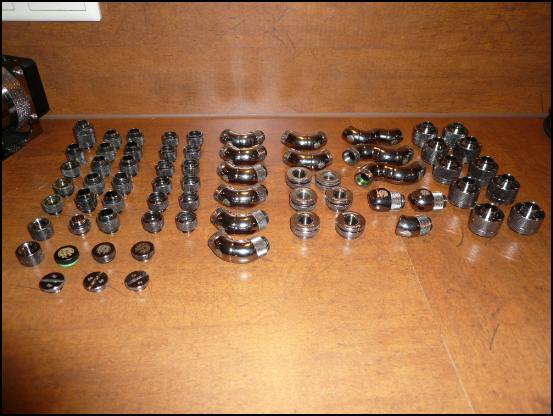

    Fittings etc

    24 x Bitspower Black Sparkle Multi-Link (SLI/CF) Adapter
    16 x Bitspower Black Sparkle G1/4 Rotary 90 Degree IG1/4 Adapter
    12 x Bitspower Black Sparkle G1/4 naar G1/4 (2x OD) Verbindingsstuk
    10 x Bitspower Black Sparkle G1/4 Stop Fitting
    8 x Bitspower Black Sparkle 13MM (1/2) Schroeffitting – G1/4
    6 x Bitspower Black Sparkle G1/4 Rotary 90 Degree ID 1/4 Adapter
    6 x Bitspower Black Sparkle G1/4 IG1/4 Extender
    4 x Bitspower Black Sparkle G1/4 Five Rotary Snake-Style Dual IG1/4 Adapter
    4 x Bitspower Black Sparkle G1/4 Rotary 45 Degree IG1/4 Adapter
    2 x Bitspower Black Sparkle G1/4 Triple Rotary Mini Snake-Style Dual IG1/4 Adapter
    1 x Bitspower Black Sparkle G1/4 Triple Rotary Snake-Style Dual IG1/4 Adapter
    1 x Bitspower Black Sparkle G1/4 Rotary IG1/4 Extender
    5 x Bitspower Crystal Link Tube For 5-Slots (SLI/CF)
    8 x Bitspower Silver Shining 2xG1/4″ Fillport
    2 x Bitspower Silver Shining G1/4 naar G1/4 (2x OD) Verbindingsstuk Mini
    2 x Bitspower Matt Black 2xG1/4″ Fillport
    2 x Bitspower Matt Black 13MM (1/2)Schroeffitting – G1/4
    1 x Koolance INS-FM17 Coolant Flow Meter & Adapter Board INS-FM17
    2 x Thermosensor G1/4 2x ID In-Line met Display (blue)
    2 x Colder 13MM (1/2) Snelkoppeling Set
    2 m Tygon R3400 1/2 ID Black
    2 m Tygon R3603 1/2 ID Clear
    3 L Feser One Cooling Fluid – UV Acid Green


    I'm also gonna use my old cooling again since it works superb.
    It's a 1080 radiator under my floor from my house, right in the corner where my pc is.
    My water temperature in wintertime is around 18 degrees, in the summer it's around 23 degrees.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]



    Here some Youtube movies:

    Underground radiator
    [​IMG]

    The Final Fill-up
    [​IMG]

    Silence of the L3p D3sk
    [​IMG]


    Click here for the post with the high resolution photo's from the almost finished desk.


    Sponsored by:
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Last edited: Sep 17, 2013
    ChristTheGreat, MT Alex, gopal and 5 others say thanks.
  2. l3p

    l3p

    Joined:
    Oct 22, 2010
    Messages:
    316 (0.21/day)
    Thanks Received:
    656
    Location:
    Netherlands
    Since im already busy with this project for 3 months now, here are all the pics in one post.

    Started with an Aluminium plate of 1850x990x3

    [​IMG]

    [​IMG]

    Plates for the mainboard tray, hdd tray, pump/res tray and cable plate

    [​IMG]

    [​IMG]

    [​IMG]

    The bearer ring to hold my desk
    [​IMG]

    [​IMG]

    Been to an other company to make a logo
    [​IMG]

    [​IMG]

    And back to welding :)
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Plasmacutter to make some cable holes
    [​IMG]

    [​IMG]

    End of the first long day :)
    [​IMG]

    Creating a logo (was just a try, worked out well)

    [​IMG]

    [​IMG]

    Made some holes for the lcd's for the in and outgoing water temperature, and for the logo

    [​IMG]

    Had to make some changes to let my knees fit :)

    [​IMG]

    Fitting the trays with sound isolation under it.

    [​IMG]

    [​IMG]

    I love packages !

    [​IMG]

    Thought the buttons would the same, gonna change for 2 big one's now.

    [​IMG]

    Sound isolating for under my trays.

    [​IMG]

    My best friend welding

    [​IMG]

    Holes for the Bitspower fanguards
    Both sides will have 3x 120mm Scythe Gentle Typhoons 1450 rpm op 5V
    Underground will be 9x 120mm Scythe Gentle Typhoons 1450 rpm op 12V @ the 1080 radiator

    [​IMG]

    [​IMG]

    Thats me !

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    "Rough" work is done

    [​IMG]

    [​IMG]

    [​IMG]

    A Bitspower Black Sparkle Ashtray :)

    [​IMG]

    [​IMG]

    So brought the d3sk back home

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Gonna use the backplate of an old lianli. (Thanks brother in law !)

    [​IMG]

    [​IMG]

    Fitting, measuring and hanging

    [​IMG]

    [​IMG]

    The battlefield.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Just playing around ;)

    [​IMG]

    [​IMG]

    [​IMG]

    New toy arrived

    [​IMG]

    Fitting and measuring, pff

    [​IMG]

    Forgot a hole :)

    [​IMG]

    So made it bigger

    [​IMG]

    Mess outside

    [​IMG]

    Made 2 extra 120mm fan holes in the cable-space, cause i decided my psu will come there too.
    And made the hole for the lianli backplate.

    [​IMG]

    [​IMG]

    Bitspower !

    [​IMG]

    [​IMG]

    And building everything back for the hole picture

    [​IMG]

    MT Alex, digibucc, manofthem and 5 others say thanks.
  3. l3p

    l3p

    Joined:
    Oct 22, 2010
    Messages:
    316 (0.21/day)
    Thanks Received:
    656
    Location:
    Netherlands
    Some more pictures :)

    Shopping time

    [​IMG]

    Measuring the last holes.

    [​IMG]

    And more measuring

    [​IMG]

    Muscle pain !

    [​IMG]

    Rear = ready

    [​IMG]

    And the front !

    [​IMG]

    [​IMG]

    Hiding cables, what a nasty job.

    [​IMG]

    Scythe fanguards, maybe temporary

    [​IMG]

    Need sata ? :)

    [​IMG]

    Topview

    [​IMG]

    [​IMG]

    Getting tired when i see this again

    [​IMG]

    Filled up !

    [​IMG]

    [​IMG]

    Youtube - Filling it up :)

    http://www.youtube.com/watch?v=lfRiu3UnKTA

    Hiding Sata(n) ! ;)

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    And lift of

    [​IMG]

    Testrun 1

    [​IMG]

    [​IMG]

    Temperatures are better then in my Corsair 800D ;)

    [​IMG]

    Now first some rest behind my d3sk, before it goes to the powdercoater :)

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

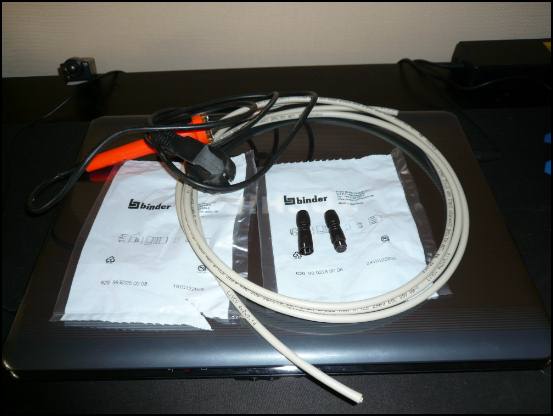

    Found a nice connector for the Bulgin power and reset button to be disconnected easily.

    [​IMG]

    [​IMG]

    [​IMG]

    Now that they will be above my desk, i wont be to lazy to start working again on the inside of the desk :)

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    That's me !

    [​IMG]

    [​IMG]

    Done for today :p

    [​IMG]

    [​IMG]

    Last edited: Oct 22, 2010
    itsakjt, manofthem, theJesus and 5 others say thanks.
  4. l3p

    l3p

    Joined:
    Oct 22, 2010
    Messages:
    316 (0.21/day)
    Thanks Received:
    656
    Location:
    Netherlands

    [​IMG]



    [​IMG]



    [​IMG]



    [​IMG]



    [​IMG]



    [​IMG]



    [​IMG]



    [​IMG]



    [​IMG]



    [​IMG]



    I want to thank Bitspower for sponsoring me at this project, specially Vincent !

    [​IMG]

    And some new hardware :)

    [​IMG]


    [​IMG]



    [​IMG]


    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Supreme HF Nickel + Chrome :)

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    I'll add these in my loop the next time

    [​IMG]

    [​IMG]

    Last edited: Oct 22, 2010
    Jetster, theJesus, Dice and 4 others say thanks.
  5. afw

    afw New Member

    Joined:
    Mar 4, 2009
    Messages:
    642 (0.30/day)
    Thanks Received:
    127
    Sub'd ..... massive build ... :rockout: ... just brilliant ... ;)

  6. Bjorn_Of_Iceland

    Bjorn_Of_Iceland

    Joined:
    Jan 2, 2008
    Messages:
    3,176 (1.25/day)
    Thanks Received:
    376
    heel mooi [​IMG] :toast:

  7. ERazer

    ERazer

    Joined:
    Oct 8, 2009
    Messages:
    1,543 (0.81/day)
    Thanks Received:
    492
    Location:
    Republic of Texas
    sub'd must be nice to have all that equipment available, gonna be an epic build! :rockout::toast:

  8. l3p

    l3p

    Joined:
    Oct 22, 2010
    Messages:
    316 (0.21/day)
    Thanks Received:
    656
    Location:
    Netherlands
    This is how i drain my loop :)


    [​IMG]


    Stripping time !


    [​IMG]


    And building it up again with a bitspower mb block, and i rotated my EK HF
    This is because i forgot i needed to rotate it when the flow comes from the other side compared to my other build.


    [​IMG]


    Rubbertaped the borders, because the coating will come a few months later


    [​IMG]


    How my Raidcard looked like

    [​IMG]

    And how it looks now :)


    [​IMG]



    [​IMG]


    Bitspower block


    [​IMG]


    Rubber tape looks grey, but its because of the flash, normally its black :)


    [​IMG]



    [​IMG]


    Till the next little update :)

  9. l3p

    l3p

    Joined:
    Oct 22, 2010
    Messages:
    316 (0.21/day)
    Thanks Received:
    656
    Location:
    Netherlands
  10. [H]@RD5TUFF

    Joined:
    Nov 13, 2009
    Messages:
    5,615 (3.01/day)
    Thanks Received:
    1,707
    Location:
    San Diego, CA
    Amazing stuff!

    When do you start powder coating , and when will you get it back ?

  11. ToB1

    ToB1 New Member

    Joined:
    May 27, 2010
    Messages:
    44 (0.03/day)
    Thanks Received:
    9
    Location:
    Norway
    Nice project! :)

  12. jasper1605

    Joined:
    Nov 6, 2009
    Messages:
    1,275 (0.68/day)
    Thanks Received:
    229
    Location:
    Ohio
    oh my stars is that awesome!

  13. Wile E

    Wile E Power User

    Joined:
    Oct 1, 2006
    Messages:
    24,324 (8.10/day)
    Thanks Received:
    3,778
    HOLY MOLY!

    That is all.

  14. jasper1605

    Joined:
    Nov 6, 2009
    Messages:
    1,275 (0.68/day)
    Thanks Received:
    229
    Location:
    Ohio
    I don't think I could even design this let alone build it!

    Very nice work man; it's awesome to see people put love into things they do. And then share it with lots of pictures :)

  15. TSX420J

    TSX420J

    Joined:
    Apr 19, 2007
    Messages:
    378 (0.13/day)
    Thanks Received:
    41
    Sickest build I have ever seen. :respect: :respect: :respect: :respect: :toast:

    johnnyfiive says thanks.
  16. l3p

    l3p

    Joined:
    Oct 22, 2010
    Messages:
    316 (0.21/day)
    Thanks Received:
    656
    Location:
    Netherlands
    Finally found some time for a little update ;)

    Package came in this morning
    Found a Corsair Dominator GT 2000mhz CL7 elpida set.

    [​IMG]

    [​IMG]

    [​IMG]

    Looks easy, but isn't :)

    [​IMG]

    Old and new set

    [​IMG]

    [​IMG]


    Also added an UV Led strip behind the logo to lighten it up some more.

    Without UV Led
    [​IMG]

    With UV LED
    [​IMG]

    Without UV Led
    [​IMG]

    With UV LED
    [​IMG]

    theJesus and Reventon say thanks.
  17. garyinhere

    garyinhere

    Joined:
    Jan 26, 2010
    Messages:
    1,610 (0.90/day)
    Thanks Received:
    978
    Location:
    I'm roomates with Corey Feldman
    all that i can say is wow and i hope you own that house lol!

  18. blu3flannel

    blu3flannel

    Joined:
    May 14, 2010
    Messages:
    898 (0.53/day)
    Thanks Received:
    120
    Location:
    NYU
    That... was.... beautiful. :respect::respect::respect::respect::respect: :respect:

  19. l3p

    l3p

    Joined:
    Oct 22, 2010
    Messages:
    316 (0.21/day)
    Thanks Received:
    656
    Location:
    Netherlands
    You mean cause of the holes in the floor ?
    No problem it's my own house :)

  20. esberelias

    esberelias New Member

    Joined:
    Mar 3, 2010
    Messages:
    59 (0.03/day)
    Thanks Received:
    2
    Location:
    Alberta, CA
    this is awesome man! awesome work

  21. HammerON

    HammerON The Watchful Moderator Staff Member

    Joined:
    Mar 2, 2009
    Messages:
    6,566 (3.10/day)
    Thanks Received:
    3,677
    Freak'n awesome! Best build I have seen yet:toast:

    Crunching for Team TPU
  22. l3p

    l3p

    Joined:
    Oct 22, 2010
    Messages:
    316 (0.21/day)
    Thanks Received:
    656
    Location:
    Netherlands
    Got something nice from a friend @ Highflow.nl forum.
    Hope it'll fit :)

    [​IMG]

  23. copenhagen69

    Joined:
    Jan 27, 2010
    Messages:
    3,931 (2.20/day)
    Thanks Received:
    1,243
    Location:
    USA
    frikin amazing!!!!!

    are you not worried about that dirt/dust clogging your rads?

  24. l3p

    l3p

    Joined:
    Oct 22, 2010
    Messages:
    316 (0.21/day)
    Thanks Received:
    656
    Location:
    Netherlands
    Nope it only eats spiders :)

  25. n-ster

    Joined:
    Jan 11, 2009
    Messages:
    8,864 (4.09/day)
    Thanks Received:
    1,405
    Why don't you live in the USA or Canada? I would have stolen you L3pdesk :) or at least asked you to make me one at a fair price...

    How many hours did it take to build the desk itself? and how much cost in material?


Currently Active Users Viewing This Thread: 1 (0 members and 1 guest)

Share This Page
