    Time to get back on this project!
    Been busy the last few weeks with some other things that needed to happen first :)

    First ordered some more Q-blocks

    [​IMG]


    Think these will give a cool effect too.

    [​IMG]


    Something I did which took me a few full days.
    Cleaned up and re-organised the complete attic. :)

    [​IMG]

    [​IMG]


    And another thing I did..
    Probably the cheapest case I ever made :)
    'L3p Min3r'

    [​IMG]


    Desk for the 'clean' work.

    [​IMG]


    Also received something really nice from ASUS Benelux.

    [​IMG]

    [​IMG]

    [​IMG]


    Screams to be modificated ;)

    [​IMG]

    [​IMG]


    Such a pleasure to work in a clean spot ;)
    On to the next updates!

    [​IMG]

    puma99dk| and manofthem say thanks.
  5. manofthem

    manofthem

    Joined:
    Jan 9, 2011
    Messages:
    6,103 (4.41/day)
    Thanks Received:
    7,890
    Yes, we are all jealous, but we look forward to future updates and more goodness. :D

    l3p says thanks.
    Crunching for Team TPU
  6. l3p

    l3p

    Joined:
    Oct 22, 2010
    Messages:
    311 (0.21/day)
    Thanks Received:
    642
    Location:
    Netherlands
    Decided to only use some handtools and a dremel this time :)

    [​IMG]


    First wreck it.

    [​IMG]

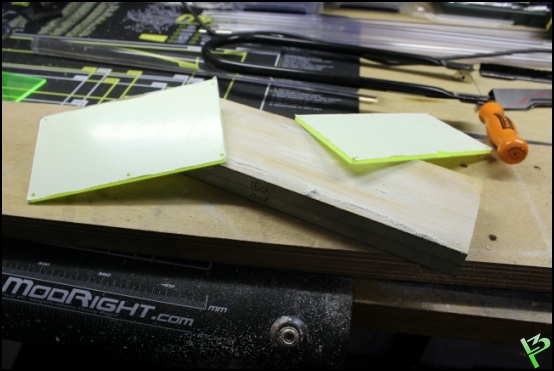

    And measuring the acrylic.

    [​IMG]


    First drilled the holes then used the fretsaw.
    You can easily drill holes near the edges with a dremel on high speed by the way without breaking it.

    [​IMG]


    And sanded the edges.

    [​IMG]


    More measuring.

    [​IMG]


    Always a lovely moment when you can peel off the protection layer :p

    [​IMG]


    Used transparent glue and left it to dry for a night.

    [​IMG]


    Then I found out I didn't have long M2 bolts after all ..
    So removed the standoff's and drilled all holes in PCB and covers with 3.2mm.

    [​IMG]


    Plenty of M3 here :)

    [​IMG]


    30 nuts later.

    [​IMG]

    [​IMG]

    [​IMG]


    And with some LEDS on.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]


    With his little sisters.

    [​IMG]

    puma99dk| and manofthem say thanks.
  7. jboydgolfer

    jboydgolfer

    Joined:
    Oct 17, 2012
    Messages:
    619 (0.84/day)
    Thanks Received:
    106
    Location:
    Amherst , MA
    get the fuk outta here:(

  8. l3p

    l3p

    Joined:
    Oct 22, 2010
    Messages:
    311 (0.21/day)
    Thanks Received:
    642
    Location:
    Netherlands
    I'm still alive ;)

    Months ago I got the idea to have a PS4 on the right side, cooled with custom made waterblocks.
    However after months of doubt I have decided not to do this cause of the time and finances involved for this (MARSII block.. pfff )

    Last weekend I took a few hours to see how I will continue .. and .. I'm totally back :)

    Also will use the pumps and reservoirs separate instead of the combo's.
    And .. going to do 2 separate loops with each 2 pumps, however with the use of 4 valves I want to be able to switch to one huge loop with 4 pumps and 4 radiators.

    So .. another update.

    Used rubber again on top of the acrylic edge to hide the green top side and isolate the desk inside.

    [​IMG]


    Also 2 extra grills from ModWithMe which I will use on the inside of the desk.

    [​IMG]

    [​IMG]


    The Raz3rator.

    [​IMG]


    Finally I can mount all 4 Admirals
    Ook kan ik eindelijk alle andere radiatoren monteren.

    [​IMG]


    Number 1

    [​IMG]


    Two.

    [​IMG]


    Removing sticker from the other fans.

    [​IMG]


    Quite some bolts.

    [​IMG]


    Number 3 done

    [​IMG]


    Something I ordered months ago through Kickstarter.

    [​IMG]


    Ambilight :)
    More about that later.

    [​IMG]


    Also 2 long LED strips inside, nice effect when opening it :)

    [​IMG]


    And the last one.

    [​IMG]


    Number 4 .. done.

    [​IMG]


    This photo was made just after I decided to drop the PS4 idea and I was measuring it all.

    [​IMG]


    First make the reservoir covers a little more shiny .. not too much, don't want to see all the leds in detail.

    [​IMG]


    Sawn off all reservoir clamps.

    [​IMG]


    And another try :)

    [​IMG]


    You will lose the skin on your fingers ... but I love it! :)

    [​IMG]


    Testing how it will look with a Bitspower LED RAM MOD underneath.
    Means it will have the same 'heartbeat' effect as the Razer mice. (See video!)

    [​IMG]


    Will be a lot of measuring :D

    [​IMG]


    This is how the should work, and yep I often use paint for these kind of things :p

    [​IMG]


    Things could still change but personally I already like it.

    [​IMG]

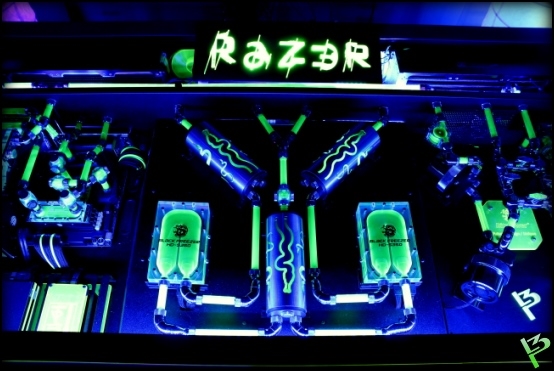

    And a short video of how it's standing now.

    [VIDEO]

    Frogger, manofthem and HammerON say thanks.
  9. l3p

    l3p

    Joined:
    Oct 22, 2010
    Messages:
    311 (0.21/day)
    Thanks Received:
    642
    Location:
    Netherlands
    Another update.
    Back to the Benchtable.

    [​IMG]


    It still needs some extra holes for tubing and wires.

    [​IMG]


    Also on top

    [​IMG]


    Quick disconnects.

    [​IMG]


    And tubing on the inside.

    [​IMG]

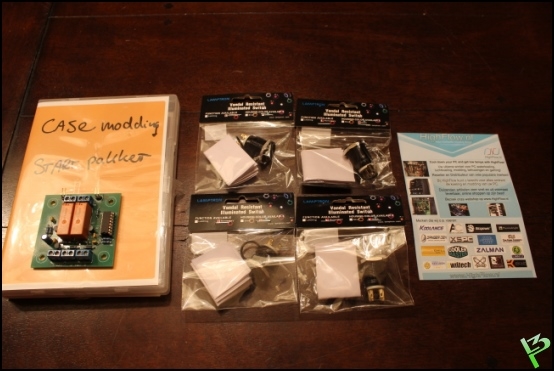

    Completely forgot there were still red buttons in the desk :)
    So ordered 4 new green ones from Highflow.
    Also bought a print from a forum user there, will be able to use momentary switches to switch all lighting on and off with led notification.

    [​IMG]


    So also replaced those

    [​IMG]


    Extra hole for a fillport in the 'firewall'.

    [​IMG]


    Also drilled the 2 quickdisconnects in the desk, tight fit.

    [​IMG]


    What a mess ..
    Here is where I noticed I was going to run short on fittings.
    Glad Vincent from Bitspower was able to help me out.

    [​IMG]


    Measuring.

    [​IMG]


    And another small step further :)

    [​IMG]


    Best thing there is .. finding this on your desk after a long day.

    [​IMG]


    Ultraunpackspeed

    [​IMG]


    Bitspower Enhance Multilinks. Love them .. compression fittings for Acrylic.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]


    Already made one for Cross desk but need more power.
    With this all the fans, lighting and pumps will always run, no matter if there's one of the pc's is running or both.

    [​IMG]

    [​IMG]

    [​IMG]


    Also connected all 14 fans to the Lamptron controllers.

    [​IMG]


    And some sleeving

    [​IMG]


    Not going to sleev the cables out of sight .. just too much lol
    The top Lamptron is to switch Ledstrip.
    Bottom one to control the Bitspower RAM MODS which will be under the GPU's and reservoirs.

    [​IMG]


    More cables.

    [​IMG]


    Cables gone..

    [​IMG]


    Mounted the controllers and used some glue on the back to hide the bleeding light

    [​IMG]


    Off course .. a Silvercoil.

    [​IMG]

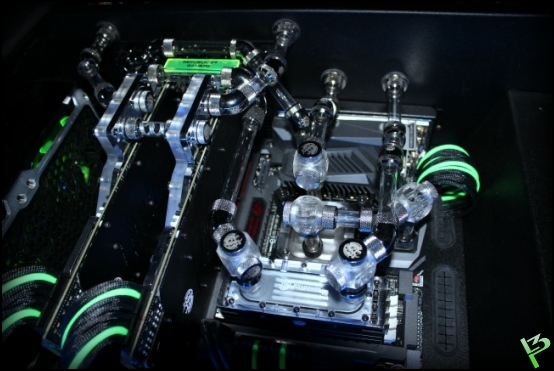

    Between the GPU's

    [​IMG]

    [​IMG]


    Also changed some in the middle

    [​IMG]


    More coming soon!

    [​IMG]

    manofthem says thanks.
  10. l3p

    l3p

    Joined:
    Oct 22, 2010
    Messages:
    311 (0.21/day)
    Thanks Received:
    642
    Location:
    Netherlands
    After desk builds have been ruling my life for 4 years.
    These kind of videos make it worth it :)
    Thanks a lot Red Harbinger and Richard Surroz!


    Mindweaver says thanks.
  11. H3LLSMAN

    H3LLSMAN

    Joined:
    May 18, 2014
    Messages:
    43 (0.27/day)
    Thanks Received:
    5
    Location:
    Sualt Ste Marie
    A shit ton of money right there, I know everything else is alot but all those fittings my god that must have been alot.

  12. l3p

    l3p

    Joined:
    Oct 22, 2010
    Messages:
    311 (0.21/day)
    Thanks Received:
    642
    Location:
    Netherlands
    At the moment very busy at work, still hoping to finish it this summer :)
    So .. 'small' update again.

    First a replacement for the slot bracket.

    [​IMG]

    [​IMG]

    [​IMG]


    And found a way to still use the HDD brackets :)

    [​IMG]

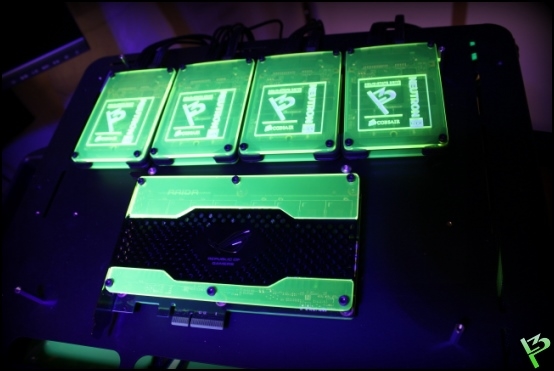

    A nice bed for the SSD's.

    [​IMG]

    [​IMG]


    Also bought some more acrylic fittings from another modder.

    [​IMG]


    Measured, drilled and filed all holes for the 'bridge'.

    [​IMG]


    Also the connections for the HDD's.

    [​IMG]


    Built in the fan controllers and connected them to the 14 fans.

    [​IMG]


    Used 3M Dinoc to hide the red Sata slots.

    [​IMG]


    And started with the loop from the benchtable. Added a small reservoir on top.

    [​IMG]

    [​IMG]


    So .. a little further.

    [​IMG]


    Here's something I've been walking around with for a long time.
    A logo for the legs and top panel.
    Then you have an idea but .. how to continue?

    [​IMG]


    Glad there were 2 awesome guys I got to know from a previous project who wanted to help me out.

    [​IMG]

    [​IMG]


    <3 Parvum systems CNC :)

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]


    Thanks a lot Justin and specially Shaun for making my figment reality! (Sorry mate :D )

    [​IMG]

    [​IMG]

    [​IMG]

  13. l3p

    l3p

    Joined:
    Oct 22, 2010
    Messages:
    311 (0.21/day)
    Thanks Received:
    642
    Location:
    Netherlands
    Had to spend a few hours on the hot attic :)

    The acrylic borders are now completely enlightened. (see video at the end)

    [​IMG]


    Also started with the loop on the left side.

    [​IMG]


    The back will still be quite some work.

    [​IMG]


    But this loop will probably remain like this.

    [​IMG]


    I love chaos :)

    [​IMG]

    [​IMG]


    Still can't wait to fill it up.

    [​IMG]


    Video of the RGB controller with UV leds.



  14. URBAN303

    URBAN303

    Joined:
    May 29, 2014
    Messages:
    118 (0.80/day)
    Thanks Received:
    13
    Wow ! :) nice project ^^ beautiful individual investment! machining, cutting, mounting, we see that there is a great deal of pleasure/passion and we understand little beast :) nice thought, and mounted cleverly ;)

    A titanic work!

    GOOD WORK L3P ^^


    Last edited: Jun 25, 2014
    l3p says thanks.
  15. l3p

    l3p

    Joined:
    Oct 22, 2010
    Messages:
    311 (0.21/day)
    Thanks Received:
    642
    Location:
    Netherlands
    And further on the loop :)

    Also I need a paper next to it for the flowdirection.

    [​IMG]


    3 hours and 1mm of skin later.

    [​IMG]


    Here the funpackage I got from Razer almost a year ago :)

    [​IMG]


    Off course had to unpack it.

    [​IMG]


    Back to the loop!

    [​IMG]


    Another long waited package arrived.

    [​IMG]

    [​IMG]

    [​IMG]


    Because I didn't count on it anymore I had to change plans.

    [​IMG]


    So slept a night on it.

    [​IMG]


    Think the contrast is better like this..

    [​IMG]

    [​IMG]


    And ... the pumpstation.

    [​IMG]


    With this I can make one big loop for both pc's with 4 rads and 4 pumps.
    Or one loop per system with each 2 pumps and 2 rads.

    [​IMG]


    Backside finished too.

    [​IMG]


    Also added 2 green LED strips on the bottom to be able to see something there.
    I will be able to switch it off or dim it with the Lamptron controller.

    [​IMG]


    Ready to fill :)

    [​IMG]


    I prefer filling with clear liquid and adding color later.

    [​IMG]


    Because .....

    [​IMG]


    I had several leaks, this while I tested everything in front.

    [​IMG]


    Few hours later 1 radiator seemed to leak.
    Temporary solved it this way.

    [​IMG]


    But then finally .... loop up and running!

    [​IMG]


    Mau approves :)

    [​IMG]

    Next update soon!

    URBAN303 says thanks.
  16. URBAN303

    URBAN303

    Joined:
    May 29, 2014
    Messages:
    118 (0.80/day)
    Thanks Received:
    13
    "L3P" I'll invite you to my house for my birthday if you keep posting such nice pictures demonstrating your expertise;)

    l3p says thanks.
  17. l3p

    l3p

    Joined:
    Oct 22, 2010
    Messages:
    311 (0.21/day)
    Thanks Received:
    642
    Location:
    Netherlands

    manofthem says thanks.
  18. l3p

    l3p

    Joined:
    Oct 22, 2010
    Messages:
    311 (0.21/day)
    Thanks Received:
    642
    Location:
    Netherlands
    Here some photos now that it's filled up.
    Some with just UV, some with UV + blue.

    [​IMG]


    Glad I had fanguards there :)

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    THE_EGG and manofthem say thanks.
  19. l3p

    l3p

    Joined:
    Oct 22, 2010
    Messages:
    311 (0.21/day)
    Thanks Received:
    642
    Location:
    Netherlands
    And here the final photos :)


    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]


    Together with Infantry Productions we will create a final video to end this chapter.
    It has been a project with blood, sweat, leaks, 79 acrylic pipes and tears ... but it was totally worth it :)

    THE_EGG, CrackerJack and manofthem say thanks.
  20. AhokZYashA

    AhokZYashA

    Joined:
    Dec 21, 2008
    Messages:
    1,145 (0.54/day)
    Thanks Received:
    152
    what a beautiful craftmanship l3p.
    i really appreciate your hard work..

    l3p says thanks.
  21. manofthem

    manofthem

    Joined:
    Jan 9, 2011
    Messages:
    6,103 (4.41/day)
    Thanks Received:
    7,890
    Pure goodness @l3p, everything looks totally gorgeous! Amazing work and thank you for sharing it all with us :respect:

    l3p says thanks.
    Crunching for Team TPU
  22. THE_EGG

    THE_EGG

    Joined:
    Dec 15, 2011
    Messages:
    1,498 (1.43/day)
    Thanks Received:
    493
    Location:
    Brisbane QLD, Australia
    Awesome stuff as usual l3p. Anymore projects coming soon that we can know about ?? ;)

    l3p says thanks.
  23. l3p

    l3p

    Joined:
    Oct 22, 2010
    Messages:
    311 (0.21/day)
    Thanks Received:
    642
    Location:
    Netherlands
    Thanks a lot guys, a comment is really appreciated after such a project :)
    I can tell the next project will be smaller :p

    Celebrated the end of this build with my daughter yesterday .. she totally likes disco mode :D

    [VIDEO]

    Frogger says thanks.
  24. THE_EVIL_RAPIER

    THE_EVIL_RAPIER

    Joined:
    Aug 17, 2014
    Messages:
    42 (0.62/day)
    Thanks Received:
    51
    l3p you have an amazing talent. Hands down the absolute best looking PC (PC's) I have ever seen. The dedication, Passion and (understanding from your wife) Is above and beyond.

    Well done.

    :toast:

    l3p says thanks.
  25. l3p

    l3p

    Joined:
    Oct 22, 2010
    Messages:
    311 (0.21/day)
    Thanks Received:
    642
    Location:
    Netherlands
    Thanks a lot THE_EVIL_RAPIER :D
    All credits should go to my wife haha

    THE_EVIL_RAPIER says thanks.

Currently Active Users Viewing This Thread: 1 (0 members and 1 guest)

Share This Page
