[Case Gallery] Sate200 rig

Discussion in 'Case Mod Gallery' started by sate200, Aug 30, 2011.

  1. sate200

    sate200

    Joined:
    Aug 30, 2011
    Messages:
    20 (0.02/day)
    Thanks Received:
    2
    Location:
    BRAZIL
    To view this case mod, go here.

    [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG]

    Specs:
    Cpu: Intel Core I7 2600K 3.4Ghz@4,2ghz
    MainBoard: Gigabyte P67 UD7 B3
    Memory: 2x 4gb C2orsair Dominator GT 2000mhz 9-10-9-27
    Video Card: 2x XFX 6990/Crossfire
    Sound Card: ASUS Xonar Essence ST 7.1 Channel
    Power Supply: Thermaltake TR2 RX 1200W
    HardDisk: 2x OCZ Agilith 2 120GB/RAID 0
    HardDisk: 2x Western Digital Caviar Black 1,5TB

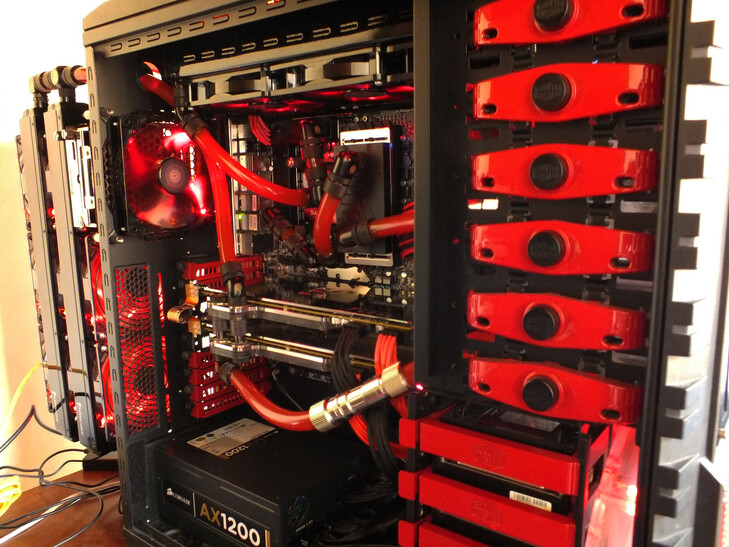

    Case: Cooler Master HAF-X

    Mods:

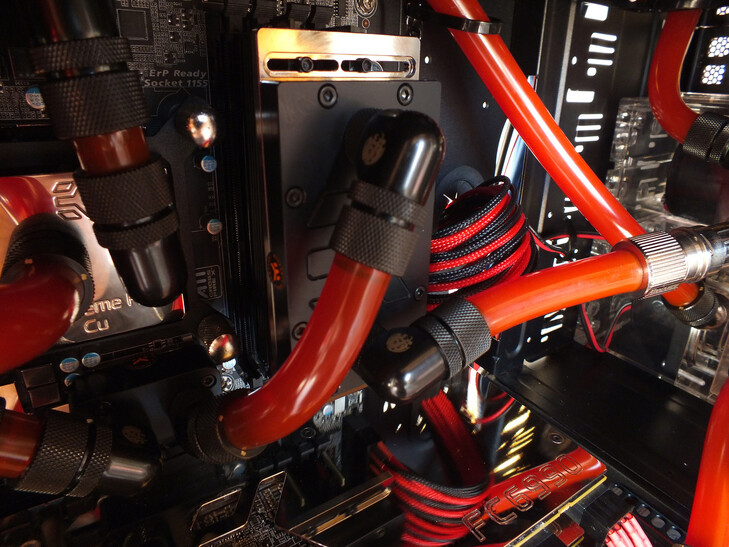

    WATERCOOLING SYSTEM

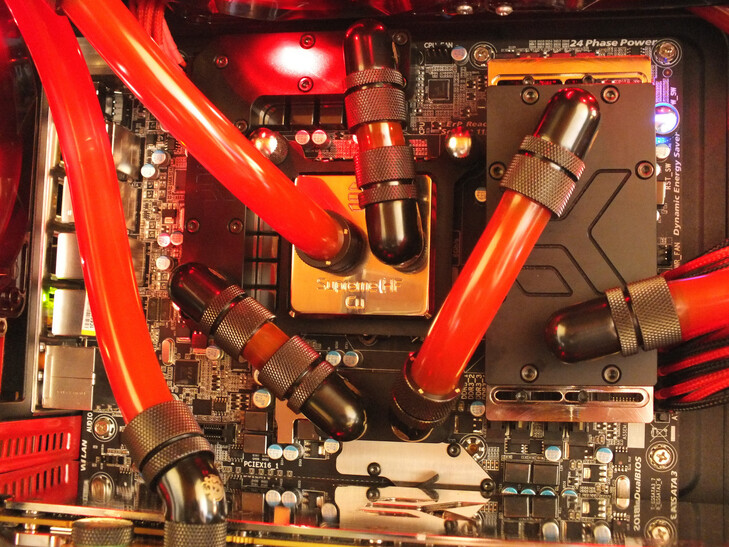

    Cpu: EK-SUPREME HF GOLD
    Vga Block: 2x EK-FC6990 Nickel
    Vga Backplate: 2x EK-FC6990-BP
    Accessories-GPU/Mosfet Blocks: 2x Koolance Dual VID Connector 1 Slot Spacing
    Radiators: 2x Koolance 360 HXCUH1020/ Black Ice Extreme III 360 X-Flow

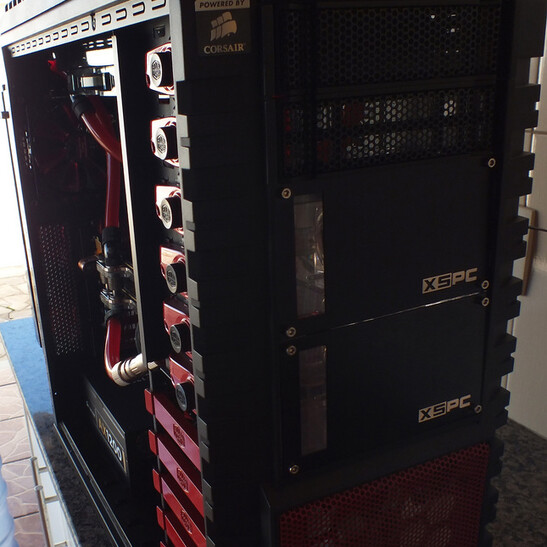

    Reservoir: 2x XSPC Acrylic Dual 5.25
    Pump: 1xSwiftech MCP655 Series 12 V1DC/ 1x Alphacool VPP655
    Fittings: Compression BitsPower Black 3/8 OD 5/8
    Single Rotary: Bitspower G 1/4" Black Rotary 45 Degree IG 1/4" Adapter
    Rotary Fittings: Enzotech 90 Degree Rotary Fitting G 1/4 Thread
    Last edited by a moderator: Aug 20, 2014
  2. Neohazard New Member

    Joined:
    Sep 5, 2006
    Messages:
    237 (0.08/day)
    Thanks Received:
    0
    Location:
    Brasil - São Paulo - São Caetano do Sul
    Puta PC feio da porra, parece a casa da luz vermelha onde mora as putas, deve ser coisa de mineiro isso! certeza que faz queijo dentro dele kkkkkkkkkkkkkkkk 10/10
  3. rojiuranonekosann

    Joined:
    Sep 29, 2010
    Messages:
    69 (0.05/day)
    Thanks Received:
    2
    Hello. ;)

    Wow..,Awesome Works!
    Beautiful Red Rig..!!

    It's difficult to make watercooling machine.. and also to customize sleeves..:)
    Nice works! :) 10 to you..!! ;)
  4. sate200

    sate200

    Joined:
    Aug 30, 2011
    Messages:
    20 (0.02/day)
    Thanks Received:
    2
    Location:
    BRAZIL
    thanks friend
  5. SaiZo

    SaiZo

    Joined:
    Apr 21, 2011
    Messages:
    498 (0.41/day)
    Thanks Received:
    56
    Location:
    Hesperus IV
    Ello!
    The black and red scheme looks real nice.
    However.. I gave you a 7, don't take it the wrong way, it's a nice case and so. But I always expect to see a modification - that the person makes. That's the main reason I can't put my case up here, not done anything to it.. as yet.

    But I'll give you credit for the dual rad's that's something not many people have done. Say, does it cool the system better with 2 rad's?
  6. sate200

    sate200

    Joined:
    Aug 30, 2011
    Messages:
    20 (0.02/day)
    Thanks Received:
    2
    Location:
    BRAZIL
    Thanks for rating! with my VGA's are a very good temperature, 34 C and 41 º C IDLE in FULL, in fact, is a VGA radiator for every! I'm not good at casemod, however I understand
    I'm sorry for my english!!!
  7. Lee Mendes

    Lee Mendes New Member

    Joined:
    Sep 2, 2011
    Messages:
    5 (0.00/day)
    Thanks Received:
    0
    O_O'

    Le PC de maladeeeeeeeeeeeeeeeeeeeeeeee ! <3
  8. oqsajec

    oqsajec New Member

    Joined:
    Sep 4, 2009
    Messages:
    109 (0.06/day)
    Thanks Received:
    2
    Location:
    On a dot in the sky, playin my geetar...
    Wow....

    Very, very nice set up bro. The black and red (bright red) layout is very well layed out. I am wondering though, how the hell did you tighten those screws in on the fans between the 2 360 rads?!! :) Are you using hex head screws? That looks to be a very tight situation indeed. Excellent work my friend, 9/10
  9. sate200

    sate200

    Joined:
    Aug 30, 2011
    Messages:
    20 (0.02/day)
    Thanks Received:
    2
    Location:
    BRAZIL
    Thanks friend, to unite the two rads, was too much work, was the same hex screw. I am here with good temperatures, because the 6990 are very hot in the air already in the water is very cold. 34 º C IDLE!
  10. rougal

    rougal

    Joined:
    Nov 2, 2007
    Messages:
    117 (0.05/day)
    Thanks Received:
    27
    The watercooling case I've seen. 10/10
  11. BrooksyX

    BrooksyX

    Joined:
    Jan 7, 2008
    Messages:
    3,948 (1.63/day)
    Thanks Received:
    569
    Love it! However push that 2600k more. At least to 4.7~4.8
  12. Riotpump

    Riotpump New Member

    Joined:
    Jul 17, 2011
    Messages:
    70 (0.06/day)
    Thanks Received:
    6
    Location:
    Chicago, IL
    The layout and how clean the water cooling piping is in your build, makes me seriously consider leaving air and going with liquid. HAF cases just look so good with red ;p
  13. MRCL

    MRCL

    Joined:
    May 31, 2008
    Messages:
    5,791 (2.54/day)
    Thanks Received:
    860
    Location:
    Switzerland, Heart of Europe
    Holy human waste, that case is badass. THose two stacked radiators work out well huh? Looks like it took you some time to layout the tubing system.
  14. modmadness

    Joined:
    Aug 26, 2011
    Messages:
    45 (0.04/day)
    Thanks Received:
    0
    tailgating party!

    looks good.

    I remember when I took a termaltake spedo and did somewhat the same, kindo reminds me of WWf roadwarriors, Hawk and nash.
  15. de.das.dude

    de.das.dude Pro Indian Modder

    Joined:
    Jun 13, 2010
    Messages:
    7,567 (4.92/day)
    Thanks Received:
    1,967
    mommyyyyyyyyyyyyyyyyyyyyy im scared
  16. modmadness

    Joined:
    Aug 26, 2011
    Messages:
    45 (0.04/day)
    Thanks Received:
    0
    the big dog

    fomitable specs there. How many hash marks do ya get on 3d mark 11?
  17. sate200

    sate200

    Joined:
    Aug 30, 2011
    Messages:
    20 (0.02/day)
    Thanks Received:
    2
    Location:
    BRAZIL
    In the moment I run test 3dmark vantage
    http://3dmark.com/3dmv/3439718

    thanks friend
  18. modmadness

    Joined:
    Aug 26, 2011
    Messages:
    45 (0.04/day)
    Thanks Received:
    0
    let me add

    That would be about the best sellable version of a hawk and nash...Approaches a well rounded appeal like the sword M in 2006.
  19. NohCego

    Joined:
    Sep 1, 2011
    Messages:
    31 (0.03/day)
    Thanks Received:
    15
    ta show de bola mimha Fema!!
  20. hhumas

    Joined:
    Jun 24, 2011
    Messages:
    551 (0.47/day)
    Thanks Received:
    22
    Location:
    Islamabad
    awesome /. 10/10
  21. micropage7

    micropage7

    Joined:
    Mar 26, 2010
    Messages:
    5,720 (3.54/day)
    Thanks Received:
    1,311
    Location:
    Jakarta, Indonesia
    i guess you just add more length to your rig
    btw nice and clean work man..
  22. modmadness

    Joined:
    Aug 26, 2011
    Messages:
    45 (0.04/day)
    Thanks Received:
    0
    Saw that

    OK my score in vantage is good to much like your's an inprovement on older tech. So my question is the score you got is looking much like a powercolor5890, but Being 6990 the gain is in the DirectX11 department?
    Also would like to say good new pics of your system case!
  23. overdrive

    overdrive New Member

    Joined:
    May 28, 2009
    Messages:
    24 (0.01/day)
    Thanks Received:
    0
    Location:
    Serbia,Jagodina
    excellent !!! Nice Job 10-10
  24. Darkleoco

    Darkleoco

    Joined:
    Sep 18, 2011
    Messages:
    1,598 (1.49/day)
    Thanks Received:
    247
    Location:
    Cullowhee, North Carolina
    Very impressive setup 10/10 you definitely can do more with that 2600K though easily 4.6-5.0 GHz especially with that nice cooling.
