Titan ITX status. (placeholder)

Discussion in 'Cases, Modding & Electronics' started by Lazzer408, Dec 2, 2011.

  1. Sean.Crees New Member

    Joined:
    Feb 20, 2013
    Messages:
    10 (0.02/day)
    Thanks Received:
    0
    Location:
    Omaha, NE
    Any fan spinning faster than 1000rpm is too loud, and a 70mm fan spinning that slow isn't going to push enough air. Also there are tonality issues with 70mm fans. Finding quiet 80mm, or 120mm fans is much easier. The bigger the fan, the slower it can spin and still give proper cooling. Personally I don't run any fans over 800rpm in any of my systems.

    Also all stock GPU heatsink/fans are too loud, hence necessitating some sort of aftermarket cooling. All aftermarket air coolers I can find are 3 slot solutions only.

    That all said, my biggest hurdle has always been finding the right sized enclosure, and your enclosure is as close to the perfect size I've been able to find. I can always just buy a riser card one slot higher and mod your chassis to fit it. There appears to be enough vertical clearance for it to fit. Then just use a 4.75" hole saw to cut fan holes in the top and bottom. I'd probably want top and bottom panels without vents so the final product looks clean. I'd rather have wire fan grills than stamped vents in the case panels.
  2. Lazzer408

    Lazzer408

    Joined:
    Jan 6, 2007
    Messages:
    2,522 (0.92/day)
    Thanks Received:
    327
    Location:
    Illinois
    The fans don't need to move alot of air when the system is idle. When under load they will kick up but the GPU is still louder. Aftermarket coolers are quieter but if you raise the GPU, you will loose the optical, 2.5", and 3.5" mounts. You can probably stick a 2.5" on top of the PSU. At this point there's enough room there.

    What you intend with 120mm fans will take some moding. I don't think your going to get a 120mm fan anywhere in here (except above the CPU) unless you raise the GPU and use a 2-slot GPU cooler. Then you will have room for a 120mm and a drive or two.
  3. Sean.Crees New Member

    Joined:
    Feb 20, 2013
    Messages:
    10 (0.02/day)
    Thanks Received:
    0
    Location:
    Omaha, NE
    All I need is a single 2.5" drive bay. I only use SSDs in my systems and use external NAS for mass storage. Keeps the computers quiet and allows the data to be used by multiple systems.

    Your case is 3.5" thick which is the same as 2U cases. 2U allows for 75mm high CPU coolers. The Big Shuriken is 45mm, and the 120mm nexus is 25mm, leaving 5mm to spare. So no problems with a 120mm fan on the CPU.

    I have found 2U cases with 3 horizontal expansion slots, so I know I can get a riser card one higher than what you are using now and it'll fit. That would give me enough space under a 2 slot GPU for a 120mm fan.

    That gives me a system with 2 120mm fans running at 800rpm, and the PSU fan with no mechanical HDDs. The loudest thing would probably be the 80mm fan in the PSU.
  4. Sean.Crees New Member

    Joined:
    Feb 20, 2013
    Messages:
    10 (0.02/day)
    Thanks Received:
    0
    Location:
    Omaha, NE
    What about making the GPU 1 slot higher and putting the optical/drive bays under the GPU instead of above it? It shouldn't affect price, size, or drive capabilities, and it would allow those that don't want an optical drive and instead a 3 slot GPU to do so.
  5. Lazzer408

    Lazzer408

    Joined:
    Jan 6, 2007
    Messages:
    2,522 (0.92/day)
    Thanks Received:
    327
    Location:
    Illinois
    I wanted the GPU inlet on the bottom of the chassis. If the GFX were to draw in say ~10c warmer air (from inside the chassis) the GFX's fan would have to run faster. Remember, this was designed to suit a wide market and offer as many features as I could fit in the space allowed. There are likely more people who would use a 3.5" or 3.5"+SSD then there are -only- an SSD with a 3-slot GFX card. In addition, those who do not want to use a GFX card can add another 3.5" drive. If someone wanted to make a 2-drive NAS out of this (plus an SSD for OS), they can. :)
  6. Sean.Crees New Member

    Joined:
    Feb 20, 2013
    Messages:
    10 (0.02/day)
    Thanks Received:
    0
    Location:
    Omaha, NE
    Well either way ill be buying one as soon as they are available. Speaking of which, any idea when they might be available to buy?

    Just don't be upset if the first thing I do with it is hack it up with a dremel and hole saw.
  7. Sean.Crees New Member

    Joined:
    Feb 20, 2013
    Messages:
    10 (0.02/day)
    Thanks Received:
    0
    Location:
    Omaha, NE
    So i was wondering if you knew where the cheapest place to get a 1 off steel chassis made? You seem to have contacted numerous contractors to get lots of quotes for this case, i thought maybe you might be able to recommend someone to me.

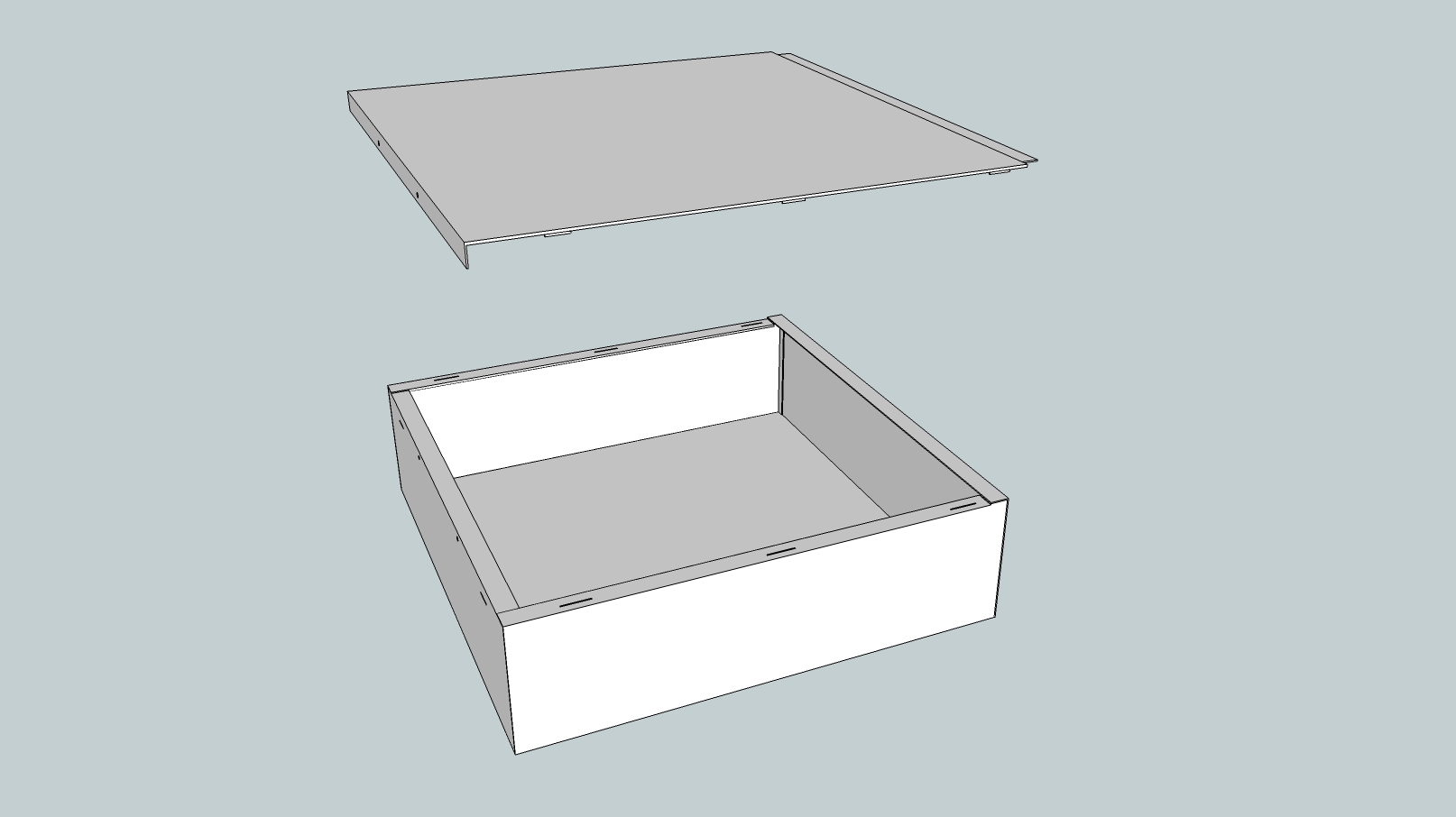

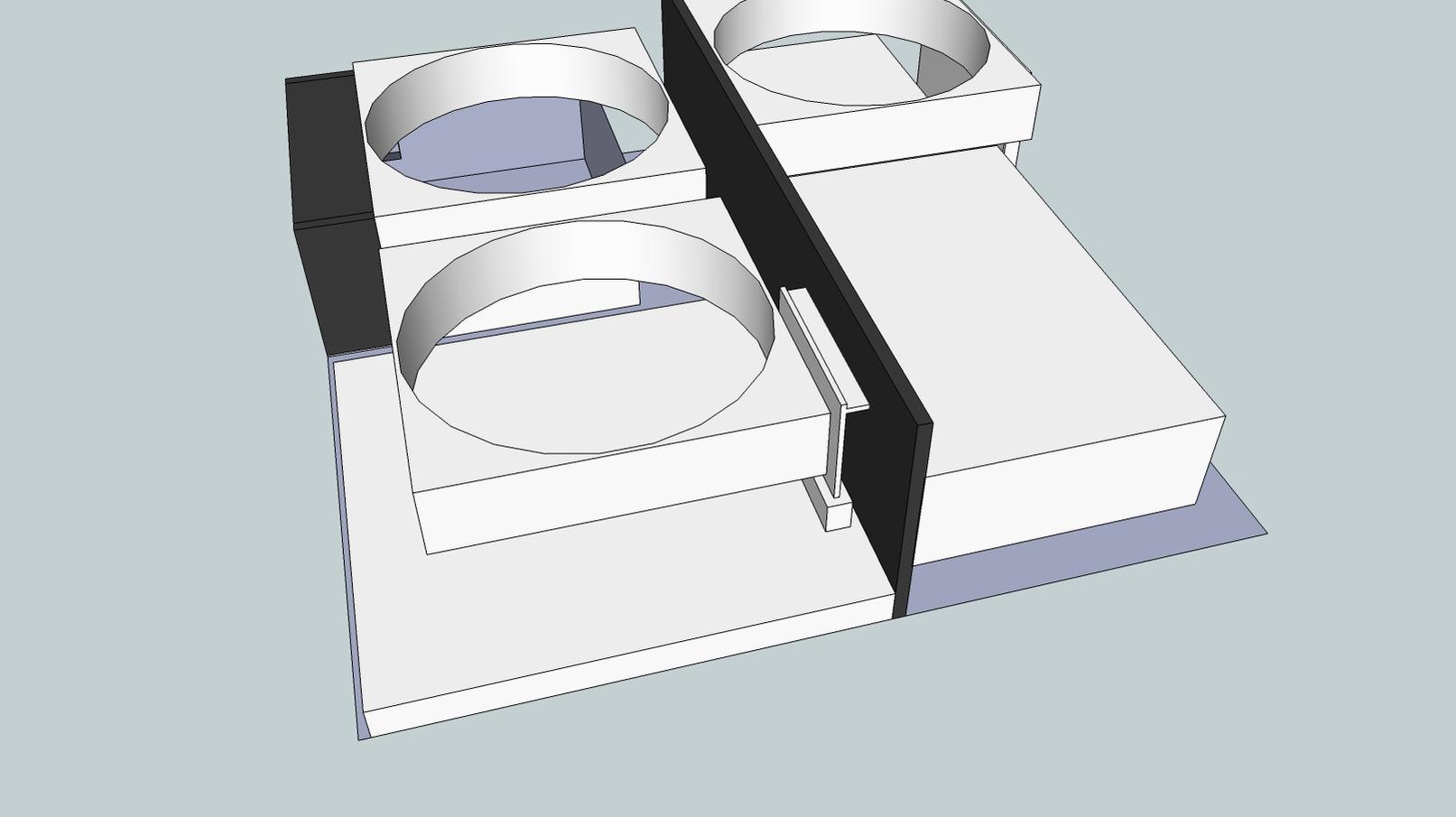

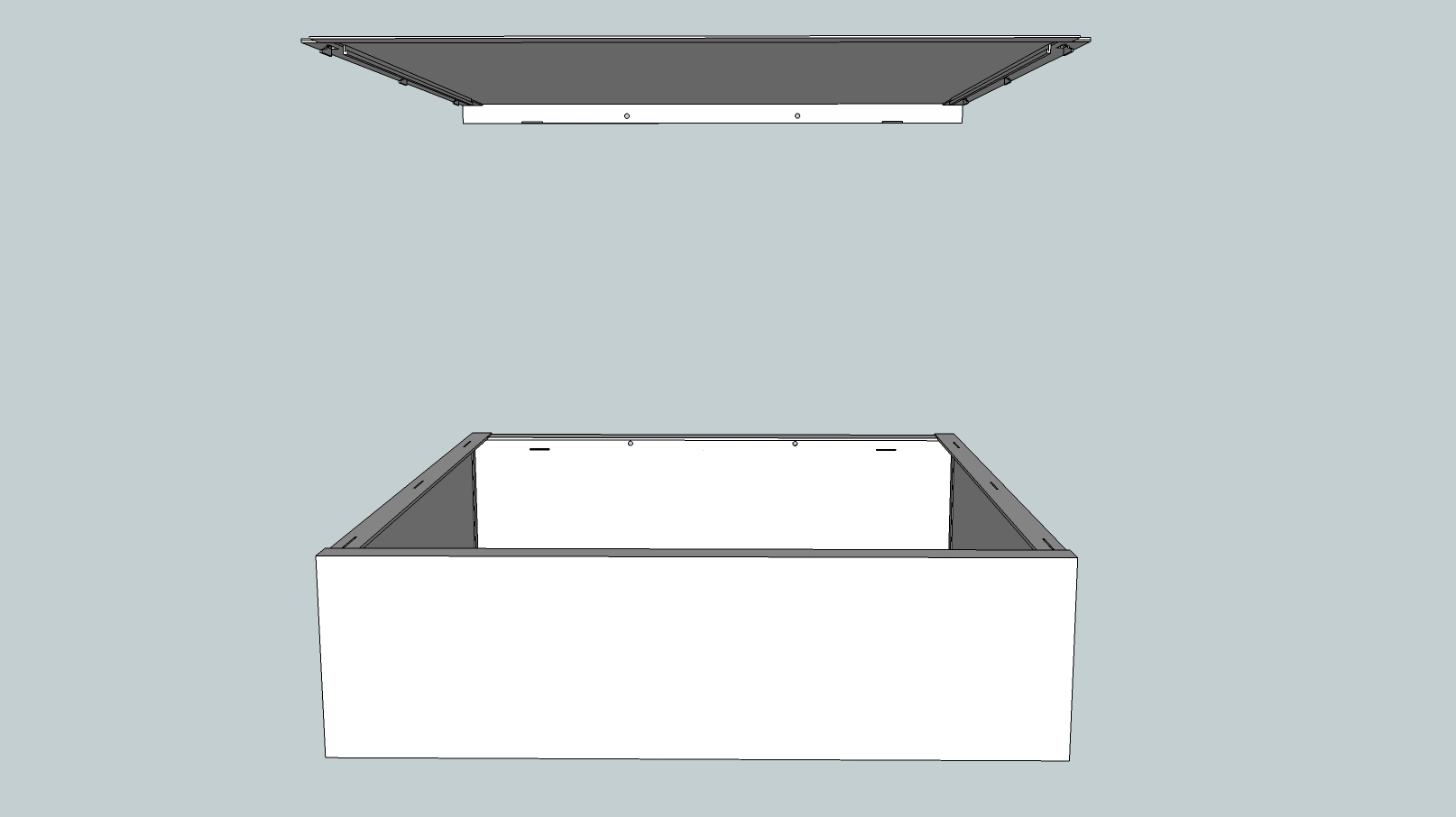

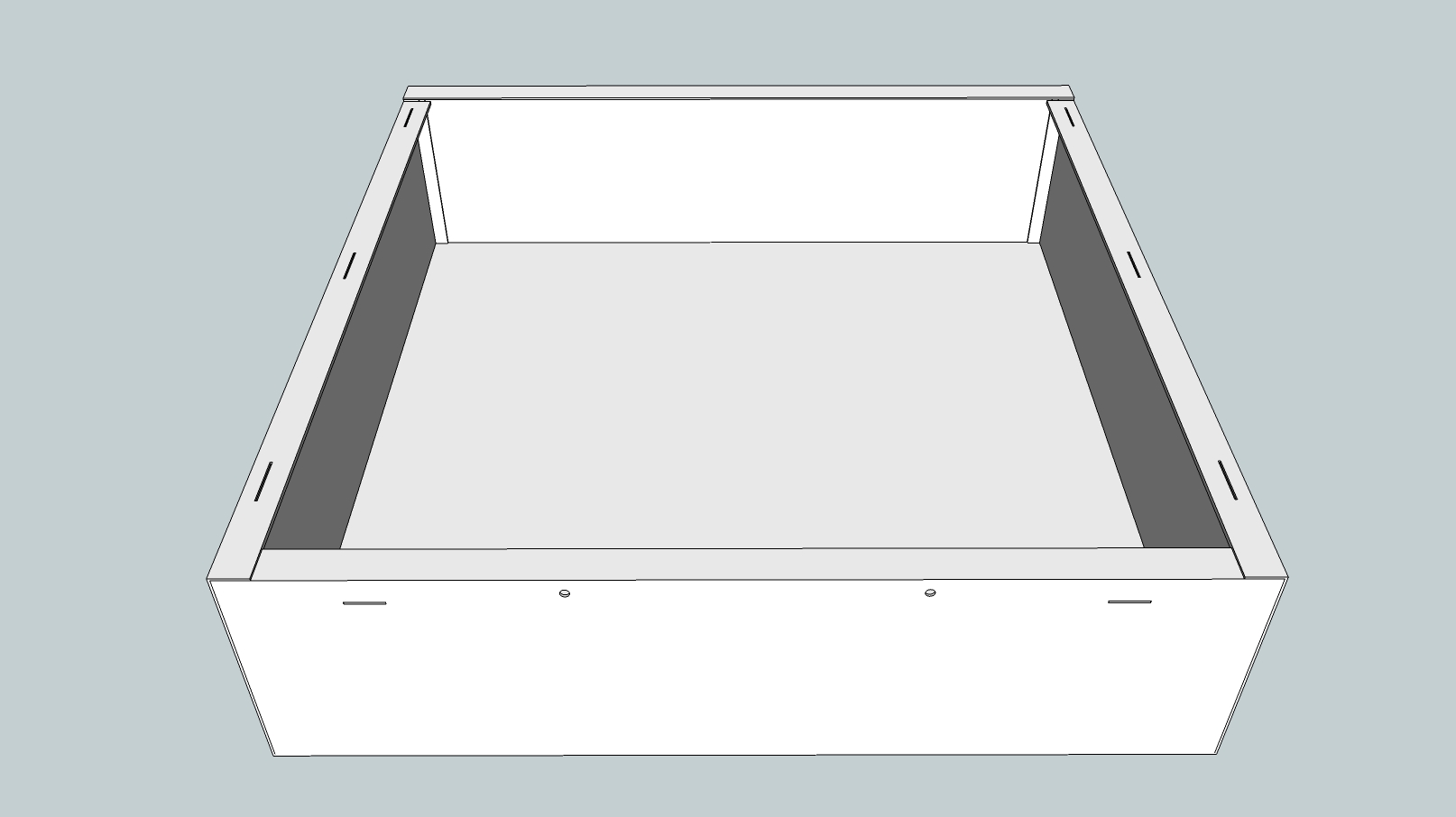

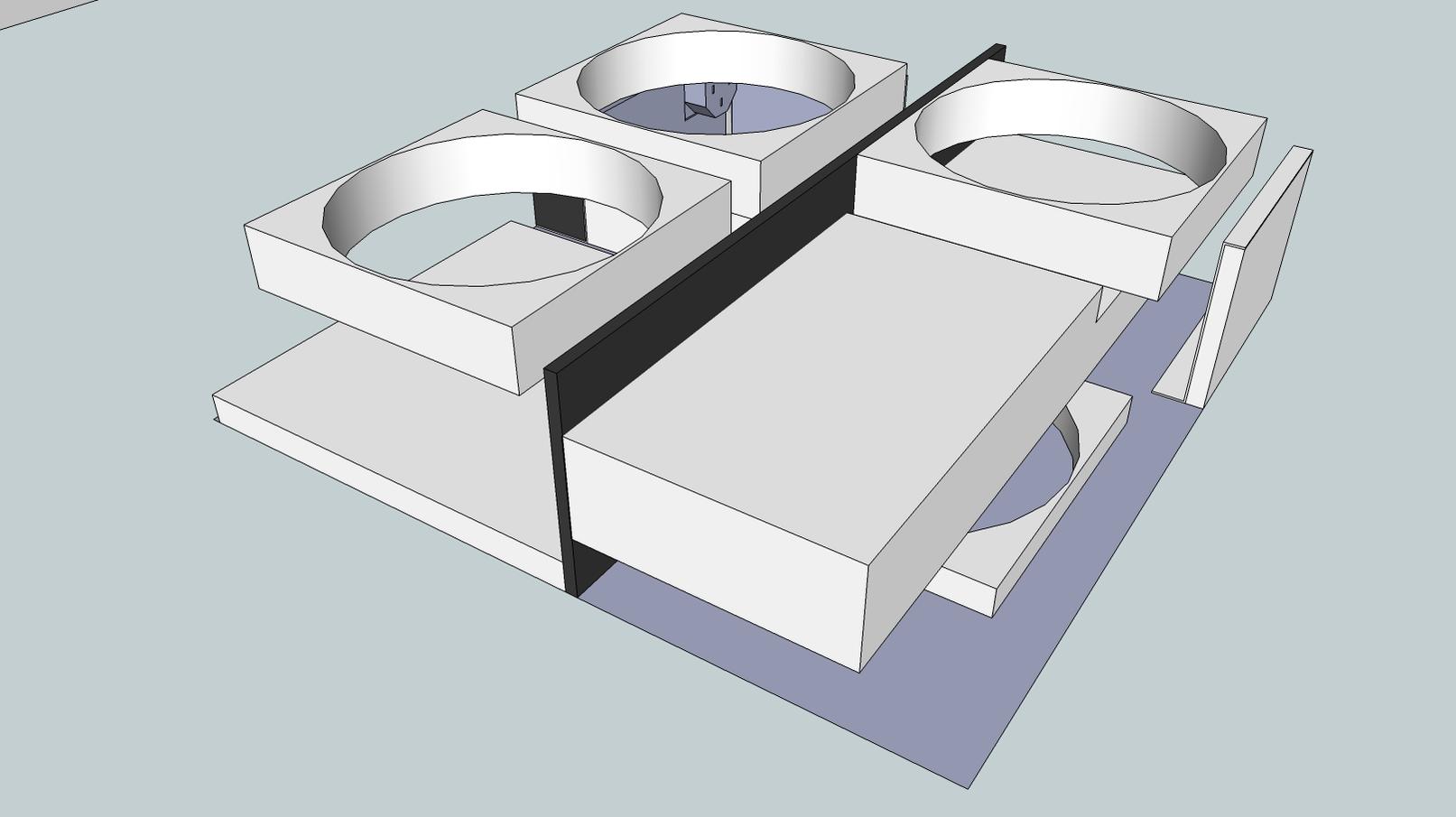

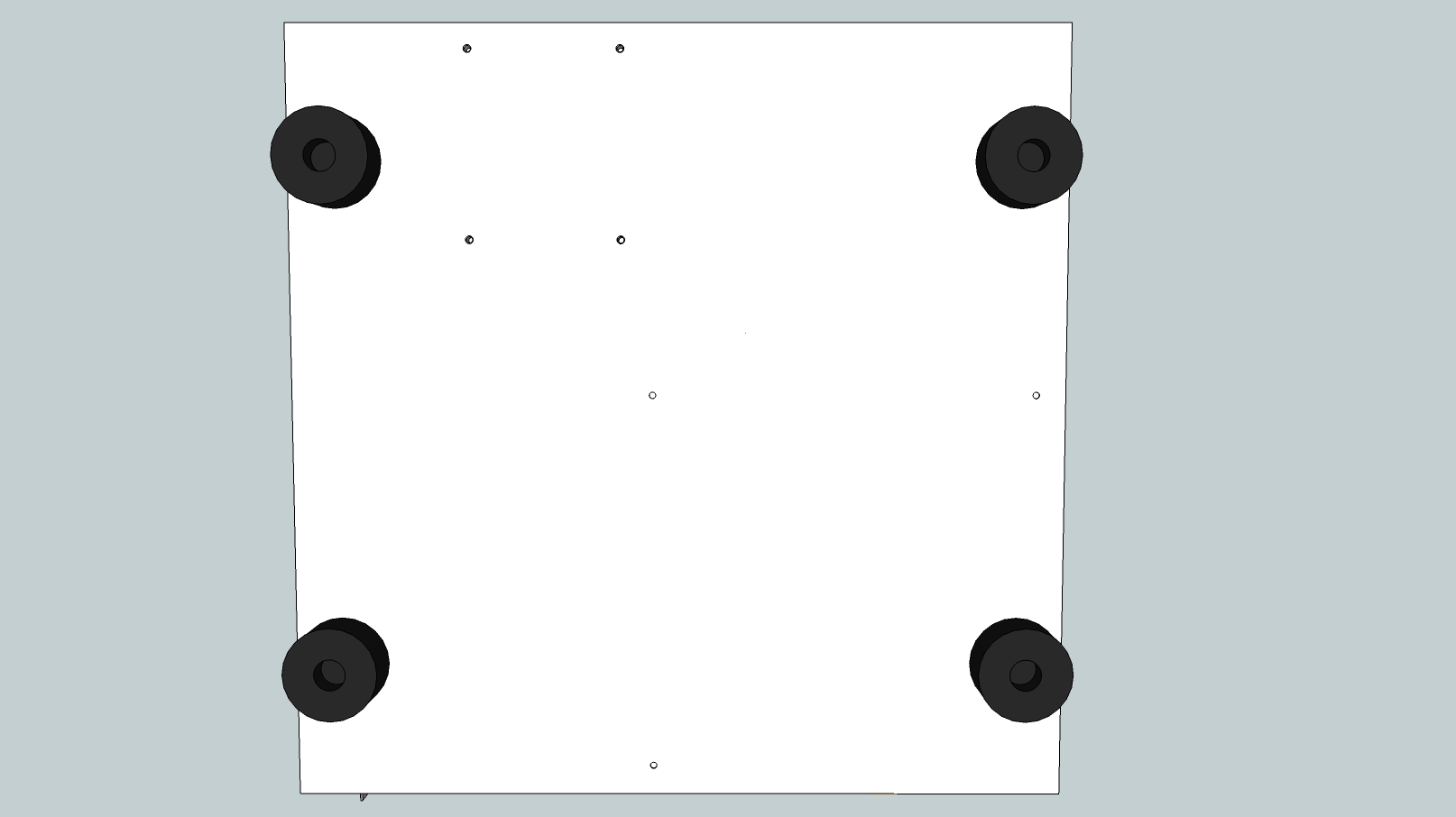

    Here are some pics of what I'm thinking of, it's 12.5" x 12.5", x 3.5". I drew up the case and a basic layout for it in Sketchup. I left the PC components intentionally vague so as to not slow down Sketchup when panning view around. The black parts are a foam duct and thermal barrier. As you can see i had to shave about 2mm off the top of the SFX PSU to get the 120mm fan to fit above it.

    The case is very detailed though, and i left out cutouts on purpose. I figure the hardest part is getting the case the right size. I can do all the hole cutouts and internal structural work myself. I wanted to keep it as simple as possible so as to keep cost of production down. I'd only want 1, so i don't have to worry about spending a bunch of time cutting holes for every case like you do.

    What do you think? See any potential pitfalls? You've been through this process further than i have, so i figure you would have more insight than I.

    Attached Files:

  8. Lazzer408

    Lazzer408

    Joined:
    Jan 6, 2007
    Messages:
    2,522 (0.92/day)
    Thanks Received:
    327
    Location:
    Illinois
    I don't. Parts are all fairly expensive due to the setup time for the machines. I personally know the owners of the shops in my area so it was somewhat inexpensive for me to get rapid prototyping. I would suggest going to a local shop (bring your completed and accurate prints, dxf, dwf, step, cad, etc) and speak with someone there. Some shops don't mind knocking out a part or two to help get you started.
  9. Sean.Crees New Member

    Joined:
    Feb 20, 2013
    Messages:
    10 (0.02/day)
    Thanks Received:
    0
    Location:
    Omaha, NE
    So i was going over the sketchup I'm making for the case i want, and i noticed a discrepancy with your backplate. I'm designing mine to use a 2U riser card just like you said you're doing with yours, but my backplate cutout for expansion cards is a full slot higher than yours. Are you using a 1U riser card by mistake, or by design?

    This is what the back of my case looks like so far.

    Attached Files:

  10. Sean.Crees New Member

    Joined:
    Feb 20, 2013
    Messages:
    10 (0.02/day)
    Thanks Received:
    0
    Location:
    Omaha, NE

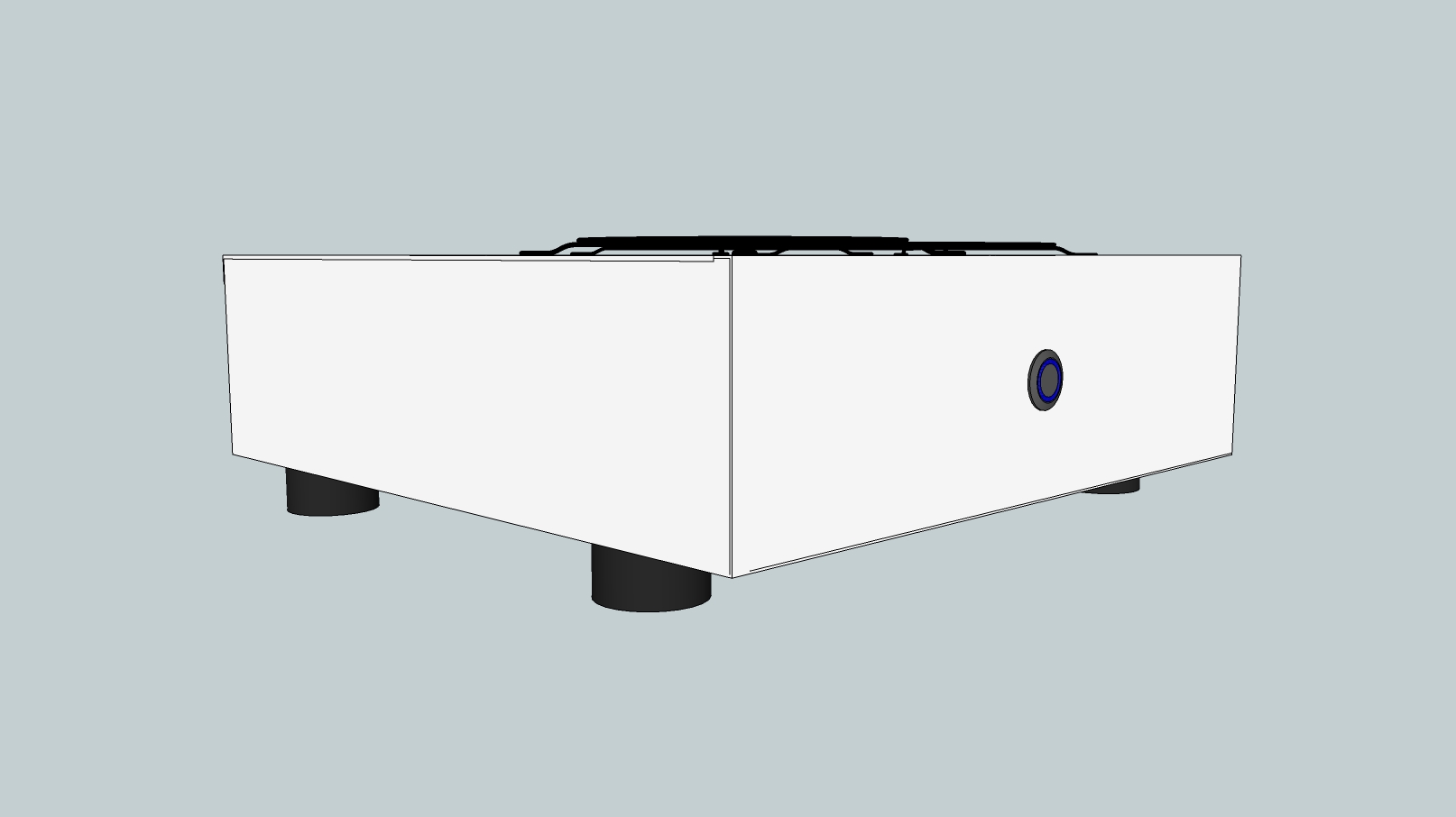

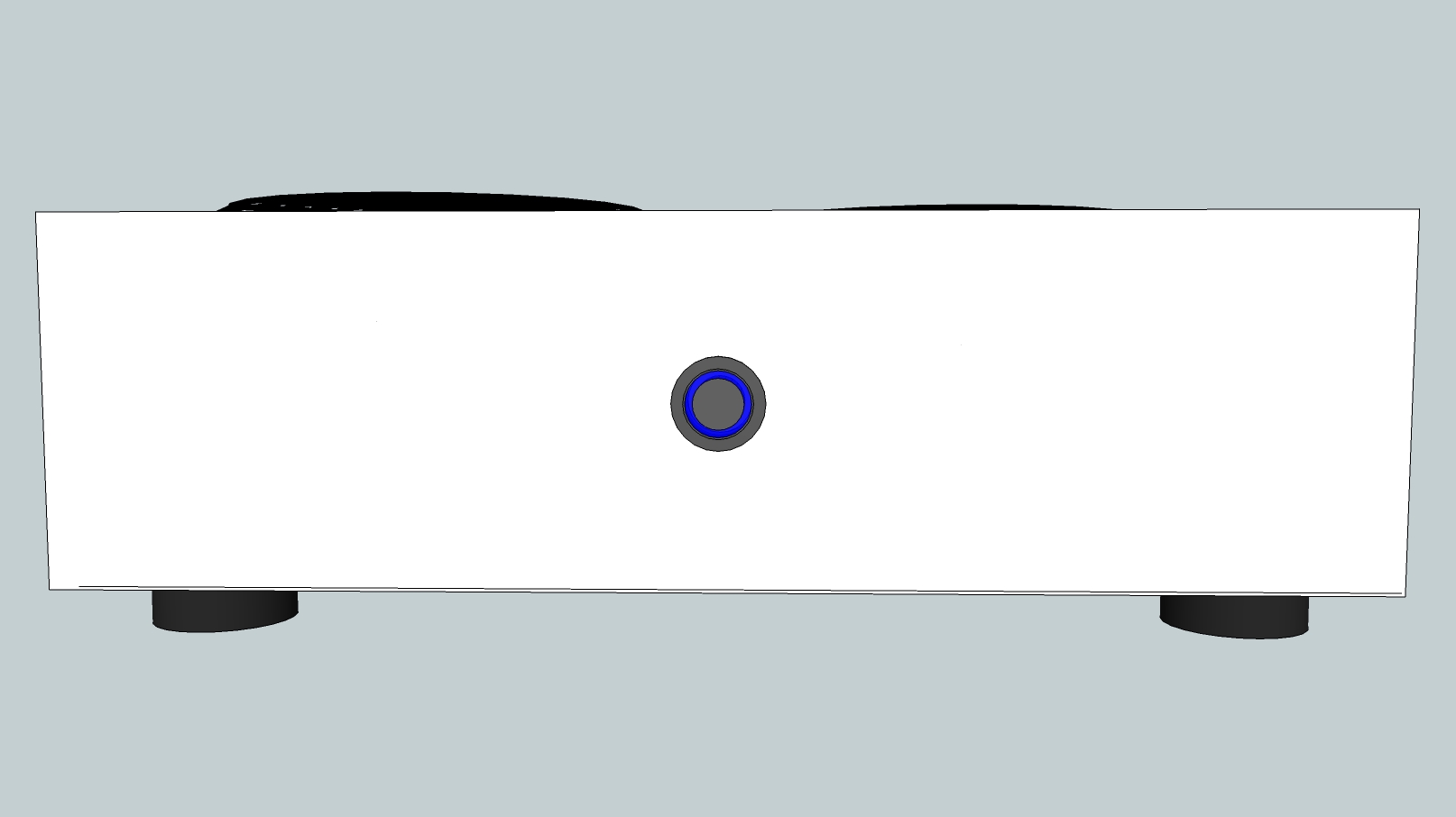

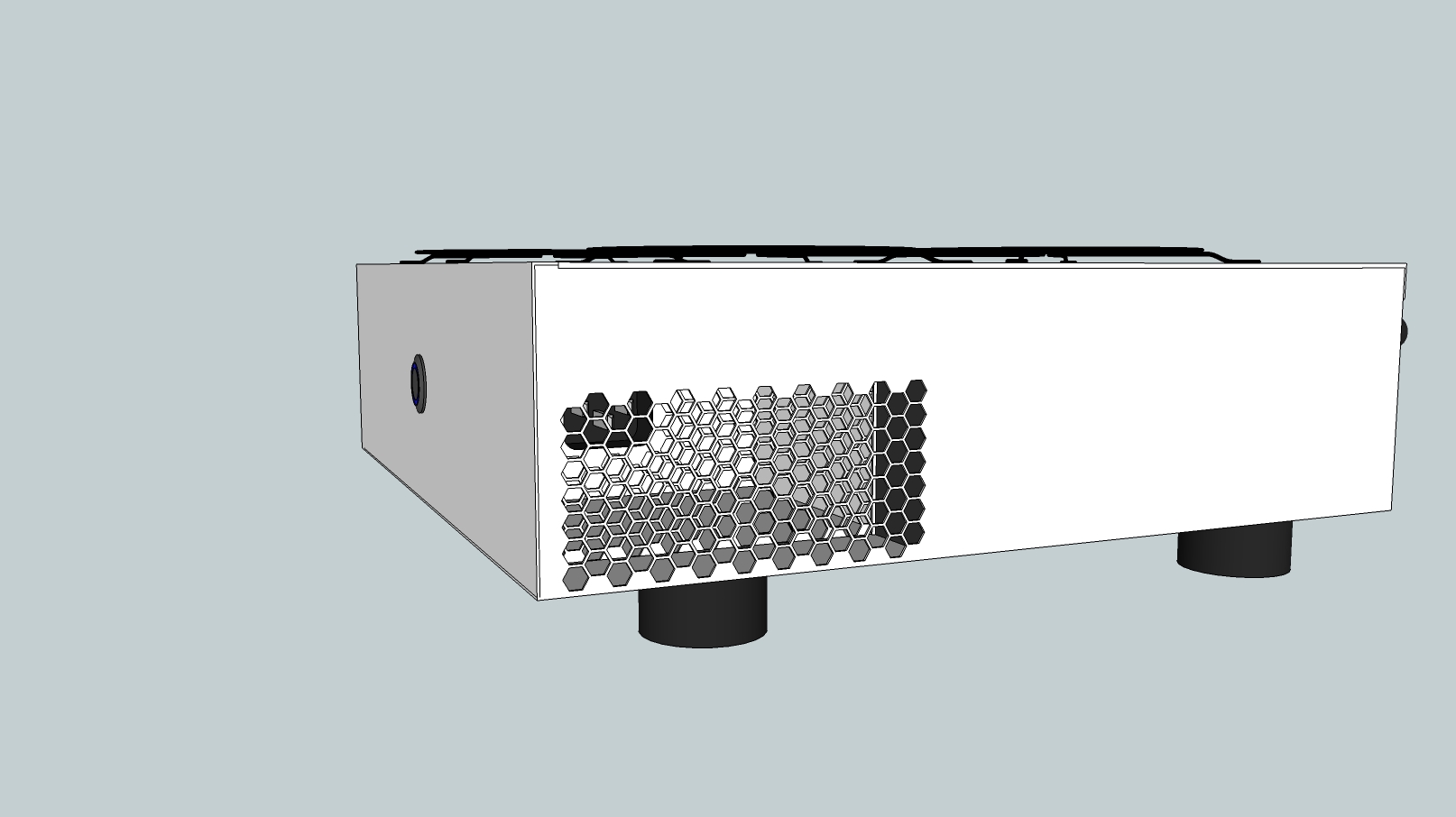

    I think i have finally finished this sketchup model. I have double and triple checked every measurement. Here are pics with the top cover closed. If you'd like i can send you the sketchup i have, maybe it could help you with your case.

    Attached Files:

  11. Lazzer408

    Lazzer408

    Joined:
    Jan 6, 2007
    Messages:
    2,522 (0.92/day)
    Thanks Received:
    327
    Location:
    Illinois
    Google sketchup is ok to whip up concept drawings but I don't think it will output a format that can head straight to the shop for production. A laser or waterjet would likely use a DXF format that's ready to go with all your edges, holes, bend radius/k-factors, and relief radiuses in place. Those values will depend on the material type, thickness, and machines being used.

    That seems like an aweful lot of air flow. :confused: Just a heads up on axial fans... They do not function well when placed near an object (on it's inlet side) closer then roughly the fans thickness. A 120x25mm fan, for example, should be 25mm away from anything. Try it on the desk when you get a chance. The 360 slim uses an axial as a puller right against the heatsink. I bet that fan is opperating below 50% of it's rated cfm. It was cheap and easy for MS though.

    Last edited: Feb 28, 2013
  12. Sean.Crees New Member

    Joined:
    Feb 20, 2013
    Messages:
    10 (0.02/day)
    Thanks Received:
    0
    Location:
    Omaha, NE
    I was reading online, and there is a free utility i can get to convert the sketchup into any of the CAD formats. I was very detailed in all of my measurements, sometimes down to 6 decimal places of a millimeter. The only thing i wasn't sure how to do was bend radius', i just did 90 degree bends.

    The three axial fans on top are intake, so there wont' be anything near the inlet side, the inlet side is the top of the case. I am going to use Scythe Gentle Typhoons which are known to have great static pressure, and are double ball bearing so using them in a horizontal position won't hamper them at all. Gentle Typhoons are also one of the quietest fans on the market if you get the 800rpm version. They are around 30CFM each. The only axial fan that may have issues is the thin one under the graphics card, it only has around a 1/4" space under it, but it's just there to provide some sort of airflow to the VRM's, it doesn't have to be a lot, just as long as it's better than nothing. It's more to direct air, not to move air, and i may not even need it i just put it there in case i do. There are no exhaust fans, this is a positive air pressure design. PSU air is directed out the side via a foam duct, so PSU air won't increase internal case temperatures at all. All other hot air from the CPU and GPU are exhausted out the back of the chassis.
  13. Lazzer408

    Lazzer408

    Joined:
    Jan 6, 2007
    Messages:
    2,522 (0.92/day)
    Thanks Received:
    327
    Location:
    Illinois
    Depends on the dies and materials. As long as you have the folded od the shops can figure it out.
  14. jobsmxli New Member

    Joined:
    Mar 9, 2013
    Messages:
    1 (0.00/day)
    Thanks Received:
    0
    So I my suppose this product is not going that well. Anyway, I'll find the ml05 fun to play with.
    Last edited: Mar 21, 2013
  15. darckhart New Member

    Joined:
    Mar 27, 2010
    Messages:
    4 (0.00/day)
    Thanks Received:
    0
    found your thread while googling. very interested in this project. any new progress?
  16. OneMoar

    OneMoar

    Joined:
    Apr 9, 2010
    Messages:
    2,869 (1.84/day)
    Thanks Received:
    605
    Location:
    Rochester area
    anything on this little bit of awesome ? I want one
  17. Lazzer408

    Lazzer408

    Joined:
    Jan 6, 2007
    Messages:
    2,522 (0.92/day)
    Thanks Received:
    327
    Location:
    Illinois
    It amounts to me not being able to find a cad guy willing to work on the side. Those that own the software paid 1000s for it and charge just as much to draw with it. It's a shame really because I know a fluent designer could whip this up in a few hours. That and my hands are tied between my store and my vehicle. The store is doing well and soon I'll have the funds to bite the bullet and pay these guys.

    Everything is sourced though and just waiting on production quality drawings. Sorry about the delays.
  18. Main Performance PC New Member

    Joined:
    Jun 4, 2013
    Messages:
    1 (0.00/day)
    Thanks Received:
    0
    Hi Lazzer,

    Can you please PM me your contact information? My company is interested in your design.
  19. GeoffreyK

    Joined:
    Jun 11, 2013
    Messages:
    5 (0.01/day)
    Thanks Received:
    1
    I've been obsessing for the last week or so about just how small I could make a potent new machine. I've currently got an i7-920 and a GTX 275 in a Lian-Li PC-A05N; my goal with that build was "smallest possible system, off-the-shelf, with full-size components". Now, I look at ATX and think... what am I doing? I only ever use one expansion slot, what a waste!

    So, I've been fantasizing about how small things could get with an mITX board and a SFX PSU. Things like the FT-03 Mini... and then I found this thread, along with things like the FNW Tiki and the Alienware x51.

    And then, I happen to run across this article today: http://www.techpowerup.com/185264/s...es-raven-to-mini-itx-gaming-build-worthy.html

    The plastic shroud/surround is pretty hideous, but it looks like Silverstone's about to start competing in your niche!
  20. Lazzer408

    Lazzer408

    Joined:
    Jan 6, 2007
    Messages:
    2,522 (0.92/day)
    Thanks Received:
    327
    Location:
    Illinois
    It's funny how all these companies crawl out of the woodwork with an ITX chassis about a year after I contact them. :rolleyes:
  21. stupido

    Joined:
    Sep 23, 2009
    Messages:
    150 (0.09/day)
    Thanks Received:
    21
    Location:
    Belgium
    I was doing the same as you for some time and finally few weeks ago I update my computer with mini-ITX build (see my system specs)...
    in my case I decided to go with Prodigy simply because I already had the Termalright Archon which is one of the tallest heatsinks... I wanted to keep it because I like the performance of it: both cooling & noise wise; so in my case, Prodigy was the only case capable of accepting it...
    however, the only point I miss from my previous, ATX based setup, is the external sound card...
    I do hear difference between cheap XtremeGamer and onboard audio with the same headset (Roccat Kave); note that Kave is not an audiophile grade gear, but apparently good enough to show difference between analog audio paths (the main difference between onboard and add-on sound card)
  22. stupido

    Joined:
    Sep 23, 2009
    Messages:
    150 (0.09/day)
    Thanks Received:
    21
    Location:
    Belgium
    That is probably because they realized that mini-ITX is the next mATX format... :D the same as white cases - the white became the new black, the same as black became new beige... :laugh:
  23. Lazzer408

    Lazzer408

    Joined:
    Jan 6, 2007
    Messages:
    2,522 (0.92/day)
    Thanks Received:
    327
    Location:
    Illinois
  24. illli

    Joined:
    Mar 20, 2012
    Messages:
    150 (0.18/day)
    Thanks Received:
    16
    Revolt: i don't like the type of psu they use. plus its very ugly.
    Bolt: i don't like the type of psu they use.
    Raven: looks a little big
    Tiki: near complete rip-off of your design.
    x51: uses external psu. not a bad decision, but limits you in terms of what you can use for components.
    Lazzer408 says thanks.
  25. MightyMouth New Member

    Joined:
    Oct 11, 2012
    Messages:
    3 (0.00/day)
    Thanks Received:
    1
    • x51 - Would look ok under the TV as a Steam box console replacement - Overpriced, the chassis must be 1/3 of the price considering the components.
    • Tiki - Nice, sleek and stylish. :eek: How much? They are charging at least $800 for the chassis because the components work out to less than $900.
    • Revolt - Ugly but might be a decent alternative to the x51 - again way over priced
    • Bolt - Fugly, way over priced. wouldnt even consider.
    • Raven - Not sure what they are thinking with this one, their cases are usually quite nice looking but this looks like a left over desktop PC from 2003. If they made it look a little more like the RV04 then I would consider it. Saying that, out of this lot, this is the one I would buy because I want a self build and this is the only option until the Titan-ITX is available. I think I will hold out for yours.

    Come on, release yours already!!! :laugh:

    ps. I would be happy to buy a prototype :D
    Lazzer408 says thanks.
