X800 fuses data for unlocking

cyclups

New Member
Joined
Aug 29, 2004
Messages
2 (0.00/day)

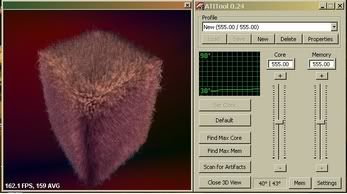

Hi is mine, a Sapphire X800pro.


Attachments

  • ATITool.JPG
    32.5 KB · Views: 861

Sibic

New Member
Joined
Oct 21, 2005
Messages
9 (0.00/day)
Can i put a better bios in my card? Maybe get thoose 16 pipes?
I can clock the memory up to 607 mhz, and the core to 533. I did put the mem on stock speed, and then put ATItool to find max core, and it just went on and on and on and at 580 i just cancelled it because i thought maybe it wasnt really clocking the core because 570 was insane heh.

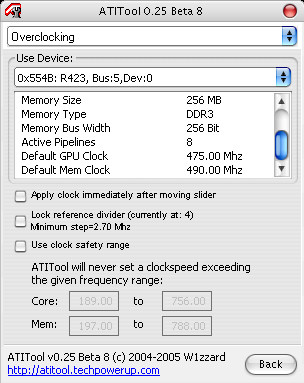

Here is my picture. It's a r480 core. Oh it's Sapphire x800GTO unfortunetly not GTO2 :(


Attachments

  • x800gto.JPG
    32.7 KB · Views: 832

SPHERE

New Member
Joined
Mar 31, 2005
Messages
821 (0.12/day)
Location
arizona (cave creek)
Processor opteron 165
Motherboard dfi cfx3200
Cooling zalman 7000
Memory mushkin xp4000
Video Card(s) x1900xt
Storage 4x320 7200.10 raid
Display(s) 21" sony trinitron
Case v2000b lianli
Audio Device(s) x-fi platinum
Power Supply pcpac 510
Software gaydows
@ 2 above posts: it looks like your dudes are F***** as far as pipe unlocking goes sry :(

@julesdakar use this command to flash flashrom.exe -p -f 0 <bios name>.<bin/rom>


julesdakar

New Member
Joined
Oct 21, 2005
Messages
16 (0.00/day)
hi sean 478!
i have test the cd-dvd flash with the bios of gto2 12 pipes and after reboot i have take the bios of the gto2 16 pipes.
in my pc i have no 3 1/2 i'll we do tis tommorow with a floppy drive.
thanks a lot good night


julesdakar

New Member
Joined
Oct 21, 2005
Messages
16 (0.00/day)
sean478 i have test again with my card, i have uninstalled all my ati driver
force the flash with the 16 pipes after the 12 pipes x800 gto2 bios
after reboot i have installed my drivers, in panel properties x850 i have seen but in atitools always the clock of x800 gto2 400/490 (core/mame) :-(


Sibic

New Member
Joined
Oct 21, 2005
Messages
9 (0.00/day)
I can still bios mod my Sapphire x800GTO?
What bios should i use?
Is it completely impossible to get 16 pipes on this card? Or can i try? Do i need a special unlock bios or just flash to x850XT?


Ghozy

New Member
Joined
Oct 23, 2005
Messages
1 (0.00/day)

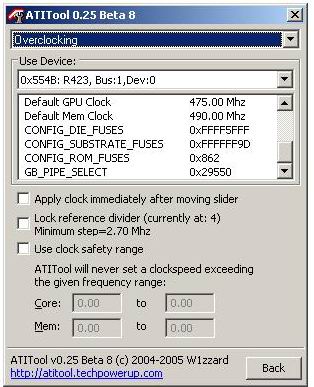

Power Color X800GT 475/980 1.6ns


Attachments

  • Power Color x800GT 256mb-256bit.JPG
    Power Color x800GT 256mb-256bit.JPG
    36.8 KB · Views: 823

ShadowFlare

New Member
Joined
Sep 20, 2005
Messages
542 (0.08/day)
Processor Athlon 64 Venice 3200+ 2.0 GHz, max 2.6 GHz with Zalman CNPS7000B-AlCu
Motherboard EpoX 9NPA+Ultra nForce4 Ultra with Zalman ZM-NB47J
Cooling All Zalman heatsinks (CNPS7000B-AlCu, ZM-NB47J, VF700-Cu)
Memory 1 GB (2x512 MB) DDR400 Corsair XMS C2 series, max 233 MHz @ 2-3-2-9 1T
Video Card(s) Sapphire Radeon X800GTO2 256 MB PCIe max 540/600, modded to 16 pipes
Storage Seagate 80GB SATA, Maxtor 160GB PATA, Maxtor 200GB PATA
Display(s) Dell 17" Trinitron CRT
Case Lian Li PC-60B Plus
Audio Device(s) Built-in Realtek chip
Power Supply Enermax Noisetaker EG495AX-VE, 485 watts, active PFC
Software Windows XP Pro SP2, Windows XP Pro x64, Windows Vista RC1 32-bit
Did anyone who unlocked pipelines on a Powercolor X800 GT have to flash the bios after doing the hardmod to unlock them? I tried flashing the Powercolor X800 GT bios to my GTO2 so I could do some benchmarks with 8 pipelines, but it stayed at 16! Are there any X800/X850 bioses that are known to be set at 8 pipelines?

BTW, I've confirmed the Powercolor X800 GT bios to be compatible with R480 chips. I've flashed an X850 XT PE bios (with reduced speeds) to the Powercolor X800 GT and it works just fine, and the Powercolor X800 GT bios works on an R480, too. (my GTO2)


To anyone who would respond saying that I did something wrong: no, I absolutely did NOT do anything wrong during the flash, I have plenty of experience with flashing the bios on these cards, so don't even suggest that I did something wrong! I am a fairly advanced computer user, not some n00b.


SPHERE

New Member
Joined
Mar 31, 2005
Messages
821 (0.12/day)
Location
arizona (cave creek)
Processor opteron 165
Motherboard dfi cfx3200
Cooling zalman 7000
Memory mushkin xp4000
Video Card(s) x1900xt
Storage 4x320 7200.10 raid
Display(s) 21" sony trinitron
Case v2000b lianli
Audio Device(s) x-fi platinum
Power Supply pcpac 510
Software gaydows
Did anyone who unlocked pipelines on a Powercolor X800 GT have to flash the bios after doing the hardmod to unlock them? I tried flashing the Powercolor X800 GT bios to my GTO2 so I could do some benchmarks with 8 pipelines, but it stayed at 16! Are there any X800/X850 bioses that are known to be set at 8 pipelines?
use the moded flashrom :)


ShadowFlare

New Member
Joined
Sep 20, 2005
Messages
542 (0.08/day)
Processor Athlon 64 Venice 3200+ 2.0 GHz, max 2.6 GHz with Zalman CNPS7000B-AlCu
Motherboard EpoX 9NPA+Ultra nForce4 Ultra with Zalman ZM-NB47J
Cooling All Zalman heatsinks (CNPS7000B-AlCu, ZM-NB47J, VF700-Cu)
Memory 1 GB (2x512 MB) DDR400 Corsair XMS C2 series, max 233 MHz @ 2-3-2-9 1T
Video Card(s) Sapphire Radeon X800GTO2 256 MB PCIe max 540/600, modded to 16 pipes
Storage Seagate 80GB SATA, Maxtor 160GB PATA, Maxtor 200GB PATA
Display(s) Dell 17" Trinitron CRT
Case Lian Li PC-60B Plus
Audio Device(s) Built-in Realtek chip
Power Supply Enermax Noisetaker EG495AX-VE, 485 watts, active PFC
Software Windows XP Pro SP2, Windows XP Pro x64, Windows Vista RC1 32-bit
sean478 said:
use the moded flashrom :)
That's exactly the kind of response I was saying that I didn't want. I'm looking for a different bios, not the right way to flash it. I'm pretty sure I've been able to get my card back to 12 pipelines before, so the flashing isn't the problem.

Anyway, my first question was directed to people who have successfully unlocked pipelines on that card by doing the hardmod (bridging the laser cut).

Joined
Oct 17, 2005
Messages
114 (0.02/day)
Man, i think you are the only one that have successfully unlocked pipelines on this card...

Tell us more!


julesdakar

New Member
Joined
Oct 21, 2005
Messages
16 (0.00/day)
ShadowFlare said:
Did anyone who unlocked pipelines on a Powercolor X800 GT have to flash the bios after doing the hardmod to unlock them? I tried flashing the Powercolor X800 GT bios to my GTO2 so I could do some benchmarks with 8 pipelines, but it stayed at 16! Are there any X800/X850 bioses that are known to be set at 8 pipelines?

BTW, I've confirmed the Powercolor X800 GT bios to be compatible with R480 chips. I've flashed an X850 XT PE bios (with reduced speeds) to the Powercolor X800 GT and it works just fine, and the Powercolor X800 GT bios works on an R480, too. (my GTO2)


To anyone who would respond saying that I did something wrong: no, I absolutely did NOT do anything wrong during the flash, I have plenty of experience with flashing the bios on these cards, so don't even suggest that I did something wrong! I am a fairly advanced computer user, not some n00b.

have you unlocked an x800 gt ? to a 16 pipelines ? tell me the procedures ? perhaps it will work with my x800 gto 256 Mo (i'm staying to 12 pipelines)
thanks


.:DemiaN:.

New Member
Joined
Oct 25, 2005
Messages
4 (0.00/day)

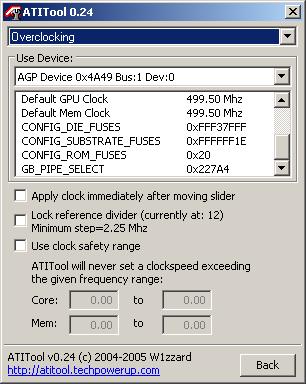

I have a PowerColor X800GT 256Mb DDR3 PCI-E and i dont have "fuses", i dont understand :(
Please help me

PD: Sorry for the bad english, im from Argentina and here the people use other language


Attachments

  • AtiTool.jpg
    43.5 KB · Views: 753

Roboque

New Member
Joined
Oct 18, 2005
Messages
2 (0.00/day)
Club 3d X800RX

8 pipes aktive
490 gpu
980 ram
R480

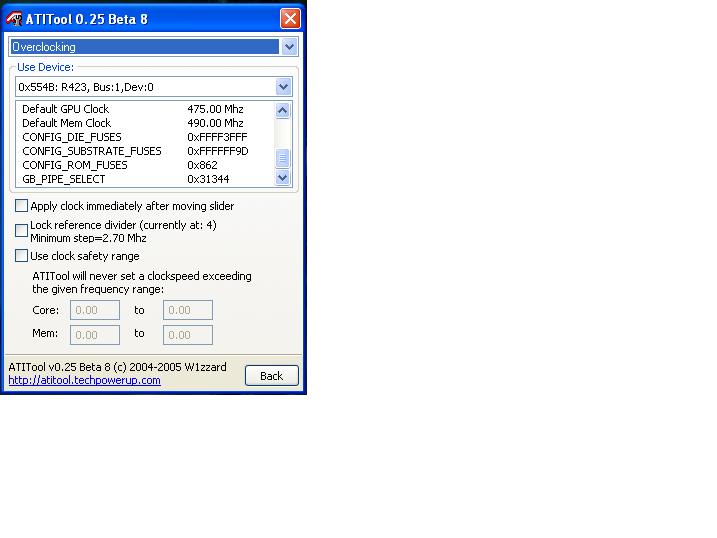

Which bios use on this card? Possible Saphire x800 gto or x800 gto2?
Im lamer how use the ATIWinflash? How determine the filename? Tiping this name file xxx or xxx.bin? And then use the load? I try filename and load but no response :(((


Attachments

  • x800rx.JPG
    42.4 KB · Views: 739

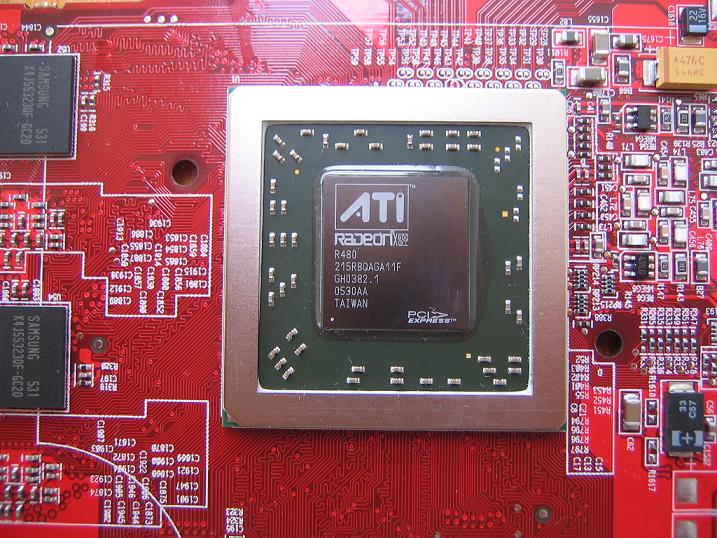

  • x800rx aka r480.JPG
    x800rx aka r480.JPG
    113.3 KB · Views: 762

ShadowFlare

New Member
Joined
Sep 20, 2005
Messages
542 (0.08/day)
Processor Athlon 64 Venice 3200+ 2.0 GHz, max 2.6 GHz with Zalman CNPS7000B-AlCu
Motherboard EpoX 9NPA+Ultra nForce4 Ultra with Zalman ZM-NB47J
Cooling All Zalman heatsinks (CNPS7000B-AlCu, ZM-NB47J, VF700-Cu)
Memory 1 GB (2x512 MB) DDR400 Corsair XMS C2 series, max 233 MHz @ 2-3-2-9 1T
Video Card(s) Sapphire Radeon X800GTO2 256 MB PCIe max 540/600, modded to 16 pipes
Storage Seagate 80GB SATA, Maxtor 160GB PATA, Maxtor 200GB PATA
Display(s) Dell 17" Trinitron CRT
Case Lian Li PC-60B Plus
Audio Device(s) Built-in Realtek chip
Power Supply Enermax Noisetaker EG495AX-VE, 485 watts, active PFC
Software Windows XP Pro SP2, Windows XP Pro x64, Windows Vista RC1 32-bit
RatusNatus said:
Man, i think you are the only one that have successfully unlocked pipelines on this card...

Tell us more!
julesdakar said:
have you unlocked an x800 gt ? to a 16 pipelines ? tell me the procedures ? perhaps it will work with my x800 gto 256 Mo (i'm staying to 12 pipelines)
thanks
Lol, sorry for the confusion, but this was on a Sapphire X800 GTO2. ;) I flashed to the Powercolor X800 GT bios. BTW, here are some pictures of the number of pipelines and the fuses data when using that bios:



Notice that it calls in an R423 and it has the X800 GT clock speeds.

I've double-checked by flashing back to the original bios to get 12 pipelines first and checking the number of pipelines before flashing to another bios and have found that the Powercolor X800 GT bios does indeed have the number of pipelines set to 16 in the bios. This means that for the people who are successful with a hardmod on that card will not need to flash the bios to get the unlocked pipelines to show up.

Last edited:

Er4z0r

New Member
Joined
Oct 16, 2005
Messages
2 (0.00/day)
is it possable to unlock this x800 gto, its got the R480 chip




it dosnt exceed 40c under full load and clocked at 555/555

i think i atached the bios too

View attachment bios.zip

Last edited:

ShadowFlare

New Member
Joined
Sep 20, 2005
Messages
542 (0.08/day)
Processor Athlon 64 Venice 3200+ 2.0 GHz, max 2.6 GHz with Zalman CNPS7000B-AlCu
Motherboard EpoX 9NPA+Ultra nForce4 Ultra with Zalman ZM-NB47J
Cooling All Zalman heatsinks (CNPS7000B-AlCu, ZM-NB47J, VF700-Cu)
Memory 1 GB (2x512 MB) DDR400 Corsair XMS C2 series, max 233 MHz @ 2-3-2-9 1T
Video Card(s) Sapphire Radeon X800GTO2 256 MB PCIe max 540/600, modded to 16 pipes
Storage Seagate 80GB SATA, Maxtor 160GB PATA, Maxtor 200GB PATA
Display(s) Dell 17" Trinitron CRT
Case Lian Li PC-60B Plus
Audio Device(s) Built-in Realtek chip
Power Supply Enermax Noisetaker EG495AX-VE, 485 watts, active PFC
Software Windows XP Pro SP2, Windows XP Pro x64, Windows Vista RC1 32-bit
Er4z0r said:
is it possable to unlock this x800 gto, its got the R480 chip
Based on what other people have said about the fuses data, it's not likely that your's will unlock. It probably wouldn't hurt to try flashing the bios, but it will probably just be a waste of time.


SPHERE

New Member
Joined
Mar 31, 2005
Messages
821 (0.12/day)
Location
arizona (cave creek)
Processor opteron 165
Motherboard dfi cfx3200
Cooling zalman 7000
Memory mushkin xp4000
Video Card(s) x1900xt
Storage 4x320 7200.10 raid
Display(s) 21" sony trinitron
Case v2000b lianli
Audio Device(s) x-fi platinum
Power Supply pcpac 510
Software gaydows
ShadowFlare said:
Based on what other people have said about the fuses data, it's not likely that your's will unlock. It probably wouldn't hurt to try flashing the bios, but it will probably just be a waste of time.
agreed :(


SPHERE

New Member
Joined
Mar 31, 2005
Messages
821 (0.12/day)
Location
arizona (cave creek)
Processor opteron 165
Motherboard dfi cfx3200
Cooling zalman 7000
Memory mushkin xp4000
Video Card(s) x1900xt
Storage 4x320 7200.10 raid
Display(s) 21" sony trinitron
Case v2000b lianli
Audio Device(s) x-fi platinum
Power Supply pcpac 510
Software gaydows
Er4z0r said:
any idea's what bios to try flashing it with then ?
any pcie x850xt/xtpe bios :)

Joined
Oct 17, 2005
Messages
114 (0.02/day)
There are another threat to unlockeble cards... but they are doing some hard mod over there, hehehe. Let they try and get the results.

Shadowflare, as you can see, my english is not so good. My bad.

Cheers


ShadowFlare

New Member
Joined
Sep 20, 2005
Messages
542 (0.08/day)
Processor Athlon 64 Venice 3200+ 2.0 GHz, max 2.6 GHz with Zalman CNPS7000B-AlCu
Motherboard EpoX 9NPA+Ultra nForce4 Ultra with Zalman ZM-NB47J
Cooling All Zalman heatsinks (CNPS7000B-AlCu, ZM-NB47J, VF700-Cu)
Memory 1 GB (2x512 MB) DDR400 Corsair XMS C2 series, max 233 MHz @ 2-3-2-9 1T
Video Card(s) Sapphire Radeon X800GTO2 256 MB PCIe max 540/600, modded to 16 pipes
Storage Seagate 80GB SATA, Maxtor 160GB PATA, Maxtor 200GB PATA
Display(s) Dell 17" Trinitron CRT
Case Lian Li PC-60B Plus
Audio Device(s) Built-in Realtek chip
Power Supply Enermax Noisetaker EG495AX-VE, 485 watts, active PFC
Software Windows XP Pro SP2, Windows XP Pro x64, Windows Vista RC1 32-bit
I think I've figured out more about what some of the fuses data means. For CONFIG_ROM_FUSES when it is in a form like 0x26X, 0x86X, or 0xA6X:

When X = 0, no pipeline quads are locked in the bios (bios is set to 16 pipelines)
When X = 1, 1 pipeline quad is locked in the bios (bios is set to 12 pipelines)
When X = 2, 2 pipeline quads are locked in the bios (bios is set to 8 pipelines)

This seems to be the case for a lot of bioses I've seen, mainly for R423, R430, and R480. Now, just because you have a zero there, that doesn't mean you have 16 pipelines, it just means that your bios is set to that.

For example, in all cases I've seen a zero there on Powercolor X800 GT's, but that card only has 8 pipelines. However, if you flash that bios to a 16 pipeline card (using the modified flashrom or atiflash -newbios), you will still have 16 pipelines. For example, if you flash it to a GTO2 that hasn't been unlocked to 16 yet (still has 12 pipelines), the Powercolor X800 GT bios will unlock it to 16.

Last edited:

janjansen

New Member
Joined
Oct 26, 2005
Messages
20 (0.00/day)
MSI RX800-se



and here's mine, not to unlock i think

Last edited:

SPHERE

New Member
Joined
Mar 31, 2005
Messages
821 (0.12/day)
Location
arizona (cave creek)
Processor opteron 165
Motherboard dfi cfx3200
Cooling zalman 7000
Memory mushkin xp4000
Video Card(s) x1900xt
Storage 4x320 7200.10 raid
Display(s) 21" sony trinitron
Case v2000b lianli
Audio Device(s) x-fi platinum
Power Supply pcpac 510
Software gaydows
janjansen said:


and here's mine, not to unlock i think
what card is that x700?:confused:
