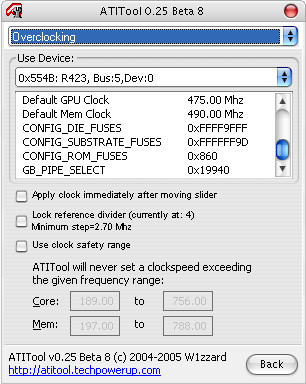

ShadowFlare said:I think I've figured out more about what some of the fuses data means. For CONFIG_ROM_FUSES when it is in a form like 0x26X, 0x86X, or 0xA6X:
When X = 0, no pipeline quads are locked in the bios (bios is set to 16 pipelines)
When X = 1, 1 pipeline quad is locked in the bios (bios is set to 12 pipelines)
When X = 2, 2 pipeline quads are locked in the bios (bios is set to 8 pipelines)
This seems to be the case for a lot of bioses I've seen, mainly for R423, R430, and R480. Now, just because you have a zero there, that doesn't mean you have 16 pipelines, it just means that your bios is set to that.

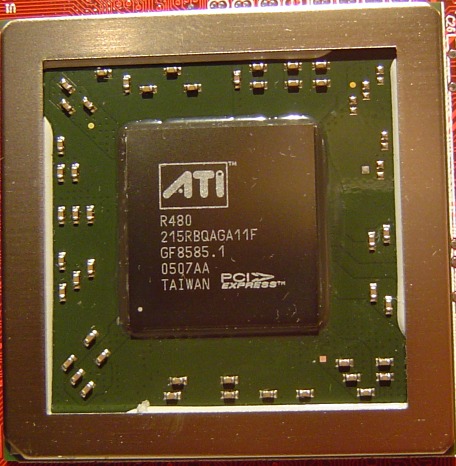

For example, in all cases I've seen a zero there on Powercolor X800 GT's, but that card only has 8 pipelines. However, if you flash that bios to a 16 pipeline card (using the modified flashrom or atiflash -newbios), you will still have 16 pipelines. For example, if you flash it to a GTO2 that hasn't been unlocked to 16 yet (still has 12 pipelines), the Powercolor X800 GT bios will unlock it to 16.
So the Powercooler X800GT bios unlocks pipes? Could it work on a Sapphire X800GTO?! i have 0x261 on my Config_Rom_Fuses.
