Zalman Intros ZM-Fx-FDB Series Case Fans

Discussion in 'News' started by btarunr, Sep 7, 2010.

  1. btarunr

    btarunr Editor & Senior Moderator Staff Member

    Joined:
    Oct 9, 2007
    Messages:
    28,256 (11.36/day)
    Thanks Received:
    13,585
    Location:
    Hyderabad, India

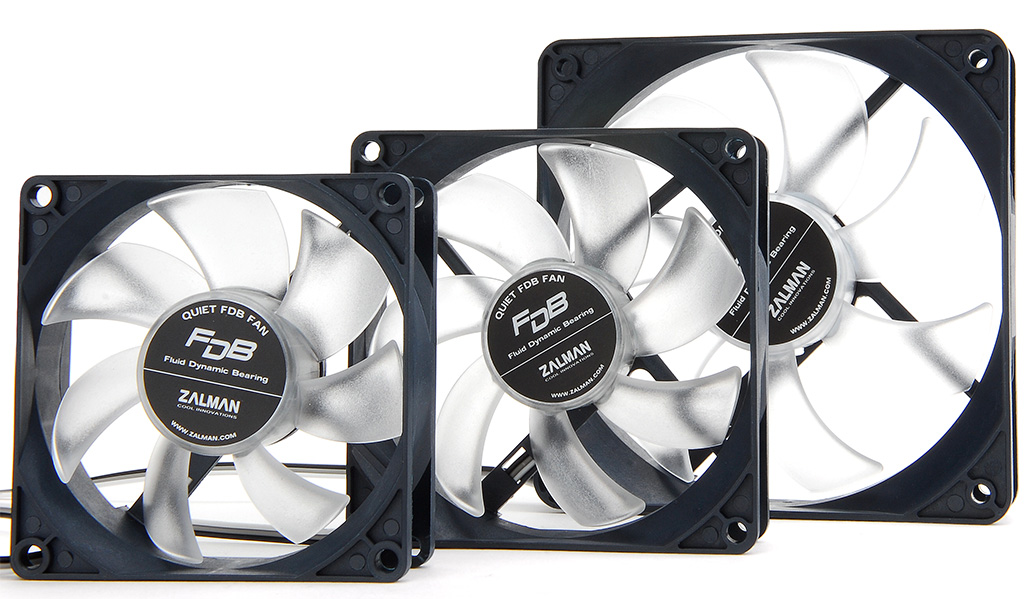

    Zalman has started shipping its newest low-noise case fans, the ZM-Fx-FDB series (where "x" is 1,2,3, representing 80 mm, 92 mm, 120 mm, respectively). The fan uses three means to lower noise output: a PWM-based speed control, silicone pins that attach it to the case instead of metal screws, and fluid-dynamic bearing (FDB) that has a long life and makes low noise. The FDB ensures the fan has a service life of 150,000 hours. The impeller is made of translucent (frost) plastic, though it isn't LED-lit. A low-noise speed mode can be selected by placing the provided resistor.

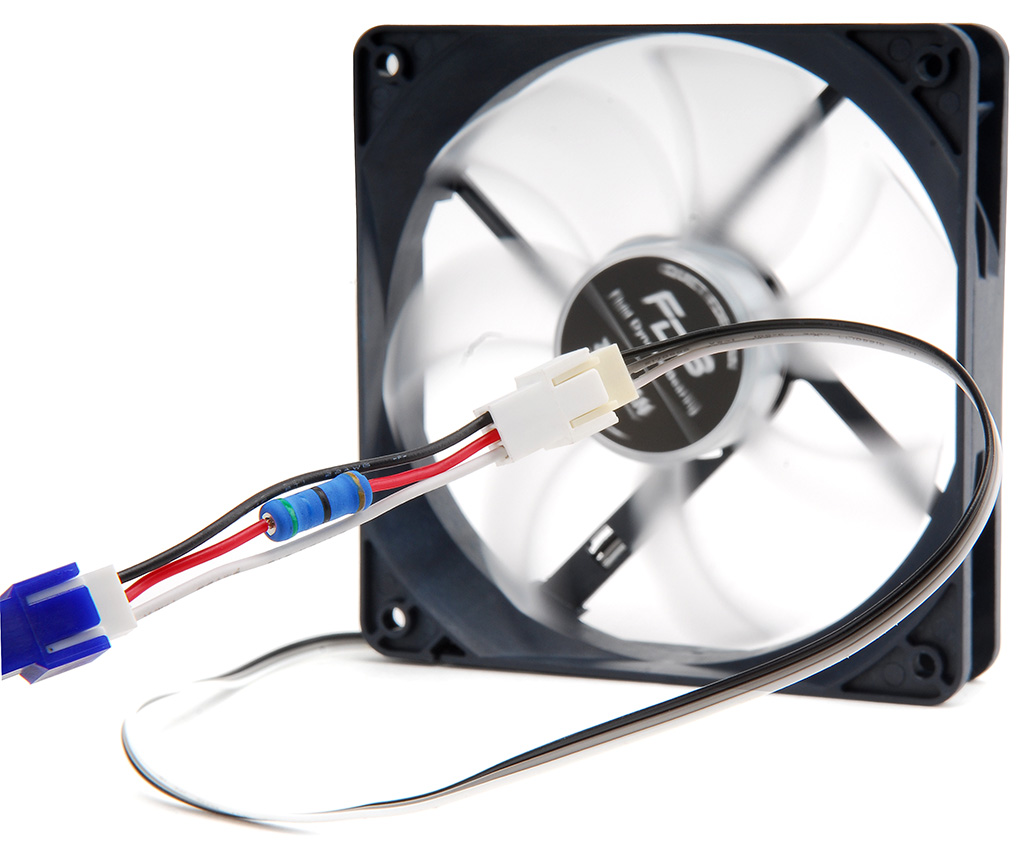

    The ZM-F1-FDB spins at 1,400~2,000 rpm with 18~23 dBA noise output, ZM-F2-FDB at 1,300~2,000 rpm with the same 18~23 dBA noise, and ZM-F3-FDB at 1,000~1,500 with 18~23 dBA noise as well. With the ZM-RC56 resistor in place, the fans spin at a lower speed, with a constant noise output of 18 dBA. While the ZM-F2-FDB is due for market release on the 25th of September, the ZM-F1-FDB is priced at 7.9 EUR, and ZM-F3-FDB at 9.5 EUR.

    [​IMG] [​IMG] [​IMG]
  2. douglatins

    douglatins

    Joined:
    May 15, 2008
    Messages:
    2,863 (1.26/day)
    Thanks Received:
    273
    Location:
    Brasil
    DAMN IT STOP MAKING UNDER 2K FANS!!!
    Seriosly, all fans must have a maximum RPM or 2K and come with limiters etc.
  3. _JP_

    _JP_

    Joined:
    Apr 16, 2010
    Messages:
    2,681 (1.71/day)
    Thanks Received:
    734
    Location:
    Portugal
    Can't complain about them, except for the price.
    My 120mm fans also run at 1300rpm tops, but they still do their job. The 80mm can go up to 2200rpm. If you want faster, you could always get Delta fans.
  4. avatar_raq

    avatar_raq

    Joined:
    May 22, 2010
    Messages:
    278 (0.18/day)
    Thanks Received:
    46
    Location:
    Iraq
    I don't think that these fans are PWM controlled..They have only 3 wires..The same misleading marketing Zalman used with their older F1,2,3 fans, which I learned -the hard way- they can only be regulated by voltage adjustment.
  5. [H]@RD5TUFF

    Joined:
    Nov 13, 2009
    Messages:
    5,615 (3.26/day)
    Thanks Received:
    1,707
    Location:
    San Diego, CA
    These look pretty nice, but I want to see CFM ratings, before I get too excited.
  6. Aether New Member

    Joined:
    Jun 1, 2010
    Messages:
    14 (0.01/day)
    Thanks Received:
    3
    Actually, this is not misleading. Your understanding of what PWM is incorrect. PWM, or Pulse Width Modulation, is a digital means to create an analog equivalent. For instance, you can create different levels of illumination on a LED (which is a digital component, meaning it is either ON or OFF and it's determined state depends on a threshold that is usually set to 0.6V or 0.7V) by pulsing 1s and 0s at a certain frequency. This has a capacitive effect of representing an in-between state of ON and OFF. So by saying that they use PWM, they mean that their motor is, to some degree, a digital motor and that the speed can be adjusted by using PWM on the motor's voltage supply line.

    ..And knowing is half the battle. GI JOE!!!

    -Aether
    Last edited: Sep 7, 2010
  7. pantherx12

    pantherx12 New Member

    Joined:
    Jan 2, 2009
    Messages:
    9,714 (4.77/day)
    Thanks Received:
    1,699
    Location:
    ENGLAND-LAND-LAND
    I'd really like to see something "different" in the fan world.
  8. avatar_raq

    avatar_raq

    Joined:
    May 22, 2010
    Messages:
    278 (0.18/day)
    Thanks Received:
    46
    Location:
    Iraq
    Thanks for the info, but what I really meant is that when you connect it to a 4 pin mobo header, the fan will run at full speed, so I reverted to a 3 pin voltage-regulated port. And that is confusing.
  9. Aether New Member

    Joined:
    Jun 1, 2010
    Messages:
    14 (0.01/day)
    Thanks Received:
    3
    I see what you mean now. And I will certainly not disagree with this stuff being confusing! I get confused with this stuff and I'm an EE major...:ohwell:

    Oh and just so that I am not misleading you ;) I changed my explanation to not say 'Digital' motor since, I don't believe, that is correct. I am no motor expert by any means, but motors are mostly understood as being analog but have a functional operation range (voltage range) that can be used to drive the motor. If you go below this operating range the motor simply will not spin, which can be 'somewhat' viewed as digital in nature. So the question that might come up is, why use a digital technique on an analog component? I think the answer here is that it is more energy efficient, since you are only supplying power part of the time rather than 100% of the time...I could be wrong on this though.:)
    Last edited: Sep 7, 2010
  10. _JP_

    _JP_

    Joined:
    Apr 16, 2010
    Messages:
    2,681 (1.71/day)
    Thanks Received:
    734
    Location:
    Portugal
    I guess the idea for now is: "If it works, has low cost and generates profit, why bother changing it?".
    Enermax has had some nice ideas, as well as Thermaltake...
  11. WarEagleAU

    WarEagleAU Bird of Prey

    Joined:
    Jul 9, 2006
    Messages:
    10,796 (3.67/day)
    Thanks Received:
    545
    Location:
    Gurley, AL
    I would like a blend of 80+ CFM with decent noise levels.
  12. jimmyxxx New Member

    Joined:
    Mar 9, 2010
    Messages:
    15 (0.01/day)
    Thanks Received:
    1
    Thats like mixing marshmallows and tabasco sauce, they don't like each other :laugh:
