CM 690 Seethrough

« Previous ModReturn to Index Random Mod Next Mod »

More images (click for bigger version):

Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4
Thumbnail 5 Thumbnail 6 Thumbnail 7 Thumbnail 8
Thumbnail 9 Thumbnail 10
Owner: aquariuz
Send email
Send private message
Posted: 2008-04-11
Last Update: 2008-04-12 01:49
Viewed: 2259 times
Rating: Excellent (6.4)
Voting Graph
5 votes total
Submit vote:
Please register on the forums & login to vote.
Keywords:
AMDATICustom paint job
This user's other mods:
System Specs:
» Case: Cooler Master 690 case modded » Mobo: Gigabyte GA-P35-DS3L » CPU: Intel Core 2 Duo Quad Core Q6600 2.6ghz OC to 3.24Ghz » GPU: Visiontek ATI Radeon HD3870X2 1GB OC to 899 MHz Core Clock & 999 MHz Memory Clock » RAM: OCZ Reaper DDR2 800 4GB » CPU heatsink: ASUS Silent Square Pro 90mm » PSU: ABS Tagan BZ series 700W piperock Modular module
Performed Mods:

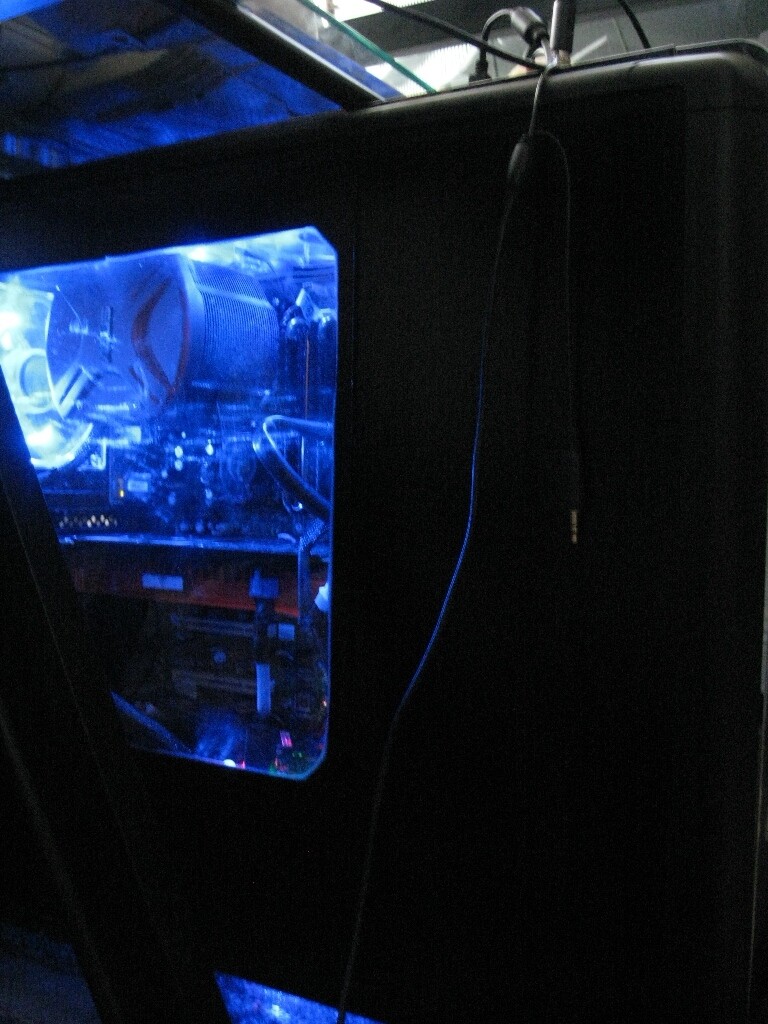

Interior case Painted (Black) Side Panel Cut and replaced with Plexiglass for a side window
Actually this would be my 3rd case, as the 2nd was the Antec but I didnt do any mods to it. After getting this case from a friend of mine, I decided to cut the side panel and make a window to showcase my PC's inerts. I kinda screwed up on the cutting of the hole with the jigsaw n ended up cutting way to close to the top and on top of that, the cuts were very jagged n uneven. So I decided to slap the plexi on the outside, make a template for the window, stick it on the plexi n spray painted the whole side panel. The result was not so bad but I coulda done a better job, I'm just impatient lol.

User comments

Post your comment
by tzitzibp (April 12th - 6:40 AM) - Reply
stop being impatient.....great specs, neat job painting this case, good job on the side panel, not good cable management.....I give you 10 for effort, 6 for the application.... so 8/10 is about right....shame, cause that impatience will cost you...
by aquariuz (April 12th - 7:54 AM) - Reply
Hi tzitzibp, thank u for your comment. Really appreciate it :) I was looking at your work on the silver armor+ n dats a hell of a job u did. Love it.

Yes, i realized later on dat my impatience caused me the messed up :( lol but yeah i try to finish things in one day or two. I was trying to figure out how to arrange the cables, but for some reason, there was a lot of cables, n about half of it were already tucked behind the board, so yeah >,<

I'll work on my cable management. oh n btw, i just got a case to work on, n its the black Armor+ LOL. I've done the inside painting n so far it looks good. Once I get the new parts in, I will assemble it n post it here for ppl to see :)
by tzitzibp (April 12th - 8:10 AM) - Reply
by aquariuz (April 12th - 4:31 PM) - Reply
damn man!! lol, how many cases do u have? :D
by tzitzibp (April 12th - 7:59 PM) - Reply
by: aquariuz;745901
damn man!! lol, how many cases do u have? :D
2 man.... the other two are made by me for a cousin and a customer...
