GHOST
More images (click for bigger version):
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Owner: | tzitzibp Send email Send private message |
| Posted: | 2008-10-23 |
| Last Update: | 2008-11-19 13:37 |
| Viewed: | 8,156 times |
| Rating: | Superb (7.8) 43 votes total |
| Submit vote: | |
| Please register on the forums & login to vote. | |
Keywords:
This user's other mods:
System Specs:
» THERMALTAKE VH6000SWA ARMOR+
» c2Quad QX 9650 @4.00 Ghz oc(10X400)
» asus maximus formula se - custom W/C
» 2 x Sapphire HD3870 (1gb version)-crossfire
» asus ageia 128mb pci
» 4 x 2gb geil esoteria v2.0
» audio: supremeFX II
» 1 x 500 gb seagate 7.200rpm sata2
» 2 x 500 gb wd 7.200rpm sata2
» 2 x nec dvdrw
» psu Tagan 900watt
Performed Mods:
Firstly I cut out front, top and back case grills to improve airflow (silvermax II mod), then...
I decided to WC my rig with spare parts I could salvage from a couple of friends old setups and aquarium parts I had laying around!
So these are the parts I had to begin with:
1. an old EHEIM 1048 (600 lt/hour) pump...
2. cpu and NB blocks from an antartica WC kit
3. a Hardware labs Black ICE GT radiator
4. a Themaltake radiator striped from a bigwater kit
5. ALPHACOOL PUR 10/8MM UV Green tube....
The first step was striping the maximus formula of its cooling setup....
In order to remove the fusion block without cracking the mobo I put it in the fridge for about 2 hours then it just came off with minimum effort....
Second step was installing the waterblocks....Only wish I had a SB block to fit as well! And it went on from there.........

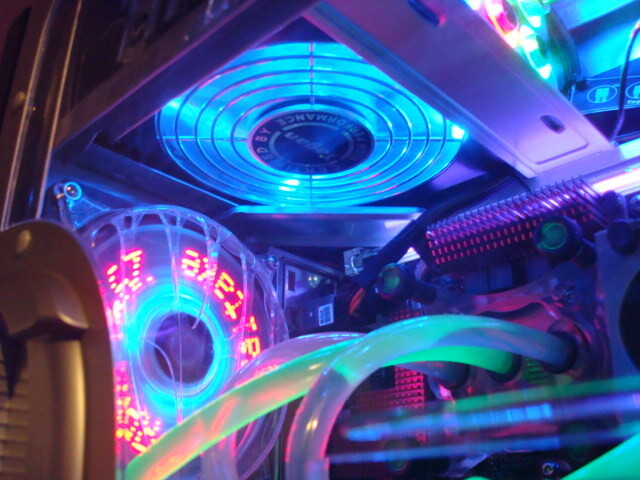

This is the final transformation of my personal rig! 18/11/2008 just added my new cpu: QX 9650!!!!
User comments
Post your commentbtw temps for {@3ghz - no OC} are:
sensor : idle - load
cpu: 34 - 46
mb: 31 - 35
NB: 35 - 46
SB:38 - 46
temps for {@3.6ghz - Mild OC} are:
sensor : idle - load
cpu: 38 - 50
mb: 33 - 36
NB: 41 - 48
SB: 41 - 47
temps for {@4.05ghz - 24/7 stable OC} are:
sensor : idle - load
cpu: 39 - 55
mb: 33 - 36
NB: 45 - 49
SB: 41 - 48
room temp during tests: 27 C
not bad!!!
sensor : idle - load
cpu: 34 - 46
mb: 31 - 35
NB: 35 - 46
SB:38 - 46
temps for {@3.6ghz - Mild OC} are:
sensor : idle - load
cpu: 38 - 50
mb: 33 - 36
NB: 41 - 48
SB: 41 - 47
temps for {@4.05ghz - 24/7 stable OC} are:
sensor : idle - load
cpu: 39 - 55
mb: 33 - 36
NB: 45 - 49
SB: 41 - 48
room temp during tests: 27 C
not bad!!!
Also, please spend one minute of your time to comment and criticise on the project!
Thank you!
Thank you!
looks great and I know you spent lots of time on it! 9/10 from me....
that rad on the back needs cleaning, though! lol
that rad on the back needs cleaning, though! lol
by: mummieThanks mummie, so does my house after spending all my spare time on this!
looks great and I know you spent lots of time on it! 9/10 from me....
that rad on the back needs cleaning, though! lol
thanks again!
Nice setup with good hardware, really nice overclock,, the hoses are tight with no goofy bends,, your rez is one of my favorites, I also like your choice to use compression fittings. Nice build
thanks for your comment!
i am not a professional photogrpher but i try my best and sometimes it works.
you have a very nice rig!
also very nice 3d mark score.
i like the two ati 3870!!!
wanna have a crossfire with two 4850 by myself, but do you think that is worth, i mean because of the 8x8 lanes on my p45 chipset?
by the way my monitor has a max res of 1440x900.
greetz!!!
i am not a professional photogrpher but i try my best and sometimes it works.
you have a very nice rig!
also very nice 3d mark score.
i like the two ati 3870!!!
wanna have a crossfire with two 4850 by myself, but do you think that is worth, i mean because of the 8x8 lanes on my p45 chipset?
by the way my monitor has a max res of 1440x900.
greetz!!!
@Steelkane.... thanks for the kind comments, and I too prefer compression fittings!
@undmor......thanks and I insist that you take great pics...as for the crossfire, well it might be best that you go for a 4870 x2 2gb ddr5 card and utilise 16x lane speed....
@undmor......thanks and I insist that you take great pics...as for the crossfire, well it might be best that you go for a 4870 x2 2gb ddr5 card and utilise 16x lane speed....
Yet another awesome gallery submission from you. Looks very nice little too flashy for me but not too overdone like quite a few others. Rated you a 10/10.
PS: Nice temps!
PS: Nice temps!
@JrRacinFan ... thank you, now I can use your comment and calm my wife down! her everyday question was and still is..."is it worth it?"
Yes woman, it is the satisfaction of building something!Damn! LOL
Yes woman, it is the satisfaction of building something!Damn! LOL
Nice Job. I really like your wire management..makes the watercooling stick out even more.
PICS
1. E8400 @3.6 (400x9), mem @1066, crossfire HD3870 @800/1100 (Physx disabled)
2. E8400 @3.6 (400x9), mem @1066, crossfire HD3870 @837/1197 (Physx enabled). Note the difference of this picture and the first in the CPU test section and you will see the difference the PPU does...
3. E8400 @3.6 (450x8), mem @900, crossfire HD3870 @837/1197 (Physx enabled)
1. E8400 @3.6 (400x9), mem @1066, crossfire HD3870 @800/1100 (Physx disabled)
2. E8400 @3.6 (400x9), mem @1066, crossfire HD3870 @837/1197 (Physx enabled). Note the difference of this picture and the first in the CPU test section and you will see the difference the PPU does...
3. E8400 @3.6 (450x8), mem @900, crossfire HD3870 @837/1197 (Physx enabled)
Just wondering,, what temps does CoreTemp give you
by: steelkane
Just wondering,, what temps does CoreTemp give you
which set of temps do you consider correct?
this is obvious in idle with all fans set in lowest speed!
this includes CPUID....
Hmm, not sure which one is right,, but here's mine
wow!!! that is really low... what is the ambient temp during those readings?
and what do you get with real temp?
and what do you get with real temp?
Room temp is 75F, side by side compare
apparently, there is a max formula issue with the temps (asus usa forums)....
up to bios 0907 temps would show as e.g. cpu:20, core1,2:33-35 idle) and so on!
chk top right corner! and that was a e6420@2.13Ghz oc to @3.2 Ghz .....
all that changed after that!
up to bios 0907 temps would show as e.g. cpu:20, core1,2:33-35 idle) and so on!
chk top right corner! and that was a e6420@2.13Ghz oc to @3.2 Ghz .....
all that changed after that!
any more comments /votes ?
there is always room for improvement, so give me your best shot! (talking about pushing my luck!) LOL!
there is always room for improvement, so give me your best shot! (talking about pushing my luck!) LOL!
Nice build, I like what you have done with your WC setup from 'old set-ups and aquarium parts I had laying around!', very well done and nice temps there.
by: oily_17Well, I have minor modded about 10 rigs in my town, over the last year, and I am usually left with all the spares, and I keep a tropical aquarium....thus 'old set-ups and aquarium parts I had laying around!'.
Nice build, I like what you have done with your WC setup from 'old set-ups and aquarium parts I had laying around!', very well done and nice temps there.
Thank you for your time and comment!
vote people, vote!
I just replaced the south bridge cooler with an ENZOTECH CNB-S1 NORTHBRIDGE HEATSINK and the SB temp idle droped to 36C while OCed to @3.6GHz....
So at the moment the temps I have are shown below...
temps for {@3.6ghz - Mild OC} are:
sensor : idle - load
cpu: 38 - 50
mb: 32 - 36
NB: 38 - 45
SB: 36 - 43
So at the moment the temps I have are shown below...
temps for {@3.6ghz - Mild OC} are:
sensor : idle - load
cpu: 38 - 50
mb: 32 - 36
NB: 38 - 45
SB: 36 - 43
Ambient temp: 25C
Holy c***!!! a 6 degrees drop on the SB! I love this cooler!
Holy c***!!! a 6 degrees drop on the SB! I love this cooler!
Very nice and clean, looks like you spent quite some time on that - worth it!
@bellydaniel
@MRCL
thanks guys for comments and votes!
@MRCL
thanks guys for comments and votes!
Very nice mod . Good work :D :D
by: RazeRX7thanks a lot.... hard work, too!
Very nice mod . Good work :D :D
Although people do not comment.... still vote!
to everyone that votes... Thank you!
to everyone that votes... Thank you!
Damn that looks good
by: Laurijanthank you!
Damn that looks good
I think so, too!
wow, nice work
really like this case =D
really like this case =D
by: kevin2041thank you!
wow, nice work
really like this case =D
This case is huge and serves well for watercooling, modding and cable management!
Well, I just installed my new CPU (thank you fits), and this is my first attempt OCing this baby...
bench update!
I voted 1/10 because:
-
-
by: pabloc74absolutely justified! you just made me laugh!
I voted 1/10 because:
-
had to rma one of the 3870s due to a bios flash (!#@#@@!^%$#)
so i received a Sapphire HD4870 Toxic to replace the crossfire!
soon to post some benches!
so i received a Sapphire HD4870 Toxic to replace the crossfire!
soon to post some benches!
well after a couple of tries....18509 3dmarks 06 (single HD4870 TOXIC)
The good news is that because my 3870 cannot be replaced with the same model I can replace it with another 4870 toxic and pay the difference (about 100$)... So soon to have an HD 4870 toxic Crossfire!!! and the benches will keep coming!
QX9650@4.0GHz
Sapphire HD4870 TOXIC@810 / 1060
The good news is that because my 3870 cannot be replaced with the same model I can replace it with another 4870 toxic and pay the difference (about 100$)... So soon to have an HD 4870 toxic Crossfire!!! and the benches will keep coming!
QX9650@4.0GHz
Sapphire HD4870 TOXIC@810 / 1060
i vote 10/10! cos u voted for me! lol :)
by: iamthewizard2good enough reason! lol!
i vote 10/10! cos u voted for me! lol :)
Thats awsome, love the WCing. Mine goes with me on the road so I dont ever see me doing it. (to much moving ) But it sure is nice. Good Job
by: viczulisthank you very much!
Thats awsome, love the WCing. Mine goes with me on the road so I dont ever see me doing it. (to much moving ) But it sure is nice. Good Job
WauwserZzz,
Seems also good all that water 8/10.
Must be freezing in there ;p
Netherlands
Seems also good all that water 8/10.
Must be freezing in there ;p
Netherlands
8/10! Solid, clean, functional with pizazz added! Nice.
bench update! 3dmark06 23596marks!
Bench update...18/01/09
I like this rig so 9/10
by: Viana.
I voted 1/10 because:
very ugly
always useful to know that idiots can be found anywhere!!!
btw, please put a link for your case, so that I can see what you consider a great looking modded pc case....
very nice mod and very cool too.. nice job.. 10/10 from me. Keep it up:D
by: legends84thank you!
very nice mod and very cool too.. nice job.. 10/10 from me. Keep it up:D
