Inspiration
More images (click for bigger version):
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Owner: | JATownes Send email Send private message |
| Posted: | 2008-12-25 |
| Last Update: | 2008-12-25 20:52 |
| Viewed: | 3,476 times |
| Rating: | Good (4.6) 8 votes total |
| Submit vote: | |
| Please register on the forums & login to vote. | |
Keywords:
This user's other mods:
System Specs:
Phenom 9600BE @ 2.6, Gigabyte GA-MA770-DS3, 4Gb (4x1) Patriot Extreme DDR2-8500 @ 1066Mhz, VisionTek Radeon HD4850 @ 690/1168Mhz, Razer Barracuda AC-1 Gaming Soundcard, 2 x Seagate 500Gb 32mb SATAII, Lite-On 20X SATA DVD\RW w/ Lightscribe, Raidmax RX-730SS PSU
Performed Mods:

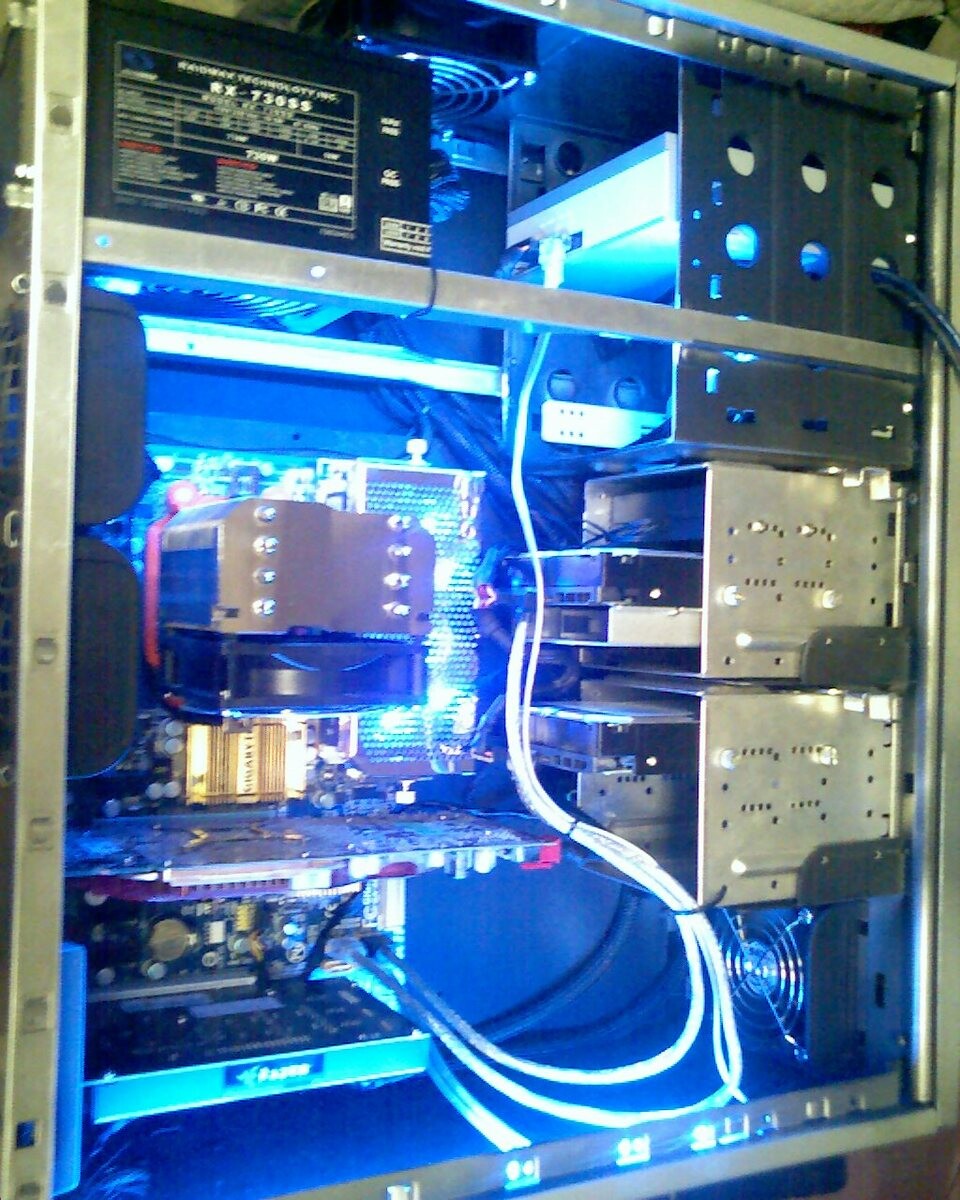

Chenming ATX-601AE Aluminum Windowed Full Tower, Custom 10" x 6" Top Window w/ 92mm Fanhole, Custom Side Window Triple Fanhole, Super Flower SF-609. Ultra 3.5" Controller, Rosewill RCX-Z5 CPU Cooler w/ Panaflo 68CFM, Thermaltake Aluminum 80mm HD Cooler, OCZ XTC Memory Cooler, Black & Chrome Interior, Biohazard Themed, 6 x 80mm Rosewill, 2 x 92mm Panaflo High Speed, 2 Ultra Blue CCFL, All sleeved cables, Blue & White Power & HDD LEDs, Chrome SATA Cables.
My last post didn't score so well, so I though I would give her a makeover. Let me know what you think, My last post is her ->
http://www.techpowerup.com/gallery/1851.html
Constructive criticism is always welcome.
User comments
Post your commentI dunno... the top window is cool. But aside from that, there somehow is no "wow-effect" for me. Could also be because the pics are a bit dark.
Remove those fan grills from the side window, they look deplaced there.
Remove those fan grills from the side window, they look deplaced there.
by: MRCLThanks for the compliment on the top window. I spent alot of time testing the airflow with different windows and this was by far the best configuration, so the side fans are kind of a necessity. (The 2 side 80s mix w/ the 2 front 80s to "wind tunnel" up to the top 92. About 1/2 of the airflow is grabbed by the 2 rear 80s to pulll over the CPU cooler and up to the PSU; the side 92 feeds the CPU coolers 92 and helps flow the 4850 heat out the rear vented slots. CPU 24C Idle, 41C Load; VGA 66C Idle, 88C Load; RAM 27C Idle, 34C Load) I have tried multiple fan grills, but cannot find a set that looks good. Got the Biohazards for xmas and thought I would give them a shot. I think I will keep them for a while.
I dunno... the top window is cool. But aside from that, there somehow is no "wow-effect" for me. Could also be because the pics are a bit dark.
Remove those fan grills from the side window, they look deplaced there.
The main goal was to eliminate all the wires besides the SATAs. Thanks for the vote and the opinion. I always appreciate it.
