BlackWhiteBlue First mod
More images (click for bigger version):
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Owner: | alt24q Send email Send private message |
| Posted: | 2009-07-23 |
| Last Update: | 2009-07-23 20:12 |
| Viewed: | 1,972 times |
| Rating: | Good (5.1) 12 votes total |
| Submit vote: | |
| Please register on the forums & login to vote. | |
Keywords:
System Specs:
» ATI Sapphire 4850 OC stable 700Clock 1000mem
» Intel CPU 2.0 OCed to 3.0
» 6gig of G.skill ram
» Three HDD's One 250g 7200RPM One 160g 7200RPM One external 1TB - For backup + Random Storage
» Duel Boot with Vista 64bit Ultimate and XP 32bit(for Back Up)
» 450watt PSU
Performed Mods:

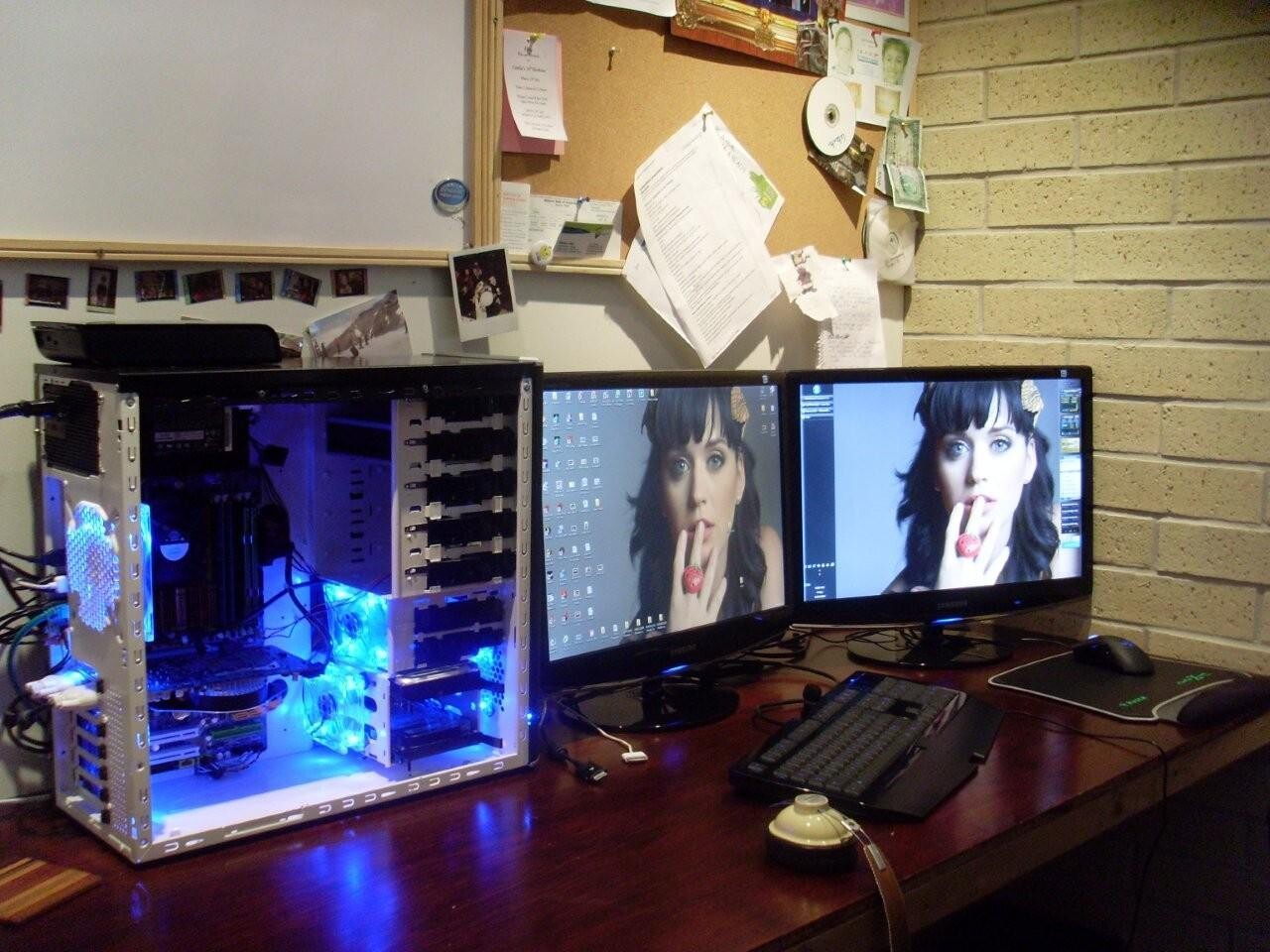

Painted the case white with Black detailing. Added 6 new fans. Cut perspex plastic for the front of the case for a fan. Added mesh + fan filter in the floppy drive bay. Added mesh at the back of the case to mount a fan. Drilled holes and put in grommets in the case for cable management. Drilled hole in motherboard shield Plate where I soldered a Blue LED so it was easy to see where the speaker wires plug in as i often pull them out to plug my xbox360 to my speakers :)... Realistically i need a splitter... not sure where if you can buy them. But regardless it looks cool IMO. I bought 100 Blue led's off ebay... I'm not sure if ill put any more in...
Everything run cool. HDD's 22C, CPU 28 Idle 57 Under 100% Load. GPU 37 Idle, 58 100% Load.
I get sexy FPS in games. Eg WoW 140 FPS in Old parts of the game and get a solid 30-40 FPS in peak times in Dalaran.
Also with crysis Warhead I can play on Gamer spec (Almost full graphics) at a solid 60FPS... I have tried playing on full graphics but I don't like the lag when the Fps drops below 30 when some extreme action starts.
Also I though some might be interested to know my start up times at approx. 30 seconds and I have spent a lot of time optimising my OS paying particular attention to the way I partitioned my HDD's. I have tried to make my system as efficient as i can for the hardware that i have. =D
I still need to make a side case... It will probably be made out of a thin perspex and thumb screwed on. I also need to make a fan grill and filter for the front 120mm fan.
Note: the last picture was taken half way though the mod where i was mucking around with some mesh to see what it would look like etc. Unforuntalty i don't have any picture's from prior to mod other than that one.
User comments
Post your commentdude everything looks nice, its bright, cable managment is good only thing is that you have no pics of this paint job you did you should put the case back together and take a pic of it. i like the matching displays to. dual screens is the only way to fly.
http://techpowerup.com/gallery/2228.html here is mine i hope you vote.
http://techpowerup.com/gallery/2228.html here is mine i hope you vote.
by: digitalblasphamyThanks. Although there is plenty of pictures of the paint job... lol the whole inside and back of the case is white... look... If you also take notice of the last picture you will see that was prior to painting. Also when you say put it back together and then take a picture of it... You mean put the side case on? right... If you read what i wrote in the information... i said i haven't finished the side for it... but regardless it won't look much different as the side will be made out of clear perplex...
dude everything looks nice, its bright, cable managment is good only thing is that you have no pics of this paint job you did you should put the case back together and take a pic of it. i like the matching displays to. dual screens is the only way to fly.
http://techpowerup.com/gallery/2228.html here is mine i hope you vote.
by: alt24q
Thanks. Although there is plenty of pictures of the paint job... lol the whole inside and back of the case is white... look... If you also take notice of the last picture you will see that was prior to painting. Also when you say put it back together and then take a picture of it... You mean put the side case on? right... If you read what i wrote in the information... i said i haven't finished the side for it... but regardless it won't look much different as the side will be made out of clear perplex...
my bad i guess it is while it looked silver the first time.
I voted 8/10 because:
just like it
just like it
I prefer Ice blue to red themes.... dude the rig looks real cool, a lil wire management.....maybe even a dry ice machine and your in business
I voted 2/10 because:
This is ugly. Do you really need so many fans? I doubt adding some of those fans, like the ones on the hard drive, will drop your temperatures. Getting a better case would, though.
This is ugly. Do you really need so many fans? I doubt adding some of those fans, like the ones on the hard drive, will drop your temperatures. Getting a better case would, though.
by: AkaruYo! I appreciate the comment although allow me to clarify. Surprisingly adding the extra fans has without a doubt dropped my temperatures sigificiantly! Giving me the ability to overclock higher with stability. The two fans over the HDD's have dropped the temps of them but it's not the real aim. The idea of those fans is to supply the graphics card with more cool air, which might i add has worked very well. Not to mention that having the HDD's cooled increases their life and stability.
I voted 2/10 because:
This is ugly. Do you really need so many fans? I doubt adding some of those fans, like the ones on the hard drive, will drop your temperatures. Getting a better case would, though.
Also, you are right in saying that a 'better' case would provide lower temps, and i'm sure with half the noise. Although I must say, I only paid $50 for this case and it was cheep to mod, not to mention fun as well. I am quite happy with the outcome and ill have to leave it at that.
Thanks!
Looks great. I like the front fan. Gotta change out that CPU cooler though IMO. Away from the case...
What you got on your second monitor? I can make out windows sidebar on the right, but what's on the left?
What you got on your second monitor? I can make out windows sidebar on the right, but what's on the left?
Thanks! Oh that is the start bar =D.
sweet
