Simplicity II Extreme Rev.1 (discontinued)
More images (click for bigger version):
 |
| Owner: | Howard Send email Send private message |
| Posted: | Nov 3, 2009 |
| Last Update: | Feb 21, 2010 09:01 |
| Viewed: | 5,730 times |
| Rating: | Superb (7.9) 28 votes total |
| Submit vote: | |
| Please register on the forums & login to vote. | |
Keywords:
This user's other mods:
System Specs:
» System Specs:
» » Case: CM ATCS 840 Black Acrylic Side Panel » PSU: Corsair HX1000 » CPU: Intel Core i7 920 D0 2.66Ghz - 4.2Ghz Turbo 1.375v idle 33'c full 68'c » MB: eVGA X58 Classified e759 » Corsair Dominator GT 1866Mhz CL7 6Gb » VGA: XFX GTX285 XXX » SC: Creative X-Fi Fatality Titanium » HDD: WD Caviar Green 64mb 1Tb Win7 Ultimate 64bit (waiting for SSD) » HDD: Seagate Barracuda 500Gb Storage » HDD: Western Digital Caviar 500Gb Storage » ASUS External DVD08D1S-U/BLK » Monitor: Samsung SyncMaster 931BW » Keyboard: Razer Lycosa » Mouse: Razer Mamba
Performed Mods:

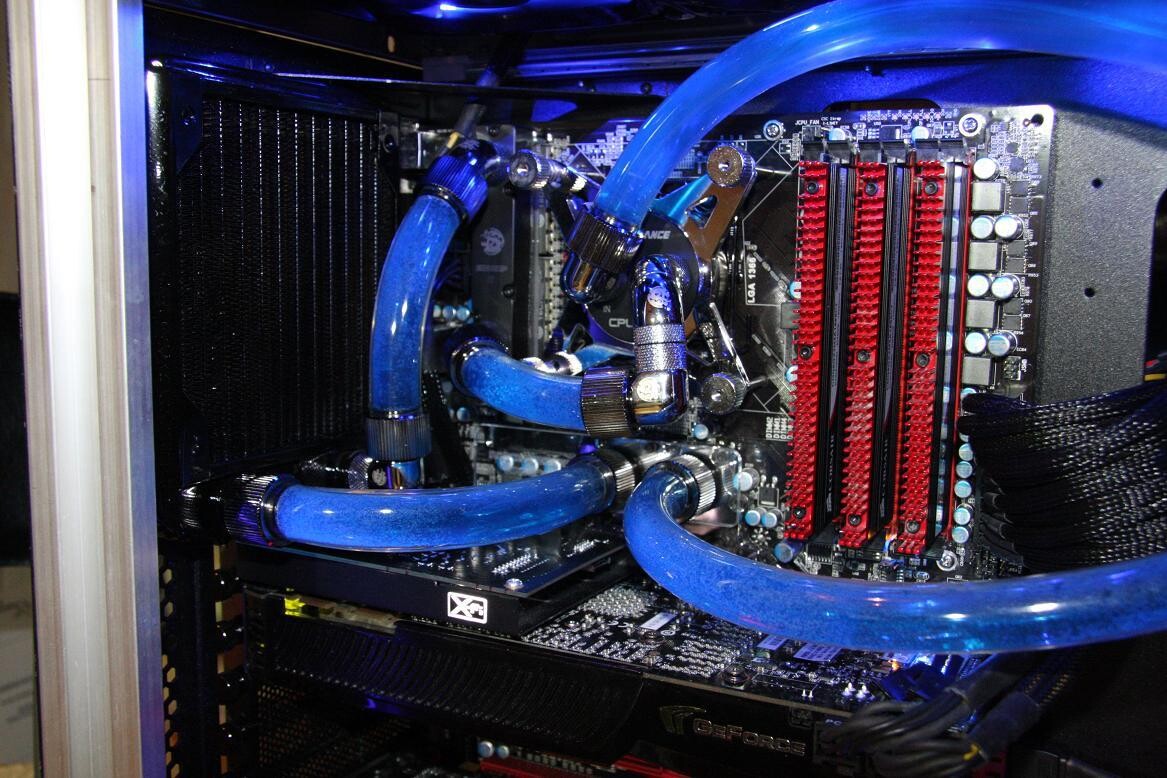

Watercooling parts: Koolance CPU Waterblock 350 Acetal - 2pcs Swiftech MCP655 Vario - 2pcs Bitspower MCP655 Mod Top - Bitspower NB/SB Waterblock - Bitspower Mosfet Waterblock - EK 5.25" Bay Spin Reservoir Acetal Version - Feser TFC 360 Radiator - Black ICE GT Stealth 120 Radiator - Koolance Compression Fittings ID 1/2 OD 3/4 - Bitspower G1/4 Silver Shiny Triple Rotary 90 Degree Connector - Bitspower Silver Shiny 45 Degree Connector - Bitspower Silver Shiny Single Rotary 09 Degree Connector - Tygon Tube R3603 ID 1/2 OD 3/4 - Feser F1 Cooling Fluid UV Blue - 4pcs CM Fan 90CFM Blue Led - 3pcs 30cm UV Cathode.
(Pump1->Feser 360->CPU->Mosfet->Black Ice Steath 120-NB+SB-Pump2-Res)
in the near future, will add new loop for VGA (Fermi)
pls comment! thx a lot..
