Reworked AMD
More images (click for bigger version):
 |
 |
 |
| Owner: | newmodder Send email Send private message |
| Posted: | Sep 4, 2006 |
| Last Update: | Sep 4, 2006 01:05 |
| Viewed: | 5,028 times |
| Rating: | Not yet rated 0 votes total |
| Submit vote: | |
| Please register on the forums & login to vote. | |
Keywords:
System Specs:

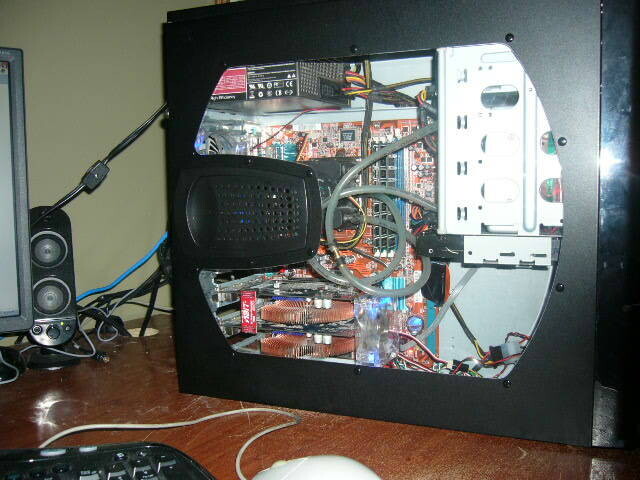

Thermaltake Swing Case,Abit KN8 NF4 SLI mobo athlon 3500/sck 939 Venice(stock 2.2ghz)water cooled with coolermaster R80)WD 160gig SATA 2 HD.2x512 1x1gig ddr400. BFG 6600gtoc's SLI with Vf700's .Antec 550watt HE PSU.
Performed Mods:
Removed HD cage that was blocking air flow,hid wires as best as i could without cuttting and soldering.it still needs some more work.any ideas?
thinking of getting rid of the water cooling and going back to air.i'll put the r80 on my pentium in the bedroom and overclock the crap out of it...lol
TPU's Case Mod Gallery is sponsored by Xoxide
User comments
Post your commentthanks for the votes so far, but some input and any ideas would be more than welcome:)
The cables, could be done better, but ok I guess. And what's wrong with your R80?
the r 80 works awesome, but there is not place to put the radiator, right now it is just sitiing in the cd drive bay.plus if i have to rework the water lines.i found it difficult to refill the system when i changed the lines from black to clear tubing.
by: newmodderI had previously modded with an R80. I had used a push pull system with 2 X 80mm Chrome Evercool fans capable of outputting 37CFM each. Had mounted on rear 80mm exhaust mount and worked fine. Just a thought that may help.
the r 80 works awesome, but there is not place to put the radiator, right now it is just sitiing in the cd drive bay.plus if i have to rework the water lines.i found it difficult to refill the system when i changed the lines from black to clear tubing.
Hmm.. I think the cables are done well. What's wrong with them?
And how did you mount the blue LED fan on your video cards? My guess is cable ties, but where?
And how did you mount the blue LED fan on your video cards? My guess is cable ties, but where?
