Inner Reflection
More images (click for bigger version):
 |
 |
 |
 |
 |
 |
 |
 |
| Owner: | Sir Stunna Lot Send email Send private message |
| Posted: | Apr 26, 2007 |
| Last Update: | Apr 26, 2007 14:13 |
| Viewed: | 7,578 times |
| Rating: | Excellent (6.0) 2 votes total |
| Submit vote: | |
| Please register on the forums & login to vote. | |
Keywords:
This user's other mods:
System Specs:
» - ASUS A8R-MVP
» - Athlon 64 3200, OC @ 2.5 GHz (will soon replace with an Opteron 165)
» - Super Talent 3x1GB DDR400 single channel (will add another 1GB for dual channel)
» - Connect3D Radeon x1650 XT, dual cards in CrossFire (stock speed, driver issues with OC)
» - SoundBlaster Audigy Platinum
» - Ultra X-Connect 500W PSU
Performed Mods:

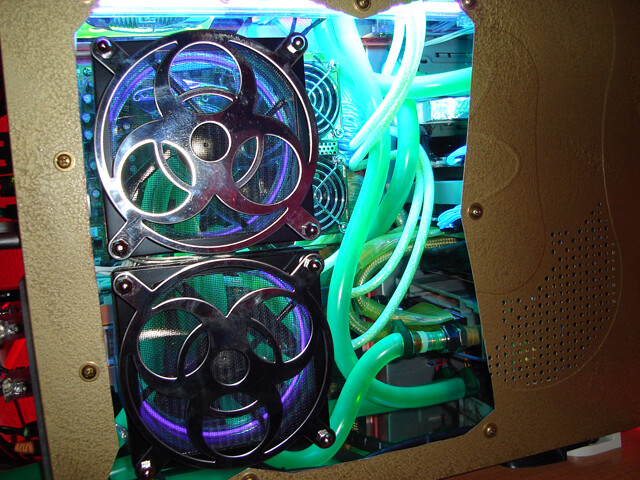

***** Water Cooling
- CPU: Swiftech Apogee GT
- GPU: 2 x Swiftech MCW60 (Video RAM: Thermaltake heatsinks)
- North Bridge: Swiftech MCW30
- South Bridge: Swiftech MCW30
- HD: Thermaltake AquaBay
- Radiators: BlackIce GTX 240 + GTS 120
- Pump: DangerDen DDC 12V
- Tubing: 3/8-5/8 PrimoFlex
- Tank: Innovatek Fass-O-Matic
**** Air Cooling
- Fan Controller: Thermaltake Hardcano 13
- RAM: Thermaltake heatsinks + OCZ Memory Cooler (Mod: SilenX fan, high flow mod)
- Fans: 5x120mm SilenX fans: Radiator, Intake, Exhaust
- Computer is ultra quiet when all fans are turned below 1000 RPM
**** LCD's
- CrystalFontz LCD 632
- 5" SVideo LCD in 3x5.25" bays
- Thermaltake Hardcano 13 LCD
***** Lighting
- Cathodes: About 14 cathode tubes of various size with 7 inverters. All red lights with some UV to emphasize the water tubing and wire/cables. Blue lights respond to treble and some red lights to respond to bass
***** Windows (self-fabricated)
- Side window
- Top window
***** Performance
- 3Dmark06
Overall: 4575
SM2: 2045
SM3: 2336
CPU: 952
- PCmark05
Overall: 3391
- Temperatures (while gaming, all fans are @ max RPM)
Ambient/Room: 74F
CPU: 96F
GPU: 93F
RAM: 89F
Case: 82F
- Power Consumption
< 350W @ full load
***** Rest of the Setup
- Microsoft Vista Ultimate
- Triple LCDs: 1x19" + 2x17"
- Microsoft Multimedia Desktop 7000 Keyboard
- Logitech LX7 mouse
- Creative Inspire P7800 7.1 Speakers
Only the CPU is OC right now. Cant OC the Radeons due to vista driver problems. RAM is also running at stock speed, I'll attemp to OC the RAM once i get the Opteron and the 4th gig of RAM.
I also have a 5" front LCD mounted, but due to driver issues also, cant seem to get it to work. I'll provide pictures of the LCD and the rest of the case once i get this working.
TPU's Case Mod Gallery is sponsored by Xoxide
User comments
Post your commentCool pictures of lights, how about some pics of the rig.(without the lights and the side off)
you got it! both sides exposed
I reckon if you split open Arnie in Terminator 2 thats wot his chest and stomach would look like lol ..... anyway love the tubing and the cleanliness also very nice specs and the ultra widescreen 3x monitors is the shit ....... 9/10.
that comp looks amazing
Awesome cables, behind the mobo tray is amazing
thanks all for all the positive comments. i have a few loose ends to finish up on this puppy, and i'll eventually try to link up to a video of it in action (sorta)
I voted 6/10 because:
too much tubing
too much tubing
by: pt
I voted 6/10 because:
too much tubing
there is quite some tubing. i tried to keep the tubing as short as possible. It hard to reduce tubing with 6 water blocks, 2 radiators, a tank and a pump though
Awesome wiring, the back of your case looks exactly like mine.
Except mine I had to make the holes.
Great job
Except mine I had to make the holes.
Great job
nice
The BEST use of lights I have seen on here !!!! Smoke a fat one and try to clean up wiring a little... LOL...
