12900ks 24/7 O.C safe?

prayth90

New Member
Joined
Sep 23, 2022
Messages
5 (0.07/day)
Recently clocked my 12900ks for a 24/7 application. Using XTUI found what seems to be a stable core voltage of 1.370V. After finding this I locked that voltage in on the bios because even locked on XTU I had variable and unstable core voltages. After that I went on to push my p an e cores to 55,55, 53 remaining and 42 for the e cores with TB time maxed and TVB R23 runs will peak 95C @ 338W. My two questions here come from lake of experience. 1) is this a reasonable clock or do I run a high risk here 2) if this is reasonable is there anyone within suggestions on going a bit further.

12900ks
MMSI MEG Z690 ACE
DDR5 5200MHZ
3090TI STRIX OC
2x 360x44mm rad
1x 360x58mm rad
Quantum velocity2
2x d5 serial @1gpm

Joined
May 31, 2016
Messages
3,881 (1.63/day)
Location
Currently Norway
System Name Bro2
Processor Ryzen 5800X
Motherboard Gigabyte X570 Aorus Elite
Cooling Corsair h115i pro rgb
Memory 16GB G.Skill Flare X 3200 CL14 @3800Mhz CL16
Video Card(s) Powercolor 6900 XT Red Devil 1.1v@2400Mhz
Storage M.2 Samsung 970 Evo Plus 500MB/ Samsung 860 Evo 1TB
Display(s) LG 27UD69 UHD / LG 27GN950
Case Fractal Design G
Audio Device(s) Realtec 5.1
Power Supply Seasonic 750W GOLD
Mouse Logitech G402
Keyboard Logitech slim
Software Windows 10 64 bit
Maybe you should focus only on pcores. I would leave ecores out.


prayth90

New Member
Joined
Sep 23, 2022
Messages
5 (0.07/day)
Thank you I will look at only p cores then and bring e cores back to 40. Apologies if I miss led on p core clock speed I don't believe it is. Two are at 5.5 the rest are at 5.3. Thanks again

Joined
Nov 15, 2021
Messages
1,171 (3.06/day)
Location
Knoxville, TN, USA
System Name Work Computer | Laptop | Unfinished Computer
Processor Core i7-6700 | Core i7-7700HQ | Ryzen 5 5600X
Motherboard Dell Q170 | Lenovo ThinkPad | Gigabyte Aorus Elite Wi-Fi
Cooling A fan? | Some Fans | Truly Custom Loop
Memory 4x4GB Crucial 2133 C17 | 2x8GB Assorted | 4x8GB Corsair Vengeance RGB 3600 C26
Video Card(s) Dell Radeon R7 450 | Intel HD 630 + Quadro M620 Mobile | RTX 2080 Ti FE
Storage Crucial BX500 2TB | WD Black SN750 512GB + Intel H20 512GB + 1TB HDD | TBD
Display(s) 3x LG QHD 32" GSM5B96 | Internal 1080p | TBD
Case Dell | Lenovo ThinkPad | Heavily Modified Phanteks P400
Audio Device(s) Half-broken Earbuds | Headphones | TBD
Power Supply Dell TFX Non-standard | Lenovo 225W | EVGA BQ 650W
Mouse Logitech M275 | Monster No-Name $7 Gaming Mouse| TBD
Keyboard Logitech K345 | Lenovo's Incredible Keyboard | TBD
Software Quotesoft, Adobe Acrobat, DaVinci Resolve | GAMES | MOAR GAMES
If that is a fixed OC, and you can't get it higher than 95C with no thermal limit offset, than I can't see any reason it could have an issue.

Joined
Feb 6, 2021
Messages
1,581 (2.38/day)
Location
Germany
Processor AMD Ryzen 7 5800X3D (-30 CO)
Motherboard MSI B550 Tomahawk
Cooling Noctua NH-D15
Memory 2x16GB G.Skill Trident Z Neo 3600 Mhz CL16
Video Card(s) Sapphire Radeon RX 6900XT Nitro + (2710 Mhz/2100 Fast 375W)
Storage Corsair MP 600 Pro 1TB, Crucial P5 Plus 2TB, 2x Samsung 870 QVO 4TB (external)
Display(s) Alienware AW2723DF, LG GP850-B, LG GN950-B
Case Streacom BC1 V2
Audio Device(s) Bose Companion Series 2 III, Sennheiser GSP600 and HD599 SE - Sharkoon Gaming DAC Pro S V2
Power Supply bequiet! Dark Power Pro 12 1200w Titanium
Mouse Logitech G303 Shroud Edition, G502 X
Keyboard Corsair K65 RGB Mini
VR HMD Oculus Rift S
as usual on intel since skylake:
stay under 1.35V (under full load!) and under 1.45v idle if you want to keep your CPU for longer than 2-3 years without degrading it.


ir_cow

Staff member
Joined
Sep 4, 2008
Messages
1,339 (0.26/day)
Location
USA
as usual on intel since skylake:
stay under 1.35V (under full load!) and under 1.45v idle if you want to keep your CPU for longer than 2-3 years without degrading it.
12th Gen is similar. 1.35V~ . 5.3 GHz is still good. But you will be pulling a lot at that freq. I mean you already see 330+ watts in R23 :). Only way I can do that without hitting 100c is to delid the CPU. I'm guessing you did the same?

Joined
Feb 3, 2019
Messages
1,694 (1.21/day)
Location
Chicago Land
Processor 12400F
Motherboard Asus B660-G (BCLK enabled!!)
Cooling Stock Air
Memory Patriot C36 series 5200mhz
Video Card(s) Asus strix GTX 980 OC
Storage Samsung 980 pro m2
Display(s) 21" - 55"
Case None
Power Supply Antec CP series 1000w
Mouse Razar Mamba Tournament Edition
Keyboard Logitech G910
Benchmark Scores 1800 single core CB R23 at 4.6ghz
338W.

12900ks

2x 360x44mm rad
1x 360x58mm rad
Quantum velocity2
2x d5 serial @1gpm
Yes very nice.
Very able to dissipate 1153 BTU/hr

Pic?!



prayth90

New Member
Joined
Sep 23, 2022
Messages
5 (0.07/day)
Yes a QA
12th Gen is similar. 1.35V~ . 5.3 GHz is still good. But you will be pulling a lot at that freq. I mean you already see 330+ watts in R23 :). Only way I can do that without hitting 100c is to delid the CPU. I'm guessing you did the same?
Yes delid and conductonaut went nicely. Results were favorable. I'm also looking into one of the contact frames.


dgianstefani

TPU Proofreader
Staff member
Joined
Dec 29, 2017
Messages
1,780 (0.99/day)
Location
Swansea, Wales
System Name Silent
Processor Ryzen 5800X3D @ 4.55ghz
Motherboard Asus Strix X570I
Cooling Optimus AMD Raw Copper/Plexi, EK Copper 240/40mm, Utilitube D5, 4x NF-A12x25, Mayhems XTR Nano White
Memory 32gb Dominator Platinum RGB 3933mhz 14-16-16-30 w/2x NF-A4x10 fan
Video Card(s) Rtx 3080ti Founders (Kryonaut Extreme, 15W/mK pads, Corsair XG7 Waterblock)
Storage Optane 800p 118gb, Samsung 980 Pro 1tb
Display(s) 32" 240hz 1440p Samsung G7 , 32" 1440p 60hz
Case Sliger SM570 Custom 13-Litre
Audio Device(s) Schiit Hel, Vmoda Crossfade M100 Master, Razer Nommo Pro
Power Supply Corsair SF750 Platinum
Mouse Razer Viper Pro V2 Mercury White
Keyboard Razer Huntsman Elite w/Mercury PBT keycaps
1.37 is borderline too much as others have said.
Personally I would change the tune to 2x5.4 and the rest at 5.3, and see if you can get that with voltage of 1.35 or lower v.

If its cool though, you may be OK, just be aware the cpu may degrade.

Joined
Oct 21, 2005
Messages
6,477 (1.04/day)
Location
USA
System Name Computer of Theseus
Processor Intel i9-12900KS: 50x Pcore multi @ 1.18Vcore (target 1.275V -100mv offset)
Motherboard EVGA Z690 Classified
Cooling NH-D15S, ThermalRight TY-143 fans, Corsair SP120L fans, Aquacomputer Splitty 9Active PWM Fan Hub
Memory G-Skill Trident Z5 (32GB) DDR5-6000 C36 F5-6000J3636F16GX2-TZ5RK
Video Card(s) EVGA Geforce 3060 XC Black Gaming 12GB
Storage 1x Samsung 970 Pro 512GB NVMe (OS), 2x Samsung 970 Evo Plus 2TB (data 1 and 2)
Display(s) Dell S3220DGF 32" 2560x1440 165Hz Primary, Dell P2017H 19.5" 1600x900 Secondary, Ergotron LX arms.
Case Lian Li O11 Air Mini
Audio Device(s) Audiotechnica ATH M50X + Antlion ModMic, Behringer 302USB Mixer
Power Supply Super Flower Leadex Platinum SE 1000W 80+ Platinum White
Mouse Zowie EC3-C
Keyboard Filco Majestouch 2 Tenkeyless Red
Software Win 10 LTSC 21H2
In my recent experience, bone stock they boost to 1.4V and 100C, either Intel set these up to fail long term or they may be tougher than expected.


dgianstefani

TPU Proofreader
Staff member
Joined
Dec 29, 2017
Messages
1,780 (0.99/day)
Location
Swansea, Wales
System Name Silent
Processor Ryzen 5800X3D @ 4.55ghz
Motherboard Asus Strix X570I
Cooling Optimus AMD Raw Copper/Plexi, EK Copper 240/40mm, Utilitube D5, 4x NF-A12x25, Mayhems XTR Nano White
Memory 32gb Dominator Platinum RGB 3933mhz 14-16-16-30 w/2x NF-A4x10 fan
Video Card(s) Rtx 3080ti Founders (Kryonaut Extreme, 15W/mK pads, Corsair XG7 Waterblock)
Storage Optane 800p 118gb, Samsung 980 Pro 1tb
Display(s) 32" 240hz 1440p Samsung G7 , 32" 1440p 60hz
Case Sliger SM570 Custom 13-Litre
Audio Device(s) Schiit Hel, Vmoda Crossfade M100 Master, Razer Nommo Pro
Power Supply Corsair SF750 Platinum
Mouse Razer Viper Pro V2 Mercury White
Keyboard Razer Huntsman Elite w/Mercury PBT keycaps
In my recent experience, bone stock they boost to 1.4V and 100C, either Intel set these up to fail long term or they may be tougher than expected.
That's temporary burst voltage on a couple of cores under load. Completely different to a static oc set at a constant voltage.


prayth90

New Member
Joined
Sep 23, 2022
Messages
5 (0.07/day)
Yes very nice.
Very able to dissipate 1153 BTU/hr

Pic?!

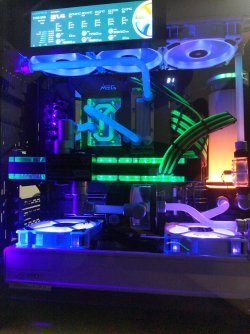

View attachment 262824
Yes give me a bit I'll get a decent shot for you id say the only downside is the case went to micro center picked up the case I liked within my budget ( no reaserch). So I have a o11d xl

Yes very nice.
Very able to dissipate 1153 BTU/hr

Pic?!
Downside o11d XL I know didn't know

1.37 is borderline too much as others have said.
Personally I would change the tune to 2x5.4 and the rest at 5.3, and see if you can get that with voltage of 1.35 or lower v.

If its cool though, you may be OK, just be aware the cpu may degrade.
Thank you and everyone here it has been great to get some more specific info I will be going back to bios base clock settings and lock the core voltage at 1.350 do a couple r23 runs and game for a while to check the stability.

In my recent experience, bone stock they boost to 1.4V and 100C, either Intel set these up to fail long term or they may be tougher than expected.
I noticed similar results this all started with my first set up no custom loop 360 aio didn't stand a chance with no adjustments


Attachments

  • 16640262133058270846751969448726.jpg
    1.8 MB · Views: 44
Joined
Jan 5, 2006
Messages
14,415 (2.33/day)
System Name AlderLake / Laptop
Processor Intel i7 12700K / Intel i3 7100U
Motherboard Gigabyte Z690 Aorus Master / HP 83A3 (U3E1)
Cooling Noctua NH-U12A 2 fans + Thermal Grizzly Kryonaut Extreme + 5 case fans / Fan
Memory 32GB DDR5 Corsair Dominator Platinum RGB 6000MHz CL36 / 8GB DDR4 HyperX CL13
Video Card(s) MSI RTX 2070 Super Gaming X Trio / Intel HD620
Storage Samsung 980 Pro 1TB + 970 Evo 500GB + 850 Pro 512GB + 860 Evo 1TB x2 / Samsung 256GB M.2 SSD
Display(s) 23.8" Dell S2417DG 165Hz G-Sync 1440p / 14" 1080p IPS Glossy
Case Be quiet! Silent Base 600 - Window / HP Pavilion
Audio Device(s) Panasonic SA-PMX94 / Realtek onboard + B&O speaker system
Power Supply Seasonic Focus Plus Gold 750W / Powerbrick
Mouse Logitech MX Anywhere 2 Laser wireless / Logitech M330 wireless
Keyboard RAPOO E9270P Black 5GHz wireless / HP backlit
Software Windows 11 / Windows 10
Benchmark Scores Cinebench R23 (Single Core) 1936 @ stock Cinebench R23 (Multi Core) 23006 @ stock
1.37 is borderline too much as others have said.
Personally I would change the tune to 2x5.4 and the rest at 5.3, and see if you can get that with voltage of 1.35 or lower v.

If its cool though, you may be OK, just be aware the cpu may degrade.

And besides benchmarking, how much do you really win with this OC in real world usage , at stock speeds it's already a top CPU.
Is it worth all that extra heat?


prayth90

New Member
Joined
Sep 23, 2022
Messages
5 (0.07/day)
And besides benchmarking, how much do you really win with this OC in real world usage , at stock speeds it's already a top CPU.
Is it worth all that extra heat?
I have been coming to the same conclusion it all started with my attempt to lower stock temps. It has now turned into a bit of game and to broaden my understanding of everything going on

Joined
Oct 21, 2005
Messages
6,477 (1.04/day)
Location
USA
System Name Computer of Theseus
Processor Intel i9-12900KS: 50x Pcore multi @ 1.18Vcore (target 1.275V -100mv offset)
Motherboard EVGA Z690 Classified
Cooling NH-D15S, ThermalRight TY-143 fans, Corsair SP120L fans, Aquacomputer Splitty 9Active PWM Fan Hub
Memory G-Skill Trident Z5 (32GB) DDR5-6000 C36 F5-6000J3636F16GX2-TZ5RK
Video Card(s) EVGA Geforce 3060 XC Black Gaming 12GB
Storage 1x Samsung 970 Pro 512GB NVMe (OS), 2x Samsung 970 Evo Plus 2TB (data 1 and 2)
Display(s) Dell S3220DGF 32" 2560x1440 165Hz Primary, Dell P2017H 19.5" 1600x900 Secondary, Ergotron LX arms.
Case Lian Li O11 Air Mini
Audio Device(s) Audiotechnica ATH M50X + Antlion ModMic, Behringer 302USB Mixer
Power Supply Super Flower Leadex Platinum SE 1000W 80+ Platinum White
Mouse Zowie EC3-C
Keyboard Filco Majestouch 2 Tenkeyless Red
Software Win 10 LTSC 21H2
I have been coming to the same conclusion it all started with my attempt to lower stock temps. It has now turned into a bit of game and to broaden my understanding of everything going on
Your cooling is much nicer. From starting at 5.2, I run half the wattage just dropping it -200 MHz to 5.0GHz on air. Any additional 100MHz comes at a steep heat premium.

Joined
Feb 3, 2019
Messages
1,694 (1.21/day)
Location
Chicago Land
Processor 12400F
Motherboard Asus B660-G (BCLK enabled!!)
Cooling Stock Air
Memory Patriot C36 series 5200mhz
Video Card(s) Asus strix GTX 980 OC
Storage Samsung 980 pro m2
Display(s) 21" - 55"
Case None
Power Supply Antec CP series 1000w
Mouse Razar Mamba Tournament Edition
Keyboard Logitech G910
Benchmark Scores 1800 single core CB R23 at 4.6ghz
Yes give me a bit I'll get a decent shot for you id say the only downside is the case went to micro center picked up the case I liked within my budget ( no reaserch). So I have a o11d xl
That took a lot of time and effort for sure. Super clean looking, I'd rock that! :D

The overclock is respective of it's cooling. Hats off sir!


ir_cow

Staff member
Joined
Sep 4, 2008
Messages
1,339 (0.26/day)
Location
USA
And besides benchmarking, how much do you really win with this OC in real world usage , at stock speeds it's already a top CPU.
Is it worth all that extra heat?
Not a whole lot. One could argue for dropping P1=P2 to 190. Lose 10% over stock and call it a day. But whats the fun in that if you already have a custom loop.

Joined
Jun 22, 2012
Messages
261 (0.07/day)
Processor Intel i7-12700K
Motherboard MSI PRO Z690-A WIFI
Cooling Noctua NH-D15S
Memory Corsair Vengeance 4x16 GB (64GB) DDR4-3600 C18
Video Card(s) Sapphire RX480 Nitro+ 4GB
Storage Samsung 980 Pro 1TB, Crucial MX500 500GB
Case Fractal Define C
Power Supply Seasonic Focus GX-550
Intel specifications suggest that the default TJmax is 90 °C for the 12900KS, and IccMax still 280A (like the 12900K).
I think 24/7 safe settings should at the very least respect these values.

Top
