That would be great only I have no Idea what to look for or where to look, or how to understand what I click on when I do find something, most of it looks like binary gibberish and I have no idea how to read binary.
You must find the windows logs - system. Find the time of the reboot and you can see what core crashed. Generally the report as WHEA18. If I were you I would start with a baseline like -10 on all. Find which ones crash, the ones that don`t try running -15 or higher. Corecycler can be useful for many :)


tabascosauz

Moderator
Supporter
Staff member
Joined
Jun 24, 2015
Messages
4,997 (1.84/day)
Location
Western Canada
Processor 5800X3D
Motherboard ROG X570 Impact (4006 reous mod)
Cooling PA120
Memory 32GB 3733CL14
Video Card(s) TUF RTX 3070 Ti - 1980@0.931V
Storage 1TB SN750 - 2TB SN850X - 1TB Blue3D
Case OBT Mini v1.1
Power Supply SF750
That would be great only I have no Idea what to look for or where to look, or how to understand what I click on when I do find something, most of it looks like binary gibberish and I have no idea how to read binary.

Event Viewer > Custom Views > Administrative Events > sort by Source column to find WHEA-Logger events

For core-related errors you're looking for either Unknown Source or Cache Hierarchy as the Error Type. The APIC ID will tell you what core is the problem - iirc it doesn't count SMT threads (don't quote me on that) and starts from 0 like most programs, so you'd be looking at a number between 0 and 5.

The one below is a Bus/Interconnect so a different IF-related type, and not core-specific so APIC ID 0

whea errors - Copy.png

Last edited:
Joined
Sep 27, 2019
Messages
1,063 (0.91/day)
Location
Canada
System Name New compy
Processor AMD Ryzen 5600x
Motherboard MSI MPG x570S EDGE MAX WiFi
Cooling Noctua NH-D15S w. FHP141 + Xigmatek AOS XAF-F1451
Memory 32gb G.Skill F4-4000C18D-32GVK
Video Card(s) EVGA GeForce RTX 2080 FTW3 Ultra Gaming
Storage 15.5tb
Display(s) Alienware AW2518H 24" 240hz, LG 43" 4k HDR TV 43UM6910PUA
Case Thermaltake Core v71
Audio Device(s) iFi Nano Idsd Le, Creative T20 + T50, Sennheiser HD6Mix
Power Supply EVGA Supernova G2 1000w
Mouse Logitech G502 Hero custom w. G900 scroll wheel mod, Rival 3 + Rival 3 wireless, Razer Orochi V2
Keyboard Corsair K68 RGB + K70 RGB + K57 RGB Wireless + Logitech G613
Software Win 10 Pro
Benchmark Scores https://valid.x86.fr/83f50d
I have no event id 18 nor whea logger events in the requested folder, there are 39k events in the list, my whea list is error free.

event viewer.jpg

event viewer2.jpg

Joined
Aug 9, 2019
Messages
1,263 (1.04/day)
Processor Ryzen 5600X@4.85 CO
Motherboard Gigabyte B550m S2H
Cooling BeQuiet Dark Rock Slim
Memory Patriot Viper 4400cl19 2x8@4000cl16 tight subs
Video Card(s) Asus 3060ti TUF OC
Storage WD blue 1TB nvme
Display(s) Lenovo G24-10 144Hz
Case Corsair D4000 Airflow
Power Supply EVGA GQ 650W
Software Windows 10 home 64
Benchmark Scores CB20 4710@4.7GHz Aida64 50.4ns 4.8GHz+4000cl15 tuned ram SOTTR 1080p low 263fps avg CPU game

freeagent

Moderator
Staff member
Joined
Sep 16, 2018
Messages
4,720 (3.07/day)
Location
Winnipeg, Canada
System Name Street Meat
Processor AMD R7 5800X3D
Motherboard Asus Strix B550-XE
Cooling Thermalright Peerless Assassin 120
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200 C14
Video Card(s) EVGA RTX 3070 Ti FTW3 Ultra
Storage WD SN850 1TB, SN750 1TB, SN750 500GB, Asus Hyper M.2, 2x Intel 545S 256GB, 1TB Toshiba spinner
Display(s) LG 50UP7100
Case Fractal Torrent Compact RGB
Audio Device(s) JBL 2.1 Deep Bass
Power Supply EVGA G+ 750, Monster HDP1800
Mouse Zowie EC2 Evo
Keyboard Logitech G213
Software Yes
Benchmark Scores Yes
Ppt is important for getting single core up, as well as for sustained all core loads. In my limited experience curve is based off of your ppt tdc and edc settings. If those aren’t right then curve won’t work well.

Joined
Mar 21, 2019
Messages
392 (0.29/day)
Location
Texas
Processor AMD R9 5950x
Motherboard MSI MAG B550 Tomahawk
Cooling corsair h115i hydro series 280mm
Memory corsair vengeance rgb pro 64gb
Video Card(s) Power Color Red Dragon Rx 6800 16gb
Storage WD SN850 2tb + 3 WD and 1 Samsung ssd
Display(s) ?
Case Corsair icue 220t rgb
Power Supply EVGA SuperNOVA 1000 T2, 80+ Titanium modular
Mouse logitech
Keyboard logitech
Software w10,

freeagent

Moderator
Staff member
Joined
Sep 16, 2018
Messages
4,720 (3.07/day)
Location
Winnipeg, Canada
System Name Street Meat
Processor AMD R7 5800X3D
Motherboard Asus Strix B550-XE
Cooling Thermalright Peerless Assassin 120
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200 C14
Video Card(s) EVGA RTX 3070 Ti FTW3 Ultra
Storage WD SN850 1TB, SN750 1TB, SN750 500GB, Asus Hyper M.2, 2x Intel 545S 256GB, 1TB Toshiba spinner
Display(s) LG 50UP7100
Case Fractal Torrent Compact RGB
Audio Device(s) JBL 2.1 Deep Bass
Power Supply EVGA G+ 750, Monster HDP1800
Mouse Zowie EC2 Evo
Keyboard Logitech G213
Software Yes
Benchmark Scores Yes
In my limited experience curve is based off of your ppt tdc and edc settings. If those aren’t right then curve won’t work well.


My curve isn't perfect, but its fairly tight overall I think.


Edit:

Playing with Core Cycler now..

Edit again:

Well, it’s just as I suspected. My CPU is shit. It won’t even do +50 with an all core -15 or 10.. which loads it at 4950 in core cycler. But for everything else my original settings were cock solid, except core cycler. I could bench, fold, crunch something.. game do whatever with no errors, bluescreams, hardware errors.. nothing

The last time I played with CC I think it failed at stock settings.

Should I RMA it?

Last edited:

Mussels

Freshwater Moderator
Staff member
Joined
Oct 6, 2004
Messages
55,488 (8.37/day)
Location
Oystralia
System Name Rainbow Sparkles (Power efficient, <350W gaming load)
Processor Ryzen R7 5800x3D (Undervolted, 4.45GHz all core)
Motherboard Asus x570 Gaming-F
Cooling Alphacool Apex UV - Alphacool Eisblock XPX Aurora + EK Quantum ARGB 3090 w/ active backplate
Memory 2x32GB DDR4 3600 Corsair Vengeance RGB @3866 C18-22-22-22-42 TRFC704 (1.4V, SoC 1.175V Hynix MJR)
Video Card(s) Galax RTX 3090 SG 24GB: Underclocked to 1700Mhz 0.737v (375W down to 250W))
Storage 2TB WD SN850 NVME + 1TB Sasmsung 970 Pro NVME + 1TB Intel 6000P NVME USB 3.2
Display(s) Kogan 32" 4K 70Hz + Gigabyte G32QC (1440p 165Hz) + Phillips 328m6fjrmb (1440p 144Hz)
Case Fractal Design R6
Audio Device(s) Logitech G560 | Corsair Void pro RGB |Blue Yeti mic
Power Supply Fractal Ion+ 2 860W (Platinum) (This thing is God-tier. Silent and TINY)
Mouse Logitech G Pro wireless + Steelseries Prisma XL
Keyboard Razer Huntsman TE (custom white and steel keycaps)
VR HMD Oculus Rift S + Quest 2
Software Windows 11 pro x64 (Yes, it's genuinely a good OS) OpenRGB - ditch the branded bloatware!
seems like the curve just gives a more effect clock speed on all cores doesn't seem to do much for single thread for me.
Yes, that's what it does.

It lowers the wattage/amperage at any given clock speed, and those limits are most easily reached multi threaded.


Free: personally, i don't believe in RMA'ing because it wont overclock.
-15 is a large undervolt, few chips are stable past -10 (remember they're unstable at IDLE, so many people make bullshit claims and say its stable when its not)


freeagent

Moderator
Staff member
Joined
Sep 16, 2018
Messages
4,720 (3.07/day)
Location
Winnipeg, Canada
System Name Street Meat
Processor AMD R7 5800X3D
Motherboard Asus Strix B550-XE
Cooling Thermalright Peerless Assassin 120
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200 C14
Video Card(s) EVGA RTX 3070 Ti FTW3 Ultra
Storage WD SN850 1TB, SN750 1TB, SN750 500GB, Asus Hyper M.2, 2x Intel 545S 256GB, 1TB Toshiba spinner
Display(s) LG 50UP7100
Case Fractal Torrent Compact RGB
Audio Device(s) JBL 2.1 Deep Bass
Power Supply EVGA G+ 750, Monster HDP1800
Mouse Zowie EC2 Evo
Keyboard Logitech G213
Software Yes
Benchmark Scores Yes
Yes, that's what it does.

It lowers the wattage/amperage at any given clock speed, and those limits are most easily reached multi threaded.


Free: personally, i don't believe in RMA'ing because it wont overclock.
-15 is a large undervolt, few chips are stable past -10 (remember they're unstable at IDLE, so many people make bullshit claims and say its stable when its not)
Ok good, thank you :)

I wont RMA it because it was working fine for the way I used it. I have flashed to the latest AGESA, went back to a clean install of 11. Boost and voltage are waaay down, but it still runs ok. I am not going to fuss over it.. I ran it completely stock and it felt just fine. 1600 1:1, factory limits and boost.. it was ok. Games were fine, it wasn't a massive loss of performance.. because I play at 60fps I didn't notice any loss lol.. Power has gotten a lot more expensive here, and will continue to do so..

Joined
Sep 27, 2019
Messages
1,063 (0.91/day)
Location
Canada
System Name New compy
Processor AMD Ryzen 5600x
Motherboard MSI MPG x570S EDGE MAX WiFi
Cooling Noctua NH-D15S w. FHP141 + Xigmatek AOS XAF-F1451
Memory 32gb G.Skill F4-4000C18D-32GVK
Video Card(s) EVGA GeForce RTX 2080 FTW3 Ultra Gaming
Storage 15.5tb
Display(s) Alienware AW2518H 24" 240hz, LG 43" 4k HDR TV 43UM6910PUA
Case Thermaltake Core v71
Audio Device(s) iFi Nano Idsd Le, Creative T20 + T50, Sennheiser HD6Mix
Power Supply EVGA Supernova G2 1000w
Mouse Logitech G502 Hero custom w. G900 scroll wheel mod, Rival 3 + Rival 3 wireless, Razer Orochi V2
Keyboard Corsair K68 RGB + K70 RGB + K57 RGB Wireless + Logitech G613
Software Win 10 Pro
Benchmark Scores https://valid.x86.fr/83f50d
Thanks for trying to help, now testing with -10 -5 -5 -10 -15 -10 after crashing more aggressive undervolts on the curve all over, I'm learning this new shit as I assume many of you already did by trial and error, figuring out what I can do and what I can't by testing both low and heavy loads and figuring out what works and what doesn't.

Passed 12 rounds of p95 because I forgot it was on.

Last edited:
Joined
Apr 30, 2020
Messages
488 (0.52/day)
System Name New One
Processor Ryzen 5 5600X
Motherboard MSI MGP Gaming WIFI
Cooling Stock
Memory Corsair Vengeance pro RGB 3200mhz 16Gbs
Video Card(s) EVGA 2080 Ti FTW 3
Storage Western digital Sata SDD 500gb
Display(s) HP X24i
Case Corsair 4000D Airflow
Power Supply Corsair 650M
Mouse Lifeworks gaming mouse lol
Keyboard lifeworks monster rgb light keyboard
Thanks for trying to help, now testing with -10 -5 -5 -10 -15 -10 after crashing more aggressive undervolts on the curve all over, I'm learning this new shit as I assume many of you already did by trial and error, figuring out what I can do and what I can't by testing both low and heavy loads and figuring out what works and what doesn't.

Passed 12 rounds of p95 because I forgot it was on.
like mine error on core 3 with in 3 minutes in prime95
Later on, error on core 6 with 18 minutes in prime95.
These chips are so weird.

Joined
Jan 31, 2010
Messages
5,015 (1.07/day)
Location
Gougeland (NZ)
System Name Cumquat 2021
Processor AMD RyZen R7 5800X @4750MHz 1.298V
Motherboard Asus Strix x570-F Gaming
Cooling Cryorig R1 Universal + CM MasterGel Pro TP
Memory 16GB GSkill Ripjaws V Black 4000 MTs (2x8GB) @3866MT's
Video Card(s) Sapphire Nitro+ OC RX6800 16GB DDR6 2270Cclk / 2010Mclk
Storage 1x Adata SX8200PRO NVMe gen3 x4 1X Samsung 860 EVO 500GB, 12TB of HDD Storage
Display(s) AOC 24G2 IPS 144Hz FreeSync Premium 1920x1080p
Case SilverStone Raven RV02B-W + 3x SS AP181 + USB3.0 front panel upgrade
Audio Device(s) RX6800 via HDMI + Pioneer VSX-531 amp Technics 100W 5.1 Speaker set
Power Supply EVGA 1000W G5 Gold
Mouse Logitech G502 Proteus Core
Keyboard Logitech G815
Software Windows 11 X64 PRO (build 22H2)
Benchmark Scores it sucks even more less now ;)

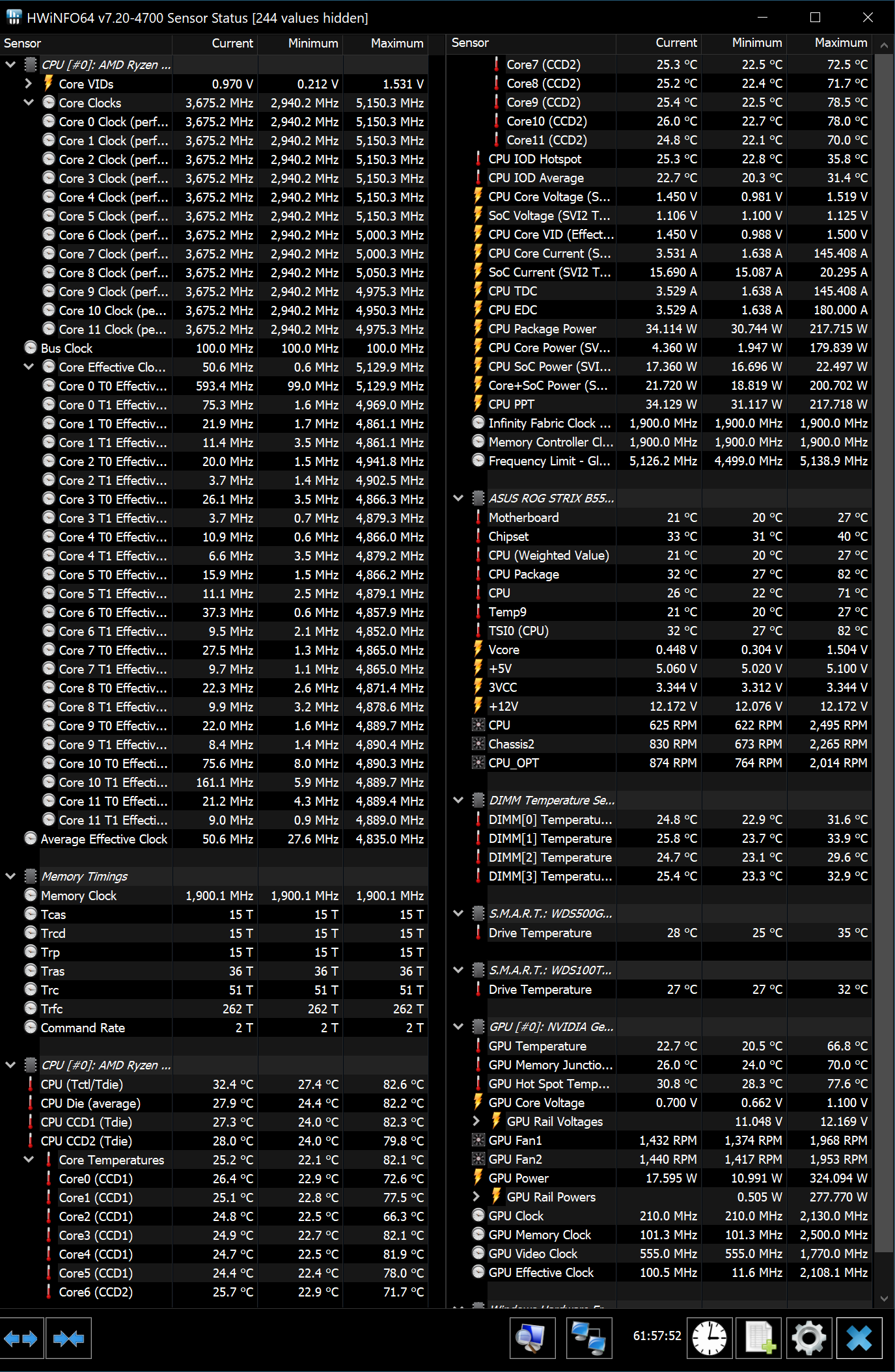

My curve isn't perfect, but its fairly tight overall I think.

View attachment 239462

Edit:

Playing with Core Cycler now..

Edit again:

Well, it’s just as I suspected. My CPU is shit. It won’t even do +50 with an all core -15 or 10.. which loads it at 4950 in core cycler. But for everything else my original settings were cock solid, except core cycler. I could bench, fold, crunch something.. game do whatever with no errors, bluescreams, hardware errors.. nothing

The last time I played with CC I think it failed at stock settings.

Should I RMA it?
No just stop using Core Cycler as obviously that's the issue


freeagent

Moderator
Staff member
Joined
Sep 16, 2018
Messages
4,720 (3.07/day)
Location
Winnipeg, Canada
System Name Street Meat
Processor AMD R7 5800X3D
Motherboard Asus Strix B550-XE
Cooling Thermalright Peerless Assassin 120
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200 C14
Video Card(s) EVGA RTX 3070 Ti FTW3 Ultra
Storage WD SN850 1TB, SN750 1TB, SN750 500GB, Asus Hyper M.2, 2x Intel 545S 256GB, 1TB Toshiba spinner
Display(s) LG 50UP7100
Case Fractal Torrent Compact RGB
Audio Device(s) JBL 2.1 Deep Bass
Power Supply EVGA G+ 750, Monster HDP1800
Mouse Zowie EC2 Evo
Keyboard Logitech G213
Software Yes
Benchmark Scores Yes
No just stop using Core Cycler as obviously that's the issue
I did, but again like the last time it kind of bugs me.

I also went back to the old voltage pumping bios.. still on 11 though.. so pretty.


Mussels

Freshwater Moderator
Staff member
Joined
Oct 6, 2004
Messages
55,488 (8.37/day)
Location
Oystralia
System Name Rainbow Sparkles (Power efficient, <350W gaming load)
Processor Ryzen R7 5800x3D (Undervolted, 4.45GHz all core)
Motherboard Asus x570 Gaming-F
Cooling Alphacool Apex UV - Alphacool Eisblock XPX Aurora + EK Quantum ARGB 3090 w/ active backplate
Memory 2x32GB DDR4 3600 Corsair Vengeance RGB @3866 C18-22-22-22-42 TRFC704 (1.4V, SoC 1.175V Hynix MJR)
Video Card(s) Galax RTX 3090 SG 24GB: Underclocked to 1700Mhz 0.737v (375W down to 250W))
Storage 2TB WD SN850 NVME + 1TB Sasmsung 970 Pro NVME + 1TB Intel 6000P NVME USB 3.2
Display(s) Kogan 32" 4K 70Hz + Gigabyte G32QC (1440p 165Hz) + Phillips 328m6fjrmb (1440p 144Hz)
Case Fractal Design R6
Audio Device(s) Logitech G560 | Corsair Void pro RGB |Blue Yeti mic
Power Supply Fractal Ion+ 2 860W (Platinum) (This thing is God-tier. Silent and TINY)
Mouse Logitech G Pro wireless + Steelseries Prisma XL
Keyboard Razer Huntsman TE (custom white and steel keycaps)
VR HMD Oculus Rift S + Quest 2
Software Windows 11 pro x64 (Yes, it's genuinely a good OS) OpenRGB - ditch the branded bloatware!
I'm thinking the lowered voltage/amperate is related to the intended changes for the 5800x3D

Joined
Jan 19, 2007
Messages
1,124 (0.19/day)
Location
Chicago
Processor Amd Ryzen 5 5600x kryonaut paste
Motherboard Asus Prime X570 P bios 4021
Cooling Thermaltake Water 3.0 360mm (top mounted for exhaust) 3 Thermaltake 140mm riing rgb case fans
Memory G.Skill Trident Z Neo DDR4 3600 cl16 2x16 dual rank
Video Card(s) Sapphire Nitro+ RX 5700XT OC
Storage Seagate Firecuda 520 500gb NVMe PCIE Gen4 x 4 boot drive XPG S70 Blade Gen 4 x 4 NVMe gaming drive
Display(s) MSI Mag321CQR 32 inch curved 144 hz 1ms
Case Thermaltake View 31
Audio Device(s) Corsair Void USB RGB Dolby Digital 7.1 Headphones
Power Supply Thermaltake Grand RGB 750w
Mouse Corsair Harpoon RGB
Keyboard Corsair K55 RGB
Software Windows 11 Professional
+200
-15 crashes any higher
-19 fastest core
-23
-19 fastest core
-23
-23
power limits
130
80
130
these power settings seem high compared to others but running occt the ppt and the 3rd one (edc?) are close to maxing out. Single core boost isnt quite what it was before this journey but temps are down 10-12 degrees. Multi core is pegged at 4.74 at 72c though. One run of occt I know I seen cores 2 and 4 flash 4.95 for a second or two. I want to get to 5ghz single core. Any ideas

Joined
Apr 30, 2020
Messages
488 (0.52/day)
System Name New One
Processor Ryzen 5 5600X
Motherboard MSI MGP Gaming WIFI
Cooling Stock
Memory Corsair Vengeance pro RGB 3200mhz 16Gbs
Video Card(s) EVGA 2080 Ti FTW 3
Storage Western digital Sata SDD 500gb
Display(s) HP X24i
Case Corsair 4000D Airflow
Power Supply Corsair 650M
Mouse Lifeworks gaming mouse lol
Keyboard lifeworks monster rgb light keyboard
+200
-15 crashes any higher
-19 fastest core
-23
-19 fastest core
-23
-23
power limits
130
80
130
these power settings seem high compared to others but running occt the ppt and the 3rd one (edc?) are close to maxing out. Single core boost isnt quite what it was before this journey but temps are down 10-12 degrees. Multi core is pegged at 4.74 at 72c though. One run of occt I know I seen cores 2 and 4 flash 4.95 for a second or two. I want to get to 5ghz single core. Any ideas
The only way to get higher on a 5600x is to use a slight bump in bus speed. Which means you have to lower you ram divider before you even try a higher bus speed to counter act it. It won't take much to get a decent bump anyways even something like 100.03 is still a bump for Ryzen. I know I got pretty high on my bus speed, but I'm not using an NVMe SDD. I'm using a Sata SSD. I'm not sure what the usually is for high bus speed, but you don't need to get anywhere near 101.0 on bus speed. Tiny bus speed increments in Ryzen can throw up a lot of speed increase.

Joined
Jan 19, 2007
Messages
1,124 (0.19/day)
Location
Chicago
Processor Amd Ryzen 5 5600x kryonaut paste
Motherboard Asus Prime X570 P bios 4021
Cooling Thermaltake Water 3.0 360mm (top mounted for exhaust) 3 Thermaltake 140mm riing rgb case fans
Memory G.Skill Trident Z Neo DDR4 3600 cl16 2x16 dual rank
Video Card(s) Sapphire Nitro+ RX 5700XT OC
Storage Seagate Firecuda 520 500gb NVMe PCIE Gen4 x 4 boot drive XPG S70 Blade Gen 4 x 4 NVMe gaming drive
Display(s) MSI Mag321CQR 32 inch curved 144 hz 1ms
Case Thermaltake View 31
Audio Device(s) Corsair Void USB RGB Dolby Digital 7.1 Headphones
Power Supply Thermaltake Grand RGB 750w
Mouse Corsair Harpoon RGB
Keyboard Corsair K55 RGB
Software Windows 11 Professional
Would raising it slightly effect nvme drives?

The only way to get higher on a 5600x is to use a slight bump in bus speed. Which means you have to lower you ram divider before you even try a higher bus speed to counter act it. It won't take much to get a decent bump anyways even something like 100.03 is still a bump for Ryzen. I know I got pretty high on my bus speed, but I'm not using an NVMe SDD. I'm using a Sata SSD. I'm not sure what the usually is for high bus speed, but you don't need to get anywhere near 101.0 on bus speed. Tiny bus speed increments in Ryzen can throw up a lot of speed increase.
Even with pbo limits disabled?


freeagent

Moderator
Staff member
Joined
Sep 16, 2018
Messages
4,720 (3.07/day)
Location
Winnipeg, Canada
System Name Street Meat
Processor AMD R7 5800X3D
Motherboard Asus Strix B550-XE
Cooling Thermalright Peerless Assassin 120
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200 C14
Video Card(s) EVGA RTX 3070 Ti FTW3 Ultra
Storage WD SN850 1TB, SN750 1TB, SN750 500GB, Asus Hyper M.2, 2x Intel 545S 256GB, 1TB Toshiba spinner
Display(s) LG 50UP7100
Case Fractal Torrent Compact RGB
Audio Device(s) JBL 2.1 Deep Bass
Power Supply EVGA G+ 750, Monster HDP1800
Mouse Zowie EC2 Evo
Keyboard Logitech G213
Software Yes
Benchmark Scores Yes
I dropped my 5600X in and ran CC with no problems, I guess my 5900X just does not like that program..

Core 3 was cranky with 4850, so I chose +150 instead..

Screenshot 2022-03-13 191947.png

Joined
Sep 27, 2019
Messages
1,063 (0.91/day)
Location
Canada
System Name New compy
Processor AMD Ryzen 5600x
Motherboard MSI MPG x570S EDGE MAX WiFi
Cooling Noctua NH-D15S w. FHP141 + Xigmatek AOS XAF-F1451
Memory 32gb G.Skill F4-4000C18D-32GVK
Video Card(s) EVGA GeForce RTX 2080 FTW3 Ultra Gaming
Storage 15.5tb
Display(s) Alienware AW2518H 24" 240hz, LG 43" 4k HDR TV 43UM6910PUA
Case Thermaltake Core v71
Audio Device(s) iFi Nano Idsd Le, Creative T20 + T50, Sennheiser HD6Mix
Power Supply EVGA Supernova G2 1000w
Mouse Logitech G502 Hero custom w. G900 scroll wheel mod, Rival 3 + Rival 3 wireless, Razer Orochi V2
Keyboard Corsair K68 RGB + K70 RGB + K57 RGB Wireless + Logitech G613
Software Win 10 Pro
Benchmark Scores https://valid.x86.fr/83f50d
I dropped my 5600X in and ran CC with no problems, I guess my 5900X just does not like that program..

Core 3 was cranky with 4850, so I chose +150 instead..

View attachment 239706
I tested with CC and had a core 2 fail with +200 even when undervolt was 0 for that core (-5 0 -5 -10 -15 -10 curve) so I'm just going to ignore it since 12 rounds of regular p95 passed. CC is large fft, my cpu ran at 71 degrees during the test.


freeagent

Moderator
Staff member
Joined
Sep 16, 2018
Messages
4,720 (3.07/day)
Location
Winnipeg, Canada
System Name Street Meat
Processor AMD R7 5800X3D
Motherboard Asus Strix B550-XE
Cooling Thermalright Peerless Assassin 120
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200 C14
Video Card(s) EVGA RTX 3070 Ti FTW3 Ultra
Storage WD SN850 1TB, SN750 1TB, SN750 500GB, Asus Hyper M.2, 2x Intel 545S 256GB, 1TB Toshiba spinner
Display(s) LG 50UP7100
Case Fractal Torrent Compact RGB
Audio Device(s) JBL 2.1 Deep Bass
Power Supply EVGA G+ 750, Monster HDP1800
Mouse Zowie EC2 Evo
Keyboard Logitech G213
Software Yes
Benchmark Scores Yes
I tested with CC and had a core 2 fail with +200 even when undervolt was 0 for that core (-5 0 -5 -10 -15 -10 curve) so I'm just going to ignore it since 12 rounds of regular p95 passed. CC is large fft, my cpu ran at 71 degrees during the test.
I played with it for a couple of hours, it was pretty depressing. For absolutely everything else it never once gave me a problem with my settings. But.. I am enjoying my 5600X for now. My system is so quiet. Even when it gets a bit busy they barely lift from idle. Unlike 5900X which breathes fire lol.

Joined
Sep 27, 2019
Messages
1,063 (0.91/day)
Location
Canada
System Name New compy
Processor AMD Ryzen 5600x
Motherboard MSI MPG x570S EDGE MAX WiFi
Cooling Noctua NH-D15S w. FHP141 + Xigmatek AOS XAF-F1451
Memory 32gb G.Skill F4-4000C18D-32GVK
Video Card(s) EVGA GeForce RTX 2080 FTW3 Ultra Gaming
Storage 15.5tb
Display(s) Alienware AW2518H 24" 240hz, LG 43" 4k HDR TV 43UM6910PUA
Case Thermaltake Core v71
Audio Device(s) iFi Nano Idsd Le, Creative T20 + T50, Sennheiser HD6Mix
Power Supply EVGA Supernova G2 1000w
Mouse Logitech G502 Hero custom w. G900 scroll wheel mod, Rival 3 + Rival 3 wireless, Razer Orochi V2
Keyboard Corsair K68 RGB + K70 RGB + K57 RGB Wireless + Logitech G613
Software Win 10 Pro
Benchmark Scores https://valid.x86.fr/83f50d
I played with it for a couple of hours, it was pretty depressing. For absolutely everything else it never once gave me a problem with my settings. But.. I am enjoying my 5600X for now. My system is so quiet. Even when it gets a bit busy they barely lift from idle. Unlike 5900X which breathes fire lol.
I'm testing an extra -2 per core (-12 -7 -7 -12 -17 -12 curve) @ +150 and core 2 crashes again in CC. Dif in single core is 8-10 points in cpuz so not a huge drop vs +200 but CC still doesn't like it, I'm just going to go back to +200 and pretend CC isn't a thing.

Last edited:
Joined
Aug 9, 2019
Messages
1,263 (1.04/day)
Processor Ryzen 5600X@4.85 CO
Motherboard Gigabyte B550m S2H
Cooling BeQuiet Dark Rock Slim
Memory Patriot Viper 4400cl19 2x8@4000cl16 tight subs
Video Card(s) Asus 3060ti TUF OC
Storage WD blue 1TB nvme
Display(s) Lenovo G24-10 144Hz
Case Corsair D4000 Airflow
Power Supply EVGA GQ 650W
Software Windows 10 home 64
Benchmark Scores CB20 4710@4.7GHz Aida64 50.4ns 4.8GHz+4000cl15 tuned ram SOTTR 1080p low 263fps avg CPU game
I played with it for a couple of hours, it was pretty depressing. For absolutely everything else it never once gave me a problem with my settings. But.. I am enjoying my 5600X for now. My system is so quiet. Even when it gets a bit busy they barely lift from idle. Unlike 5900X which breathes fire lol.
Seems only 5600X is the quiet one of the 5XX0X-brotherhood for now. I have a bit of hope for 5700X and 5600, they should be good.

Or 5950X is possibly the best of cooler is good, lower allcore clocks might be the reason:

Last edited:

mattferris

New Member
Joined
Nov 3, 2021
Messages
10 (0.03/day)
I haven't gotten above 82C on prime95 with just Small FFT with AVX on, cinebenchr23 is 10C lower it's also like 300mhz higher lol
My current issues seems to be my VRM loop 1 is hotter then VRM loop 2 whey they should mirror each other. I wonder if it just has bad contact.
Just now change my EDC from 125 to 85 = better Cinebenchr23 score both single and Multi. guess I'll try to lower the wattage and see what it gets.
Prime95 is a weird load compared to Cinebench or other more traditional workloads. The heavy AVX Prime95 computations will slam you into your TDC limit before PPT or EDC (unless you have PPT and EDC lowered sufficiently). This can lead to weird outcomes like you saw above.

Joined
Apr 30, 2020
Messages
488 (0.52/day)
System Name New One
Processor Ryzen 5 5600X
Motherboard MSI MGP Gaming WIFI
Cooling Stock
Memory Corsair Vengeance pro RGB 3200mhz 16Gbs
Video Card(s) EVGA 2080 Ti FTW 3
Storage Western digital Sata SDD 500gb
Display(s) HP X24i
Case Corsair 4000D Airflow
Power Supply Corsair 650M
Mouse Lifeworks gaming mouse lol
Keyboard lifeworks monster rgb light keyboard
Prime95 is a weird load compared to Cinebench or other more traditional workloads. The heavy AVX Prime95 computations will slam you into your TDC limit before PPT or EDC (unless you have PPT and EDC lowered sufficiently). This can lead to weird outcomes like you saw above.
I've been doing a little tinkering I let the motherboard set all the setting by just hitting the + button in the bios from auto

this is what it set

PPT 500W
TDC 143a
EDC193a

Then I ran Prime95/cinbenchr23 it only used this % of those settings on HWinfo.
500w 25%
143a 56.5%
193a 59.9%

which then looks like this
ppt 125w
TDC 78a
EDC 115a

I did notice that even if I switch the TDC with EDC
PPT 125w
TDC115
EDC 78

PPT won't make it up past 87.5 watts then. Think I'm going to test some static overclocks now

Last edited:

freeagent

Moderator
Staff member
Joined
Sep 16, 2018
Messages
4,720 (3.07/day)
Location
Winnipeg, Canada
System Name Street Meat
Processor AMD R7 5800X3D
Motherboard Asus Strix B550-XE
Cooling Thermalright Peerless Assassin 120
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200 C14
Video Card(s) EVGA RTX 3070 Ti FTW3 Ultra
Storage WD SN850 1TB, SN750 1TB, SN750 500GB, Asus Hyper M.2, 2x Intel 545S 256GB, 1TB Toshiba spinner
Display(s) LG 50UP7100
Case Fractal Torrent Compact RGB
Audio Device(s) JBL 2.1 Deep Bass
Power Supply EVGA G+ 750, Monster HDP1800
Mouse Zowie EC2 Evo
Keyboard Logitech G213
Software Yes
Benchmark Scores Yes
Using 200/140/180 with my 5600X capped at +150 can put out over 140w PPT using Linpack Xtreme. The most I saw was just over 150w PPT on 5600X. Static OC should be easy on that CPU.

Top
