5800x (and other Zen 3 chips) PBO settings/Temperature fix

OneMoar

There is Always Moar
Joined
Apr 9, 2010
Messages
8,774 (1.68/day)
Location
Rochester area
System Name RPC MK2.5
Processor Ryzen 5800x
Motherboard Gigabyte Aorus Pro V2
Cooling Enermax ETX-T50RGB
Memory CL16 BL2K16G36C16U4RL 3600 1:1 micron e-die
Video Card(s) GIGABYTE RTX 3070 Ti GAMING OC
Storage ADATA SX8200PRO NVME 512GB, Intel 545s 500GBSSD, ADATA SU800 SSD, 3TB Spinner
Display(s) LG Ultra Gear 32 1440p 165hz Dell 1440p 75hz
Case Phanteks P300 /w 300A front panel conversion
Audio Device(s) onboard
Power Supply SeaSonic Focus+ Platinum 750W
Mouse Kone burst Pro
Keyboard EVGA Z15
Software Windows 11 +startisallback
when playing core at least I am only seeing one cpu active everything else as <10%

Joined
May 2, 2022
Messages
1,355 (1.69/day)
Location
G-City, UK
System Name My first new build
Processor Ryzen 7 5700X
Motherboard MSI B450M mortar max
Cooling Deepcool AK620
Memory 32gb Corsair Vengeance LPX 3200@XMP3200
Video Card(s) Sapphire 6900XT Toxic Air Cooled
Storage Samsung 870 QVO 1TB x 2, Lexar 256 GB, Western Digital SN550 500 GB nvme
Display(s) 32" LG GN600-B
Case Aerocool Eclipse
Audio Device(s) Corsair HS70 wireless
Power Supply MSI MPG AGF 850 watt gold
Mouse Glorious Model D l Pad GameSir G7 SE
Keyboard Redragon Vara K551P
Software Windows 11
Just ran testmem 5 extreme. No errors.


tabascosauz

Moderator
Supporter
Staff member
Joined
Jun 24, 2015
Messages
7,875 (2.38/day)
Location
Western Canada
System Name ab┃ob
Processor 7800X3D┃5800X3D
Motherboard B650E PG-ITX┃X570 Impact
Cooling NH-U12A + T30┃AXP120-x67
Memory 64GB 6400CL32┃32GB 3600CL14
Video Card(s) RTX 4070 Ti Eagle┃RTX A2000
Storage 8TB of SSDs┃1TB SN550
Case Caselabs S3┃Lazer3D HT5
when playing core at least I am only seeing one cpu active everything else as <10%

My observations are similar, I just don't see how it's noticeably different from how it was in S0 and S1.

Just ran testmem 5 extreme. No errors.

Have you run any corecycler with the boost override on? Just default config, be done in like 50min.

I'm here at 1440p ultra with DLSS quality and MW2 really doesn't hit high boost clocks at all, but Vcache skews CPU behaviour a bit. Are you able to keep HWInfo running and see how high your boost clocks in game are?

Joined
May 2, 2022
Messages
1,355 (1.69/day)
Location
G-City, UK
System Name My first new build
Processor Ryzen 7 5700X
Motherboard MSI B450M mortar max
Cooling Deepcool AK620
Memory 32gb Corsair Vengeance LPX 3200@XMP3200
Video Card(s) Sapphire 6900XT Toxic Air Cooled
Storage Samsung 870 QVO 1TB x 2, Lexar 256 GB, Western Digital SN550 500 GB nvme
Display(s) 32" LG GN600-B
Case Aerocool Eclipse
Audio Device(s) Corsair HS70 wireless
Power Supply MSI MPG AGF 850 watt gold
Mouse Glorious Model D l Pad GameSir G7 SE
Keyboard Redragon Vara K551P
Software Windows 11
Ran corecycler with 50mhz boost and all seems fine. Was on default config and moved on to iteration 2.

I'm also on 1440p ultra but I don't use FSR. Still getting around 160 - 200 FPS. I will put on HWinfo and see what the boost clocks are.

Seems like COD likes to bounce around what core is fastest. Corecycler somehow reset my GPU fan curve too.
COD frequency.png

Last edited:

izy

Joined
Jun 30, 2022
Messages
944 (1.27/day)
@izy On 3733/1867, 200mhz boost. Tried cod and numerous benchmarks, seems to be holding up.

Correction. Did not like cod at all. Now on 3600/1800 50mhz boost and it's okay.
Try adding +10 or something in CO , maybe its just a core that doesnt like it.

Joined
May 2, 2022
Messages
1,355 (1.69/day)
Location
G-City, UK
System Name My first new build
Processor Ryzen 7 5700X
Motherboard MSI B450M mortar max
Cooling Deepcool AK620
Memory 32gb Corsair Vengeance LPX 3200@XMP3200
Video Card(s) Sapphire 6900XT Toxic Air Cooled
Storage Samsung 870 QVO 1TB x 2, Lexar 256 GB, Western Digital SN550 500 GB nvme
Display(s) 32" LG GN600-B
Case Aerocool Eclipse
Audio Device(s) Corsair HS70 wireless
Power Supply MSI MPG AGF 850 watt gold
Mouse Glorious Model D l Pad GameSir G7 SE
Keyboard Redragon Vara K551P
Software Windows 11
Try adding +10 or something in CO , maybe its just a core that doesnt like it.
Can you add +10 in bios as Ryzen Master has been deleted. Or shall I just use PBO2?


OneMoar

There is Always Moar
Joined
Apr 9, 2010
Messages
8,774 (1.68/day)
Location
Rochester area
System Name RPC MK2.5
Processor Ryzen 5800x
Motherboard Gigabyte Aorus Pro V2
Cooling Enermax ETX-T50RGB
Memory CL16 BL2K16G36C16U4RL 3600 1:1 micron e-die
Video Card(s) GIGABYTE RTX 3070 Ti GAMING OC
Storage ADATA SX8200PRO NVME 512GB, Intel 545s 500GBSSD, ADATA SU800 SSD, 3TB Spinner
Display(s) LG Ultra Gear 32 1440p 165hz Dell 1440p 75hz
Case Phanteks P300 /w 300A front panel conversion
Audio Device(s) onboard
Power Supply SeaSonic Focus+ Platinum 750W
Mouse Kone burst Pro
Keyboard EVGA Z15
Software Windows 11 +startisallback
you should optimised per core
check the event log for the APIC id indicating what core failed then add +5 to that (example -20 > -15)

Joined
May 2, 2022
Messages
1,355 (1.69/day)
Location
G-City, UK
System Name My first new build
Processor Ryzen 7 5700X
Motherboard MSI B450M mortar max
Cooling Deepcool AK620
Memory 32gb Corsair Vengeance LPX 3200@XMP3200
Video Card(s) Sapphire 6900XT Toxic Air Cooled
Storage Samsung 870 QVO 1TB x 2, Lexar 256 GB, Western Digital SN550 500 GB nvme
Display(s) 32" LG GN600-B
Case Aerocool Eclipse
Audio Device(s) Corsair HS70 wireless
Power Supply MSI MPG AGF 850 watt gold
Mouse Glorious Model D l Pad GameSir G7 SE
Keyboard Redragon Vara K551P
Software Windows 11
you should optimised per core
check the event log for the APIC id indicating what core failed then add +5 to that (example -20 > -15)
After going through the corecycler log, none of my cores failed.


OneMoar

There is Always Moar
Joined
Apr 9, 2010
Messages
8,774 (1.68/day)
Location
Rochester area
System Name RPC MK2.5
Processor Ryzen 5800x
Motherboard Gigabyte Aorus Pro V2
Cooling Enermax ETX-T50RGB
Memory CL16 BL2K16G36C16U4RL 3600 1:1 micron e-die
Video Card(s) GIGABYTE RTX 3070 Ti GAMING OC
Storage ADATA SX8200PRO NVME 512GB, Intel 545s 500GBSSD, ADATA SU800 SSD, 3TB Spinner
Display(s) LG Ultra Gear 32 1440p 165hz Dell 1440p 75hz
Case Phanteks P300 /w 300A front panel conversion
Audio Device(s) onboard
Power Supply SeaSonic Focus+ Platinum 750W
Mouse Kone burst Pro
Keyboard EVGA Z15
Software Windows 11 +startisallback
windows event viewer not corecycler

Joined
May 2, 2022
Messages
1,355 (1.69/day)
Location
G-City, UK
System Name My first new build
Processor Ryzen 7 5700X
Motherboard MSI B450M mortar max
Cooling Deepcool AK620
Memory 32gb Corsair Vengeance LPX 3200@XMP3200
Video Card(s) Sapphire 6900XT Toxic Air Cooled
Storage Samsung 870 QVO 1TB x 2, Lexar 256 GB, Western Digital SN550 500 GB nvme
Display(s) 32" LG GN600-B
Case Aerocool Eclipse
Audio Device(s) Corsair HS70 wireless
Power Supply MSI MPG AGF 850 watt gold
Mouse Glorious Model D l Pad GameSir G7 SE
Keyboard Redragon Vara K551P
Software Windows 11
I can't find APIC anywhere in event viewer.
FFS, I feel like I need my hand held whatever thread I'm in.


OneMoar

There is Always Moar
Joined
Apr 9, 2010
Messages
8,774 (1.68/day)
Location
Rochester area
System Name RPC MK2.5
Processor Ryzen 5800x
Motherboard Gigabyte Aorus Pro V2
Cooling Enermax ETX-T50RGB
Memory CL16 BL2K16G36C16U4RL 3600 1:1 micron e-die
Video Card(s) GIGABYTE RTX 3070 Ti GAMING OC
Storage ADATA SX8200PRO NVME 512GB, Intel 545s 500GBSSD, ADATA SU800 SSD, 3TB Spinner
Display(s) LG Ultra Gear 32 1440p 165hz Dell 1440p 75hz
Case Phanteks P300 /w 300A front panel conversion
Audio Device(s) onboard
Power Supply SeaSonic Focus+ Platinum 750W
Mouse Kone burst Pro
Keyboard EVGA Z15
Software Windows 11 +startisallback

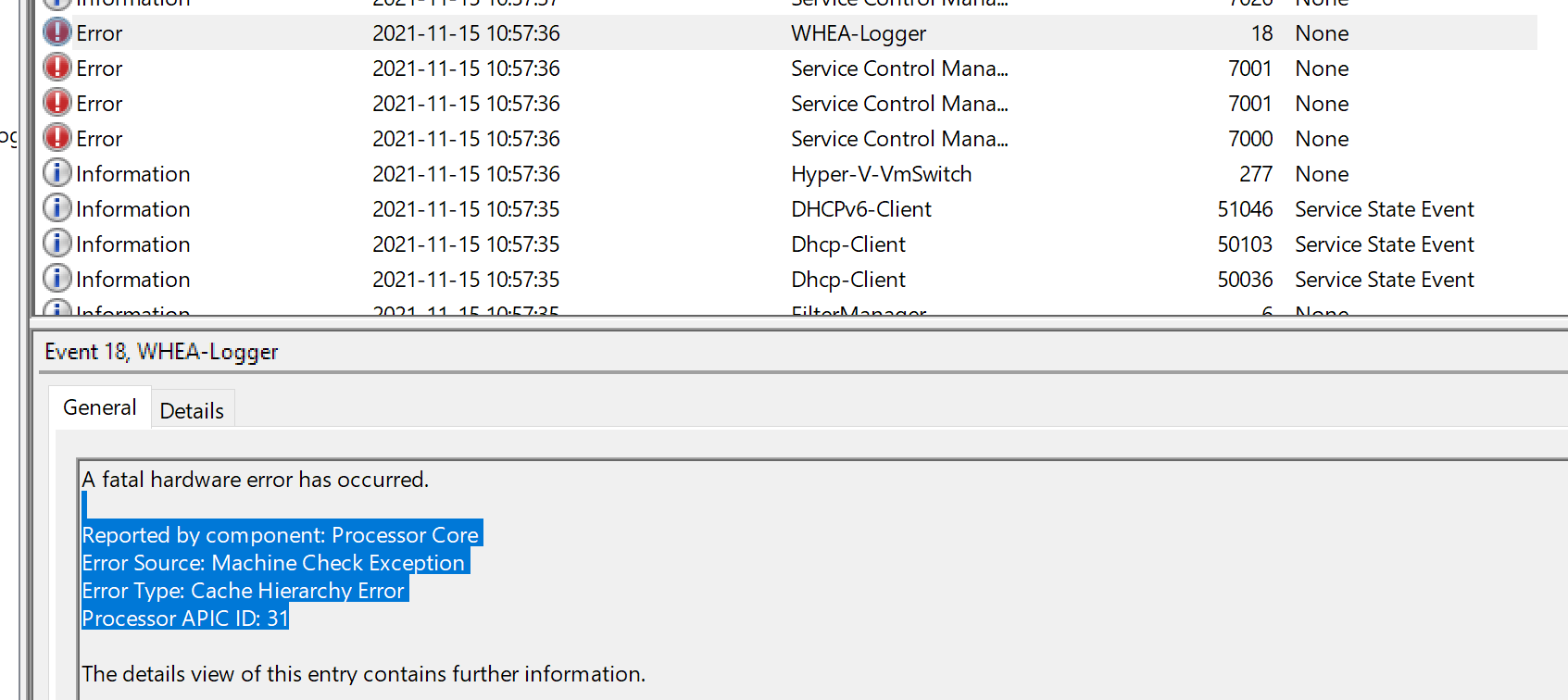

look for event id 18 the apic id is in the details (assuming its crashing because of a cpu core)

Joined
May 2, 2022
Messages
1,355 (1.69/day)
Location
G-City, UK
System Name My first new build
Processor Ryzen 7 5700X
Motherboard MSI B450M mortar max
Cooling Deepcool AK620
Memory 32gb Corsair Vengeance LPX 3200@XMP3200
Video Card(s) Sapphire 6900XT Toxic Air Cooled
Storage Samsung 870 QVO 1TB x 2, Lexar 256 GB, Western Digital SN550 500 GB nvme
Display(s) 32" LG GN600-B
Case Aerocool Eclipse
Audio Device(s) Corsair HS70 wireless
Power Supply MSI MPG AGF 850 watt gold
Mouse Glorious Model D l Pad GameSir G7 SE
Keyboard Redragon Vara K551P
Software Windows 11

tabascosauz

Moderator
Supporter
Staff member
Joined
Jun 24, 2015
Messages
7,875 (2.38/day)
Location
Western Canada
System Name ab┃ob
Processor 7800X3D┃5800X3D
Motherboard B650E PG-ITX┃X570 Impact
Cooling NH-U12A + T30┃AXP120-x67
Memory 64GB 6400CL32┃32GB 3600CL14
Video Card(s) RTX 4070 Ti Eagle┃RTX A2000
Storage 8TB of SSDs┃1TB SN550
Case Caselabs S3┃Lazer3D HT5
Well I found these. Left it on the latest error.
View attachment 284312

Cache Hierarchy is a core WHEA, V-F problems, not enough Vcore for the clock asked. Gonna need to either lay off the boost override or start adding positive CO.

I guess +50 isn't stable either, maybe just to a lesser degree. Judging from HWInfo I think it's safe to say that MW2 is actually boosting to Fmax, didn't really expect that. I haven't even seen over 4GHz from the game lately.

MW2 isn't random, it's load juggling between your two #1 ranked cores, Core 1 and 6. Pretty normal for any chip.

Joined
May 2, 2022
Messages
1,355 (1.69/day)
Location
G-City, UK
System Name My first new build
Processor Ryzen 7 5700X
Motherboard MSI B450M mortar max
Cooling Deepcool AK620
Memory 32gb Corsair Vengeance LPX 3200@XMP3200
Video Card(s) Sapphire 6900XT Toxic Air Cooled
Storage Samsung 870 QVO 1TB x 2, Lexar 256 GB, Western Digital SN550 500 GB nvme
Display(s) 32" LG GN600-B
Case Aerocool Eclipse
Audio Device(s) Corsair HS70 wireless
Power Supply MSI MPG AGF 850 watt gold
Mouse Glorious Model D l Pad GameSir G7 SE
Keyboard Redragon Vara K551P
Software Windows 11
Cache Hierarchy is a core WHEA, V-F problems, not enough Vcore for the clock asked. Gonna need to either lay off the boost override or start adding positive CO.

I guess +50 isn't stable either, maybe just to a lesser degree. Judging from HWInfo I think it's safe to say that MW2 is actually boosting to Fmax, didn't really expect that. I haven't even seen over 4GHz from the game lately.

MW2 isn't random, it's load juggling between your two #1 ranked cores, Core 1 and 6. Pretty normal for any chip.
I haven't got any errors from today and I've had no issues from cod today. I only changed the the boost to +50 today too. I'm going to leave it as it is until is has any issues and then I'll just reset the CPU to factory, delete all the benchmarks and leave it alone. Nothing worse than not knowing what you are doing and wanting to punch things.


OneMoar

There is Always Moar
Joined
Apr 9, 2010
Messages
8,774 (1.68/day)
Location
Rochester area
System Name RPC MK2.5
Processor Ryzen 5800x
Motherboard Gigabyte Aorus Pro V2
Cooling Enermax ETX-T50RGB
Memory CL16 BL2K16G36C16U4RL 3600 1:1 micron e-die
Video Card(s) GIGABYTE RTX 3070 Ti GAMING OC
Storage ADATA SX8200PRO NVME 512GB, Intel 545s 500GBSSD, ADATA SU800 SSD, 3TB Spinner
Display(s) LG Ultra Gear 32 1440p 165hz Dell 1440p 75hz
Case Phanteks P300 /w 300A front panel conversion
Audio Device(s) onboard
Power Supply SeaSonic Focus+ Platinum 750W
Mouse Kone burst Pro
Keyboard EVGA Z15
Software Windows 11 +startisallback
open cpu-z click tools > save report
open the report look at the APIC id list

and tbh please stop using cod is as a mesuring stick
its just simply broken there is a server side issue I belive is causing the random crashes

usually with cod what happens is the gpu driver crashes which crashes the game you can verify this with the event viewer
look for the driver crash in the system log then the game crash about .005s seconds later in the application log
the game is broken on nvidia has been since launch. I have friends with stock multiplier locked OEM systems with ryzen 5000 and nvida cards and it crashes ... a lot
it can't be trusted

you may want to set LLC to standardor medium as it can smooth out the voltage dip when the load rapidly changes between cores
I find AGESA 1.2.0.8 a bit more stable then 1.2.0.7 so if your board has a bios update a upgrade isn't a bad plan


Attachments

  • FEOfDhfXoAA16EX.png
    103 KB · Views: 44
  • coreport.png
    37.7 KB · Views: 41
Last edited:
Joined
May 2, 2022
Messages
1,355 (1.69/day)
Location
G-City, UK
System Name My first new build
Processor Ryzen 7 5700X
Motherboard MSI B450M mortar max
Cooling Deepcool AK620
Memory 32gb Corsair Vengeance LPX 3200@XMP3200
Video Card(s) Sapphire 6900XT Toxic Air Cooled
Storage Samsung 870 QVO 1TB x 2, Lexar 256 GB, Western Digital SN550 500 GB nvme
Display(s) 32" LG GN600-B
Case Aerocool Eclipse
Audio Device(s) Corsair HS70 wireless
Power Supply MSI MPG AGF 850 watt gold
Mouse Glorious Model D l Pad GameSir G7 SE
Keyboard Redragon Vara K551P
Software Windows 11
open cpu-z click tools > save report
open the report look at the APIC id list

and tbh please stop using cod is as a mesuring stick
its just simply broken there is a server side issue I belive is causing the random crashes

usually with cod what happens is the gpu driver crashes which crashes the game you can verify this with the event viewer
look for the driver crash in the system log then the game crash about .005s seconds later in the application log
the game is broken on nvidia has been since launch. I have friends with stock multiplier locked OEM systems with ryzen 5000 and nvida cards and it crashes ... a lot
it can't be trusted

you may want to set LLC to standardor medium as it can smooth out the voltage dip when the load rapidly changes between cores
I find AGESA 1.2.0.8 a bit more stable then 1.2.0.7 so if your board has a bios update a upgrade isn't a bad plan
I'm only using cod as the example as it's the only game I'm playing at the moment.

I've had WAY more crashes resulting in reboots than display driver fails, but I know that is due to system instability.

What is a "LLC"? Just checked and there is no bios update for my board yet.


izy

Joined
Jun 30, 2022
Messages
944 (1.27/day)
@Blaeza
Here you can find in CO in MSI BIOS, you should try using Positive Offset and see if it fixes your problem, you can try a +10 all core and if it works you can search for the core that maybe needs more voltage for AutoOC to work and just set CO per CORE after. I am using the CO from OC menu but seems you can find it in SETTINGS too.



EDIT: Or you can use PBO2 tuner from windows and test first then set it in the bios.

Last edited:

OneMoar

There is Always Moar
Joined
Apr 9, 2010
Messages
8,774 (1.68/day)
Location
Rochester area
System Name RPC MK2.5
Processor Ryzen 5800x
Motherboard Gigabyte Aorus Pro V2
Cooling Enermax ETX-T50RGB
Memory CL16 BL2K16G36C16U4RL 3600 1:1 micron e-die
Video Card(s) GIGABYTE RTX 3070 Ti GAMING OC
Storage ADATA SX8200PRO NVME 512GB, Intel 545s 500GBSSD, ADATA SU800 SSD, 3TB Spinner
Display(s) LG Ultra Gear 32 1440p 165hz Dell 1440p 75hz
Case Phanteks P300 /w 300A front panel conversion
Audio Device(s) onboard
Power Supply SeaSonic Focus+ Platinum 750W
Mouse Kone burst Pro
Keyboard EVGA Z15
Software Windows 11 +startisallback
figure out what cores or core's is unhappy and then decrease the ammount of negative offset on that core by 5 untill its stable
repeat for all cores

Joined
Feb 23, 2023
Messages
65 (0.13/day)
Processor Amd 5800x
Motherboard MSI MAG X570 TOMAHAWK WIFI Motherboard
Cooling Corsair h100i
Memory 32gb
Video Card(s) 3070ti
Storage Nve, SSD,
Display(s) 27 inch
Power Supply 850 watt
So if I want to run my 5800x as efficient as possible and the fastest and stable for gaming is it best to just run the ECO 95w setting? Or should that be tweaked further?


izy

Joined
Jun 30, 2022
Messages
944 (1.27/day)
So if I want to run my 5800x as efficient as possible and the fastest and stable for gaming is it best to just run the ECO 95w setting? Or should that be tweaked further?
Use Curve optimizer to undervolt and set lower values to PPT etc.

Joined
Feb 23, 2023
Messages
65 (0.13/day)
Processor Amd 5800x
Motherboard MSI MAG X570 TOMAHAWK WIFI Motherboard
Cooling Corsair h100i
Memory 32gb
Video Card(s) 3070ti
Storage Nve, SSD,
Display(s) 27 inch
Power Supply 850 watt
Use Curve optimizer to undervolt and set lower values to PPT etc.
Unfortunately CO causes stability issues..does setting lower PPT make the CPU work as efficient as possible? Meaning when Im just doing light duty stuff its not using CPU power much? Also what part of the PBO affects the temps of the cpu?


izy

Joined
Jun 30, 2022
Messages
944 (1.27/day)
Unfortunately CO causes stability issues..does setting lower PPT make the CPU work as efficient as possible? Meaning when Im just doing light duty stuff its not using CPU power much? Also what part of the PBO affects the temps of the cpu?
CO needs some work, you need figure out what - offset can each core handle.

TDP: Thermal Design Power
PPT: Package Power Tracking
EDC: Electrical De-sign Current

Setting this lower but not too low will restrict the CPU in all core loads and ofc your temps will be lower, you need to play with them and find what you like best. (you can search this thread as people tried different settings etc)

Joined
Oct 16, 2018
Messages
966 (0.46/day)
Location
Uttar Pradesh, India
Processor AMD R7 1700X @ 4100Mhz
Motherboard MSI B450M MORTAR MAX (MS-7B89)
Cooling Phanteks PH-TC14PE
Memory Crucial Technology 16GB DR (DDR4-3600) - C9BLM:045M:E BL16G36C16U4W.M16FE1 X2 @ CL14
Video Card(s) XFX RX480 GTR 8GB @ 1408Mhz (AMD Auto OC)
Storage Samsung SSD 850 EVO 250GB
Display(s) Acer KG271 1080p @ 81Hz
Power Supply SuperFlower Leadex II 750W 80+ Gold
Keyboard Redragon Devarajas RGB
Software Microsoft Windows 10 (10.0) Professional 64-bit
Benchmark Scores https://valid.x86.fr/mvvj3a
So if I want to run my 5800x as efficient as possible and the fastest and stable for gaming is it best to just run the ECO 95w setting? Or should that be tweaked further?
If you can run ECO 95W with -30 all core stable then that would be much more efficient than stock for a 5800X.

CINEBENCH_R23_CPU_Multi_Core_15771 2023.jpg

  • Like
Reactions: izy
Joined
Feb 23, 2023
Messages
65 (0.13/day)
Processor Amd 5800x
Motherboard MSI MAG X570 TOMAHAWK WIFI Motherboard
Cooling Corsair h100i
Memory 32gb
Video Card(s) 3070ti
Storage Nve, SSD,
Display(s) 27 inch
Power Supply 850 watt
Well isn't running 95w eco already much more efficient than stock settings? I just found the pc was unstable when messing with Co. It could pass all cinebench tests but would crash in certain games.

Top
