5800x (and other Zen 3 chips) PBO settings/Temperature fix

Joined
Feb 23, 2023
Messages
65 (0.13/day)
Processor Amd 5800x
Motherboard MSI MAG X570 TOMAHAWK WIFI Motherboard
Cooling Corsair h100i
Memory 32gb
Video Card(s) 3070ti
Storage Nve, SSD,
Display(s) 27 inch
Power Supply 850 watt
Water temperature is less spiky than the actual hardware temperature. Therefore it is better to use the water temp sensor for pump/fan control. The stock fan profile in the H100i is to aggressive for most, so it will cause annoying fan speed changes. Making a more boomerang shaped curve is usually a good thing. Then find a temperature above the normal spikes to set the steepest increase in fan speed.

If you want to keep your fans connected to the H100i you need to use the older Corsair software to set the fan curves. This profile is saved to the H100i directly, so there is no need to run the software constantly.

If you want to use the motherboard to control the fans, you have to unplug them from the H100i first, then connect them to the motherboard directly. Use CPU and CPU_OPT headers if you have both. Alternatively CPU header with a splitter. Then your fans will follow the fan curve set in the bios.

The pump rpm output from the H100i should be connected to the CPU header on the motherboard if you keep your fans connected to the H100i, so that the motherboard can warn you if the pump is not running. If you move the fans to the motherboard instead, you should move this back to the AIO pump header.
I'm not using the stock profile. I've created my own. What is the correct way to have all of this hooked up lol

Joined
Dec 5, 2019
Messages
79 (0.05/day)
I think all you need is to use AVX2 Extreme, that did the job for me.
I think corecycler is still much harder for each core thus better at detection right? Has anyone experienced a system where the former was stable but OCCT was reporting errors?


izy

Joined
Jun 30, 2022
Messages
944 (1.27/day)
I think corecycler is still much harder for each core thus better at detection right? Has anyone experienced a system where the former was stable but OCCT was reporting errors?
I am using corecycler first then im going to OCCT when OC-ing, i feel that corecycler is better for Curve Optimizer testing and OCCT for FLCK OC testing.

Joined
Dec 5, 2019
Messages
79 (0.05/day)
I am using corecycler first then im going to OCCT when OC-ing, i feel that corecycler is better for Curve Optimizer testing and OCCT for FLCK OC testing.
Ok thanks, makes sense as OCCT puts load on all cores thus heating the chip a lot more

Joined
Feb 23, 2023
Messages
65 (0.13/day)
Processor Amd 5800x
Motherboard MSI MAG X570 TOMAHAWK WIFI Motherboard
Cooling Corsair h100i
Memory 32gb
Video Card(s) 3070ti
Storage Nve, SSD,
Display(s) 27 inch
Power Supply 850 watt
So using amd own ryzen master is not enough to test the cores for the curve op?


izy

Joined
Jun 30, 2022
Messages
944 (1.27/day)
So using amd own ryzen master is not enough to test the cores for the curve op?
From my own experience i would say no , at least not when you have AutoOc / PBO enabled, RM can give u somehow stable values but they are not error free, i mean my CPU can do -30 on all cores ( it think RM gives me a -29 -30 on the cores) and works OK without noticing anything wrong, even in Cinebench and stuff but testing with OCCT / CC i get errors so i have to relax the curve on some cores.

Last edited:
Joined
Feb 23, 2023
Messages
65 (0.13/day)
Processor Amd 5800x
Motherboard MSI MAG X570 TOMAHAWK WIFI Motherboard
Cooling Corsair h100i
Memory 32gb
Video Card(s) 3070ti
Storage Nve, SSD,
Display(s) 27 inch
Power Supply 850 watt
From my own experience i would say no , at least not when you have AutoOc / PBO enabled, RM can give u somehow stable values but they are not error free, i mean my CPU can do -30 on all cores ( it think RM gives me a -29 -30 on the cores) and works OK without noticing anything wrong, even in Cinebench and stuff but testing with OCCT / CC i get errors so i have to relax the curve on some cores.
Doesnt RM also change your PBO values or just Curve OP? I think after running the CO tests it changed my PBO settings from what I had manually input. RM majority cores are at -24 with the 2 others being 16 and 17. It also set my PPT to 120, TDC 75 and EDC 110. Should I change any of this or its good to go?

Joined
Feb 23, 2023
Messages
65 (0.13/day)
Processor Amd 5800x
Motherboard MSI MAG X570 TOMAHAWK WIFI Motherboard
Cooling Corsair h100i
Memory 32gb
Video Card(s) 3070ti
Storage Nve, SSD,
Display(s) 27 inch
Power Supply 850 watt
Bump anyone alive in here!?? So you can't tell corsair software to use the h100i temps bc those never really change much... They normally stay in the 30*c range.. So my question is what in the corsair software should be probing the temps of the cpu if you look above in the picture I posted it only gives me the option of MB temp#1-7, gpu temp, and again the useless h100i temp that never changes. I've also noticed that corsair software over exaggerate temps as well when compared to Ryzen master and also hwinfo64. When corsair software sees cores at 40, hw is seeing them at 34...So this could also be causing the random speed up of the fans bc it's reading temps at higher levels than the other two softwares. Also I seem to have figured out that the MB 1-7 values are actually the 1-7 cores lol so if you choose a core that normally runs hotter than the other cores the fans will ramp up much more... This corsair software is stupid. You should be able to just choose an average of the 8 cores temps and not have to choose the temps of one of the cores for the fans to go by.. This is def the problem that is going on with fans ramping up.. Is there any fix for this?!?

Last edited:
Joined
Apr 30, 2011
Messages
2,659 (0.55/day)
Location
Greece
Processor AMD Ryzen 5 5600@80W
Motherboard MSI B550 Tomahawk
Cooling ZALMAN CNPS9X OPTIMA
Memory 2*8GB PATRIOT PVS416G400C9K@3733MT_C16
Video Card(s) Sapphire Radeon RX 6750 XT Pulse 12GB
Storage Sandisk SSD 128GB, Kingston A2000 NVMe 1TB, Samsung F1 1TB, WD Black 10TB
Display(s) AOC 27G2U/BK IPS 144Hz
Case SHARKOON M25-W 7.1 BLACK
Audio Device(s) Realtek 7.1 onboard
Power Supply Seasonic Core GC 500W
Mouse Sharkoon SHARK Force Black
Keyboard Trust GXT280
Software Win 7 Ultimate 64bit/Win 10 pro 64bit/Manjaro Linux
So using amd own ryzen master is not enough to test the cores for the curve op?
You just need to lower the offset a tiny bit from the one the RM shows. I put -20 instead of -22 and -23 for -25. In my experience that is proven stable even with +150MHz boost increase. In your case with the figures you posted in the post previously to the last one, I would go for -22 instead of -24 and -15 insted of -16 and -17. Also your choice to lower the PPT to 120 will helps temps and stability even more. I would leave the TDC and EDC to the preset settings though to allow max boost clocks when the power limit isn't reached.

Joined
Feb 23, 2023
Messages
65 (0.13/day)
Processor Amd 5800x
Motherboard MSI MAG X570 TOMAHAWK WIFI Motherboard
Cooling Corsair h100i
Memory 32gb
Video Card(s) 3070ti
Storage Nve, SSD,
Display(s) 27 inch
Power Supply 850 watt
Corsair software can't use the h100i temps bc those never really change much they stay in the 30*c range.. So my question is what in the corsair software should be probing the temps of the cpu if you look above in the picture I posted it only gives me the option of MB temp#1-7, gpu temp, and again the useless h100i temp that never changes. I've also noticed that corsair software over exaggerate temps as well when compared to Ryzen master and also hwinfo64. When corsair software sees cores at 40, hw is seeing them at 34...So this could also be causing the random speed up of the fans bc it's reading temps at higher levels than the other two softwares. It seem that the MB 1-7 values are actually the 1-7 cores lol so if you choose a core that normally runs hotter than the other cores the fans will ramp up much more... It's dumb corsair chooses to use a temp of one of the 8 cores instead of an average of all 8.... I decided to choose the core that had an average temp of all 8 together. Is there any fix for this?!?

Joined
Feb 23, 2023
Messages
65 (0.13/day)
Processor Amd 5800x
Motherboard MSI MAG X570 TOMAHAWK WIFI Motherboard
Cooling Corsair h100i
Memory 32gb
Video Card(s) 3070ti
Storage Nve, SSD,
Display(s) 27 inch
Power Supply 850 watt
Bump arooski any one alive in these forums!??!?


AMF

Joined
Apr 28, 2021
Messages
664 (0.57/day)
Location
USA
System Name MR T System price 2280$
Processor Ryzen 9 3900x 325 $4.7Ghz boost pbo +50 +50 enhance - offset auto voltage -.1875 offset soc
Motherboard ROG STRIX X570-E Gaming 125 $ open box
Cooling 280mm ARCTIC FREEZER II idle temps 25c cpu 28c cpu diode 20c vrm 25c motherboard b stock 60$
Memory 2x 16GB Dual rank G Skill Trident Z Neo F4-3600C16-16GTZNC @3800 1.395v 16-19-16-20-38-58-1T $96
Video Card(s) Asrock RX 6950XT Oc formula Oc edition 705$ 2700 2800 boost 1090v 2376mhz mem 19GB/s
Storage 500 GB WD SN850 PCI-E 4.0x4 85$ pcie16x4
Display(s) V505-J09 Vizio 4k HDR 299$ oc 5hz
Case Cougar Panzer Max G Full Tower Tempered Glass 150$
Audio Device(s) TV junk ewww
Power Supply Seasonic SS-1250XM2 Bought in 2013 350$ 11 y/o hasnt lost any voltage or watts
Mouse Logitech ERGO Trackball 35$
Keyboard Corsair K57 50$
VR HMD Dont give a damn about vr
Software win 11 pro modded by me no ai no remote connections free hehe
Benchmark Scores 8188 multi 540 single cinebench r20
try 199 ppt 150 tdc 150 edc soc 1.118v cpu voltage to offset auto option with +

Joined
Feb 23, 2023
Messages
65 (0.13/day)
Processor Amd 5800x
Motherboard MSI MAG X570 TOMAHAWK WIFI Motherboard
Cooling Corsair h100i
Memory 32gb
Video Card(s) 3070ti
Storage Nve, SSD,
Display(s) 27 inch
Power Supply 850 watt
try 199 ppt 150 tdc 150 edc soc 1.118v cpu voltage to offset auto option with +
That sounds way too high...lol

Joined
Jun 3, 2012
Messages
1,905 (0.43/day)
Location
Denmark
Processor ryzen 7 5700x3d
Motherboard MSI B550 a-pro
Cooling Thermalright peerlees assassin 120 black
Memory G.Skill Ripjaws V DDR4-4000 - 32GB - CL18 (3733 mhz cl 16)
Video Card(s) ASUS Dual GeForce RTX 4070 EVO
Storage 1x2tb KC3000 & 2tb samsung 970 evo plus, 2 x 2 tb external usb harddrives
Display(s) LG 32GP850, IIyama G2470HSU-B1
Case Corsair 5000D airflow tg
Audio Device(s) Mission 778X Triangle Esprit Titus Ez
Power Supply Corsair RM850X White
Mouse Logitech G PRO Superlight
Keyboard Corsair K70 RGB TKL Champion
Software Windows 11 64 bit, Free bitdefender
try 199 ppt 150 tdc 150 edc soc 1.118v cpu voltage to offset auto option with +

Way to high, wouldn't make a possitive effect

It's not like i don't get the performance i should

2023-04-05 14_47_32-Corsair H60x RGB ELITE - CPU Vandkøling - Max 28 dBA _ På lager – Google C...png

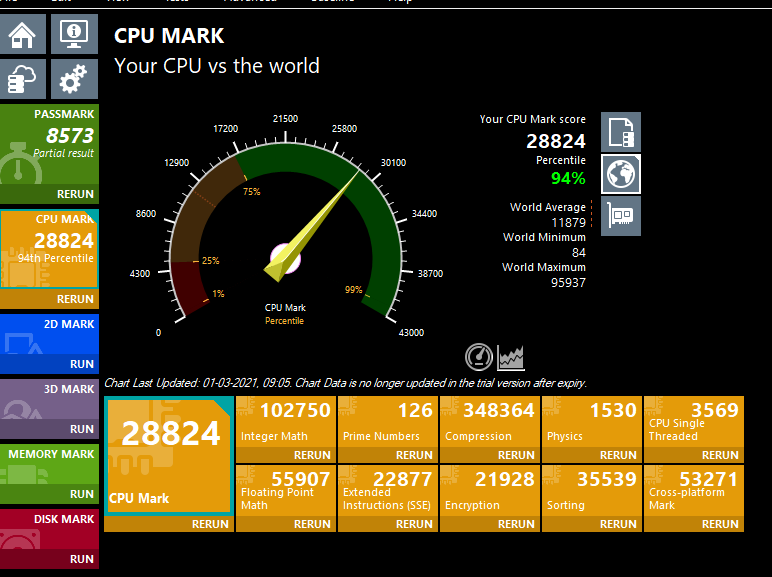

2023-04-05 14_52_29-PerformanceTest 10.1 Evaluation Version.png


2023-04-05 14_54_05-PassMark - AMD Ryzen 7 5800X - Price performance comparison – Google Chrome.png

Last edited:
Joined
Feb 23, 2023
Messages
65 (0.13/day)
Processor Amd 5800x
Motherboard MSI MAG X570 TOMAHAWK WIFI Motherboard
Cooling Corsair h100i
Memory 32gb
Video Card(s) 3070ti
Storage Nve, SSD,
Display(s) 27 inch
Power Supply 850 watt
Joined
Jun 3, 2012
Messages
1,905 (0.43/day)
Location
Denmark
Processor ryzen 7 5700x3d
Motherboard MSI B550 a-pro
Cooling Thermalright peerlees assassin 120 black
Memory G.Skill Ripjaws V DDR4-4000 - 32GB - CL18 (3733 mhz cl 16)
Video Card(s) ASUS Dual GeForce RTX 4070 EVO
Storage 1x2tb KC3000 & 2tb samsung 970 evo plus, 2 x 2 tb external usb harddrives
Display(s) LG 32GP850, IIyama G2470HSU-B1
Case Corsair 5000D airflow tg
Audio Device(s) Mission 778X Triangle Esprit Titus Ez
Power Supply Corsair RM850X White
Mouse Logitech G PRO Superlight
Keyboard Corsair K70 RGB TKL Champion
Software Windows 11 64 bit, Free bitdefender
What does lowering ppt do and highering edc? My ppt 120 is edc 110??


2023-04-05 19_35_15-Explaining AMD Ryzen Precision Boost Overdrive (PBO), AutoOC, & Benchmarks...png

Joined
Feb 23, 2023
Messages
65 (0.13/day)
Processor Amd 5800x
Motherboard MSI MAG X570 TOMAHAWK WIFI Motherboard
Cooling Corsair h100i
Memory 32gb
Video Card(s) 3070ti
Storage Nve, SSD,
Display(s) 27 inch
Power Supply 850 watt

View attachment 290425
Is there an app that can test your cpu to create the best PPT and EDC for it kind of like using the master ryzen to get the best Curve op settings?

Joined
Jun 3, 2012
Messages
1,905 (0.43/day)
Location
Denmark
Processor ryzen 7 5700x3d
Motherboard MSI B550 a-pro
Cooling Thermalright peerlees assassin 120 black
Memory G.Skill Ripjaws V DDR4-4000 - 32GB - CL18 (3733 mhz cl 16)
Video Card(s) ASUS Dual GeForce RTX 4070 EVO
Storage 1x2tb KC3000 & 2tb samsung 970 evo plus, 2 x 2 tb external usb harddrives
Display(s) LG 32GP850, IIyama G2470HSU-B1
Case Corsair 5000D airflow tg
Audio Device(s) Mission 778X Triangle Esprit Titus Ez
Power Supply Corsair RM850X White
Mouse Logitech G PRO Superlight
Keyboard Corsair K70 RGB TKL Champion
Software Windows 11 64 bit, Free bitdefender
I don't think so, like oc you have to find it yourself


izy

Joined
Jun 30, 2022
Messages
944 (1.27/day)
Is there an app that can test your cpu to create the best PPT and EDC for it kind of like using the master ryzen to get the best Curve op settings?
Just start from 142/105/105 and go lower till you are comfortable with temps/performance.

Joined
Feb 23, 2023
Messages
65 (0.13/day)
Processor Amd 5800x
Motherboard MSI MAG X570 TOMAHAWK WIFI Motherboard
Cooling Corsair h100i
Memory 32gb
Video Card(s) 3070ti
Storage Nve, SSD,
Display(s) 27 inch
Power Supply 850 watt
Im at 120 PPT and 110 EDC so Im mostly over your starting points lol


izy

Joined
Jun 30, 2022
Messages
944 (1.27/day)
Im at 120 PPT and 110 EDC so Im mostly over your starting points lol
Well you want to find the line where your cooling does not keep up and makes the CPU throttle , if you are going too low you will have to compromise ST with MT performance and i wouldnt compromise the ST, you will need to find the lowest values that doesnt affect performance (keeps the CPU lowest temps possible for that performance with the cooling you got) or if you prefer lower temps on the CPU find the values that you feel comfortable with for the performance / temps.

Joined
Feb 23, 2023
Messages
65 (0.13/day)
Processor Amd 5800x
Motherboard MSI MAG X570 TOMAHAWK WIFI Motherboard
Cooling Corsair h100i
Memory 32gb
Video Card(s) 3070ti
Storage Nve, SSD,
Display(s) 27 inch
Power Supply 850 watt
Well you want to find the line where your cooling does not keep up and makes the CPU throttle , if you are going too low you will have to compromise ST with MT performance and i wouldnt compromise the ST, you will need to find the lowest values that doesnt affect performance (keeps the CPU lowest temps possible for that performance with the cooling you got) or if you prefer lower temps on the CPU find the values that you feel comfortable with for the performance / temps.
I thought ppt and edc don't affect temps but tdc?


freeagent

Moderator
Staff member
Joined
Sep 16, 2018
Messages
7,940 (3.73/day)
Location
Winnipeg, Canada
Processor AMD R9 5900X
Motherboard Asus Crosshair VIII Dark Hero
Cooling Thermalright Aqua Elite 360 V3 1x TL-B12, 2x TL-C12 Pro, 2x TL K12
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200 C14
Video Card(s) Zotac 4070 Ti Trinity OC
Storage WD SN850 1TB, SN850X 2TB, Asus Hyper M.2, 2x SN770 1TB
Display(s) LG 50UP7100
Case Fractal Torrent Compact RGB
Audio Device(s) JBL 2.1 Deep Bass
Power Supply Seasonic Vertex GX-1000, Monster HDP1800
Mouse Logitech G502 Hero
Keyboard Logitech G213
VR HMD Oculus 3
Software Yes
Benchmark Scores Yes
PPT and EDC for sure, not sure about TDC though.. I don't think so..

Joined
Feb 20, 2022
Messages
20 (0.02/day)
Location
Germany
System Name sadness
Processor 5800x 4.4 1.2V
Motherboard MSI B450M Mortar Max
Cooling NZXT Kraken V53
Memory 2x 8GB G.SKILL TridentZ 3200 not B-Die
Video Card(s) Zotac RTX 2070 Mini 2050MHz OC
Storage 1x Samsung 970 Evo Plus 2x Seagate 2TB HDD 7200RPM
Display(s) 1x BENQ 60hz 1x 144hz AOC C24G1
Case idk some rando Corsair one
Audio Device(s) DT 770 Pro 250Ohm on Fiio DAC
Power Supply China-D Boeller
Mouse Glorious Model D White
Keyboard custom built
Hmm how about 120 75 105.
Or should i just leave it on auto at this point with -15 corecycler

Joined
Jun 3, 2012
Messages
1,905 (0.43/day)
Location
Denmark
Processor ryzen 7 5700x3d
Motherboard MSI B550 a-pro
Cooling Thermalright peerlees assassin 120 black
Memory G.Skill Ripjaws V DDR4-4000 - 32GB - CL18 (3733 mhz cl 16)
Video Card(s) ASUS Dual GeForce RTX 4070 EVO
Storage 1x2tb KC3000 & 2tb samsung 970 evo plus, 2 x 2 tb external usb harddrives
Display(s) LG 32GP850, IIyama G2470HSU-B1
Case Corsair 5000D airflow tg
Audio Device(s) Mission 778X Triangle Esprit Titus Ez
Power Supply Corsair RM850X White
Mouse Logitech G PRO Superlight
Keyboard Corsair K70 RGB TKL Champion
Software Windows 11 64 bit, Free bitdefender
corecycler ?

Top
