AeroCool Intros Cylon 3H Top-Flow CPU Cooler

btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
43,241 (7.97/day)
Location
Hyderabad, India
System Name RBMK-1000
Processor AMD Ryzen 7 5700G
Motherboard ASUS ROG Strix B450-E Gaming
Cooling DeepCool Gammax L240 V2
Memory 2x 8GB G.Skill Sniper X
Video Card(s) Palit GeForce RTX 2080 SUPER GameRock
Storage Western Digital Black NVMe 512GB
Display(s) BenQ 1440p 60 Hz 27-inch
Case Corsair Carbide 100R
Audio Device(s) ASUS SupremeFX S1220A
Power Supply Cooler Master MWE Gold 650W
Mouse ASUS ROG Strix Impact
Keyboard Gamdias Hermes E2
Software Windows 11 Pro

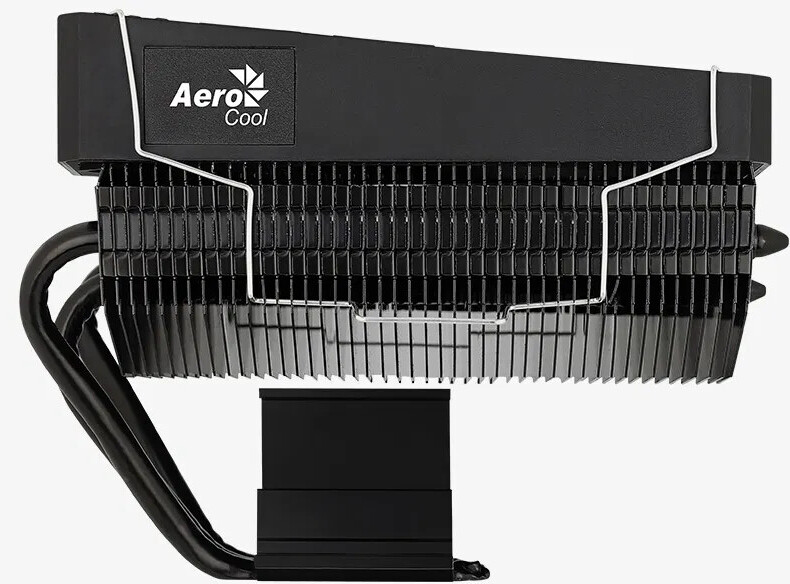

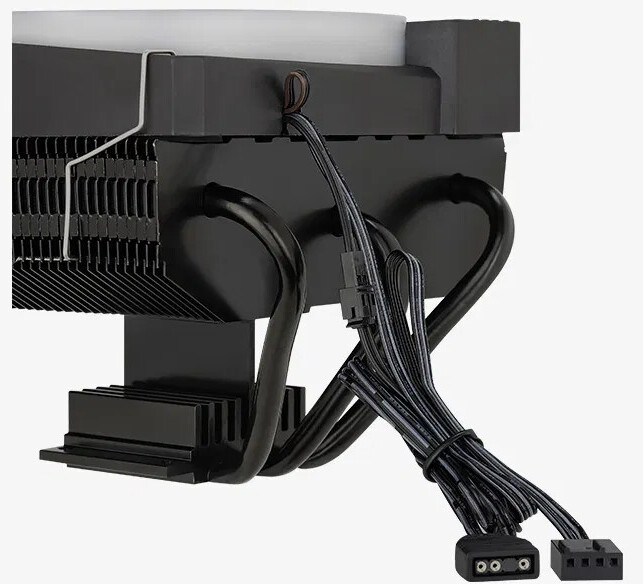

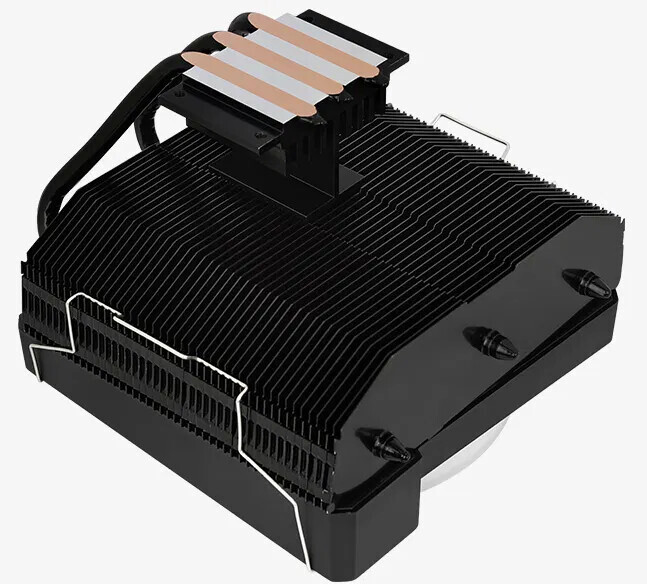

AeroCool today introduced the Cylon 3H, a top-flow CPU cooler. The cooler features a "C-type" aluminium fin-stack design. Three 6 mm-thick copper heat pipes make direct contact with the CPU at the base, conveying heat through an aluminium fin-stack that's arranged along the plane of the motherboard, and ventilated by a 120 mm fan. This fan features an addressable RGB illumination through a silicone diffuser around the bore of the impeller. AeroCool claims that the cooler can handle thermal loads of up to 125 W.

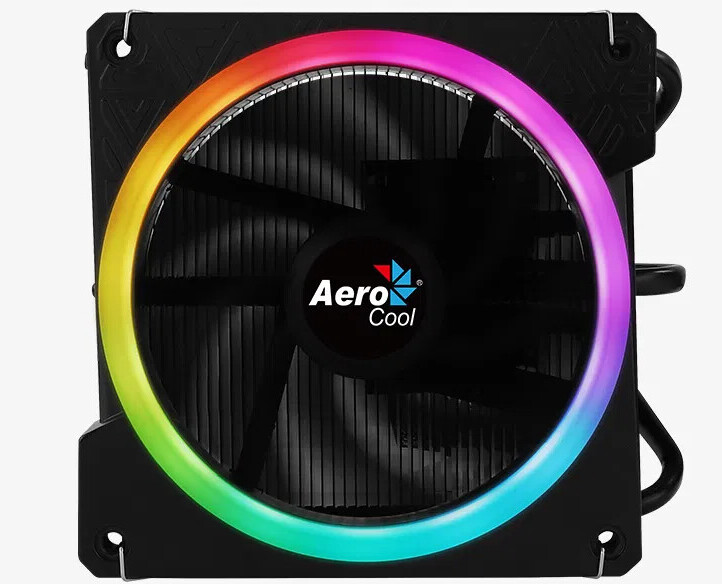

The included 120 mm fan of the Cylon 3H features a 60,000-hour rated hydraulic bearing, takes in 4-pin PWM for its main function, and 3-pin ARGB for the illumination, turns between 600 to 1,800 RPM; pushing up to 60.8 CFM of air-flow at 1.48 mm H₂O static pressure, at up to 24.3 dBA noise output. With its fan in place, the cooler measures 126 mm x 138 mm x 98 mm (WxDxH). Among the CPU socket types supported are AM4, LGA1200, and LGA115x. The company didn't reveal pricing.



View at TechPowerUp Main Site


Mussels

Freshwater Moderator
Staff member
Joined
Oct 6, 2004
Messages
54,493 (8.36/day)
Location
Oystralia
System Name Rainbow Sparkles (Power efficient, <350W gaming load)
Processor Ryzen R7 5800X (PBO tweaked, 4.4-5.05GHz)
Motherboard Asus x570 Gaming-F
Cooling Alphacool Apex UV - EK Quantum Velocity AM4 + EK Quantum ARGB 3090 w/ active backplate
Memory 2x32GB DDR4 3600 Corsair Vengeance RGB @3800 C18-22-22-22-42 TRFC704 (1.4V, SoC 1.15V Hynix MJR)
Video Card(s) Galax RTX 3090 SG 24GB: Underclocked to either 1500Mhz 0.737v | 1700Mhz 0.75v | 1900Mhz 0.9v
Storage 2TB WD SN850 NVME + 1TB Sasmsung 970 Pro NVME + WD AN1500 1TB + 1TB Intel 6000P NVME USB 3.2
Display(s) Kogan 32" 4K 72Hz + Gigabyte G32QC (1440p 165Hz) + Phillips 328m6fjrmb (1440p 144Hz)
Case Fractal Design R6
Audio Device(s) Logitech G560 | Corsair Void pro RGB |Blue Yeti mic
Power Supply Fractal Ion+ 2 860W (Platinum) (This thing is God-tier. Silent and TINY)
Mouse Logitech G Pro wireless + Steelseries Prisma XL
Keyboard Razer Huntsman TE (custom white and steel keycaps)
VR HMD Oculus Rift S
Software Windows 11 pro x64 (Yes, it's genuinely a good OS)
Benchmark Scores I don't quite know how i managed to get such a top tier PC, I am not rich.
Looks like a good wraith prism replacement

Joined
Apr 26, 2008
Messages
221 (0.04/day)
System Name 3950X Workstation
Processor AMD Ryzen 9 3950X
Motherboard ASUS Crosshair VIII Impact
Cooling Cryorig C1 with Noctua NF-A12x15
Memory G.Skill F4-3600C16D-32GTZNC
Video Card(s) ASUS GTX 1650 LP OC
Storage 2 x Corsair MP510 1920GB M.2 SSD
Case Realan E-i7
Power Supply G-Unique 400W
Software Win 10 Pro
Benchmark Scores https://smallformfactor.net/forum/threads/the-saga-of-the-little-gem-continues.12877/
It's missing a heatpipe or two to be significantly better than AMD stock coolers.


Mussels

Freshwater Moderator
Staff member
Joined
Oct 6, 2004
Messages
54,493 (8.36/day)
Location
Oystralia
System Name Rainbow Sparkles (Power efficient, <350W gaming load)
Processor Ryzen R7 5800X (PBO tweaked, 4.4-5.05GHz)
Motherboard Asus x570 Gaming-F
Cooling Alphacool Apex UV - EK Quantum Velocity AM4 + EK Quantum ARGB 3090 w/ active backplate
Memory 2x32GB DDR4 3600 Corsair Vengeance RGB @3800 C18-22-22-22-42 TRFC704 (1.4V, SoC 1.15V Hynix MJR)
Video Card(s) Galax RTX 3090 SG 24GB: Underclocked to either 1500Mhz 0.737v | 1700Mhz 0.75v | 1900Mhz 0.9v
Storage 2TB WD SN850 NVME + 1TB Sasmsung 970 Pro NVME + WD AN1500 1TB + 1TB Intel 6000P NVME USB 3.2
Display(s) Kogan 32" 4K 72Hz + Gigabyte G32QC (1440p 165Hz) + Phillips 328m6fjrmb (1440p 144Hz)
Case Fractal Design R6
Audio Device(s) Logitech G560 | Corsair Void pro RGB |Blue Yeti mic
Power Supply Fractal Ion+ 2 860W (Platinum) (This thing is God-tier. Silent and TINY)
Mouse Logitech G Pro wireless + Steelseries Prisma XL
Keyboard Razer Huntsman TE (custom white and steel keycaps)
VR HMD Oculus Rift S
Software Windows 11 pro x64 (Yes, it's genuinely a good OS)
Benchmark Scores I don't quite know how i managed to get such a top tier PC, I am not rich.
It's missing a heatpipe or two to be significantly better than AMD stock coolers.
as long as its not a hurricane like the prism on 65w+ chips...

Joined
Jul 16, 2014
Messages
7,232 (2.45/day)
Location
SE Michigan
System Name Dumbass
Processor AMD FX-9370
Motherboard ASUS SABERTOOTH 990FX R2.0 +SB950
Cooling Artic Liquid Freezer 2 - 420mm
Memory G.Skill Sniper 16gb DDR3 2400
Video Card(s) GreenTeam 1080 Gaming X 8GB
Storage Samsung EVO 500gb & 1Tb, 2tb HDD
Display(s) 1x Nixeus NX_EDG27, 2x Dell S2440L (16:9)
Case Phanteks Enthoo Primo w/8 140mm SP Fans
Audio Device(s) onboard (realtek?) - SPKRS:Logitech Z623 200w 2.1
Power Supply Corsair HX1000i
Mouse Logitech G604
Keyboard Logitech G910 Orion Spark
Software windows 10
Benchmark Scores https://i.imgur.com/aoz3vWY.jpg?2
looks like a fun time mounting that when you have 2 left thumbs

Joined
Jan 28, 2012
Messages
454 (0.12/day)
Location
Lithuania
Processor Intel Core i5 4670K @ 4.8 GHz
Motherboard AsRock Z87 Extreme 4
Cooling Lepa NeoIllusion RGB CPU cooler
Memory 2*4GB Patriot G2 Series RAM
Video Card(s) MSI Radeon R9 380 4GB
Storage Transcend SSD 740 256GB + WD Caviar Blue 1TB
Display(s) Samsung SA 300 24" Full HD
Case NZXT Phantom 530 + Bitfenix Recon fan controller
Audio Device(s) Creative SB0770 X-Fi Xtreme Gamer
Power Supply PC Power and Cooling Silencer MkIII 750W 80+ Gold
Mouse Logitech G502
Keyboard Steelseries Apex RAW
Benchmark Scores IT WORKS


They even didn't try to use protoshop to put their logo on the fan. Definately it was paint...

Joined
Sep 3, 2017
Messages
238 (0.13/day)
Location
Russia
Processor FX 8320 @4.2 | i7 2600 @3.8 | Xeon W3670 @ 3.6
Motherboard Asus Sabertooth R2.0 | Asus P8Z77-V Deluxe | Gigabyte X58-UD7
Cooling Zalman Performa 10+ | Zalman Performa 11+ | Zalman Performa 10+
Memory Crucial Ballistix Sport XT 32GB @ 1866 | Corsair Vengeance 32GB @1866 | Samsung 24GB @ 1600
Video Card(s) XFX Radeon 390x | Zotac GTX 1070 AMP Extreme | Zotac GTX 980 AMP Extreme
Storage Intel SSD / SAS 15k Fujitsu | Intel SSD / Velociraptors / Hitachi 2TB | Intel SSD / Samsung 1TB
Display(s) Samsung 245T | HP ZR30w | IBM 20" 4x3
Case Chieftec | Corsair Graphite 600T | Thermaltake Xaser IV
Audio Device(s) SB Titanium HD | SB Titanium HD | SB X-fi Elite Pro
Power Supply Thermaltake 875W | Corsair 850W | Thermaltake 1500W
Mouse Logitech | Logitech | Logitech
Keyboard Mitsumi Classic | Microsoft |Microsoft
Software W7 x64 | W7 x64 |W7 x64 / XP x32
"... top-flow ...Three 6 mm heat pipes ... up to 125 W"
no way, as i remember experience with TT BigTyphoon was barely enough for 95W and it also directs hot air towards VRM

Joined
Aug 3, 2011
Messages
307 (0.08/day)
Processor Ryzen 2700X
Motherboard Asrock X470 Master sli/ac
Cooling Raijintek Themis Evo
Memory Team Dark Pro 3200 cl14
Video Card(s) GTX 1080
Power Supply Seasonic Focus Gold Plus 850W
"... top-flow ...Three 6 mm heat pipes ... up to 125 W"
no way, as i remember experience with TT BigTyphoon was barely enough for 95W and it also directs hot air towards VRM
Big Typhoon also has 6 pipes.

Joined
Sep 24, 2020
Messages
227 (0.33/day)
Location
Stehekin, Washington
System Name (2008) Dell XPS 730x H2C
Processor Intel Extreme QX9770 @ 3.8GHz (No OC)
Motherboard Dell LGA 775 (Dell Propiatary)
Cooling Dell AIO Ceramic Water Cooling (Dell Propiatary)
Memory Corsair Dominator Platinum 16GB (4 x 4) DDR3
Video Card(s) EVGA GTX 980ti 6GB (2016 ebay-used)
Storage (2) WD 1TB Velociraptor & (1) WD 2TB Black
Display(s) Alienware 34" AW3420DW (Amazon Warehouse)
Case Stock Dell 730x with "X" Side Panel (65 pounds fully decked out)
Audio Device(s) Creative X-FI Titanium & Corsair SP2500 Speakers
Power Supply PSU: 1000 Watt (Dell Propiatary)
Mouse Alienware AW610M (Amazon Warehouse)
Keyboard Corsair K95 XT (Amazon Warehouse)
Software Windows 7 Ultimate & Alienware FX Lighting
Benchmark Scores No Benchmarking & Overclocking
Big Typhoon...
Looks like a newer version or copy of the " be quite Shadow Rock TF series." But nothing like the great engineering from the Germans in Hamburg. I have had great results with the 'be quite Dark Rock TF' and still running it instead of a AIO. Hard to install though. No RAM issues.

Joined
Oct 22, 2014
Messages
13,209 (4.63/day)
Location
Sunshine Coast
System Name Black Box
Processor Intel Xeon E3-1260L v5
Motherboard MSI E3 KRAIT Gaming v5
Cooling Tt tower + 120mm Tt fan
Memory G.Skill 16GB 3600 C18
Video Card(s) Asus GTX 970 Mini
Storage Kingston A2000 512Gb NVME
Display(s) AOC 24" Freesync 1m.s. 75Hz
Case Corsair 450D High Air Flow.
Audio Device(s) No need.
Power Supply FSP Aurum 650W
Mouse Yes
Keyboard Of course
Software W10 Pro 64 bit
This looks totally useless.
With the fan's housing tapered, why not angle the fan also?
