Air cooler for Ryzen 5800X

Joined
May 19, 2015
Messages
47 (0.02/day)
Location
Ukraine
Hello there, I'm thinking of buying a 5800X CPU, but I will need a cooler for it.
Everybody knows that coolers have troubles dealing with Ryzen 3000 & 5000 since those processors' cores are really small and they manage to get red-hot faster than they manage to pass the heat to the cooler. Moreover, they're located in a specific way which also makes them harder to cool.
I can buy a Noctua NH-D15, but is it worth it when it comes to cooling a 7 nm processor? I mean, it's not as efficient with it as it is with 14 nm processors because of the cores size.

I don't plan to manually overclock my CPU, but if my CPU cooler is able to also manage something like a 5900X - it will be a pleasant bonus, but it's not a must, especially if my CPU cooler won't be expensive. But again - I can spend the price of a Noctua NH-D15 if it's absolutely worth it.

So please help me choose. Thank you for your time.

Joined
Aug 15, 2016
Messages
287 (0.17/day)
Processor Intel i7 4770k @ 4.5 GHz 1.294V
Motherboard ASUS Sabertooth Z87
Cooling Corsair H100i
Memory Patriot Viper 3 RedD 16 GB @ 1866 MHz
Video Card(s) XFX RX 480 GTR 8GB
Storage 1x SSD Samsung EVO 250 GB 1x HDD Seagate Barracuda 3 TB 1x HDD Seagate Barracuda 4 TB
Display(s) AOC Q27G2U QHD, Dell S2415H FHD
Case Cooler Master HAF XM
Audio Device(s) Magnat LZR 980, Razer BlackShark V2, Altec Lansing 251
Power Supply Corsair AX860
Mouse Razer DeathAdder V2
Keyboard Razer Huntsman Tournament Edition
Software Windows 10 Pro x64
Have you considered Arctic Freezer II 240 mm AIO? It costs the same but it's going to do a better job at cooling, it also performs better than most of other AIOs at same sizes. I found it for $100 on Amazon, same as NH-D15. You have to be careful about fitment though, it probably has the thickest radiator of all AIOs (38 mm thick). I'd suggest an AIO over air cooling for 5800X because of its 105W TDP. Also pretty sure it can keep 5900X cool as well.

Joined
Jan 8, 2020
Messages
787 (1.58/day)
Location
Maryland, USA
Processor Ryzen 5 2600
Motherboard MSI B450 Gaming Pro Carbon AC
Cooling CPU: bequiet! Dark Rock 4. Case fans: 2x bequiet Silent Wings 3 140s, 2x Silent Wings 3 120s
Memory 2 x 8 GB Corsair Vengeance LPX DDR4-3000 C15
Video Card(s) Sapphire NITRO+ RX 5700 XT
Storage 500 GB Samsung 860 Evo, 1 TB WD Blue 3D M.2, 1 TB Inland Professional
Display(s) MSI Optix MAG271CQR 1440p 144Hz, MSI Optix MAG241C 1080p 144Hz
Case Fractal Design Meshify C Black
Audio Device(s) Philips SHP9500 + V-Moda BoomPro
Power Supply EVGA SuperNOVA G3 80+ Gold 750W
Mouse Razer Mamba Wireless
Keyboard CoolerMaster Masterkeys Pro S - Cherry MX Browns
What is worth it for you can't be decided by us. You could spend less money and get something not as good as the NH-D15, but it might come at the cost of higher thermals and noise levels. What are you using the system for? If it's workstation-focused and you're planning on hammering it with sustained multicore workloads all the time, than opting for a more expensive cooler is probably the way to go. If you're just building a gaming rig, you could probably get away with something a little more budget-friendly since you're likely not putting as much load on the CPU. It's worth noting that AMD's boost algorithms take advantage of cooler temperatures. The cooler your CPU is, the higher it will try and push the frequency.

I agree with Night. The Arctic Liquid Freezer line is a great bang for the buck option when compared to other AIOs. In terms of pure cooling potential, an AIO takes longer to reach steady state and keeps temperatures lower than air coolers. However, that tends to come at the cost of greater potential for failure (leak, fluid evaporation, air in the pump, etc.), whereas with air coolers, all you really have to worry about is the fan failing, which is easily replaceable for a lot less money.

We don't know what case you have, what your motherboard clearances look like, how tall your RAM is, etc., so it's difficult to make a recommendation.

Fill out your system specs here to make everyone's life a little easier: https://www.techpowerup.com/forums/account/specs

Joined
Dec 16, 2012
Messages
348 (0.11/day)
Processor AMD Ryzen R7 5800x
Motherboard B550i Aorus Pro AX
Cooling ID-Cooling SE234
Memory 32Gb Patriot Viper 3600 RGB
Video Card(s) MSI RTX 3080 Ventus Trio OC
Storage Samsung 960 EVO
Display(s) Specterpro 34uw100
Case Cooler Master NR200P
Power Supply Cooler Master V750 Gold SFX
VR HMD Rift S
Software Windows 10 64bit
I'm using the 5800x and an ID-Cooling SE234 and it gets to 90C at auto. By default, these processors really like to be cool and boost until they get to 90C then throttle the clocks from there. I just fiddled with Curve Optimizer and the PPT/EDC to make it decent.

I cant compare it to an AIO since I cant fit one in my case but I guess it will be heaps better.

Joined
Jan 27, 2006
Messages
1,126 (0.20/day)

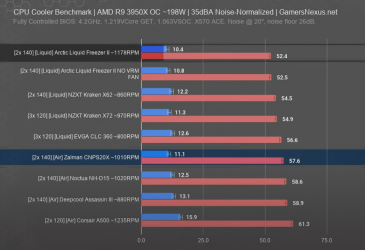

If you want to save some money without getting lower performance you should check out Zalman CNPS20X. $20 lower in the US, €15 lower in europe.



GN is trying to downplay it due to some old beef they've got going on with Zalman (who is the one to blame), but the numbers don't lie (even though GN's verdict basically does). It's high performing cooler.

Last edited:
Joined
Feb 6, 2021
Messages
354 (3.44/day)
Location
Germany
Processor Intel Core i9 10900KF 5.1 Ghz /4.9 GHz Cache (and a LOT of other CPUs)
Motherboard ASUS Z590 STRIX-F
Cooling Noctua NH-D15 Chromax. Black
Memory G.Skill Trident Z Neo 3600 Mhz CL16 (2x16GB)
Video Card(s) 6900XT Nitro + & Merc 319, RTX 3090 Gaming X Trio + all Ampere,Turing,Pascal and some AMD Cards.
Storage Corsair MP600 1TB, Samsung 970 Evo Plus 500GB, 2x Samsung 870 QVO 4TB
Display(s) Samsung Odyssey G7 32"
Case Fractal Design Meshify S2 White TG / Noctua NF-A14 iPPC-3000RPM Fans
Audio Device(s) Bose Companion Series 2 III, Sennheiser GSP600 running through a SoundblasterX G6
Power Supply bequiet! Dark Power Pro 12 1200w Titanium
Mouse Glorious PC Gaming Race Model O, G903 Hero, G502 Hero SE, Deathadder V2, EC2-A
Keyboard ASUS ROG Strix Scope TKL DLX, Corsair K95, Logitech G815
VR HMD Oculus Rift S
Hello there, I'm thinking of buying a 5800X CPU, but I will need a cooler for it.
Everybody knows that coolers have troubles dealing with Ryzen 3000 & 5000 since those processors' cores are really small and they manage to get red-hot faster than they manage to pass the heat to the cooler. Moreover, they're located in a specific way which also makes them harder to cool.
I can buy a Noctua NH-D15, but is it worth it when it comes to cooling a 7 nm processor? I mean, it's not as efficient with it as it is with 14 nm processors because of the cores size.

I don't plan to manually overclock my CPU, but if my CPU cooler is able to also manage something like a 5900X - it will be a pleasant bonus, but it's not a must, especially if my CPU cooler won't be expensive. But again - I can spend the price of a Noctua NH-D15 if it's absolutely worth it.

So please help me choose. Thank you for your time.
you can basically put everything you want on it.
the problem is not the amount of heat. it's the insane density and awful heat transfer from the cores.
the mass of a heatsink is almost irrelevant. (my 5800X runs at 85°C with a 360 AIO and a small 120mm tower cooler)

but just don't buy any asetek AIO for a Ryzen CPU (convex coldplate and IHS makes barely any contact)
CoolIt AIOs are pretty decent or a NH D15. (for headroom with overclocking. a 5800X can pull almost 200W)

Joined
Nov 16, 2020
Messages
70 (0.38/day)
Location
USA
Processor i9-10900x / i5-8600k/Ryzen 5 2400g/ FX 6100
Motherboard Evga x299 Dark/ Evga x299 FTW-K / z370 ITX/ x570 Extreme 4/ B350 tomahawk/ a320-M/Gigabyte AM3+
Cooling EK-AIO 240 D-RGB / Noctua NH-D15S /Noctua Low Profile AM4/Shadow Rock 3/Random tower cooler
Memory LPX 4x8 2666 / 2x16 Crucial 3200 Mhz
Video Card(s) NVIDIA GeForce RTX 2080 Super Founders / Windforce R9 270x
Storage 500 GB WD SN750/ 1TB WD Blue M.2/ 850 Evo 500 GB/ HDDs Everywhere
Display(s) Alienware 34 aw3418dw / ROG Swift pg27q
Case Lian Li o11 dynamic / NZXT 210/ DIY case/Open Air test Benches
Power Supply Seasonic Focus Plus Platinum 750w / Evga 600w Gold GD
Mouse Model O/ Logitech G203
Keyboard Frozen Llama Ducky One 2 Mini MX Silvers / Ducky One 2 Mini MX Reds
Shadow Rock 3 is rated for 190w and is half the price of the D15. Check it out!

Joined
Feb 17, 2010
Messages
748 (0.18/day)
System Name Borg Cube
Processor R5 3600
Motherboard X470 Taichi
Cooling Water
Memory 32GB @3800CL16
Video Card(s) RX Vega 64
Storage Silicon Power A80 1TB x2
Display(s) Samsung UE590
Case HAF XB
Audio Device(s) Logitech Z623
Power Supply LEADEX III
Mouse Cooler Master MM710
Keyboard Logi G105
Software 10 Pro
Benchmark Scores https://hwbot.org/user/damric/
I run my wife's 5800x with an old Cooler Master TPC-612. With stock mobo settings it turbos up to 4.85GHz and runs about 70C during AVX FPU stress tests in a crowded Phanteks P400A. During her 4K Vahalla game it runs around 50C. She's getting a 360 AIO this week so we'll see if it improves, but I doubt it.

Joined
May 19, 2015
Messages
47 (0.02/day)
Location
Ukraine
However, that tends to come at the cost of greater potential for failure (leak, fluid evaporation, air in the pump, etc.), whereas with air coolers, all you really have to worry about is the fan failing
That's exactly why I want an air cooler.

Although it's not that much about money saving for me in this particular case (I can spend those 100 US dollars if needed), AFAIK air coolers can be more or less equal at their mediocrity when it comes to handling a 7nm processor, so if it's only about 1-2°C (at full load) and I can save some bucks - it's not the worst of ideas not to pay for an expensive cooler. I mean, it's more about price-to-performance for me and I don't want that much to overpay for only a slight win.

As for how I use my PC - it's for entertainment, including games. And since I'm not an overclocker, I will be OK with AMD's auto-overclocking features (what are they called - PB2? XFR2?).

Joined
Jan 4, 2013
Messages
604 (0.20/day)
Location
Denmark
System Name R9 5950x/Skylake 6400
Processor R9 5950x/i5 6400
Motherboard Gigabyte Master X570/Asus Z170 Pro Gaming
Cooling Arctic Liquid Freezer II 360/Stock
Memory 4xGB Patriot PVS416G4440 CL14/G.S Ripjaws 32 GB F4-3200C16D-32GV
Video Card(s) 6900XT/R7
Storage WD SN850 2TB, Aorus 2TB Corsair MP600 / 960 Evo 1TB
Display(s) 3x LG 27gl850
Case Custom builds
Audio Device(s) -
Power Supply Silverstone 1000watt modular Gold/1000Watt Antec
Software win10pro / Win10 Home / win7 / wista 64 bit and XPpro
I used the Noctua D15-SE before my artic 360 setup - but if you have the space - the Noctua D15 is great and will performe at par with the small AIO


AsRock

TPU addict
Joined
Jun 23, 2007
Messages
17,117 (3.37/day)
Location
UK\US
Processor 2500k \ AMD 3900X+NH-D15
Motherboard ASRock Z68 \ ASRock AM4 X570 Pro 4
Memory Samsung low profile 2x8GB \ Patriot 2x16GB PVS432G320C6K
Video Card(s) eVga GTX1060 SSC \ XFX R9 390X
Storage 2xIntel 80Gb (SATA2) Crucial MX500 \ Samsung 860 1TB +Samsung Evo 250GB+500GB Sabrent 1TB Rocket
Display(s) Samsung 1080P \ LG 43UN700
Case HTPC400 \ Thermaltake Armor case ( VE2000BWS ), With Zalman fan controller ( wattage usage ).
Audio Device(s) Yamaha RX-A820 \ Yamaha CX-830+Yamaha MX-630 Infinity RS4000\Paradigm P Studio 20, Blue Yeti
Power Supply PC&Power 750w \ Seasonic 750w MKII
Mouse Steelseries Sensei wireless \ Steelseries Sensei wireless
Keyboard Logitech K120 \ ROCCAT MK Pro ( modded amber leds )
Benchmark Scores Meh benchmarks.
A lot of cooler for around $60 ( Funa2 )

Don't get me wrong the NH D15 is a worthy cooler and able to keep my 3900X under 90c using Cinebench continuously running ( ambient being 31-33c ) it will give you a possible headache which is how close to the video card it be, how ever there is the Noctua NH-D15S version which leans further way from the GPU but only has one fan for about the same price.

Joined
Sep 16, 2018
Messages
1,771 (1.81/day)
Location
Winnipeg, Canada
Processor AMD R5 5600X
Motherboard Asus Strix B550-F Gaming
Cooling Thermalright Frost Commander w/ TL-D14X + TL-C12 Pro, 4x 120x38 Panaflo, TY-143, TY-147B
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200C14
Video Card(s) EVGA GTX 980 Classified
Storage WD SN750 1TB+500GB, 2x Intel 545s 256, WD1TB Black, 1TB Toshiba
Display(s) 22" Sammy, 55" Hisense
Case Fractal Design Meshify C
Audio Device(s) NAD, Mission, Monitor Audio
Power Supply Seasonic Prime GX-750, Zalman ZM-MFC2, Monster HDP1800
Mouse Zowie EC2 Evo
Keyboard Logitech G910
Software Yes
Benchmark Scores Yes
The new Frost Commander 140 from Thermalright is worth considering imo. Its got a silly name but it is a serious cooler. It outperforms my Le Grand Macho RT which directly compares to D15 in the TPU review, except I was using a TY-143 on mine. I don't think there any reviews on it yet, and I got mine from Aliexpress. I also own a True Spirit 140 Power, and I will never use both of those coolers on my 5600X again..

Joined
Jan 8, 2020
Messages
787 (1.58/day)
Location
Maryland, USA
Processor Ryzen 5 2600
Motherboard MSI B450 Gaming Pro Carbon AC
Cooling CPU: bequiet! Dark Rock 4. Case fans: 2x bequiet Silent Wings 3 140s, 2x Silent Wings 3 120s
Memory 2 x 8 GB Corsair Vengeance LPX DDR4-3000 C15
Video Card(s) Sapphire NITRO+ RX 5700 XT
Storage 500 GB Samsung 860 Evo, 1 TB WD Blue 3D M.2, 1 TB Inland Professional
Display(s) MSI Optix MAG271CQR 1440p 144Hz, MSI Optix MAG241C 1080p 144Hz
Case Fractal Design Meshify C Black
Audio Device(s) Philips SHP9500 + V-Moda BoomPro
Power Supply EVGA SuperNOVA G3 80+ Gold 750W
Mouse Razer Mamba Wireless
Keyboard CoolerMaster Masterkeys Pro S - Cherry MX Browns
That's exactly why I want an air cooler.

Although it's not that much about money saving for me in this particular case (I can spend those 100 US dollars if needed), AFAIK air coolers can be more or less equal at their mediocrity when it comes to handling a 7nm processor, so if it's only about 1-2°C (at full load) and I can save some bucks - it's not the worst of ideas not to pay for an expensive cooler. I mean, it's more about price-to-performance for me and I don't want that much to overpay for only a slight win.
Agreed. Maybe I'll get an AIO one day just to give them a try but with so many of them being significantly more expensive for only a couple degrees cooler, it's often just not worth it when adding that on to the limited lifespan. Not to mention my 2600 doesn't need an AIO by any means - the Dark Rock 4 I have on there now is more than enough.

As for how I use my PC - it's for entertainment, including games. And since I'm not an overclocker, I will be OK with AMD's auto-overclocking features (what are they called - PB2? XFR2?).

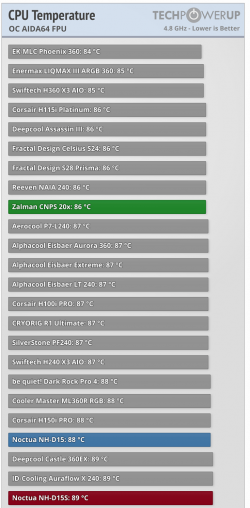

I'd take note of @weekendgeek's comment. Looks like the NH-D15 is only just keeping the multicore temps in check, and that's after dropping down to a 95W TDP mode. Granted, you won't be hitting the CPU like that when gaming, but I would guess that letting PBO and all that do their thing at 125W you'd be seeing higher than the reported 55-65C temps while gaming. Obviously there are other factors that come into play like case airflow, CPU cooler fan speed, ambient temp, etc. That said, you mgiht be able to get away with one of the midrange coolers like the Mugen 5, Shadow Rock 3, etc.

Last edited:
Joined
Aug 4, 2020
Messages
316 (1.10/day)
Location
::1
Do note that the Fuma 2's fans max out at rather low RPMs - while they're great for being silent it does mean that you lose the on-demand extra performance should you need/want that. Otherwise it is a great dual stack cooler. Something to keep in mind.

Joined
Jan 8, 2020
Messages
787 (1.58/day)
Location
Maryland, USA
Processor Ryzen 5 2600
Motherboard MSI B450 Gaming Pro Carbon AC
Cooling CPU: bequiet! Dark Rock 4. Case fans: 2x bequiet Silent Wings 3 140s, 2x Silent Wings 3 120s
Memory 2 x 8 GB Corsair Vengeance LPX DDR4-3000 C15
Video Card(s) Sapphire NITRO+ RX 5700 XT
Storage 500 GB Samsung 860 Evo, 1 TB WD Blue 3D M.2, 1 TB Inland Professional
Display(s) MSI Optix MAG271CQR 1440p 144Hz, MSI Optix MAG241C 1080p 144Hz
Case Fractal Design Meshify C Black
Audio Device(s) Philips SHP9500 + V-Moda BoomPro
Power Supply EVGA SuperNOVA G3 80+ Gold 750W
Mouse Razer Mamba Wireless
Keyboard CoolerMaster Masterkeys Pro S - Cherry MX Browns
Do note that the Fuma 2's fans max out at rather low RPMs - while they're great for being silent it does mean that you lose the on-demand extra performance should you need/want that. Otherwise it is a great dual stack cooler. Something to keep in mind.
Thank you. I see a lot of people recommending the FUMA 2 without mentioning this caveat. However, given that OP isn't going to be overclocking and will likely be hanging around or sitting below the advertised 125W TDP of the 5800X, the FUMA 2 should be adequate.



You can see here the FUMA 2's fans are running at 1170 RPM and are maxed out (product page specs both fans at max 1200 RPM), while the NH-D15 still has approximately 500 RPM of headroom to play with (NF-A15s top out at 1500 RPM) to further increase performance. Granted, this is on a ~200W heat load which the 5800X shouldn't be anywhere near left to its own devices.

Joined
Sep 16, 2018
Messages
1,771 (1.81/day)
Location
Winnipeg, Canada
Processor AMD R5 5600X
Motherboard Asus Strix B550-F Gaming
Cooling Thermalright Frost Commander w/ TL-D14X + TL-C12 Pro, 4x 120x38 Panaflo, TY-143, TY-147B
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200C14
Video Card(s) EVGA GTX 980 Classified
Storage WD SN750 1TB+500GB, 2x Intel 545s 256, WD1TB Black, 1TB Toshiba
Display(s) 22" Sammy, 55" Hisense
Case Fractal Design Meshify C
Audio Device(s) NAD, Mission, Monitor Audio
Power Supply Seasonic Prime GX-750, Zalman ZM-MFC2, Monster HDP1800
Mouse Zowie EC2 Evo
Keyboard Logitech G910
Software Yes
Benchmark Scores Yes
All cooling reviews should be taken with a grain of salt. You may get better results, or you may get worse. It depends on your setup and environment.

Joined
Aug 4, 2020
Messages
316 (1.10/day)
Location
::1
Actually the 5800X would probably behave the same if not worse since it still has higher thermal density than a 200W OC on a 3950X.

Joined
Dec 24, 2020
Messages
1,020 (6.99/day)
5800X is the hottest running chip in the entire Zen 3 lineup, so good cooling is preferred.

If you want to go air cooling, a NH-D15 performs about the same as a 360mm AIO. Also comes with a tube of NT-H1 paste, 6 year warranty, free socket mount upgrades, quiet fan, and quality customer support. I'd say the premium is worth it, talking from experience. I can't recommend the Fuma 2 here as, while it is a great value for money cooler performing as good as the NH-D15 sometimes, once you start putting it on hotter and hotter chips, it starts to lose performance due to its size limitations.

If you want to go AIO, I can only recommend Arctic's Liquid Freezer II 280mm/360mm. Arctic recently extended the warranty to 6 years, and the radiator is 38mm thick as opposed to 25mm of most AIOs. The fans on it are also super good and quiet, and it is great value for money.

Of course, make sure you have clearance for either, and that your case is ventilated properly.

Joined
Aug 4, 2020
Messages
316 (1.10/day)
Location
::1
Yeah, no.
The biggest bottleneck of the FUMA 2 are by far its slow fans. The tower, while small doesnt contribute all that much to it. You can clearly see it performing quite competitively during noise-normalised tests. However, once you try to jam up the RPM you'll find that there's no headroom left so you're stuck at the 1,200 RPM cap there.

Joined
Oct 17, 2012
Messages
9,752 (3.11/day)
Location
Massachusetts
System Name Americas cure is the death of Social Justice & Political Correctness
Processor i7-11700K
Motherboard Asrock Z590 Extreme wifi 6E
Cooling Noctua NH-U12A
Memory 32GB Corsair RGB fancy boi 5000
Video Card(s) RTX 3090 Reference
Storage Samsung 970 Evo 1Tb + Samsung 970 Evo 500Gb
Display(s) Dell - 27" LED QHD G-SYNC x2
Case Fractal Design Meshify-C
Audio Device(s) on board
Power Supply Seasonic Focus+ Gold 1000 Watt
Mouse Logitech G502 spectrum
Keyboard AZIO MGK-1 RGB (Kaith Blue)
Software Win 10 Professional 64 bit
Benchmark Scores the MLGeesiest
i really like my new Noctua NH-U12A . its dead silent, & very capable. i can OC my 11700k over 5Ghz & it manages to stay under 75c

Joined
Dec 24, 2020
Messages
1,020 (6.99/day)
Yeah, no.
The biggest bottleneck of the FUMA 2 are by far its slow fans. The tower, while small doesnt contribute all that much to it. You can clearly see it performing quite competitively during noise-normalised tests. However, once you try to jam up the RPM you'll find that there's no headroom left so you're stuck at the 1,200 RPM cap there.
Guess I must've remembered it wrong, all I recall is the Fuma 2 not performing well on hotter chips.

Joined
May 18, 2009
Messages
1,546 (0.35/day)
Location
MN
System Name Personal / HTPC
Processor Ryzen 5900x / i5-4460
Motherboard Asrock x570 Phantom Gaming 4 /ASRock Z87 Extreme4
Cooling Hyper 212 Black / stock HSF
Memory 16GB DDR4 3200 / 8GB DDR3 1600
Video Card(s) Zotac GTX 980Ti AMP! Omega / Zotac GTX 980Ti AMP! Omega
Storage 500GB Samsung Pro 970, 250 GB Crucial SSD MX200, 1TB & 500GB Western Digital / 2x 4TB WD Red
Display(s) Dell - S3220DGF 32" LED Curved QHD FreeSync Monitor / 50" LCD TV
Case CoolerMaster XB Evo / CM HAF XB Evo
Power Supply 850W SeaSonic X Series / 750W SeaSonic X Series
Mouse Zephyr Gaming Mouse
Keyboard Microsoft Natural Elite Keyboard
Software Windows 10 Pro 64 / Windows 10 Home 64
I'm rocking a Noctua NH-U9S with my 5900x.

When I'm transcoding the temps flirt with 90C. When heavy gaming the temps sit around 80C.

Joined
Sep 16, 2018
Messages
1,771 (1.81/day)
Location
Winnipeg, Canada
Processor AMD R5 5600X
Motherboard Asus Strix B550-F Gaming
Cooling Thermalright Frost Commander w/ TL-D14X + TL-C12 Pro, 4x 120x38 Panaflo, TY-143, TY-147B
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200C14
Video Card(s) EVGA GTX 980 Classified
Storage WD SN750 1TB+500GB, 2x Intel 545s 256, WD1TB Black, 1TB Toshiba
Display(s) 22" Sammy, 55" Hisense
Case Fractal Design Meshify C
Audio Device(s) NAD, Mission, Monitor Audio
Power Supply Seasonic Prime GX-750, Zalman ZM-MFC2, Monster HDP1800
Mouse Zowie EC2 Evo
Keyboard Logitech G910
Software Yes
Benchmark Scores Yes
My last two coolers are great with older style CPUs.. and they do ok with 7nm but the CPU can still get pretty hot when overclocking. This new one handles it no problem.. If guys are worried about 125w over 8 cores, try 130w through 6 :D

Its the same cores, more power, less cores.. I know how hot these can get :laugh:

Joined
Jan 8, 2020
Messages
787 (1.58/day)
Location
Maryland, USA
Processor Ryzen 5 2600
Motherboard MSI B450 Gaming Pro Carbon AC
Cooling CPU: bequiet! Dark Rock 4. Case fans: 2x bequiet Silent Wings 3 140s, 2x Silent Wings 3 120s
Memory 2 x 8 GB Corsair Vengeance LPX DDR4-3000 C15
Video Card(s) Sapphire NITRO+ RX 5700 XT
Storage 500 GB Samsung 860 Evo, 1 TB WD Blue 3D M.2, 1 TB Inland Professional
Display(s) MSI Optix MAG271CQR 1440p 144Hz, MSI Optix MAG241C 1080p 144Hz
Case Fractal Design Meshify C Black
Audio Device(s) Philips SHP9500 + V-Moda BoomPro
Power Supply EVGA SuperNOVA G3 80+ Gold 750W
Mouse Razer Mamba Wireless
Keyboard CoolerMaster Masterkeys Pro S - Cherry MX Browns
Guess I must've remembered it wrong, all I recall is the Fuma 2 not performing well on hotter chips.
Yeah, they're agreeing with you, just pointing out that it's the low speed of the fans that are the issue, not the smaller tower size.

100% fan speed at ~200W instead of noise-normalized like I shared earlier:


NH-D15 runs 5C cooler. Whether that increase in noise (up to 44 dBa vs. the 34 dBa of the FUMA 2) and price is worth it is up to the buyer.

Joined
Apr 14, 2019
Messages
196 (0.26/day)
System Name Violet
Processor AMD Ryzen 5800X
Motherboard ASRock x570 Phantom Gaming X
Cooling Be quiet! Dark Rock Pro 4
Memory G.Skill Flare x 32GB 3400Mhz
Video Card(s) Sapphire RX 5700 XT Nitro+
Storage Western Digital WD Black SN750 1TB
Display(s) 3440x1440
Case Lian Li LANCOOL II MESH Performance
Power Supply Corsair RM850x
Mouse Razer NAGA TRINITY
Keyboard Corsair K95 RGB
Software Windows 10 64bit
An 5800x here with a Dark Rock Pro 4 and is not going to pass 77C with cinebench R20/23.
With gaming it is ~56C. All stock out of the box.

Top
