AMD AGESA 1.0.0.3ABBA Detailed, Fixes Zen2 Boost Issues

btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
37,671 (8.51/day)
Location
Hyderabad, India
Processor AMD Ryzen 7 2700X
Motherboard ASUS ROG Strix B450-E Gaming
Cooling AMD Wraith Prism
Memory 2x 16GB Corsair Vengeance LPX DDR4-3000
Video Card(s) AMD Radeon RX 5700 XT
Storage Western Digital Black NVMe 512GB
Display(s) Samsung U28D590 28-inch 4K UHD
Case Corsair Carbide 100R
Audio Device(s) Creative Sound Blaster Recon3D PCIe
Power Supply Antec EarthWatts Pro Gold 750W
Mouse Razer Abyssus
Keyboard Microsoft Sidewinder X4
Software Windows 10 Pro
AMD is giving final touches to an AGESA microcode update that fixes the issue of underwhelming Precision Boost behavior on its 3rd generation Ryzen processors. Version ComboAM4 1.0.0.3ABBA is being pushed to motherboard manufacturers to integrate with their UEFI firmware, and one such dispatch to MSI got leaked to the web on ChipHell. Tom's Hardware grabbed the BIOS as it was compatible with the MEG X570 Creator motherboard they have, and tested the Ryzen 9 3900X and Ryzen 7 3700X with it.

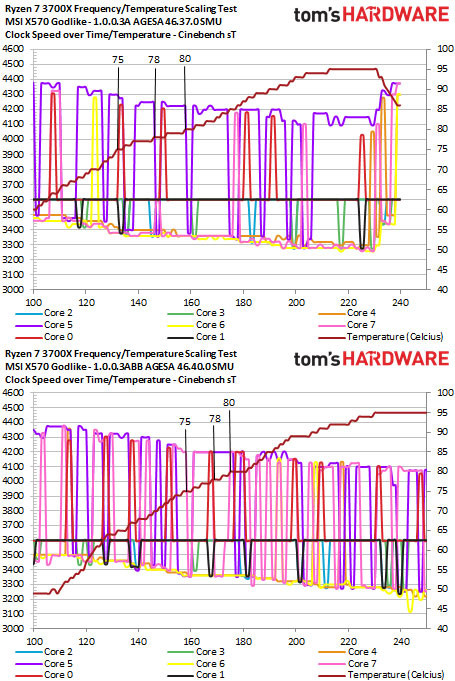

In its testing, posted in a mini-review article, Tom's Hardware observed that with AGESA 1.0.0.3ABBA, their 3700X sample was correctly hitting 4.40 GHz across the board at stock settings. With the older 1.0.0.3AB, it would touch 4.375 GHz. The Ryzen 9 3900X behaves slightly differently with this microcode. Tom's Hardware was able to raise its peak boost frequency from 4.575 GHz to 4.625 GHz (above the 4.60 GHz specification), but in certain tests such as POV-Ray and Cinebench, its boost frequency decays down to 4.250 GHz. Overall, the reviewer tabulated improved performance on the chips with the new microcode. The new microcode also apparently changes the processor's thermal thresholds.



Update (10/9) AMD posted an elaborate release detailing the AGESA 1.0.0.3ABBA update.

Hello, everyone! We're delighted by your support and the strong momentum of 3rd Gen AMD Ryzen processors in the marketplace, and we continue to watch your feedback closely. Today we have some important updates for you concerning processor boost behavior, desktop idle behavior, and a new monitoring SDK. The first two changes will be arriving in BIOSes based on AGESA 1003ABBA, and we are planning to make the SDK public on developer.amd.com with a target release date of September 30.

Boost Changes
Starting with our commitment to provide you an update on processor boost, our analysis indicates that the processor boost algorithm was affected by an issue that could cause target frequencies to be lower than expected. This has been resolved. We've also been exploring other opportunities to optimize performance, which can further enhance the frequency. These changes are now being implemented in flashable BIOSes from our motherboard partners. Across the stack of 3rd Gen Ryzen Processors, our internal testing shows that these changes can add approximately 25-50 MHz to the current boost frequencies under various workloads.

Our estimation of the benefit is broadly based on workloads like PCMark 10 and Kraken JavaScript Benchmark. The actual improvement may be lower or higher depending on the workload, system configuration, and thermal/cooling solution implemented in the PC. We used the following test system in our analysis:
  • AMD Reference Motherboard (AGESA 1003ABBA beta BIOS)
  • 2x8GB DDR4-3600C16
  • AMD Wraith Prism and Noctua NH-D15S coolers
  • Windows 10 May 2019 Update
  • 22°C ambient test lab
  • Streacom BC1 Open Benchtable
  • AMD Chipset Driver 1.8.19.xxx
  • AMD Ryzen Balanced power plan
  • BIOS defaults (except memory OC)
These improvements will be available in final BIOSes starting in about three weeks' time, depending on the testing and implementation schedule of your motherboard manufacturer. Additional information on boost frequency in the 3rd Gen AMD Ryzen Processors can also be obtained from this separate blog update.

Going forward, it's important to understand how our boost technology operates. Our processors perform intelligent real-time analysis of the CPU temperature, motherboard voltage regulator current (amps), socket power (watts), loaded cores, and workload intensity to maximize performance from millisecond to millisecond. Ensuring your system has adequate thermal paste; reliable system cooling; the latest motherboard BIOS; reliable BIOS settings/configuration; the latest AMD chipset driver; and the latest operating system can enhance your experience.

Following the installation of the latest BIOS update, a consumer running a bursty, single threaded application on a PC with the latest software updates and adequate voltage and thermal headroom should see the maximum boost frequency of their processor. PCMark 10 is a good proxy for a user to test the maximum boost frequency of the processor in their system. It is fully expected that if users run a workload like Cinebench, which runs for an extended period of time, the operating frequencies may be lower than maximum throughout the run.

In addition, we do want to address recent questions about reliability. We perform extensive engineering analysis to develop reliability models and to model the lifetime of our processors before entering mass production. While AGESA 1003AB contained changes to improve system stability and performance for users, changes were not made for product longevity reasons. We do not expect that the improvements that have been made in boost frequency for AGESA 1003ABBA will have any impact on the lifetime of your Ryzen processor.

Revisiting Calmer Idle
In late July, we implemented a series of software changes that would help the processor ignore requests for voltage/frequency boost from lightweight applications. The goal was to make the processor more relaxed at the desktop, but poised to react for serious workloads. While many of you were happy with the effect of the software changes, some of you were still grappling with cases where the CPU was a bit overzealous with boost. We wanted to smooth those out, too.

Today we're announcing that AGESA 1003ABBA carries firmware-level changes designed to do just that. The changes primarily arrive in the form of an "activity filter" that empowers the CPU boost algorithm itself to disregard intermittent OS and application background noise. Example test cases might include: video playback, game launchers, monitoring utilities, and peripheral utilities. These cases tend to make regular requests for a higher boost state, but their intermittent nature would fall below the threshold of the activity filter.

Net-net, we expect you'll see lower desktop voltages, around 1.2 V, for the core(s) actively handling such tasks. We believe this solution will be even more effective than the July changes for an even wider range of applications.

Please keep in mind, however, that this firmware change is not a cap. The processor must still be free to boost if active workload(s) seriously require it, so you should still expect occasions where the processor will explore its designed and tested voltage range of 0.2 V to 1.5 V.

New Monitoring SDK
Obtaining reliable data about the operating behavior of a processor is important to enthusiasts such as myself. There are many monitoring utilities on the market, and we work with many of them to ensure they're accessing telemetry data in a sensible manner. Regardless of the utility, however, it's common sense that all the tools should roughly correlate when you ask a simple question like "what's my CPU temperature?"

Enabling a consistent experience across monitoring utilities is important to us. That's why we're announcing the September 30 release of the AMD Monitoring SDK that will allow anyone to build a public monitoring utility that can reliably report a range of key processor metrics in a consistent manner. Altogether, there are 30+ API calls within the first SDK release, but we've highlighted a few of the more important or interesting ones below:
  • Current Operating Temperature: Reports the average temperature of the CPU cores over a short sample period. By design, this metric filters transient spikes that can skew temperature reporting.
  • Peak Core(s) Voltage (PCV): Reports the Voltage Identification (VID) requested by the CPU package of the motherboard voltage regulators. This voltage is set to service the needs of the cores under active load, but isn't necessarily the final voltage experienced by all of the CPU cores.
  • Average Core Voltage (ACV): Reports the average voltages experienced by all processor cores over a short sample period, factoring in active power management, sleep states, Vdroop, and idle time.
  • EDC (A), TDC (A), PPT (W): The current and power limits for your motherboard VRMs and processor socket.
  • Peak Speed: The maximum frequency of the fastest core during the sample period.
  • Effective Frequency: The frequency of the processor cores after factoring in time spent in sleep states (e.g. cc6 core sleep or pc6 package sleep). Example: One processor core is running at 4 GHz while awake, but in cc6 core sleep for 50% of the sample period. The effective frequency of this core would be 2 GHz. This value can give you a feel for how often the cores are using aggressive power management capabilities that aren't immediately obvious (e.g. clock or voltage changes).
  • Various voltages and clocks, including: SoC voltage, DRAM voltage, fabric clock, memory clock, etc.
A Preview in Action
This SDK will be available for public download on developer.amd.com on September 30. As a preview of what the new SDK can enable, AMD Ryzen Master (version 2.0.2.1271) has already been updated with the new Average Core Voltage API for 3rd Gen Ryzen Processors. It's ready for download today!

As noted above, Average Core Voltage shows you average voltages that all CPU cores are experiencing over a short sample period after you factor in sleep states, idle states, active power management, and Vdroop. Depending on the load on the processor, this value might be quite different from Peak Core(s) Voltage.

For example: if the processor is lightly loaded on a few cores, the overall activity level of all the CPU cores will be relatively low and, therefore, the Average Core Voltage will be low as well. But the active cores still need intermittently higher voltages to power boost frequencies, which will be reflected in the Peak Core Voltage. As the CPU comes under full load, these two values will eventually converge representing that all cores are active at approximately the same intensity. The overall goal of these two values is to show you what's happening moment-to-moment the most loaded cores (Peak), and what's happening more generally to the CPU cores over time (Average).

We hope new APIs like Average Core Voltage give you a better understanding of how our processors behave, and we can't wait to see more tools make use of the new monitoring SDK. Visit amd.com on September 30 for the first public release!

What to Expect Next
AGESA 1003ABBA has now been released to our motherboard partners. Now they will perform additional testing, QA, and implementation work on their specific hardware (versus our reference motherboard). Final BIOSes based on AGESA 1003ABBA will begin to arrive in approximately three weeks, depending on the testing time of your vendor and motherboard.

Going forward, we'll continue providing updates in this format as the updates are being prepped for release.

View at TechPowerUp Main Site

Joined
Nov 11, 2004
Messages
4,518 (0.82/day)
Location
Formosa
System Name Overlord Mk MXVI
Processor AMD Ryzen 7 3800X
Motherboard Gigabyte X570 Aorus Master
Cooling Corsair H115i Pro
Memory 32GB Viper Steel 3600 DDR4 @ 3800MHz 16-19-16-19-36
Video Card(s) Gigabyte RTX 2080 Gaming OC 8G
Storage 1TB WD Black NVMe (2018), 2TB Viper VPN100, 1TB WD Blue 3D NAND
Display(s) Asus PG27AQ
Case Corsair Carbide 275Q
Audio Device(s) Corsair Virtuoso SE
Power Supply Corsair RM750
Mouse Logitech G500s
Keyboard Wooting Two
Software Windows 10 Pro
Benchmark Scores https://valid.x86.fr/ztiub6
Gigabyte beta UEFI's here.

And yes, it fixes the issue and then some. Prior to this release, my highest boost speed was admittedly already 4,525MHz, but those same cores, now boosts an additional 50MHz.






Joined
Dec 3, 2012
Messages
352 (0.14/day)
Processor Intel i9 9900K
Motherboard Gigabyte Z390 Aorus Pro Wi-Fi
Cooling BeQuiet Dark Rock 4
Memory 32GB Corsair Vengeance Pro DDR4 3400
Video Card(s) EVGA RTX 2080
Storage 512GB Gigabyte Aorus NVMe (Boot) 1Tb Crucial NVMe (Games)
Display(s) LG UK850 27in 4K Freesync/G-Sync/HDR 450
Case Fractal Design Meshify C Windowed (Dark Tint)
Audio Device(s) Corsair HS70 Special Edition Wireless Headphones & 7.1 Sound
Power Supply Corsair RMx 850w Gold
Mouse Corsair Glaive RGB
Keyboard HyperX Alloy Elite Mechanical RGB (Cherry Red)
Software Windows 10 Home
Will be interesting to see if this is a geniune fix or AMD just relaxing the restrictions they thought were necessary to protect the CPU's lifespan.

Hope its the former because if its the latter, it could come back to bite them down the road.

Joined
Nov 20, 2012
Messages
274 (0.11/day)
Location
Hungary
System Name masina
Processor Ryzen R5 1600 @ 3.6GHz
Motherboard GigaByte AB350-Gaming 3
Cooling Scythe Kabuto 3 + Arctic BioniX P120 fan
Memory 16GB (2x8) DDR4-3000 Corsair Vengeance LPX
Video Card(s) MSI GTX 1060 Armor OC 6GB
Storage 500GB Crucial MX500, 640GB WD Black
Display(s) AOC C24G1
Case Zalman Z9 Neo /Black/
Power Supply be Quiet! Pure Power L8 430W CM
Mouse Logitech G203
Keyboard Cooler Master MasterKeys L PBT
Software Win 10 Pro
Joined
Feb 11, 2009
Messages
2,273 (0.58/day)
System Name Cyberline
Processor Intel Core i7 2600k
Motherboard Asus P8P67 LE Rev 3.0
Cooling Tuniq Tower 120
Memory Corsair (4x2) 8gb 1600mhz
Video Card(s) AMD RX480
Storage Samsung 750 Evo 250gb SSD + WD 1tb x 2 + WD 2tb
Display(s) Philips 32inch LPF5605H (television)
Case antec 600
Audio Device(s) Focusrite 2i4 (USB)
Power Supply Seasonic 620watt 80+ Platinum
Mouse Elecom EX-G
Keyboard Rapoo V700
Software Windows 10 Pro 64bit
Will be interesting to see if this is a geniune fix or AMD just relaxing the restrictions they thought were necessary to protect the CPU's lifespan.

Hope its the former because if its the latter, it could come back to bite them down the road.
I doubt anyone would care if someone mentions their cpu died after 6+ years of use tbh.

Joined
Feb 23, 2017
Messages
118 (0.12/day)
Going by amd reddit, it FIXED it completely and then some.. People are reporting 50+ MHZ over the boost clock.

Joined
May 2, 2016
Messages
57 (0.04/day)
I'll be glad to see my 3600 hit the advertised 4200MHz. Because right now it doesn't even boost higher than 4100. Not even for one second in completely single threaded task.

Joined
Dec 14, 2006
Messages
454 (0.10/day)
System Name Ed-PC
Processor Intel i5-3570k
Motherboard Asus P8Z77 V-Pro
Cooling CM 212 evo
Memory Crucial Ballistix Tactical Tracer DDR3 1600 8GB
Video Card(s) Nvidia MSI 660ti PE OC
Storage WD black 500gig
Case Corsair 500R
Audio Device(s) onboard
Power Supply Corsair 650TX V2
Software Win7 Pro 64bit
Is that 1.5v Vcore higher than before?

Low quality post by xkm1948
Joined
Mar 18, 2008
Messages
4,619 (1.08/day)
System Name Virtual Reality / Bioinformatics
Processor Undead CPU
Motherboard Undead TUF X99
Cooling Noctua NH-D15
Memory GSkill 128GB DDR4-3000
Video Card(s) EVGA 2080Ti
Storage Samsung 960 Pro 1TB + 860 EVO 2TB + WD Black 5TB
Display(s) Acer K272HUL, HTC Vive
Case Fractal Design R5
Audio Device(s) BOSE 2.0
Power Supply Seasonic 850watt
Mouse Logitech Master MX
Keyboard Corsair K70 Cherry MX Blue
Software Windows 10 Professional/Linux Mint
Wonder what all those “This is fine” AMD fanboiz gonna say now.

Joined
Nov 11, 2004
Messages
4,518 (0.82/day)
Location
Formosa
System Name Overlord Mk MXVI
Processor AMD Ryzen 7 3800X
Motherboard Gigabyte X570 Aorus Master
Cooling Corsair H115i Pro
Memory 32GB Viper Steel 3600 DDR4 @ 3800MHz 16-19-16-19-36
Video Card(s) Gigabyte RTX 2080 Gaming OC 8G
Storage 1TB WD Black NVMe (2018), 2TB Viper VPN100, 1TB WD Blue 3D NAND
Display(s) Asus PG27AQ
Case Corsair Carbide 275Q
Audio Device(s) Corsair Virtuoso SE
Power Supply Corsair RM750
Mouse Logitech G500s
Keyboard Wooting Two
Software Windows 10 Pro
Benchmark Scores https://valid.x86.fr/ztiub6
Is that 1.5v Vcore higher than before?
In my case? No.
Looks like I've even hit 4,600MHz for a fraction of a second... :roll:

131556

Last edited:
Joined
May 2, 2016
Messages
57 (0.04/day)
Is that 1.5v Vcore higher than before?
This is not a problem if it's "auto" (aka stock) behavior, because of warranty and design. The product is designed to boost and it needs those volts to boost so. Actually 1,5v doesn't damage the processor, because the current is low. On the other hand, some people throw 1.4v+ all core, because "it's lower than AMD's 1.5v", but they don't take into account that the current on all core loads is waaay higher than single core temporary boosts, so they actually fry their CPUs...


Emu

New Member
Joined
Jan 5, 2018
Messages
12 (0.02/day)
Is that 1.5v Vcore higher than before?
My 3900x has been hitting up to 1.5V on light loads ever since I installed it. I currently have the ABBA BIOS from MSI for my x570 Gaming Pro Carbon and it looks like it is actually working properly which is nice because the last few BIOSes from MSI have left a lot to be desired.

Joined
Dec 28, 2012
Messages
1,240 (0.49/day)
I doubt anyone would care if someone mentions their cpu died after 6+ years of use tbh.
If haswell CPUs started falling like flies this year, people would be hooting and hollering about planned obsolescence and faulty hardware, and you bet there would be a class action lawsuit over it.

A properly designed CPU will not die at stock settings. Just because this is AMD doesnt make a lick of difference. At stock settings, CPUs shouldnt die, period. If they do, the stock settings are pushing the chip too far. There are plenty of pentium IV CPUs that are still running after 15+ years of service without issue, same with core 2 CPUs running after 12+ years of constant use, ece.

Last edited:
Joined
May 2, 2016
Messages
57 (0.04/day)
If haswell CPUs started falling like flies this year, people would be hooting and hollering about planned obsolescence and faulty hardware, and you bet there would be a class action lawsuit over it.

A properly designed CPU will not die at stock settings. Just because this is AMD doesnt make a lick of difference. At stock settings, CPUs shouldnt die, period. If they do, the stock settings are pushing the chip too far. There are plenty of pentium IV CPUs that are still running after 15+ years of service without issue, same with core 2 CPUs running after 12+ years of constant use, ece.
Agreed, but do we have any clue that the spikes up to 1.5v are causing the Ryzen 3000 to fail? I don't think so and I bet there won't be an issue, as AMD_Robert has many times thoroughly explained on reddit. The voltage is completely design relevant and should not be compared to Intel's.

Joined
Nov 6, 2016
Messages
223 (0.20/day)
Location
NJ, USA
In spite of everything, at least AMD acknowledged the issue (yes, after being forced to) and is working to fix it. Compared to Intel, I see this as a plus (though I'll be the first to state that some other entity's guilty actions are never an excuse for your own). Perhaps in a few more weeks they'll have it ironed out even more.

When considering the totality of all this though, it doesn't profoundly affect the value of AMD's processors and I seriously doubt that any human being would be able to notice a 100mhz dip in performance. Nonetheless, I can still understand why owners would like to get every ounce of performance for which they paid.

Joined
Oct 31, 2013
Messages
128 (0.06/day)
That is interesting, Asus has the bios updated on its X370 board first. Nothing on my X370 from Gigabyte and Asrock, or B350 from Gigabyte. When Gigabyte was usually very quick adopting the newer bios versions with Ryzen 3k in the last few weeks :D

Oh, and the Asus Bios removes PCI-E 4.0 support again. Just to make sure it seems

Joined
Jan 24, 2011
Messages
61 (0.02/day)
Processor AMD Ryzen 1700X @ 3.9 GHz, 1.285V
Motherboard ASUS ROG STRIX X470-F Gaming
Cooling Custom Water Cooling
Memory 2x8GB G.SKILL SniperX 3600C19 @ 3400C14
Video Card(s) AMD Radeon RX 5700XT Reference
Storage ADATA SX8200 480GB, Samsung 960 EVO 250GB, Hitach 3TB
Display(s) MSI MAG341CQ
Case Fractal Design Define S
Audio Device(s) ASUS Xonar DGX
Power Supply Corsair HX620
Dunno what kind of workload people are doing that would benefit for that second or two boosts clock.
Nothing, but people aren't happy unless they're complaining. I'm sure they'll move on to picking apart margin of error level performance differences now that it seems like most CPUs are hitting their boost clocks and then some under normal circumstances.

Joined
Nov 3, 2013
Messages
1,488 (0.67/day)
Location
Tokyo, Ota
Processor i5 - 7300HQ
Memory 8GB DDR4
Video Card(s) 1060 6GB
Storage 180GB m.2 SATA | 250GB 850Evo SATA
Display(s) FHD 15" Gsync IPS + Acer H243H
Mouse Rival 300 with Omron main switches.
Keyboard Apex m500 (mx red)
Joined
Feb 20, 2019
Messages
294 (1.08/day)
System Name PowerEdge R730 DRS Cluster
Processor 4x Xeon E5-2698 v3
Cooling Many heckin screamy bois
Memory 480GB ECC DDR4-2133
Video Card(s) Matrox G200eR2
Storage SD Card. Yep, really no other local storage.
Display(s) It's probably a couple of boring Dell Ultrasharps and a sacrificial laptop.
Case 39U 6-rack server room with HEVC and 44KVA UPS
Mouse Maybe
Keyboard Yes!
Software ESXi 6.5 U3
Benchmark Scores I once clocked a Celeron-300A to 564MHz on an Abit BE6 and it scored over 9000.
Clockspeeds are up slightly but boost degrades faster because temperature limits are hit faster.

The net result is probably that overall performance is about the same, but people who wanted their round numbers in synthetic benchmarks will stop whining.

For some (probably Intel shill-invoked reason) 4475 MHz peak and 4350MHz averaged over 300 seconds caused uproar because 4475MHz isn't exactly 4.5GHz.
Now we're going to get 4500MHz or even 4525MHz peak and 4250MHz averaged over 300 seconds and everyone is happy.

Same chip, just running a little hotter and a little less efficiently.

Maybe I'm weird but I'd gladly sacrifice some transient peak value for a higher long-term average clockspeed and lower temperatures.

Joined
Nov 11, 2004
Messages
4,518 (0.82/day)
Location
Formosa
System Name Overlord Mk MXVI
Processor AMD Ryzen 7 3800X
Motherboard Gigabyte X570 Aorus Master
Cooling Corsair H115i Pro
Memory 32GB Viper Steel 3600 DDR4 @ 3800MHz 16-19-16-19-36
Video Card(s) Gigabyte RTX 2080 Gaming OC 8G
Storage 1TB WD Black NVMe (2018), 2TB Viper VPN100, 1TB WD Blue 3D NAND
Display(s) Asus PG27AQ
Case Corsair Carbide 275Q
Audio Device(s) Corsair Virtuoso SE
Power Supply Corsair RM750
Mouse Logitech G500s
Keyboard Wooting Two
Software Windows 10 Pro
Benchmark Scores https://valid.x86.fr/ztiub6
Isn't that 1.5V a bit on the high side?
For the billionth time, NO. It's within AMD spec. Can people PLEASE stop commenting about the 1.5V already?

And it seems the cores are hitting even higher boosts given a bit of time.

131571


Clockspeeds are up slightly but boost degrades faster because temperature limits are hit faster.

The net result is probably that overall performance is about the same, but people who wanted their round numbers in synthetic benchmarks will stop whining.
And you base this on running a Xeon rig? Seriously?

So AMD fixes the issue, yet all the Intel Fanboi's are here slinging mud... :banghead:

Joined
May 4, 2011
Messages
444 (0.14/day)
System Name Smooth-Operator
Processor AMD Ryzen 7 3800x
Motherboard Asrock x570 Taichi
Cooling AMD Wraith Prism
Memory 2x16GB 3200MHz CL16 DDR4
Video Card(s) Sapphire Radeon RX 580 8GB NITRO+
Storage JBOD: 2+1+1TB 7200RPM HDD
Display(s) Samsung S24E370DL 24" IPS Freesync 75Hz
Case Fractal Design Focus G Window Blue
Audio Device(s) Creative X-Fi Titanium PCIe x1
Power Supply Corsair HX850 80+ Platinum
Mouse Gigabyte Aorus M3
Keyboard Zalman ZM-K300M
Software Windows 10 x64 Enterprise/Ubuntu Budgie amd64
Dunno what kind of workload people are doing that would benefit for that second or two boosts clock.
People are doing various things on their PCs, not just giving away ram to chrome and playing fortnite on 3900x+2080ti in sli but that's not the case. No matter what people do they did purchase products, in some cases they did thought through purchase by analyzing specification of products and they chose the best one fitting their needs or imaginary needs. Said specification was a reason of buying such specific product, not different one. So if product they bought doesn't meet specification which it was designed with then such customers have full right to complain about product not meeting specification and their right is to demand from manufacturer to fix product so it will meet specification. If product is designed to boost up to 4,6GHz (for example) and max it ever boosted was 4369MHz then there is something legitimately wrong because product doesn't meet specification.

Same with ISPs, they offer you connections with speeds up to, for example 100Mb/s (12.5MB/s) on download. If you are using such connection and you've never seen anything downloading with anything at least close said 12.5MB/s and your top download speeds were, say, 1.25MB/s then there are 3 reasons of such situation:
1. Your downloads were too small to even notice and meet download speed or server/other source doesn't keep up with speed
2. Your networking card is ancient 10Mb/s card
3. Problem is on ISP's side.
So if you meet all requirements (have decent mobo, psu and so on) what wouldn't hold down cpu then problem is on cpu or bios and amd has to fix it. Same with networking example, if your infrastructure is ok and meets all requirements to handle 100Mb/s connection then problem is on ISP's side and you have full right to demand from ISP to do anything possible to solve the problem.

Joined
Jun 27, 2011
Messages
5,865 (1.91/day)
Processor Ryzen 3900x
Motherboard Asrock X570m PRO4
Cooling Scythe Mugen 5 Rev B with push pull fans
Memory Corsair 4x8gb 3533mhz Cas 16
Video Card(s) EVGA 1060 3gb
Storage Adata SX8200 1tb
Display(s) Asus 144hz
Case Fractal Design Something
Power Supply XFX 850w
Software Windows 10 64 Bit
Maybe I'm weird but I'd gladly sacrifice some transient peak value for a higher long-term average clockspeed and lower temperatures.
Then do that with the settings available to you. You can do that. I want the advertised max boost speed I paid for that has been unavailable to me even if it doesn't help performance.


Arc1t3ct

New Member
Joined
Sep 10, 2019
Messages
19 (0.27/day)
If haswell CPUs started falling like flies this year, people would be hooting and hollering about planned obsolescence and faulty hardware, and you bet there would be a class action lawsuit over it.

A properly designed CPU will not die at stock settings. Just because this is AMD doesnt make a lick of difference. At stock settings, CPUs shouldnt die, period. If they do, the stock settings are pushing the chip too far. There are plenty of pentium IV CPUs that are still running after 15+ years of service without issue, same with core 2 CPUs running after 12+ years of constant use, ece.
My AMD K6-2 @450Mhz still runs fine. What’s your point exactly?

Are you implying that AMD cpus are not as well made?

Joined
May 7, 2009
Messages
5,371 (1.40/day)
Location
Carrollton, GA
System Name ODIN
Processor AMD Ryzen 7 1800X @ 3.9 GHz (all cores)
Motherboard ASRock TaiChi X370
Cooling Cryorig Universal R1
Memory 16 GB G.Skill FlareX @ 3200 MHz 14-14-14-34
Video Card(s) Nvidia Gigabyte Aorus GeForce GTX 1080 Ti
Storage WD Blue M.2 1TB SSD :: 10 TB RAID 1 Array of 2 drives
Display(s) Dell S2716DG 27" 144 Hz G-SYNC
Case NZXT H630
Audio Device(s) Onboard Audio
Power Supply Antec HCP 850 80+ Gold
Mouse Corsair M65
Keyboard Corsair K70 RGB Lux
Software Windows 10 Pro 64-bit
Benchmark Scores I don't benchmark.
The numbers don't seem like all this was worth it. So you get +50 Mhz and the clock will hold at the spec for a few seconds to net you less than 1% performance. For what?

Top
