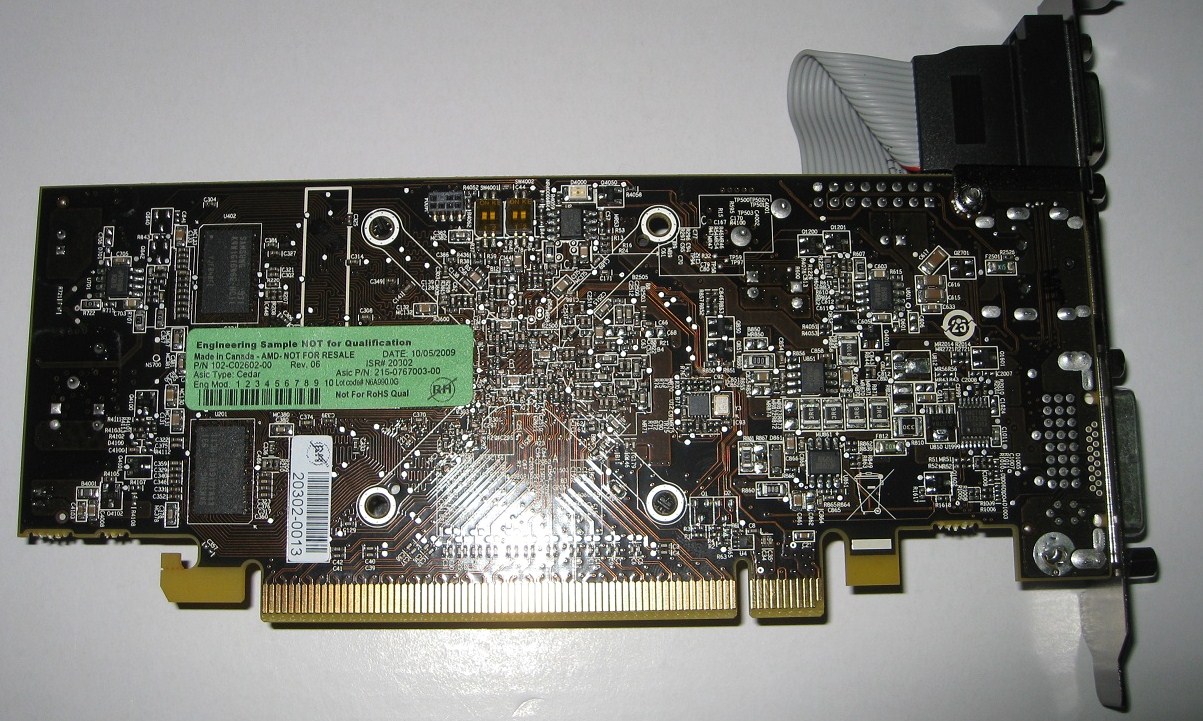

AMD Cedar Reference Design Board Pictured

btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
34,335 (9.23/day)
Likes
17,427
Location
Hyderabad, India
System Name Long shelf-life potato
Processor Intel Core i7-4770K
Motherboard ASUS Z97-A
Cooling Xigmatek Aegir CPU Cooler
Memory 16GB Kingston HyperX Beast DDR3-1866
Video Card(s) 2x GeForce GTX 970 SLI
Storage ADATA SU800 512GB
Display(s) Samsung U28D590D 28-inch 4K
Case Cooler Master CM690 Window
Audio Device(s) Creative Sound Blaster Recon3D PCIe
Power Supply Corsair HX850W
Mouse Razer Abyssus 2014
Keyboard Microsoft Sidewinder X4
Software Windows 10 Pro Creators Update
#1
AMD's entry-level graphics processor in its DirectX 11 compliant generation, the Radeon HD 5000 series is codenamed "Cedar". This GPU is expected to be half as powerful as the "Redwood" GPU, with an expected 200 stream processors, 64-bit GDDR5/GDDR3 memory interface, and DirectX 11 compliance. It will make for two initial product SKUs: the Radeon HD 5400 series (probably Cedar with GDDR3 memory), and Radeon HD 5500 series (probably Cedar with GDDR5 memory). There are three models slated for release later this month: Radeon HD 5450, Radeon HD 5550, and Radeon HD 5570.
