AMD Ryzen "Raven Ridge" Comes with a Limited PCIe Interface

btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
34,648 (9.14/day)
Likes
17,583
Location
Hyderabad, India
System Name Crypto-plague Survival Kit
Processor Intel Core i7-4770K
Motherboard ASUS Z97-A
Cooling Xigmatek Aegir CPU Cooler
Memory 2x 8GB Kingston HyperX Beast DDR3-1866
Video Card(s) 2x ZOTAC GeForce GTX 970
Storage ADATA SU800 512GB + Intel SSD320 120GB + Patriot WildFire 120GB
Display(s) Samsung U28D590 28-inch 4K UHD
Case Cooler Master CM690 1st Gen
Audio Device(s) Creative Sound Blaster Recon3D PCIe
Power Supply Corsair HX850W
Mouse Razer Abyssus
Keyboard Microsoft Sidewinder X4
Software Windows 10 Pro
#1

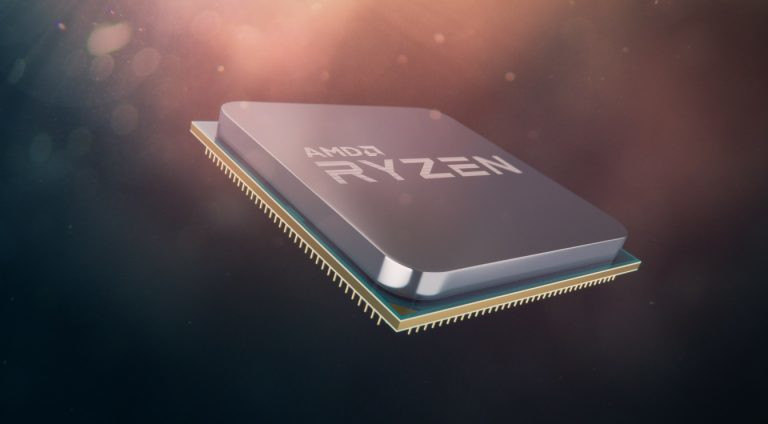

AMD today launched its first desktop Ryzen "Raven Ridge" APUs that combine quad-core "Zen" CPUs with "Vega" based integrated graphics solutions. One of its key specifications that caught our eye is its PCI-Express interface. Apparently, these chips feature just 8 PCI-Express gen 3.0 lanes for discrete graphics, besides 4 lanes dedicated as the chipset-bus, and 4 other lanes driving a 32 Gbps M.2 NVMe slot. What this means for the end-users, is that any discrete graphics cards plugged into the PCI-Express 3.0 x16 slot will run at half the bandwidth - PCI-Express 3.0 x8.

Our various PCI-Express scaling articles, which we regularly redo with the latest high-end GPUs, should tell you that the performance loss between gen 3.0 x16 and gen 3.0 x8 is negligible. This, however, becomes a problem for the small minority of users who combine these processors with AMD X370 chipset motherboards. The second x16 slot (which draws its PCIe lanes by segmenting it from the first x16 slot) won't work, and without at least x8 bandwidth, there's no possibility of NVIDIA SLI functioning, even on X370 motherboards that have SLI certification. One can't even argue that some internal PCIe lane allocation to the iGPU permanently locks 8 lanes away from PEG. AMD confirms that the "Zen" CCX and the "Vega 11" iGPU talk to each other over Infinity Fabric, not PCIe.



AMD responded to our story in advance with this statement:
The target market for Raven Ridge, PC builders or DIYers who value the presence of SoC graphics, will select B350 or A320 motherboards, which do not feature the ability to split PCIe lanes. X370 buyers are typically buying the high end Ryzen, such as Ryzen 5 6-core and Ryzen 7 8-core, to go with that class and price motherboard. For the majority of the market, upgrading from the class leading processor graphics inside the Ryzen 5 2400G or Ryzen 3 2200G to a single discrete GPU will be more than enough, given then performance on offer today from discrete graphics cards such as Radeon RX VEGA64 and Radeon RX 580. And today, those buyers can select from our 1st Gen Ryzen desktop processors, including the Ryzen 5 1500X and Ryzen 3 1300X which remain in the product stack for those buyers who value the extra PCIe lanes.

Additionally, we typically expect buyers who want to run mGPU are doing so from day one. These consumers are finding the lure of the of the Threadripper platform very compelling - massive performance, class leading PCIe lanes, and massive memory bandwith are all the perfect complementary features to go with multi-GPU compute, and gaming.

Raven Ridge was created for the ultra thin and light performance notebook segment, but also to scale into the mainstream performance desktop. It does this through the scalability of "Zen" and "Vega" IP, connected by AMDs Infinity Fabric, offering outstanding graphics performance and features for the price point in the desktop market. The scalable nature of the Socket AM4 platform means that there is a path for users to begin with an entry level motherboard and mainstream processor, and now upgrade processor and platform features the same way that people upgrade discrete graphics card.

Joined
Jul 10, 2012
Messages
3,881 (1.89/day)
Likes
1,398
Location
Memphis, TN
System Name Black Prometheus
Processor AMD Ryzen R5 1600 @4.1GHz
Motherboard MSI X370 Gaming Pro Carbon
Cooling DeepCool Gammaxx 200T
Memory G.Skill Trident Z 16GB (4x4GB) @3000MHz
Video Card(s) Sapphire RX Vega 64 Limited Edition
Storage Seagatr Barracuda 2TB x4
Display(s) LG 29UM68-P 29" UltraWide w/FreeSync
Case Fractal Arc Midi R2
Audio Device(s) Onboard
Power Supply Antec Quattro 850W
Software Windows 10 EDU x64
#2
Yea honestly at the market they are targeting I don’t think it’s much of a big deal and if it was they wouldn’t be buying an APU

Joined
May 2, 2017
Messages
204 (0.68/day)
Likes
46
Processor AMD Ryzen 5 1600X
Motherboard Biostar X370GTN
Cooling Custom CPU+GPU water loop
Memory 16GB G.Skill TridentZ DDR4-3200 C16
Video Card(s) AMD R9 Fury X
Storage 500GB 960 Evo (OS ++), 500GB 850 Evo (Games)
Display(s) Dell U2711
Case Fractal Design Define R4
Power Supply EVGA Supernova G2 750W
Mouse Logitech G602
Keyboard Lenovo Compact Keyboard with Trackpoint
Software Windows 10 Pro
#3
Hasn't this been well known since the announcement of the AM4 platform? IIRC, AMD have consistently had separate spec charts for PCIe on AM4 depending on if you're running an APU or CPU, and no indication that this would change for RR compared to Bristol Ridge. Of course it's good to have this cut and dried, but this shouldn't be surprising to anyone paying attention to AM4 specs.

Joined
Feb 12, 2018
Messages
1 (0.08/day)
Likes
0
#4
This is a very good thing. This way miners won't buy all these up to get the small boost from the on-die graphics. and It will give people a way to upgrade to ryzen with graphics already included and wait out till the prices drop to fill the one slot they can use on the mobo.

Joined
Aug 13, 2010
Messages
3,269 (1.19/day)
Likes
1,688
System Name kom pu tor
Processor Core i7 8700K 5Ghz
Motherboard Gigabyte Z370 Ultra Gaming
Cooling Custom 240MM WC loop
Memory G.Skill RipJawsZ 2666Mhz 16GB
Video Card(s) Palit GTX 1080 Jetstream
Storage A salad of SSDs
Case Corsair Air 540
Power Supply Antec Egde 750W
Mouse Logitec G400
Keyboard Cougar 600K
#5
Mining resistant. Ingenious.
That said, for many, 8X1 is enough, so...


trickson

OH, I have such a headache
Joined
Dec 5, 2004
Messages
6,712 (1.39/day)
Likes
1,045
Location
Planet Earth.
Processor AMD Ryzen3 1300X 3.7GHz
Motherboard GA-AB350M-Gaming 3
Cooling Stock
Memory one stick 8GB Viper DDR4
Video Card(s) GeForce GTX 1050
Storage WD 3T
Display(s) 50" Samsung and a 23" asus LCD 1080p
Case Antech.
Power Supply Corsair TX850
Mouse Optical
Keyboard K120 Logitech
Software Windows 10 64 bit Home OEM
#6
YEAH keep producing them sub-par CPU's Intel loves it. I will NEVER buy AMD again a complete waste of time and money! They need to FIRE there entire R&D department and get some real talent in there!
Sub-par performance at a premium price what a JOKE!
Just get a real Intel system and avoid the headache and wasted time and money! AMD is GARBAGE! I know I have them and they BOTH SUCK! My Q9650 of 9 years of age can not only keep up but is in many tasks faster! OMG I GOT SUCKERED!

Joined
May 2, 2017
Messages
204 (0.68/day)
Likes
46
Processor AMD Ryzen 5 1600X
Motherboard Biostar X370GTN
Cooling Custom CPU+GPU water loop
Memory 16GB G.Skill TridentZ DDR4-3200 C16
Video Card(s) AMD R9 Fury X
Storage 500GB 960 Evo (OS ++), 500GB 850 Evo (Games)
Display(s) Dell U2711
Case Fractal Design Define R4
Power Supply EVGA Supernova G2 750W
Mouse Logitech G602
Keyboard Lenovo Compact Keyboard with Trackpoint
Software Windows 10 Pro
#7
Mining resistant. Ingenious.
That said, for many, 8X1 is enough, so...
The question is whether the CPU will allow splitting this off into single lanes. There's no guarantee that lane bifurcation is supported on consumer platforms, even if it's technically possible.

Joined
Mar 14, 2009
Messages
3,430 (1.05/day)
Likes
1,267
Location
Ohio
System Name Spanky
Processor Ryzen 1400
Motherboard MSI 350 gaming pro
Cooling NZXT Kracken X42
Memory 8gb Crucial 2133 at 2667
Video Card(s) Nvidia 1060
Storage 250gb WD blue
Display(s) Acer 32" 2560x1440
Case Raidmax Sigma
Audio Device(s) Sound Blaster Audigy FX
Power Supply Seasonic
Mouse Epicgear
Keyboard Razer Deatstalker
Software Windows 10Pro x64
#8
People such as myself that buys this stuff aren't expecting to run SLI... The only crossfire with past models was with cards that used a 64bit memory interface...
I don't think they are even doing crossfire with any card and this APU series... Unless they have a lot end Vega I don't know about.


trickson

OH, I have such a headache
Joined
Dec 5, 2004
Messages
6,712 (1.39/day)
Likes
1,045
Location
Planet Earth.
Processor AMD Ryzen3 1300X 3.7GHz
Motherboard GA-AB350M-Gaming 3
Cooling Stock
Memory one stick 8GB Viper DDR4
Video Card(s) GeForce GTX 1050
Storage WD 3T
Display(s) 50" Samsung and a 23" asus LCD 1080p
Case Antech.
Power Supply Corsair TX850
Mouse Optical
Keyboard K120 Logitech
Software Windows 10 64 bit Home OEM
#9
The question is whether the CPU will allow splitting this off into single lanes. There's no guarantee that lane bifurcation is supported on consumer platforms, even if it's technically possible.
Not when there is so much sharing within the core and being dependent on RAM like always AMD still misses the mark once again! If it comes out best save up for 32GB of RAM at the fastest speed possible too then you will need to push that CPU BEYOND ALL engineered limits just to reach the level of performance a stock Intel Core i5 will give!

Joined
Aug 10, 2007
Messages
4,078 (1.06/day)
Likes
1,139
Location
Geneva, FL, USA
Processor Intel i5-6600
Motherboard ASRock H170M-ITX
Cooling Cooler Master Geminii S524
Memory G.Skill DDR4-2133 16GB (8GB x 2)
Video Card(s) Gigabyte R9-380X 4GB
Storage Samsung 950 EVO 250GB (mSATA)
Display(s) LG 29UM69G-B 2560x1080 IPS
Case Lian Li PC-Q25
Audio Device(s) Realtek ALC892
Power Supply Seasonic SS-460FL2
Mouse Logitech G700s
Keyboard Logitech G110
Software Windows 10 Pro
#10
I agree with the target market, though I'm not going to get a 300 series board this close to the 400-series release. I'll buy a 2400G with an A420 or B450 board in a couple months.

Joined
May 2, 2017
Messages
204 (0.68/day)
Likes
46
Processor AMD Ryzen 5 1600X
Motherboard Biostar X370GTN
Cooling Custom CPU+GPU water loop
Memory 16GB G.Skill TridentZ DDR4-3200 C16
Video Card(s) AMD R9 Fury X
Storage 500GB 960 Evo (OS ++), 500GB 850 Evo (Games)
Display(s) Dell U2711
Case Fractal Design Define R4
Power Supply EVGA Supernova G2 750W
Mouse Logitech G602
Keyboard Lenovo Compact Keyboard with Trackpoint
Software Windows 10 Pro
#11
YEAH keep producing them sub-par CPU's Intel loves it. I will NEVER buy AMD again a complete waste of time and money! They need to FIRE there entire R&D department and get some real talent in there!
Sub-par performance at a premium price what a JOKE!
Just get a real Intel system and avoid the headache and wasted time and money! AMD is GARBAGE! I know I have them and they BOTH SUCK! My Q9650 of 9 years of age can not only keep up but is in many tasks faster! OMG I GOT SUCKERED!
Wow, maybe you should chill out a little bit? From the looks of your post and your sig, you went from an ultra-high-end CPU (probably OC'd too, given how long you kept it) to a low-end, budget part. While the Ryzen should still beat out the C2Q in 99% of tasks, it does sound like more of a sidegrade. I went from a Q9450 (@3.5GHz) to an R5 1600X last June, and haven't regretted it for a second. It absolutely trounces my old CPU, gave me a serious GPU performance lift, all while running far cooler and quieter. IF being dependent on RAM speed is a bit of a downer, but price differences between ~3000 and 2400MT/s RAM is pretty negligible (and not only because of the crazy prices these days - they were the same back when I bought my 16GB kit a few months before prices jumped, too).

I get that you had a bad experience, but it sounds like you made some poor calls when buying hardware and should probably have read more reviews before pulling the trigger. Ryzen has made AMD competitive with Intel (still behind, but competitive) for IPC. They're still lagging in pure clock speeds, and their platform has some idiosyncrasies that might hit you badly given your part selection - but that's the nature of not being the de facto industry standard. Ryzen still works amazingly for pretty much everyone who bought it.

Not when there is so much sharing within the core and being dependent on RAM like always AMD still misses the mark once again! If it comes out best save up for 32GB of RAM at the fastest speed possible too then you will need to push that CPU BEYOND ALL engineered limits just to reach the level of performance a stock Intel Core i5 will give!
What you're saying here has absolutely no relation to what you quoted.

I agree with the target market, though I'm not going to get a 300 series board this close to the 400-series release. I'll buy a 2400G with an A420 or B450 board in a couple months.
Kinda-sorta agree, although I doubt there'll be any major differences between them (other than, it seems, X470 being a die shrink or similar redesign for lower power). If I had the money and RAM prices weren't stupid I'd be getting a 2400G + a fast 16GB RAM kit for a HTPC upgrade. I'll hold off for now, though, as it seems the RAM situation might improve somewhat throughout the year.

Joined
Aug 10, 2007
Messages
4,078 (1.06/day)
Likes
1,139
Location
Geneva, FL, USA
Processor Intel i5-6600
Motherboard ASRock H170M-ITX
Cooling Cooler Master Geminii S524
Memory G.Skill DDR4-2133 16GB (8GB x 2)
Video Card(s) Gigabyte R9-380X 4GB
Storage Samsung 950 EVO 250GB (mSATA)
Display(s) LG 29UM69G-B 2560x1080 IPS
Case Lian Li PC-Q25
Audio Device(s) Realtek ALC892
Power Supply Seasonic SS-460FL2
Mouse Logitech G700s
Keyboard Logitech G110
Software Windows 10 Pro
#12
Kinda-sorta agree, although I doubt there'll be any major differences between them (other than, it seems, X470 being a die shrink or similar redesign for lower power). If I had the money and RAM prices weren't stupid I'd be getting a 2400G + a fast 16GB RAM kit for a HTPC upgrade. I'll hold off for now, though, as it seems the RAM situation might improve somewhat throughout the year.
Well, I use to buy SIMMs so I'm very dull to RAM price fluctuations. Lets talk GPUs instead (or not!).

It's more-so that I've waited since Ryzens release to get at these APUs, so there's a bit of stubbornness in there as well. "Hey AMD, I didn't need a new desktop or workstation, I needed a fresh APU". So I've been biding my time since then... and I'll wait a little longer good measure. Also, I'll probably get a better out-of-box experience, which may be the 400-series best feature.

Joined
Nov 24, 2017
Messages
40 (0.43/day)
Likes
28
Processor Intel Core i5 4590
Motherboard Gigabyte Z97x Gaming 3
Cooling Intel Stock Cooler
Memory Transcend DDR3-1600 4GB
Video Card(s) Intel HD 4600
Storage Transcend SSD370S 128GB; Toshiba DT01ACA100 1TB
Display(s) Samsung S20D300 20" TN
Case Delux DLC-MV888
Audio Device(s) Realtek ALC1150
Power Supply Generic 350 Watt
#14
So this mean Raven Ridge has PCIe Gen3 configuration of 8x+4x+4x, compare to 16x+4x+4x of Summit Ridge.


windwhirl

New Member
Joined
Dec 16, 2017
Messages
16 (0.23/day)
Likes
8
Location
Argentina
System Name Looking for a successor.
Processor Core i3 4330
Motherboard Gigabyte GA-B85M D3H v2.1
Cooling Standard Intel Cooler (I know, it sucks)
Memory 24 GB DDR3 1600 MHz (no pagefile, yay!)
Video Card(s) Radeon RX 580 8 GB
Storage Kingston HyperX Fury 240 GB // Toshiba 2 TB HDD // WD 2 TB HDD
Display(s) LG 22MP55 IPS Display (6-bit + FRC)
Case Corsair Carbide 100R
Audio Device(s) Onboard Realtek ALC 892
Power Supply Corsair CX650M
Mouse Logitech Wireless Mouse M280
Keyboard Microsoft Natural Keyboard 4000
Software Windows 10 Pro Insider Preview Fast Ring
#15
It makes sense. PCIe 3.0 x8 is almost the same as 2.0 x16, and unless you were pushing it to the limit (haven't read anywhere something like that for a single discreet GPU, perhaps with Crysis 3 at max settings), you probably wouldn't feel any difference in almost all games. Also, anyone buying AMD's APU processors probably have no plans to use any kind of add-on card besides a single graphics card. And for that market, the IO provided by the motherboard and the chipset should be enough in most cases.

Joined
May 22, 2015
Messages
2,672 (2.65/day)
Likes
956
Processor Intel i5-6600k
Motherboard ASRock Z170 Extreme7+
Cooling Arctic Cooling Freezer i11
Memory 2x8GB DDR4 2400 G.Skill
Video Card(s) EVGA GTX 1060 SC
Storage 128 and 256GB OCZ Vertex4, 500GB Samsung 850 EVO, 1TB Crucial MX300 and 3TB Seagate
Display(s) HP ZR24w
Case Chieftec BX01
Power Supply Seasonic 620W M12
Mouse Logitech G502 Proteus Core
Keyboard G.Skill KM780R
#16
Hasn't this been well known since the announcement of the AM4 platform? IIRC, AMD have consistently had separate spec charts for PCIe on AM4 depending on if you're running an APU or CPU, and no indication that this would change for RR compared to Bristol Ridge. Of course it's good to have this cut and dried, but this shouldn't be surprising to anyone paying attention to AM4 specs.
Yeah, you can always count on the odd idiot out there to buy a cheap CPU only to be surprised it's as fully fledged as its more expensive siblings. And when I said "odd", I meant enough of them to start a lawsuit at some point.
So yeah, it's ok people are highlighting this.

Joined
Oct 27, 2009
Messages
457 (0.15/day)
Likes
134
Location
Republic of Texas
System Name [H]arbringer
Processor 4x 61XX ES @3.5Ghz (48cores)
Motherboard SM GL
Cooling 3x xspc rx360, rx240, 4x DT G34 snipers, D5 pump.
Memory 16x gskill DDR3 1600 cas6 2gb
Video Card(s) blah bigadv folder no gfx needed
Storage 32GB Sammy SSD
Display(s) headless
Case Xigmatek Elysium (whats left of it)
Audio Device(s) yawn
Power Supply Antec 1200w HCP
Software Ubuntu 10.10
Benchmark Scores http://valid.canardpc.com/show_oc.php?id=1780855 http://www.hwbot.org/submission/2158678 http://ww
#17
Yeah, you can always count on the odd idiot out there to buy a cheap CPU only to be surprised it's as fully fledged as its more expensive siblings. And when I said "odd", I meant enough of them to start a lawsuit at some point.
So yeah, it's ok people are highlighting this.
No need to look far, just scroll up a bit.

Joined
Mar 14, 2009
Messages
3,430 (1.05/day)
Likes
1,267
Location
Ohio
System Name Spanky
Processor Ryzen 1400
Motherboard MSI 350 gaming pro
Cooling NZXT Kracken X42
Memory 8gb Crucial 2133 at 2667
Video Card(s) Nvidia 1060
Storage 250gb WD blue
Display(s) Acer 32" 2560x1440
Case Raidmax Sigma
Audio Device(s) Sound Blaster Audigy FX
Power Supply Seasonic
Mouse Epicgear
Keyboard Razer Deatstalker
Software Windows 10Pro x64
#18
I really hope they come out with a 960 sp version... Really make it a real 1080p gaming platform.


cadaveca

My name is Dave
Staff member
Joined
Apr 10, 2006
Messages
16,601 (3.83/day)
Likes
11,013
Location
Parkland County, Alberta
#19
So this mean Raven Ridge has PCIe Gen3 configuration of 8x+4x+4x, compare to 16x+4x+4x of Summit Ridge.
No. It has a x16/x4/x4 link, but 8 lanes of that 16 port are swapped into infinity fabric mode. This is also how the EPYC/ThreadRipper CPUs communicate with each other as well. So really, whenever we have these devices connected to each other, they are kind of technically using PCIe to connect, but it is a higher-speed interface mode than what PCIe 3.0 offers.

Joined
Aug 20, 2007
Messages
8,200 (2.13/day)
Likes
7,215
System Name New Genesis
Processor AMD Ryzen 1800X @ 4.1Ghz All Cores
Motherboard GIGABYTE X370 Aorus Gaming 5
Cooling A whole lotta Sunon and Corsair Maglev blower fans...
Memory G.SKILL TridentZ Series 32GB (4 x 8GB) DDR4-3200 @ 14-14-14-34-1T
Video Card(s) NVIDIA Titan XP Star Wars Collectors Edition (Galactic Empire)
Storage HGST Ultrastar 7k6000 2TB HDD (128MBs of Cache)
Display(s) BenQ BL3200PT (a 1440p VA Panel with decent latency)
Case Thermaltake Core X31
Audio Device(s) Onboard Toslink to Schiit Modi Multibit to Asgard 2 Amp to AKG K7XX Ruby Red Massdrop Headphones
Power Supply Seasonic PRIME 750W 80Plus Titanium
Mouse ROCCAT Kone EMP
Keyboard WASD CODE 104-Key w/ Cherry MX Green Keyswitches, Doubleshot Vortex PBT White Keycaps, Blue legends
Software Windows 10 Enterprise (From former workplace, yay no telemetry)
Benchmark Scores FS/TS Extreme FS 14011:https://www.3dmark.com/fs/14938447 TS 4769:https://www.3dmark.com/spy/3315715
#20
YEAH keep producing them sub-par CPU's Intel loves it. I will NEVER buy AMD again a complete waste of time and money! They need to FIRE there entire R&D department and get some real talent in there!
Sub-par performance at a premium price what a JOKE!
Just get a real Intel system and avoid the headache and wasted time and money! AMD is GARBAGE! I know I have them and they BOTH SUCK! My Q9650 of 9 years of age can not only keep up but is in many tasks faster! OMG I GOT SUCKERED!
You are comparing a 2008 $339 processor (~$380 inflation considered) to an almost $125 Ryzen in 2017. They SHOULD perform about equal. Your comparing 2008's finest to 2017's garbage tier.

You then went backwards technologically, to Piledriver, which has known to be shit since forever (part of why Ryzen was made), and you think AMD is the problem?

Confusing.

This is the AMD CPU you should have started with at minimum, to see how technology has advanced:

https://www.newegg.com/Product/Product.aspx?Item=N82E16819113428&cm_re=Ryzen-_-19-113-428-_-Product

Joined
Apr 19, 2011
Messages
1,758 (0.70/day)
Likes
213
Location
So. Cal.
#21
The only one building this as an issue is Btarunr. As we see AMD had detailed out how APU's with infinity fabric would use PCIe to connect some time back. If buying an APU to down the road add a single discreet mid-range or higher GPU this APU ability was never the right technology to purchase! Would anyone think of doing these with some 1080Ti as a smart pairing? It's if you followed APU with multi-GPU never held much merit, and at least now right-up-front you now have... an-even-better reason not to do stupid.

Joined
May 22, 2015
Messages
2,672 (2.65/day)
Likes
956
Processor Intel i5-6600k
Motherboard ASRock Z170 Extreme7+
Cooling Arctic Cooling Freezer i11
Memory 2x8GB DDR4 2400 G.Skill
Video Card(s) EVGA GTX 1060 SC
Storage 128 and 256GB OCZ Vertex4, 500GB Samsung 850 EVO, 1TB Crucial MX300 and 3TB Seagate
Display(s) HP ZR24w
Case Chieftec BX01
Power Supply Seasonic 620W M12
Mouse Logitech G502 Proteus Core
Keyboard G.Skill KM780R
#22
The only one building this as an issue is Btarunr. As we see AMD had detailed out how APU's with infinity fabric would use PCIe to connect some time back. If buying an APU to down the road add a single discreet mid-range or higher GPU this APU ability was never the right technology to purchase! Would anyone think of doing these with some 1080Ti as a smart pairing? It's if you followed APU with multi-GPU never held much merit, and at least now right-up-front you now have... an-even-better reason not to do stupid.
Those that buy into the "CPU is no longer a bottleneck, especially at high resolutions" might.


windwhirl

New Member
Joined
Dec 16, 2017
Messages
16 (0.23/day)
Likes
8
Location
Argentina
System Name Looking for a successor.
Processor Core i3 4330
Motherboard Gigabyte GA-B85M D3H v2.1
Cooling Standard Intel Cooler (I know, it sucks)
Memory 24 GB DDR3 1600 MHz (no pagefile, yay!)
Video Card(s) Radeon RX 580 8 GB
Storage Kingston HyperX Fury 240 GB // Toshiba 2 TB HDD // WD 2 TB HDD
Display(s) LG 22MP55 IPS Display (6-bit + FRC)
Case Corsair Carbide 100R
Audio Device(s) Onboard Realtek ALC 892
Power Supply Corsair CX650M
Mouse Logitech Wireless Mouse M280
Keyboard Microsoft Natural Keyboard 4000
Software Windows 10 Pro Insider Preview Fast Ring
#23
You are comparing a 2008 $339 processor (~$380 inflation considered) to an almost $125 Ryzen in 2017. They SHOULD perform about equal. Your comparing 2008's finest to 2017's garbage tier.

You then went backwards technologically, to Piledriver, which has known to be shit since forever (part of why Ryzen was made), and you think AMD is the problem?

Confusing.

This is the AMD CPU you should have started with at minimum, to see how technology has advanced:

https://www.newegg.com/Product/Product.aspx?Item=N82E16819113428&cm_re=Ryzen-_-19-113-428-_-Product
Ryzen processors are slightly slower than Intel Haswell counterparts, in terms of single-threaded performance (acording to data from Passmark benchmarks), when running at the same frequency, although your mileage may vary somewhat. Against a Q9650 or any FX series CPU, however, Ryzen pretty much stomps all over them. There has to be something else for it to perform that badly.

Joined
Aug 20, 2007
Messages
8,200 (2.13/day)
Likes
7,215
System Name New Genesis
Processor AMD Ryzen 1800X @ 4.1Ghz All Cores
Motherboard GIGABYTE X370 Aorus Gaming 5
Cooling A whole lotta Sunon and Corsair Maglev blower fans...
Memory G.SKILL TridentZ Series 32GB (4 x 8GB) DDR4-3200 @ 14-14-14-34-1T
Video Card(s) NVIDIA Titan XP Star Wars Collectors Edition (Galactic Empire)
Storage HGST Ultrastar 7k6000 2TB HDD (128MBs of Cache)
Display(s) BenQ BL3200PT (a 1440p VA Panel with decent latency)
Case Thermaltake Core X31
Audio Device(s) Onboard Toslink to Schiit Modi Multibit to Asgard 2 Amp to AKG K7XX Ruby Red Massdrop Headphones
Power Supply Seasonic PRIME 750W 80Plus Titanium
Mouse ROCCAT Kone EMP
Keyboard WASD CODE 104-Key w/ Cherry MX Green Keyswitches, Doubleshot Vortex PBT White Keycaps, Blue legends
Software Windows 10 Enterprise (From former workplace, yay no telemetry)
Benchmark Scores FS/TS Extreme FS 14011:https://www.3dmark.com/fs/14938447 TS 4769:https://www.3dmark.com/spy/3315715
#24
Ryzen processors are slightly slower than Intel Haswell counterparts, in terms of single-threaded performance (acording to data from Passmark benchmarks), when running at the same frequency, although your mileage may vary somewhat. Against a Q9650 or any FX series CPU, however, Ryzen pretty much stomps all over them. There has to be something else for it to perform that badly.
I'd start by blaming his single channel ram and poor bench choice (CPU-Z).

Joined
Jul 5, 2013
Messages
1,473 (0.87/day)
Likes
688
#25
Yea honestly at the market they are targeting I don’t think it’s much of a big deal and if it was they wouldn’t be buying an APU
While I agree with you, this does limit the upgrade paths available to purchasers of this line of APU's. Upgrading to a single GPU? No problem. But SLI and Crossfire, not gonna happen. Still, the audience this product will appeal to will very likely be happy with a single GPU. And Any one who does want to go multi-GPU will likely know thay need to upgrade to a better CPU anyway. So this limitation won't have much impact in practice.
You're comparing 2008's finest to 2017's economy tier. You then went backwards technologically, to Piledriver, which has known to be under-performing since forever
That was begging for corrections. However, those are very good points.

@trickson AMD's Ryzen in anything but sub-par. In fact Ryzen is hitting Intel hard, which can only ever be good for consumers as it drives market competition. And for the record;
AMD Ryzen 3 1300X 3.72GHz.GA-AB350M-Gaming3 MB. 1 stick of viper DDR4 8GB RAM.3Tb WD HDD. GeForce GTX 1050 Video. (LOOKING TO GET A RYZEN DON'T BE A FOOL LIKE ME!)
THAT is why your Ryzen 3 is under-performing. Get another stick of ram for that bad-boy and watch it shine!

Last edited:
