AMD Ryzen Threadripper Delidded - It's EPYC

Raevenlord

News Editor
Staff member
Joined
Aug 12, 2016
Messages
2,617 (2.52/day)
Location
Portugal
System Name The Ryzening
Processor Ryzen 7 1700 @ 3.7 GHz
Motherboard MSI X370 Gaming Pro Carbon
Cooling Arctic Cooling Liquid Freezer 120
Memory 16 GB G.Skill Trident Z F4-3200 (2x 8 GB)
Video Card(s) TPU's Awesome MSI GTX 1070 Gaming X
Storage Boot: Crucial MX100 128GB; Gaming: Crucial MX 300 525GB; Storage: Samsung 1TB HDD, Toshiba 2TB HDD
Display(s) LG 29UM68P (21:9 2560x1080 FreeSync Ultrawide)
Case NOX Hummer MC Black
Audio Device(s) ASUS Xonar DX
Power Supply Seasonic M12II Evo 620W 80+
Mouse Cooler Master Masterkeys Lite L
Keyboard Cooler Master Masterkeys Lite L
Software Windows 10 x64

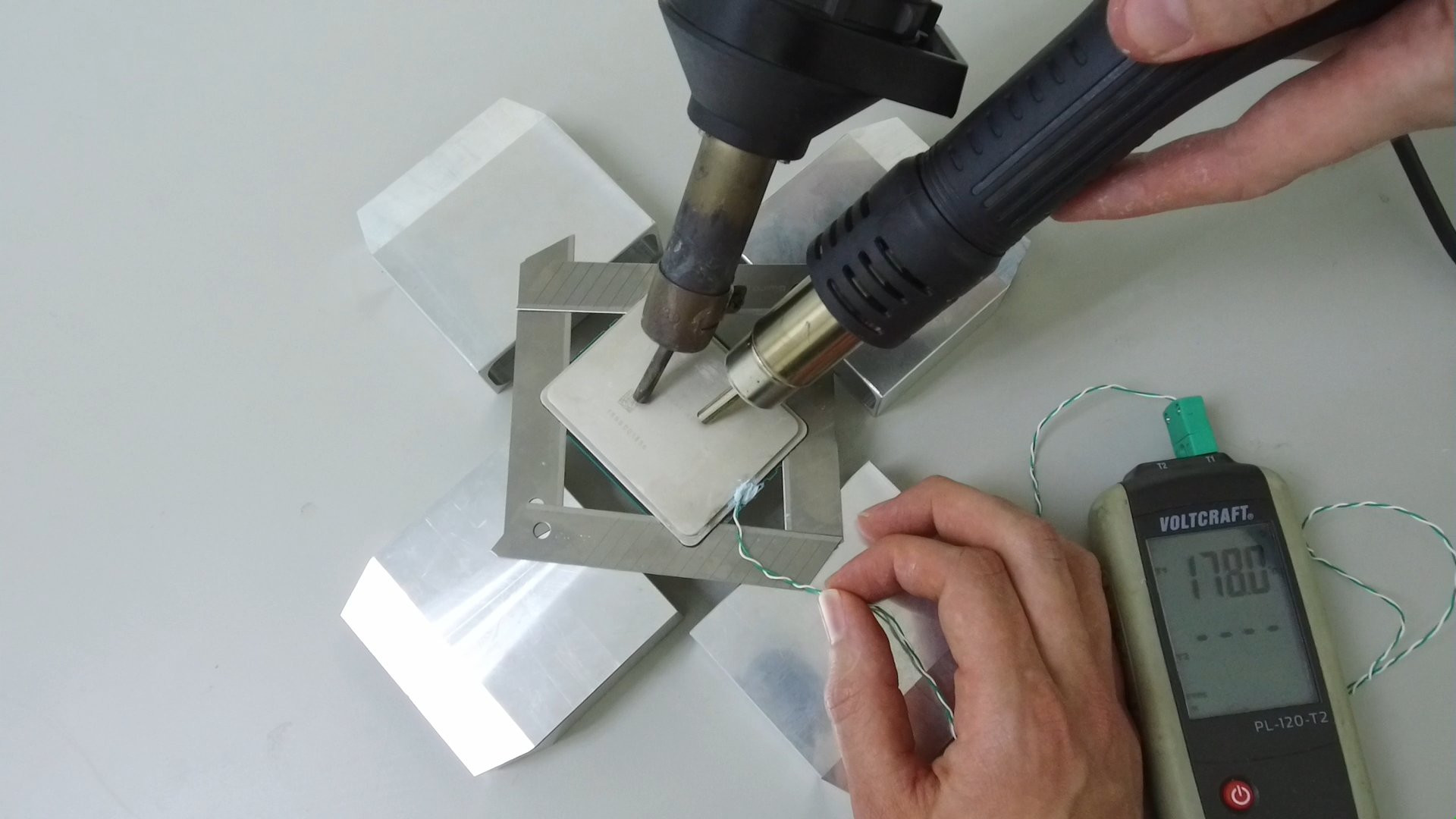

Overclocker extraordinaire der8auer, who was one of the most vocal enthusiasts calling out for better VRM designs on Intel's X299 platform (and who worked with ASUS on redesigning the VRM cooling in its motherboards) has gone and done it: he delidded a Ryzen Threadripper CPU. And this delidding went on to deliver the goods: Ryzen Threadripper delidded is EPYC (pun intended.)

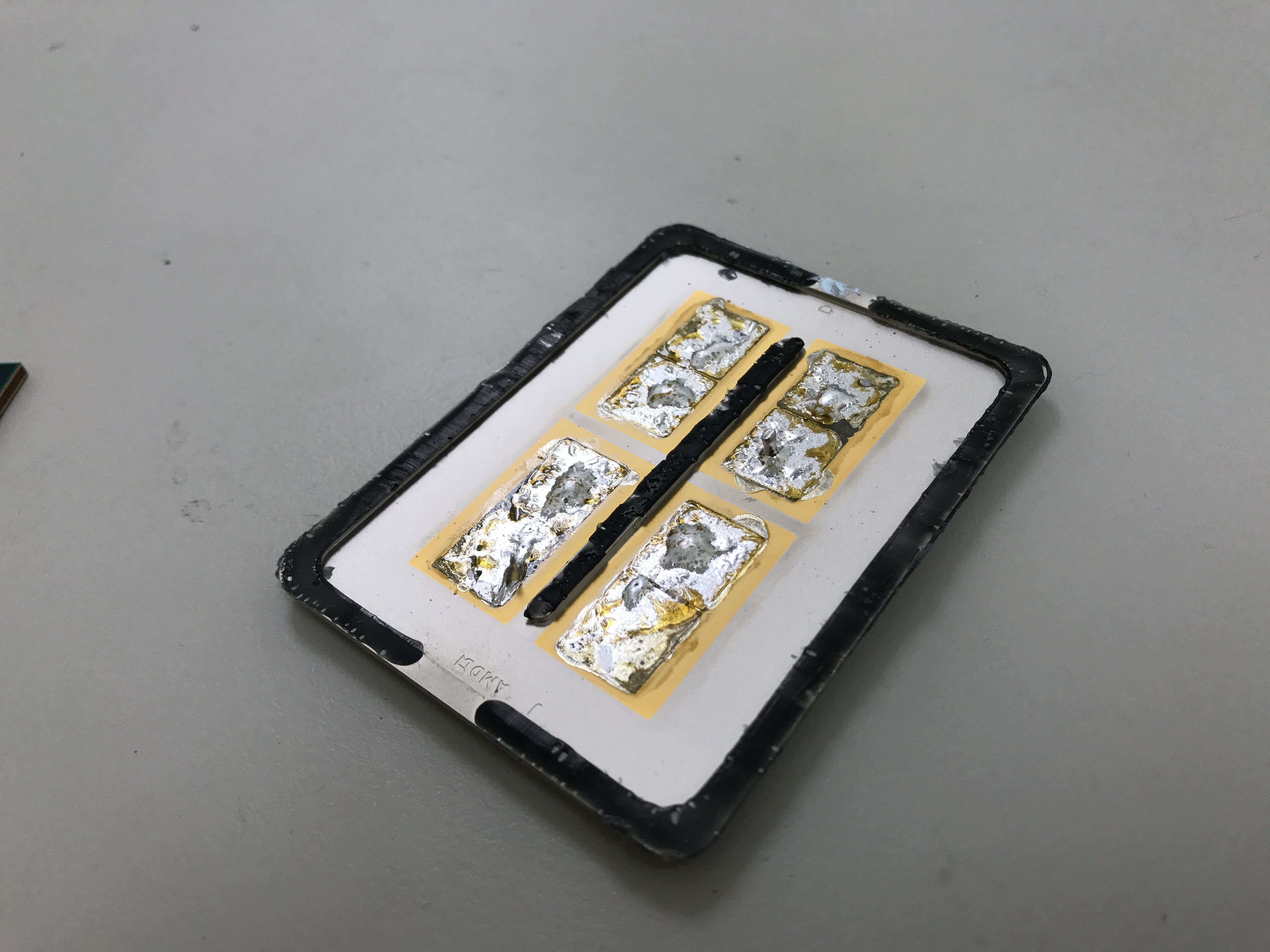

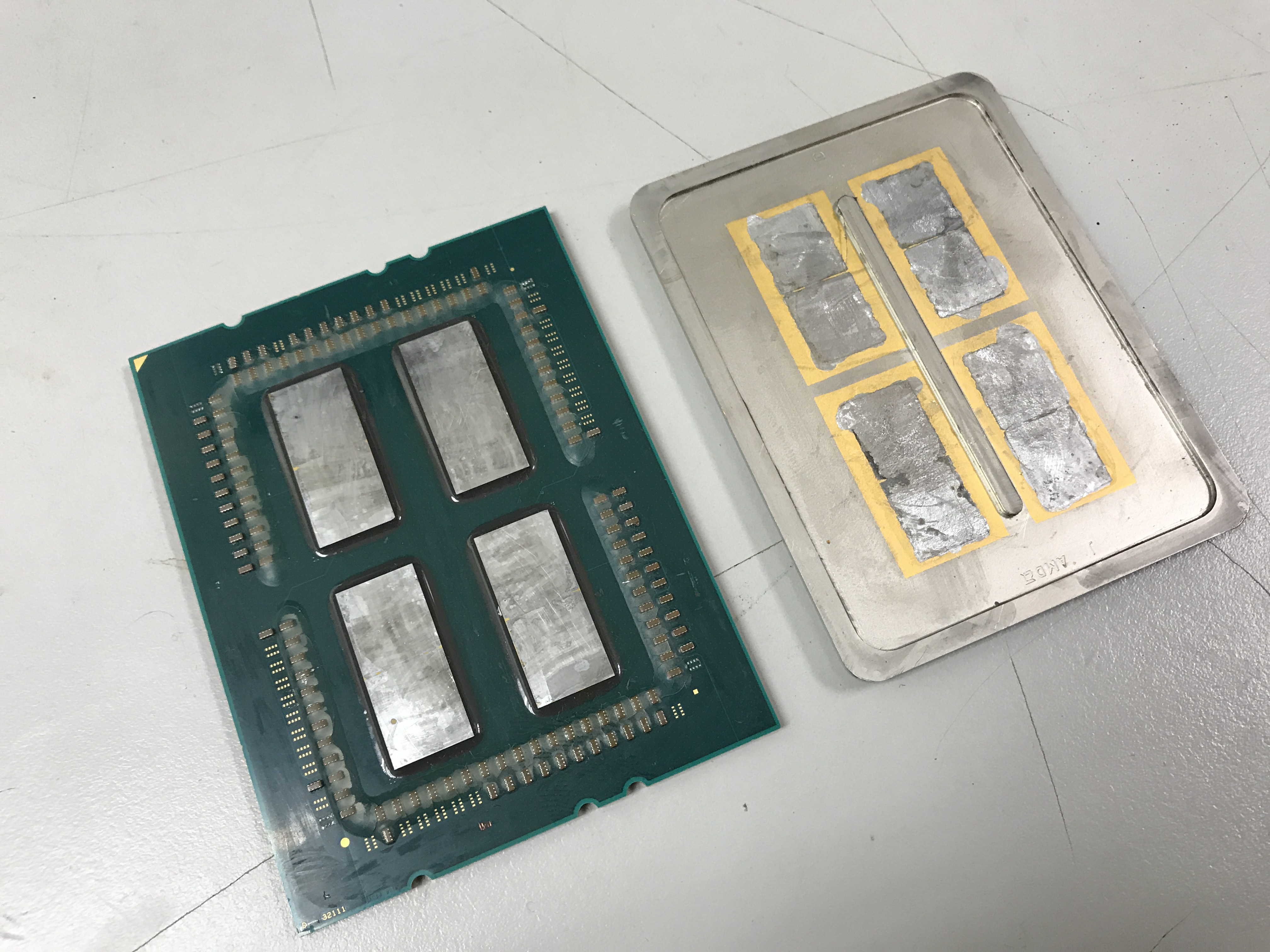

Instead of the expected MCM composed of two dies (with two CCXs of four cores per die, delivering the 16 cores we were expecting), Ryzen Threadripper is actually a much more interesting chip: it seems to be a full fledged EPYC chip, with four dies of eight cores. According to der8auer, when questioned, AMD confirmed that 16-core Threadripper 1950X CPUs are configured with two working eight core dies (four CCXs of four cores each), while the other eight-core dies are disabled by AMD.







A very, very interesting question here is whether these are actually defective or just disabled by AMD, which is something the company is naturally mum about. With AMD's history of core unlocking, and the fact that Zen-based CPUs have high yields, we can certainly hope (maybe even expect) that not all disabled cores are non-functional, and that AMD had to disable some of them so as to achieve their SKU core-count. Whether or not those will be unlockable, though, is anybody's guess. Der8auer also found that AMD Threadripper dies are gold plated on the inside, so as to improve conditions and adherence of the indium solder AMD used (some users might say that while Intel uses cheap TIM on their HEDT, X299 CPUs, AMD even sells these with gold inside.) This fact naturally also opens the question of future platform scalability - AMD can certainly decide to just up available maximum core-count on their Threadripper line of CPUs (we still have at least 4 model numbers above the 1950X, an potentially more.)



Check Der8auer's delidding video on YouTube below.


View at TechPowerUp Main Site

Last edited:
Joined
Mar 18, 2008
Messages
4,845 (1.18/day)
Location
Australia
System Name Night Rider | Mini LAN PC | Workhorse
Processor AMD R7 2700X | i7 2600 | i7 970
Motherboard MSi AM4 Pro Carbon | GA-H77M-D3H | Gigabyte EX58-UD5
Cooling AMD Wraith cooler| Coolermaster Gemini with Noctua 3000RPM Fan | Big shairkan B
Memory 2x8GB DDR4 G.Skill Ripjaws 3600MHz| 2x4GB Corsair 1600 | 6x2GB DDR3 1300 Corsair
Video Card(s) ASUS GTX 970 OC in Sli | Gainward GTX 650 TI GS | ASUS 7970 Matrix
Storage 250GB Plextor SSD Por 5 /1TB WD Black | 500GB WD ES/WD Black | WD 320/Seagate 320
Display(s) LG 27" 1440P| Samsung 20" S20C300L/DELL 15" | 22" DELL/19"DELL
Case LIAN LI PC-18 | Mini ATX Case (custom) | Atrix C4 9001
Audio Device(s) Onboard | Onbaord | Onboard
Power Supply Silverstone 750 | Silverstone Mini 450W | Corsair CX-750
Mouse Coolermaster Pro | Rapoo V900 | Gigabyte 6850X
Keyboard MAX Keyboard Nighthawk X8 | Creative Fatal1ty eluminx | Some POS Logitech
Software Windows 7 Pro 64 | Windows 7 Pro 64 | Windows 7 Pro 64/Windows 10 Home
Who didnt see this coming? like really? I pretty much said this in an older thread.

Maybe one day we can have a 32core CPU for our threadripper machines?

Joined
Mar 6, 2012
Messages
496 (0.19/day)
Processor i5 4670K - @ 4.8GHZ core
Motherboard MSI Z87 G43
Cooling Thermalright Ultra-120 *(Modded to fit on this motherboard)
Memory 16GB 2400MHZ
Video Card(s) HD7970 GHZ edition Sapphire
Storage Samsung 120GB 850 EVO & 4X 2TB HDD (Seagate)
Display(s) 42" Panasonice LED TV @120Hz
Case Corsair 200R
Audio Device(s) Xfi Xtreme Music with Hyper X Core
Power Supply Cooler Master 700 Watts
Oh give me a bios that can enable the disabled Cores and i will buy this in a heartbeat.

Joined
Jan 15, 2012
Messages
767 (0.28/day)
Location
Slovenia
System Name PC.
Processor i7 2600K 5.0Gh,i7 3770K 5.00Gh. EK, Liqed Coooleng
Motherboard P67A-UD7-B3 Gigabyte T.,ASUS,P8Z77-V PREMIUM,MAXIMUS V EXTRIME..
Cooling Liqed Cooleng ,EK Suprime LTX Nickel,EK for Motherboard,Aqua computer (WGA), Thermaltake .... 0i,
Memory G.SKILL F3-17600CL7-2GBPISG. 16GBSkill Sniper F3-17000CL94GBSR on 2400Hz 10-12-11-29 1
Video Card(s) GTX590 ,SLI ,POV TGT best 691Hz ,LiqedCoold,GTX480.....GTX1080MSI SeaHawkEK SLI
Storage OCZ-REVODRIVE 3-240GB,2xCrucialMX100.512.R-0,1x LMT-32L3m,3x 1TB-WD,1x;1x2TbSEAGATE1x2Tb Seagate
Display(s) DELL-U2412Mb,Samsung Synkmaster245B,HP ENVY 34c
Case Thermaltake, NZXT SWITCH 810SE
Audio Device(s) CREATIVE BLASTER X-Fi Titanium HD , AUNE T1MK2 TUBE USB
Power Supply ENERMAX Platimax 1500W,Thermaltake 1500W
Mouse VIPER V560,FUNC MS-3, Prestigio, R.A.T.E.7 and 5,LogitechG502,RAZER,Inperator.,dead...a.s.o.
Keyboard Trust ....LogotechG410
Software Windows7 64....
Benchmark Scores 3DMark Fire Strike 21.385 (37.234,11.828,7.176)
Yes, it would be nice to still open the rest of the cores, but lacking the necessary support on the processor side. It would be best if the four useful dai would work due to thermal distribution and thus higher operating frequencies, but I think the lottery will be here . And the intel new model has twenty cores under the cap, but it's max 18 unlocked, and twenty will sell us 20 next year. EPYC has a much larger reserve .

Last edited:

cadaveca

My name is Dave
Joined
Apr 10, 2006
Messages
17,092 (3.55/day)
The problem with solder is slowly the indium will get sucked onto the large patch of gold (used because of how indium bonds to it), and this will create holes in the solder that then lead to hot spots. This is why I like Intel using paste-based TIM... if it dries out, you can de-lid and replace, but when that solder wicks out, and the CPU runs hot only, you're forced to buy new gear.

This behavior of indium-based solders is properly documented, too, so while some see it as a boon, I see it a weakness in AMD's products, because, you know, I like science, not hype.

Joined
Jul 19, 2008
Messages
1,172 (0.29/day)
Location
Australia
Processor Intel i7 4790K
Motherboard Asus Z97 Deluxe
Cooling Thermalright Ultra Extreme 120
Memory Corsair Dominator 1866Mhz 4X4GB
Video Card(s) Asus R290X
Storage Samsung 850 Pro SSD 256GB/Samsung 840 Evo SSD 1TB
Display(s) Samsung S23A950D
Case Corsair 850D
Audio Device(s) Onboard Realtek
Power Supply Corsair AX850
Mouse Logitech G502
Keyboard Logitech G710+
Software Windows 10 x64
Asus didnt redesign VRM heatsinks for all their boards, just the few ROG boards that havent been released yet.

Most of Asus X299 boards on the market have the original heatsink, same with the other brands.


cadaveca

My name is Dave
Joined
Apr 10, 2006
Messages
17,092 (3.55/day)
Most of Asus X299 boards on the market have the original heatsink, same with the other brands.
And if you believe this overheating hype, those ASUS boards you should stay away from, because, as has been said, they have inferior cooling.

Joined
Nov 21, 2010
Messages
1,102 (0.35/day)
Location
Right where I want to be
System Name Ratchet
Processor Ryzen 1700X
Motherboard Crosshair VI Hero
Cooling Custom Loop, Ek blocks 280mm Rad
Memory 16gb TridentZ RGB DDR4 3000
Video Card(s) 1x ASUS STRIX RX480 OC(flashed to 580)
Storage JBOD
Display(s) HP ZR24w
Audio Device(s) Asus Xonar STX II
Power Supply Seasonic X-series Gold 850W
Mouse Corsair Scimitar
Keyboard Corsair K70 Rapidfire
Software Windows 10
The problem with solder is slowly the indium will get sucked onto the large patch of gold (used because of how indium bonds to it), and this will create holes in the solder that then lead to hot spots. This is why I like Intel using paste-based TIM... if it dries out, you can de-lid and replace, but when that solder wicks out, and the CPU runs hot only, you're forced to buy new gear.

This behavior of indium-based solders is properly documented, too, so while some see it as a boon, I see it a weakness in AMD's products, because, you know, I like science, not hype.
I never realized that, if that is a problem with Au-In bonding why don't they simply use smaller Gold patches or limit the size of the gold patch to exactly that of the die seems feasible enough to not incur any additional cost.

Joined
Sep 6, 2013
Messages
1,358 (0.64/day)
Location
Athens, Greece
System Name 3 systems: Gaming/Internet/HTPC
Processor AMD Phenom II 1075T @ 4.0GHz @ 1.42V/Intel i5 4460/Athlon X4 760K
Motherboard Gigabyte GA-990XA-UD3/ASRock Z97 Extreme6/ASUS FM2+
Cooling Noctua U12S/Lan Shuo Pure copper/Asetek Microchill
Memory 16GB Adata 2133MHz/16GB Kingston KHX1866C10D3/8GB Kingston 2400MHz (DDR3)
Video Card(s) ASUS HD7850 2GB @950-1400MHz /Intel 4600/Gigabyte GT620
Storage Kingston 240GB, Intel NVMe 500GB + HDDs/Samsung NVMe 250GB+ HDDs/Samsung SSD 120GB
Display(s) Samsung LE32D550 32'' TV(2 systems connected)/LG 42''
Case Sharkoon Rebel 12/Sharkoon Rebel 9/Xigmatek Midguard
Audio Device(s) onboard
Power Supply 850W Chieftec/560W Chieftec/400W (80+)
Mouse CoolerMaster/Rapoo/Logitech
Keyboard CoolerMaster/Microsoft/Logitech
Software Windows
I was about to say that maybe those rumors about excellent yields on Ryzen chips where false. But if Threadripper is in fact something that AMD expects to sell in relatively limited quantities, maybe not creating one more product line makes financial sense, even if they in fact throw away fully functional dies under that heatspreader.

But this is really fun. Intel engineers will have a hard time to find a way to create an 18 core model for a socket that was designed for 10 core models, without coming out with a laughable base frequency. Only to see AMD coming out latter with 24 or 32 cores models, probably at more reasonable base frequencies.

In the end it seems that financial problems give AMD an advantage here. With no server market, so nothing to lose, and huge financial problems, that restrict them from creating multiple product lines, they are able to give a few but really solid products to their customers.


cadaveca

My name is Dave
Joined
Apr 10, 2006
Messages
17,092 (3.55/day)
I never realized that, if that is a problem with Au-In bonding why don't they simply use smaller Gold patches or limit the size of the gold patch to exactly that of the die seems feasible enough to not incur any additional cost.
I do not think that solving this issue is really that simple; they are hoping that users that would buy such a product will simply upgrade or replace things when problems arise. There is also the bit about assembly costs that need to be considered as well. The length of time it takes for these sorts of issue to occur can vary, but we've all heard of soldered chips that end up running hot after some time... and now you know the real reason why that occurs.

I was about to say that maybe those rumors about excellent yields on Ryzen chips where false. But if Threadripper is in fact something that AMD expects to sell in relatively limited quantities, maybe not creating one more product line makes financial sense, even if they in fact throw away fully functional dies under that heatspreader.

But this is really fun. Intel engineers will have a hard time to find a way to create an 18 core model for a socket that was designed for 10 core models, without coming out with a laughable base frequency. Only to see AMD coming out latter with 24 or 32 cores models, probably at more reasonable base frequencies.

In the end it seems that financial problems give AMD an advantage here. With no server market, so nothing to lose, and huge financial problems, that restrict them from creating multiple product lines, they are able to give a few but really solid products to their customers.
I don't think the reality of how much one of these chips costs to make vs. it's retail pricing is widely known; I wouldn't call them using dies on a substrate, but having them disabled, really has any detrimental costs associated with doing it.

Joined
Aug 25, 2011
Messages
133 (0.05/day)
Location
Poznan, Poland
And if you believe this overheating hype, those ASUS boards you should stay away from, because, as has been said, they have inferior cooling.
On my ASUS X299 TUF Mark 2 ( the cheapest one ) VRM temp under full load with 7900X@4.7GHz is in high 70'. At least on air/water cooling CPU will overheat much faster than the VRM.
People who don't even own Skylake-X make the most noise about how bad it is.

So der8auer who is working with ASUS convinced said ASUS to change heatsink on APEX mobo which is not even on the market and barely anyone will buy it except those who wish to bench on LN2 and then this heatsink won't matter much anyway.


qubit

Overclocked quantum bit
Joined
Dec 6, 2007
Messages
15,925 (3.78/day)
Location
Quantum Well UK
System Name Quantumville™
Processor Intel Core i7-2700K at stock (hits 5 gees+ easily)
Motherboard Asus P8Z68-V PRO/GEN3
Cooling Noctua NH-D14
Memory 16GB (4 x 4GB Corsair Vengeance DDR3 PC3-12800 C9 1600MHz)
Video Card(s) Zotac GTX 1080 AMP! Extreme Edition
Storage Samsung 850 Pro 256GB | WD Green 4TB
Display(s) BenQ XL2720Z | Asus VG278HE (both 27", 144Hz, 3D Vision 2, 1080p)
Case Cooler Master HAF 922
Audio Device(s) Creative Sound Blaster X-Fi Fatal1ty PCIe
Power Supply Corsair HX 850W v1
Software Windows 10 Pro 64-bit
I can just see some cheaper motherboards dying from current overload if these get unlocked lol.

I'd bet money that AMD allows these to be unlocked. Very clever AMD, very clever. ;)

Joined
Mar 24, 2017
Messages
123 (0.15/day)
Location
Italy
The problem with solder is slowly the indium will get sucked onto the large patch of gold (used because of how indium bonds to it), and this will create holes in the solder that then lead to hot spots. This is why I like Intel using paste-based TIM... if it dries out, you can de-lid and replace, but when that solder wicks out, and the CPU runs hot only, you're forced to buy new gear.

This behavior of indium-based solders is properly documented, too, so while some see it as a boon, I see it a weakness in AMD's products, because, you know, I like science, not hype.
I wonder how many cpu in the world perform a complete thermal cycle in theyr lives.

Joined
Mar 24, 2017
Messages
123 (0.15/day)
Location
Italy
I never realized that, if that is a problem with Au-In bonding why don't they simply use smaller Gold patches or limit the size of the gold patch to exactly that of the die seems feasible enough to not incur any additional cost.
because it is no problem at all for everybody cpu lifecycle.
It becomes a problem with extreme temperature shifts, like liquid nitrogen T to ambient T over a set amount of cooling-warming cycles.
Indium is a costly material, if it wasn't performing for the Au-In-Si interface at normal T it will not be used at all.
That photo of the threadripper dies exposed shows something around 8-12 dollars of indium.

Joined
Nov 21, 2010
Messages
1,102 (0.35/day)
Location
Right where I want to be
System Name Ratchet
Processor Ryzen 1700X
Motherboard Crosshair VI Hero
Cooling Custom Loop, Ek blocks 280mm Rad
Memory 16gb TridentZ RGB DDR4 3000
Video Card(s) 1x ASUS STRIX RX480 OC(flashed to 580)
Storage JBOD
Display(s) HP ZR24w
Audio Device(s) Asus Xonar STX II
Power Supply Seasonic X-series Gold 850W
Mouse Corsair Scimitar
Keyboard Corsair K70 Rapidfire
Software Windows 10
I wasn't concerned with the Indium itself at all, he mentioned that the gold with enough thermal cycling eventually wicks out enough Indium between the heatspreader and the cpu die to cause problems late in the cpu's life. I was just why wouldn't they seemingly obvious fix of 'shortening the wick,' especially since the gold pad as seen don't need to be that big. So, to me this seems to be a case of planned obsolescence the more I think about it.

Joined
Nov 3, 2013
Messages
1,291 (0.63/day)
Location
Tokyo, Ota
Processor i5 - 7300HQ
Memory 8GB DDR4
Video Card(s) 1060 6GB
Storage 180GB m.2 SATA | 250GB 850Evo SATA
Display(s) FHD 15" Gsync IPS + Acer H243H
Mouse Rival 300
Keyboard Apex m500 (mx red)
The problem with solder is slowly the indium will get sucked onto the large patch of gold (used because of how indium bonds to it), and this will create holes in the solder that then lead to hot spots. This is why I like Intel using paste-based TIM... if it dries out, you can de-lid and replace, but when that solder wicks out, and the CPU runs hot only, you're forced to buy new gear.

This behavior of indium-based solders is properly documented, too, so while some see it as a boon, I see it a weakness in AMD's products, because, you know, I like science, not hype.
And how long does it take for indium solder to "get sucked onto the large patch of gold" and create those holes in solder? What is the last Intel CPU to have solder instead of paste.

Joined
Mar 24, 2017
Messages
123 (0.15/day)
Location
Italy
I wasn't concerned with the Indium itself at all, he mentioned that the gold with enough thermal cycling eventually wicks out enough Indium between the heatspreader and the cpu die to cause problems late in the cpu's life. I was just why wouldn't they seemingly obvious fix of 'shortening the wick,' especially since the gold pad as seen don't need to be that big. So, to me this seems to be a case of planned obsolescence the more I think about it.
Thermal cycling in this context (testing Si-In-Au interfaces) is defined -55C° -> 125C°.

Joined
Apr 12, 2013
Messages
2,496 (1.11/day)
I wasn't concerned with the Indium itself at all, he mentioned that the gold with enough thermal cycling eventually wicks out enough Indium between the heatspreader and the cpu die to cause problems late in the cpu's life. I was just why wouldn't they seemingly obvious fix of 'shortening the wick,' especially since the gold pad as seen don't need to be that big. So, to me this seems to be a case of planned obsolescence the more I think about it.
It always is, that's why we have cheapish TIM on Intel HEDT & a handful of PCIe lanes on RyZen, as compared to TR & EPYC.
It makes business sense, though as I consumer I'll always chose what's best for me & consider the product that provides better VFM, as compared to the other competitor.
And how long does it take for indium solder to "get sucked onto the large patch of gold" and create those holes in solder? What is the last Intel CPU to have solder instead of paste.
The 6950x or any other BDWE btw was that a rhetorical question?

Last edited:
Joined
Nov 3, 2013
Messages
1,291 (0.63/day)
Location
Tokyo, Ota
Processor i5 - 7300HQ
Memory 8GB DDR4
Video Card(s) 1060 6GB
Storage 180GB m.2 SATA | 250GB 850Evo SATA
Display(s) FHD 15" Gsync IPS + Acer H243H
Mouse Rival 300
Keyboard Apex m500 (mx red)
It always is, that's why we have cheapish TIM on Intel HEDT & a handful of PCIe lanes on RyZen, as compared to TR & EPYC.
It makes business sense, though as I consumer I'll always chose what's best for me & consider the product that provides better VFM, as compared to the other competitor.
The 6950x or any other BDWE btw was that a rhetorical question?
Ok to rephrase that, how long back does the indium solder go on Intel cpus, for example i7 9xx. Are those soldered?


bug

Joined
May 22, 2015
Messages
5,807 (3.91/day)
Processor Intel i5-6600k
Motherboard ASRock Z170 Extreme7+
Cooling Arctic Cooling Freezer i11
Memory 2x8GB DDR4 2400 G.Skill
Video Card(s) EVGA GTX 1060 SC
Storage 128 and 256GB OCZ Vertex4, 500GB Samsung 850 EVO, 1TB Crucial MX300 and 3TB Seagate
Display(s) HP ZR24w
Case Chieftec BX01
Power Supply Seasonic 620W M12
Mouse Logitech G502 Proteus Core
Keyboard G.Skill KM780R
I was about to say that maybe those rumors about excellent yields on Ryzen chips where false. But if Threadripper is in fact something that AMD expects to sell in relatively limited quantities, maybe not creating one more product line makes financial sense, even if they in fact throw away fully functional dies under that heatspreader.
This is also an easy upgrade path in the future, just unlock more cores and bam! new SKU ready to ship. Even if currently the disabled cores are faulty, in time manufacturing gets better naturally.


iO

Joined
Jul 18, 2012
Messages
375 (0.15/day)
Location
Germany
Processor i5-2500k
Motherboard Z68Pro3-M
Cooling HR-02 Macho
Memory 8 Gig
Video Card(s) RX580 Armor w/ Accelero Mono
Storage 850 EVO 512
Display(s) LG 27UM67 UHD
Case Don't believe in cases...
Power Supply SS G-650
Ok to rephrase that, how long back does the indium solder go on Intel cpus, for example i7 9xx. Are those soldered?
Every IHS since Pentium 4 was soldered.

Joined
Apr 12, 2013
Messages
2,496 (1.11/day)
Ok to rephrase that, how long back does the indium solder go on Intel cpus, for example i7 9xx. Are those soldered?
Yes, here's a good list of CPU's to know if they were soldered or glued together with the IHS ~ https://www.overclock.net/t/305443/ihs-removals-how-to-do-it-should-i-do-it-and-the-facts

Ivy was the first mainstream CPU, in a long time, that wasn't soldered, SKLX being the first HEDT which went the Ivy way. Basically there's nothing out there that suggests that solder goes kaput first, as compared to TIM, having said that we have TR & SKLX which will prove this theory one way or another.

Joined
Aug 27, 2015
Messages
495 (0.36/day)
Location
In the middle of nowhere
System Name Scrapped Parts, Unite !
Processor i5-2500 @ 3.3 Ghz//Q9300 @ 2.5 Ghz
Motherboard GA-H67MA-USB3-B3// P35 Neo2-FR
Cooling Stock
Memory 10 GB DDR3 1333 // 3 GB DDR2
Video Card(s) Colorful iGame GeForce GTX1060 Vulcan U 6G // ASUS ENGT 220 1GD3
Storage Hitachi 500 GB, Sony 1TB, KINGSTON 400A 120GB // Samsung 160 GB
Display(s) HP 2009f
Case Xigmatek Asgard Pro // Cooler Master Centurion 5
Audio Device(s) Onboard
Power Supply OCZ ModXStream Pro 500 W
Software Windows 10 x64
Benchmark Scores Minesweeper 30fps, Tetris 40 fps, with overheated CPU and GPU
this is the reason why Intel so butthurt and go all out insulting Epyc CPU in their slide decks

think about it, one slice silicon to rule them all market segment from server, HEDT, performance, mainstream, all the way down to potato-grade CPU.
meanwhile Intel need to spend R&D and new design of silicons for each segmentation.

Top
