Apacer Launches Value-Added PATA SSDs

btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
34,496 (9.18/day)
Likes
17,519
Location
Hyderabad, India
#1
Nowadays, new products in the SSD market have mostly been upgraded to the more efficient and high-speed SATA interface solid-state drive. However, the majority of industrial computers (IPC) are still using the PATA interface (or IDE interface), which are now facing certain problems -- malfunctioning and bad tracks are beginning to emerge in the older technology and facilities.

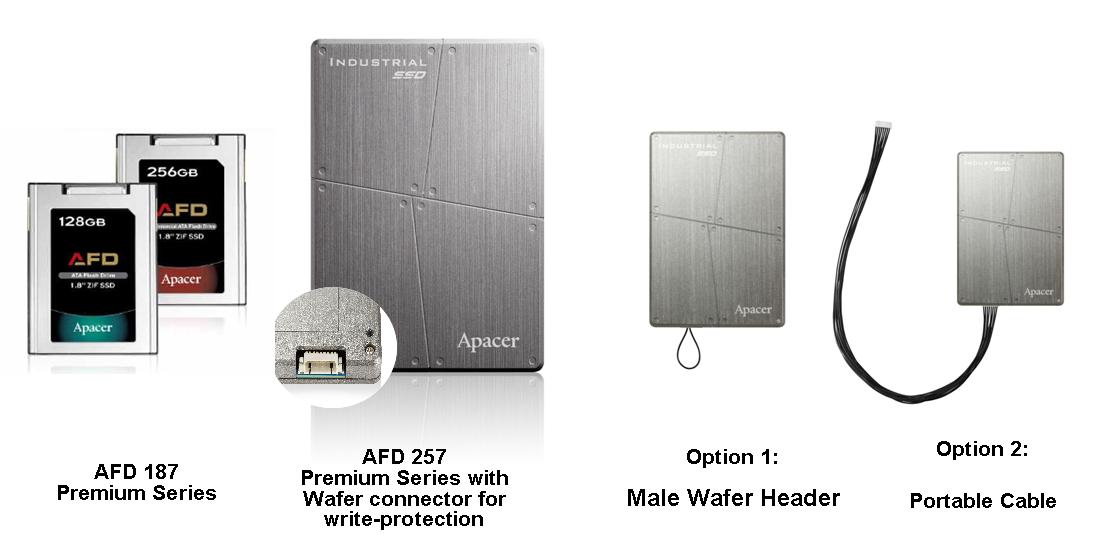

To solve the problem, one of the most viable upgrade options at this stage in terms of data security and cost effectiveness would be the PATA interface solid-state drive with built-in security functions. In response to customer needs, Apacer launched this value-added PATA SSDs with Data Security benefit. These products come in two specifications - 2.5-inch, 44 pin AFD 257 and 1.8-inch 40 pin AFD 187. Both models come with three built-in data security functions - Full Erase, Destroy, and Write Protect to provide advanced and upgraded data security advantages.



Apacer Data security technology provides three protection options catering to different needs. "Full Erase" technology ensures effective and complete erasure of data stored in the User Block and Free Block to achieve thorough deletion of confidential information and prevent intentional data theft. "Destroy" technology is an advanced cleaning technology that clears data from not only the storage blocks but also the system blocks. The purpose is to completely destroy the drive, so that the information in the drive will not be retrieved and reused. This technology meets the requirement for national defense-class surveillance facilities, which requires fast and complete destruction of confidential data. In addition to the complete erasure technologies, Apacer has also developed the exclusive "Virtual Write" technology to effectively protect the data stored in the drive. This technology is designed based on the concept of virtualization of the write-in process, which allows the user to choose from executing the write-in command or store the data in a temporary space. Under the temporary mode, the data is not written into the flash; instead it is stored independently from the operating system. Therefore, when abnormal activities are discovered in the system, one simple reboot will make the temporary virtual data disappear completely and effectively. This prevents malicious or unintentional alteration of confidential information, without affecting the stability of the operating system installed in the drive.

"To make the data security functions easy to trigger for customers, AFD 257 can be customized to suit different needs through combinations of software and hardware options," said Jeff Lin, the embedded application product division director of Apacer. For the hardware-driven option, a wafer connector is designed at the bottom of AFD 257, which enables direct activation of the unit through simple plug-and-play of the male wafer header. However, this option is not available for some closed systems. Therefore, we have designed another option for the closed systems. Closed systems can be driven through external cables; all you need are a few customized buttons on the control panel to achieve direct connection to AFD 257 and simple upgrade of your system.

The PATA interface AFD solid-state drive series has expandability up to 256GB. It comes not only with high-standard value-added security functions, but also the newest transmission technology - PIO Mode-4, MWDMA Mode-2, and Ultra DMA-6. It also supports 72-bit ECC function, wear-leveling technology, and S.M.A.R.T. self-monitoring analysis reporting technology. Users can choose from the highest stability SLC or most cost-effective MLC solutions. The SLC granules guarantee normal operation under an industrial temperature range (-40°C to 85°C), which means that the industrial systems remain stable even under long-term exposure to high-temperature or direct sunlight or extreme low temperature. The new technologies provide the old systems instant upgrade to the high-speed, high-efficiency, energy-saving, and high-durability advantages of the solid-state drive through AFD 257 and AFD 187. Plus, the customized and enhanced data security protection technology instantly upgrades the industrial systems to the newest and most cost-effective technology.


Frick

Fishfaced Nincompoop
Joined
Feb 27, 2006
Messages
14,908 (3.43/day)
Likes
5,425
System Name A dancer in your disco of fire
Processor i3 4130 3.4Ghz
Motherboard MSI B85M-E45
Cooling Cooler Master Hyper 212 Evo
Memory 4 x 4GB Crucial Ballistix Sport 1400Mhz
Video Card(s) Asus GTX 760 DCU2OC 2GB
Storage Crucial BX100 120GB | WD Blue 1TB x 2
Display(s) BenQ GL2450HT
Case AeroCool DS Cube White
Power Supply Cooler Master G550M
Mouse Intellimouse Explorer 3.0
Keyboard Dell SK-3205
Software Windows 10 Pro
#2
I would totally be interested in the 1.8 model if it was cheap. I bet it isn't. :(

Joined
Sep 15, 2011
Messages
4,410 (1.90/day)
Likes
1,096
Processor Intel Core i7 3770k @ 4.3GHz
Motherboard Asus P8Z77-V LK
Memory 16GB(2x8) DDR3@2133MHz 1.5v Patriot
Video Card(s) MSI GeForce GTX 1080 GAMING X 8G
Storage 59.63GB Samsung SSD 830 + 465.76 GB Samsung SSD 840 EVO + 2TB Hitachi + 300GB Velociraptor HDD
Display(s) Acer Predator X34 3440x1440@100Hz G-Sync
Case NZXT PHANTOM410-BK
Audio Device(s) Creative X-Fi Titanium PCIe
Power Supply Corsair 850W
Mouse Anker
Software Win 10 Pro - 64bit
Benchmark Scores 30FPS in NFS:Rivals
#3
Ultra-DMA 6...hmmm not bad at max 133MB/s...but in reality it wont be bigger than 100MB/s due to overhead and stuff...I think a cheaper and bigger HDD would be better?

Joined
Oct 10, 2009
Messages
867 (0.29/day)
Likes
207
Location
London, UK
System Name The one under the desk / Media Centre
Processor Xeon X3730@3.6GHZ / Phenom II X4 805E
Motherboard Gigabyte P55M-UD4 / Asus Crosshair III
Cooling Corsair H70 + 2*PWM fan / Arctic Alpine 11
Memory 16GB DRR3-1333 9-9-9-27 / 4GB Crucial DDR3-1333
Video Card(s) Asus DirectCU GTX 680 / Gigabyte 560TI
Storage Kingston V200 128GB, WD6400AAKS, 1TB Seagate 7.2kRPM SSHD / Kingston V200 128GB
Display(s) Samsung 2343BW + Dell Ultrasharp 1600*1200 / 32" TV
Case C'M' Silencio 550 / Some ancient SilverStone brushed aluminium media centre
Audio Device(s) No.
Power Supply Thermaltake Toughpower XT 675W / EVGA 430W
Mouse Mionix Naos 3200 / Generic PS2
Keyboard Roccat Ryos TKL Pro / Evoluent Mouse Friendly Keyboard (Logitech OEM)
Software Windows 7 Ult x64
Benchmark Scores Nah.
#4
Ultra-DMA 6...hmmm not bad at max 133MB/s...but in reality it wont be bigger than 100MB/s due to overhead and stuff...I think a cheaper and bigger HDD would be better?
HDDs can manage those speeds in sequential reads and writes, but in reality most workloads are not sequential, and HDDs can drop below 1MB/s on 4k random reads.

Joined
Oct 29, 2009
Messages
2,517 (0.84/day)
Likes
758
System Name Nightblade / Dell Latitude / Wife's Rig
Processor Core i5 4690K / i7 2720QM / FX-6100
Motherboard Nightblade ITX z97 / Dell 032T9K QM67 / Gigabyte GA-970A-DS3 Rev3
Cooling tower style cooler, plus one 120mm fan / stock blower / CNPS7000V
Memory Patriot Viper 2x8gb DDR3 2400 / Micron 2x4GB DDR3 / 2x4GB 2x2GB DDR3 1333
Video Card(s) MSI Gaming GTX 970 4GB / NVS 4200M 512MB / nVidia GTX 460 1GB
Storage 120GB ForceGT SSD (OS), 2TB WD Black, 250GB Seagate 2.5in / 320GB WD Blue /240GB SSD M500
Display(s) ASUS ROG SWIFT 1440P / Dell 14in @ 1600x900 / Vizio 1080p TV
Case MSI Nightblade Z97 / Dell Latitude / Corsair Full Tower
Audio Device(s) Realtek ALC1150, Microsoft Lifechat 3000 / Intel / ALC887
Power Supply Gold rated 600W / Battery with 95w brick / Antec EA-650 Green
Mouse MadCatz RAT5
Keyboard G510
Software Windows 10 Pro x64 on all
#5
I'd love to get one for my older IBM laptop. the ironic part... the laptop has a sata controller but they put in a sata to pata chip and used pata drives instead... i guess sata hard drives were just too expensive at the time
