Size matters! For years, Big powerful and tons of expandability has been the golden rule for high-end motherboards especially for Intel X299 Platform, but powerful machine doesn't have to be huge and bulky, ASRock has successfully crammed all amazing spec and features into a Mini-ITX sized motherboard, the world's first Mini ITX X299 motherboard is here.

The ultimate Mini-ITX has to have everything, X299E-ITX/ac was built on a X299 platform to give ultimate processing power, dual Intel Gigabit Lan along with dual band 2.4/5GHz 802.11ac WiFi provides the best connectivity, USB3.1 Gen2 Type A+C are also available at the rear of the motherboard, more amazingly this little beast also supports quad channel memory up to DDR4 4000 MHz(OC), stunning performance on such a small motherboard.

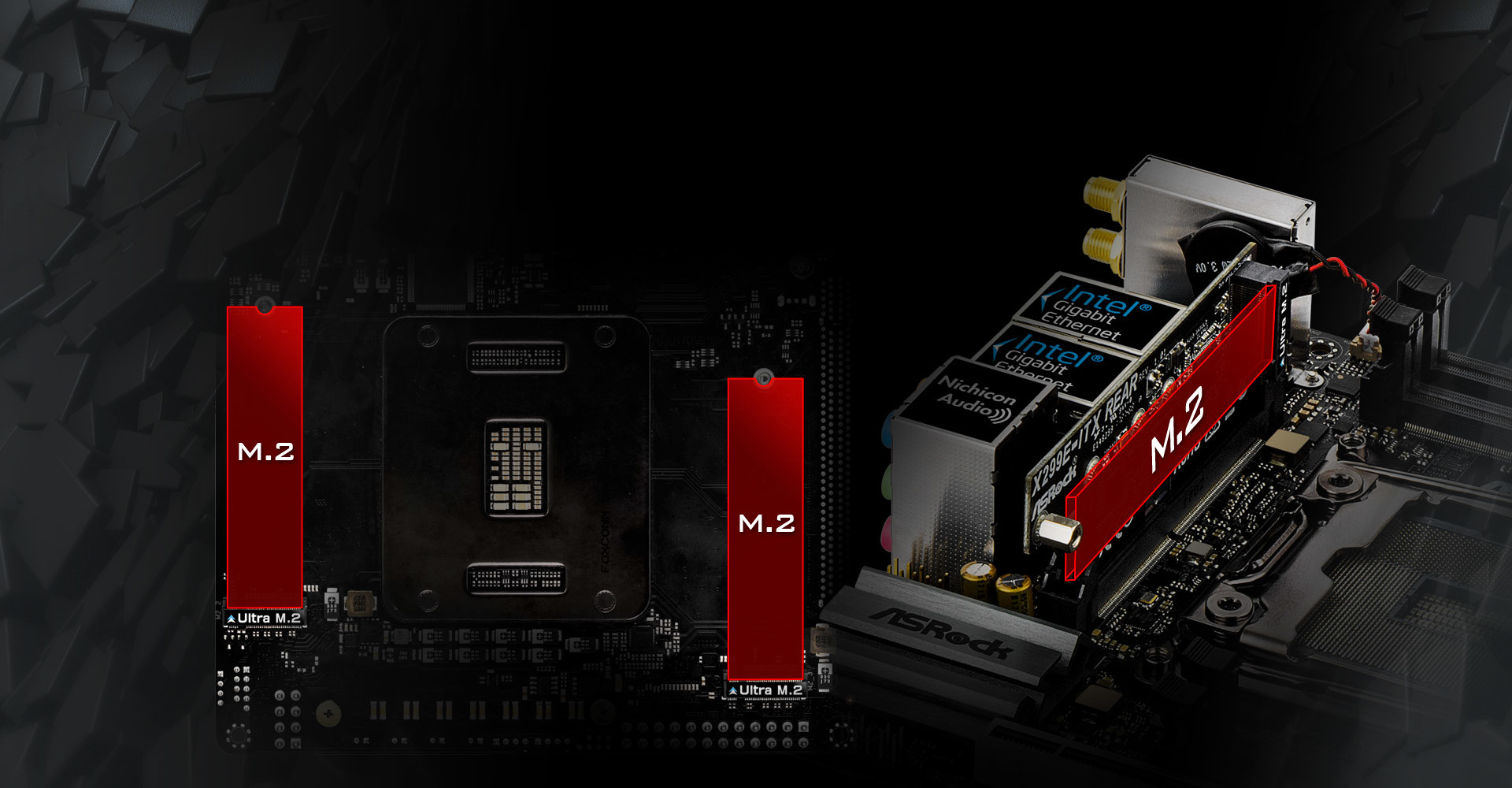

In order to provide the best expandability ASRock engineers has to think outside the box, by adding two expansion cards, X299E-ITX/ac now has 3 Ultra M.2 and 6 SATA3 ports, absolutely no compromise for supporting high speed storage devices. Stability is also vital, with 60A power choke and Dr.MOS to form a 7 power phase design, this motherboard can handle heavy load as well as everyday task with ease.

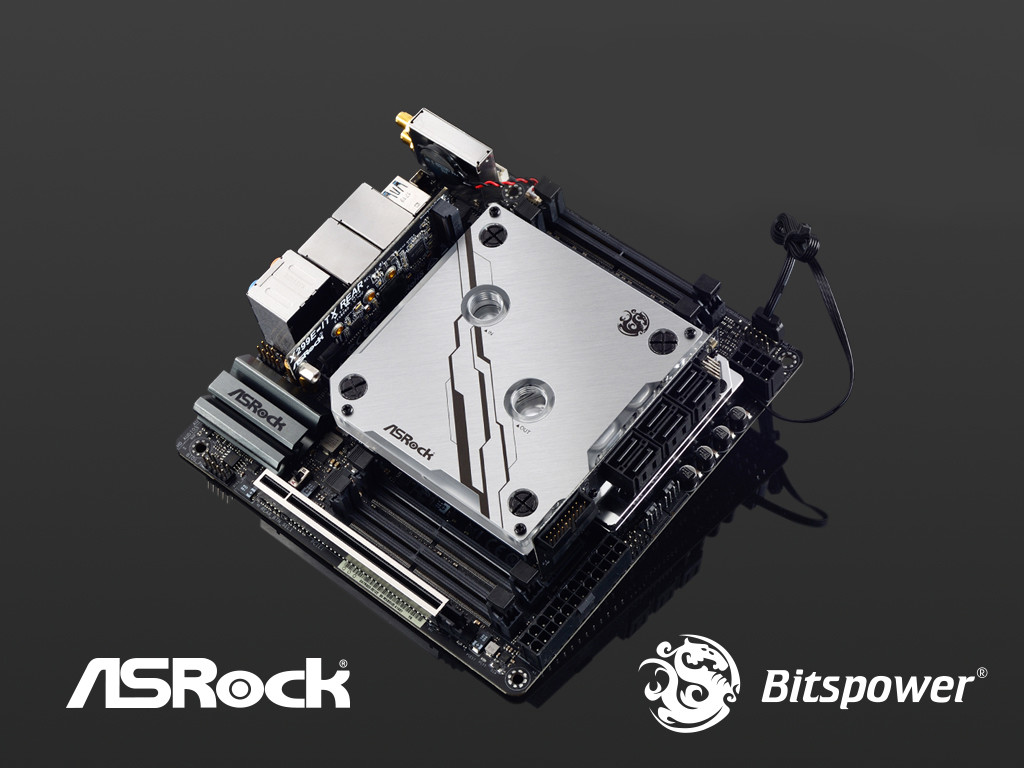

The hype does not end here, ASRock has collaborated with water cooling expert Bitspower technology to developed a cooling block specifically for X299E-ITX/ac, it is able to dissipate heat for both CPU & MOSFET up to 300W, a perfect optional upgrade for performance seeker and water cooling enthusiasts.

ASRock has yet again broke the limit to crammed such performance as well as amazing features into a Mini-ITX size motherboard, not only that, X299E-ITX/ac received a TAIWAN EXCELLENCE 2018 award right after the official launch, a perfect affirmation that this little beast is the truly built for small form factor fanatics.

For more product information, please visit the product page.

View at TechPowerUp Main Site

Joined
Aug 13, 2010
Messages
4,794 (1.24/day)
I'm a little concerned about VRM cooling here. The full block has to be a given

And yet again. Asrock reminds us why its so awesome


bug

Joined
May 22, 2015
Messages
8,822 (4.17/day)
Processor Intel i5-6600k (AMD Ryzen5 3600 in a box, waiting for a mobo)
Motherboard ASRock Z170 Extreme7+
Cooling Arctic Cooling Freezer i11
Memory 2x16GB DDR4 3600 G.Skill Ripjaws V (@3200)
Video Card(s) EVGA GTX 1060 SC
Storage 500GB Samsung 970 EVO, 500GB Samsung 850 EVO, 1TB Crucial MX300 and 3TB Seagate
Display(s) HP ZR24w
Case Raijintek Thetis
Audio Device(s) Audioquest Dragonfly Red :D
Power Supply Seasonic 620W M12
Mouse Logitech G502 Proteus Core
Keyboard G.Skill KM780R
Software Arch Linux + Win10
I'm a little concerned about VRM cooling here. The full block has to be a given

And yet again. Asrock reminds us why its so awesome
I was thinking the same thing: there will be those who will buy this, but does it really make sense to cram a HEDT CPU in such a small chassis? Granted, with the advent of m.2 SSDs you don't need that much space in the case, but still...

Joined
Nov 18, 2010
Messages
5,187 (1.38/day)
Location
Rīga, Latvia
System Name HELLSTAR
Processor AMD RYZEN 5950X
Motherboard ASUS Strix X570-E
Cooling Custom Loop. Two 360ies + 280 rad. 8x Nidec Servo Gentle Typhoons. EK-Quantum Momentum monoblock.
Memory 4x8GB Corsair Vengeance LPX 3000MHz 15-17-17-36 CR1
Video Card(s) ASUS 1080 Ti FE + water block
Storage Optane 900P + Samsung PM981 NVMe 1TB + 750 EVO 500GB
Display(s) Philips PHL BDM3270
Case Phanteks Enthoo Evolv ATX Tempered Glass
Audio Device(s) Sound Blaster ZxR
Power Supply Fractal Design Newton R3 1000W
Mouse Razer Basilisk
Keyboard Razer Deathstalker
Software Windows 10 insider
I was thinking the same thing: there will be those who will buy this, but does it really make sense to cram a HEDT CPU in such a small chassis? Granted, with the advent of m.2 SSDs you don't need that much space in the case, but still...

I consider these things like piece of art. In some very specific design cases?

Joined
Oct 28, 2012
Messages
678 (0.22/day)
Processor AMD Ryzen 3700x
Motherboard asus ROG Strix B-350I Gaming
Cooling Noctua NH-U12-S Chromax.Black
Memory crucial ballistix 32Gb DDR4
Video Card(s) RTX 3070 FE
Storage WD sn550 1To/WD ssd sata 1To /Samsung 960 evo 256 Gb/Seagate 2To/WD book 4 To back-up
Display(s) LG 25UM58
Case Cooler Master NR200p
Audio Device(s) sennheiser HD58X
Power Supply bequiet SFX L power 500w
Mouse MX master 3
Keyboard Master Key Mx
Software win 10 pro
Dear motherboard manufacturer.
Why the F**** are you not using so-dimm on mainstreams itx board, when the smaller socket size is making it easier to implement, and would get rid of one of the limitation of m-itx.

Seriously, with the price of the ram being so high right now, having the option to get more memory later without having to stay in single channel would be so great. *heavy sigh*

Last edited:
Joined
Jul 31, 2014
Messages
475 (0.20/day)
System Name Diablo | Baal | Mephisto | Andariel
Processor i5-3570K@4.4GHz | 2x Xeon X5675 | i7-4710MQ | i7-2640M
Motherboard Asus Sabertooth Z77 | HP DL380 G6 | Dell Precision M4800 | Lenovo Thinkpad X220 Tablet
Cooling Swiftech H220-X | Chassis cooled (6 fans + HS) | dual-fanned heatpipes | small-fanned heatpipe
Memory 32GiB DDR3-1600 CL9 | 96GiB DDR3-1333 ECC RDIMM | 32GiB DDR3L-1866 CL11 | 8GiB DDR3L-1600 CL11
Video Card(s) Dual GTX 670 in SLI | Embedded ATi ES1000 | Quadro K2100M | Intel HD 3000
Storage many, many SSDs and HDDs....
Display(s) 1 Dell U3011 + 2x Dell U2410 | HP iLO2 KVMoIP | 3200x1800 Sharp IGZO | 1366x768 IPS with Wacom pen
Case Corsair Obsidian 550D | HP DL380 G6 Chassis | Dell Precision M4800 | Lenovo Thinkpad X220 Tablet
Audio Device(s) Auzentech X-Fi HomeTheater HD | None | On-board | On-board
Power Supply Corsair AX850 | Dual 750W Redundant PSU (Delta) | Dell 330W+240W (Flextronics) | Lenovo 65W (Delta)
Mouse Logitech G502, Logitech G700s, Logitech G500, Dell optical mouse (emergency backup)
Keyboard 1985 IBM Model F 122-key, Ducky YOTT MX Black, Dell AT101W, 1994 IBM Model M, various integrated
Software FAAAR too much to list
Dear motherboard manufacturer.
Why the F**** are you not using so-dimm on consumer itx board, when the smaller socket size is making it easier to implement, and would get rid of one of the limitation of m-itx.

Seriously, with the price of the ram being so high right now, having the option to get more memory later without having to stay in single channel would be so great. *heavy sigh*

But this uses SO-DIMMs....

Joined
Nov 13, 2007
Messages
8,335 (1.71/day)
Location
Austin Texas
System Name Chernobyl
Processor 10850K @ 5.1
Motherboard MSI 490-A PRO
Cooling 360mm AIO
Memory 32 GB 4100 Mhz DDR4 18-18-18-38-440 trfc - 2T
Video Card(s) MSI Ventus RTX 3080
Storage 3x1TB SSDs, 2TB SSD
Display(s) LG 49NANO85 - 49" 4K 120HZ NanoIPS
Case Zalman X3
Audio Device(s) Bose Solo
Power Supply Corsair SF750
Mouse Logitech GPro Wired
Keyboard tecware phantom
Software Windows 10 64 Bit
But this uses SO-DIMMs....

so to run an i9 on this you would have to use SO-DIMM, the full cover WB, which means you need at least a 240mm custom water loop, which already kills the space-saving point of ITX of it and you may still be limited on the power output, as that chip can guzzle 300W easy.

By the time all it is said and done you will need an ITX case the size of a mini tower anyways.

Good looking product, but if I was going ITX a z370 makes so much more sense. less expensive ram, and less cooling headaches.

Joined
Oct 28, 2012
Messages
678 (0.22/day)
Processor AMD Ryzen 3700x
Motherboard asus ROG Strix B-350I Gaming
Cooling Noctua NH-U12-S Chromax.Black
Memory crucial ballistix 32Gb DDR4
Video Card(s) RTX 3070 FE
Storage WD sn550 1To/WD ssd sata 1To /Samsung 960 evo 256 Gb/Seagate 2To/WD book 4 To back-up
Display(s) LG 25UM58
Case Cooler Master NR200p
Audio Device(s) sennheiser HD58X
Power Supply bequiet SFX L power 500w
Mouse MX master 3
Keyboard Master Key Mx
Software win 10 pro
Joined
Mar 10, 2014
Messages
1,781 (0.70/day)
Yhea but LGA2066 isn't mainstream, it's HEDT. Might have worded my first post poorly.

Well yeah I did understand what you meant and kind of agree: you can get H110 motherboard with so-dimms. But not higher end socket 1151 boards, they are all with normal full sized dimms as far as I know.

Joined
Mar 18, 2008
Messages
5,498 (1.16/day)
System Name Virtual Reality / Bioinformatics
Processor Undead CPU
Motherboard Undead TUF X99
Cooling Noctua NH-D15
Memory GSkill 128GB DDR4-3000
Video Card(s) EVGA RTX 3090 FTW Ultra
Storage Samsung 960 Pro 1TB + 860 EVO 2TB + WD Black 5TB
Display(s) Acer K272HUL, HTC Vive
Case Fractal Design R5
Audio Device(s) BOSE 2.0
Power Supply Seasonic 850watt
Mouse Logitech Master MX
Keyboard Corsair K70 Cherry MX Blue
Software Windows 10 Professional/Linux Mint
I dare they make a X399 ITX board like this one. The entire board would be just the CPU socket

Joined
Oct 28, 2012
Messages
678 (0.22/day)
Processor AMD Ryzen 3700x
Motherboard asus ROG Strix B-350I Gaming
Cooling Noctua NH-U12-S Chromax.Black
Memory crucial ballistix 32Gb DDR4
Video Card(s) RTX 3070 FE
Storage WD sn550 1To/WD ssd sata 1To /Samsung 960 evo 256 Gb/Seagate 2To/WD book 4 To back-up
Display(s) LG 25UM58
Case Cooler Master NR200p
Audio Device(s) sennheiser HD58X
Power Supply bequiet SFX L power 500w
Mouse MX master 3
Keyboard Master Key Mx
Software win 10 pro
Well yeah I did understand what you meant and kind of agree: you can get H110 motherboard with so-dimms. But not higher end socket 1151 boards, they are all with normal full sized dimms as far as I know.
Some barebone made by asrock and msi did have so-dimms on itx sized motherboard, but they were still limited to two slots. What i would like to see is four so-dimms slot on a mainstream platform.

Last edited:
Joined
Jan 29, 2012
Messages
5,617 (1.69/day)
Location
Florida
System Name natr0n-PC
Processor Various
Motherboard Various
Cooling Various
Memory Various
Video Card(s) Various
Storage Various
Display(s) Various
Case Various
Audio Device(s) Various
Power Supply Various
Software XP/8.1/10
Benchmark Scores http://valid.x86.fr/79kuh6
Asrock back to innovating like no other.

Joined
Jan 15, 2012
Messages
868 (0.26/day)
Location
Slovenia
System Name PC.
Processor i7 2600K 5.0Gh,i7 3770K 5.00Gh. EK, Liqed Coooleng
Motherboard P67A-UD7-B3 Gigabyte T.,ASUS,P8Z77-V PREMIUM,MAXIMUS V EXTRIME..
Cooling Liqed Cooleng ,EK Suprime LTX Nickel,EK for Motherboard,Aqua computer (WGA), Thermaltake .... 0i,
Memory G.SKILL F3-17600CL7-2GBPISG. 16GBSkill Sniper F3-17000CL94GBSR on 2400Hz 10-12-11-29 1
Video Card(s) GTX590 ,SLI ,POV TGT best 691Hz ,LiqedCoold,GTX480.....GTX1080MSI SeaHawkEK SLI
Storage OCZ-REVODRIVE 3-240GB,2xCrucialMX100.512.R-0,1x LMT-32L3m,3x 1TB-WD,1x;1x2TbSEAGATE1x2Tb Seagate
Display(s) DELL-U2412Mb,Samsung Synkmaster245B,HP ENVY 34c
Case Thermaltake, NZXT SWITCH 810SE
Audio Device(s) CREATIVE BLASTER X-Fi Titanium HD , AUNE T1MK2 TUBE USB
Power Supply ENERMAX Platimax 1500W,Thermaltake 1500W
Mouse VIPER V560,FUNC MS-3, Prestigio, R.A.T.E.7 and 5,LogitechG502,RAZER,Inperator.,dead...a.s.o.
Keyboard Trust ....LogotechG410
Software Windows7 64....
Benchmark Scores 3DMark Fire Strike 21.385 (37.234,11.828,7.176)
A great mini-PC of great potential can be made with this motherboard. NIce one ASRock , GJ!


bug

Joined
May 22, 2015
Messages
8,822 (4.17/day)
Processor Intel i5-6600k (AMD Ryzen5 3600 in a box, waiting for a mobo)
Motherboard ASRock Z170 Extreme7+
Cooling Arctic Cooling Freezer i11
Memory 2x16GB DDR4 3600 G.Skill Ripjaws V (@3200)
Video Card(s) EVGA GTX 1060 SC
Storage 500GB Samsung 970 EVO, 500GB Samsung 850 EVO, 1TB Crucial MX300 and 3TB Seagate
Display(s) HP ZR24w
Case Raijintek Thetis
Audio Device(s) Audioquest Dragonfly Red :D
Power Supply Seasonic 620W M12
Mouse Logitech G502 Proteus Core
Keyboard G.Skill KM780R
Software Arch Linux + Win10
A great mini-PC of great potential can be made with this motherboard. NIce one ASRock , GJ!
Truth be told, if I didn't have to fit a video card in there, all setups I've built in the past 5 years could have used such a motherboard.

Joined
Dec 4, 2007
Messages
15 (0.00/day)
Truth be told, if I didn't have to fit a video card in there, all setups I've built in the past 5 years could have used such a motherboard.

But you can fit a video card in there?


bug

Joined
May 22, 2015
Messages
8,822 (4.17/day)
Processor Intel i5-6600k (AMD Ryzen5 3600 in a box, waiting for a mobo)
Motherboard ASRock Z170 Extreme7+
Cooling Arctic Cooling Freezer i11
Memory 2x16GB DDR4 3600 G.Skill Ripjaws V (@3200)
Video Card(s) EVGA GTX 1060 SC
Storage 500GB Samsung 970 EVO, 500GB Samsung 850 EVO, 1TB Crucial MX300 and 3TB Seagate
Display(s) HP ZR24w
Case Raijintek Thetis
Audio Device(s) Audioquest Dragonfly Red :D
Power Supply Seasonic 620W M12
Mouse Logitech G502 Proteus Core
Keyboard G.Skill KM780R
Software Arch Linux + Win10
But you can fit a video card in there?
It's not fitting that worries me, it's cooling after you fit it. Sure, you can go with a blower type and pick a noise dampening case, but I'd rather not limit my options.

Joined
Jan 6, 2014
Messages
190 (0.07/day)
System Name #projectEVO v4
Processor AMD R9 3950X
Motherboard ASUS X570 Crosshair Impact
Cooling EK Supremacy EVO CPU, Alphacool Monsta 240, Alphacool UT60 360, Aquacomputer Aqauero 6X
Memory GSkills Trident Z Neo 32GB DDR4 CL16 @3600MHz
Video Card(s) EVGA RTX 3090 FTW3 Ultra
Storage Samsung 970 500GB NVME M.2, Seagate 4TB 7200rpm HDD (x2)
Display(s) Samsung G9 Odyssey 49" Ultrawide @240hz | ASUS MG279Q 1440P @144hz | HTC VIVE
Case CaseLabs Mercury S5
Audio Device(s) Marantz PM7000N | Schitt Stack UBER | Beyerdynamic DT1990 | Sennheiser HD6XX | HiFi Man HE4XX
Power Supply EVGA 1600 Watt T2
Mouse HyperX Haste, Logi GroX Superlight, Logi GPro Wireless, Razer Viper Ultimate
Keyboard Drop ALT , HHKB Pro 2, RealForce Topre 104UB, Topre Realforce RGB
Software Windows 10 PRO
I dare they make a X399 ITX board like this one. The entire board would be just the CPU socket

I would LOVE LOVE LOVE to see this! haha. Realistically an MATX would be able to get away with this.

Top
