Only other option is ditching the GPU and buying an x16 mini SAS HD HBA card
I have seen those with up to 16 ports and with 16000 MB/s you dont have a bottleneck even with all 16 ports in use
With Highend boards than can split into Gen5 x8/x8 xou wouldn't even have to ditch the GPU. But it would be better to use an Gen3x8 SATA/SAS-Controller in a physical x16-Slot that is atleast x4 electrical so you have ~3.5GB/s of bandwith, which is theoretically enough for 6xSATA-SSD and will be plenty for double that number in HDD. There even are Gen4x8-Controller but they cost a lot of money.

There doesn't seem to be any demand for high-bandwith SATA-Controller outside of very potent SAS-Controller. Marvell stopped developing their SATA-Controller around 2013, so they are still stuck on Gen2, while Gen3x2 is enough for 3 SATA-SSD or 6 HDD (even the most advanced HDD don't reach 300MB/s sustained).

Joined
Oct 15, 2011
Messages
345 (0.08/day)
System Name Zabanya
Processor AMD Ryzen 7 3700x
Motherboard Asus X570 Strix-E
Cooling Noctua NH-D15S
Memory 2x 16 GB G Skill TridentZ Neo 3600 MHz CL16
Video Card(s) Asus Radeon RX 6800 TUF
Storage Seagate Firecuda 520 2 TB, 1x 14 TB, 4x 18 TB, 1x 20 TB = total 97,81 TB
Display(s) LG 27GP850, LG C1 55 OLED
Case Fractal Design Define 7 XL
Audio Device(s) Onkyo TX NR-646, RHA L1 DACAMP, Sennheiser HD-599
Power Supply Seasonic Prime Ultra Titanium 750 watt
Mouse Roccat Kone XP
Keyboard Corsair Strafe RGB MK.2
With Highend boards than can split into Gen5 x8/x8 xou wouldn't even have to ditch the GPU. But it would be better to use an Gen3x8 SATA/SAS-Controller in a physical x16-Slot that is atleast x4 electrical so you have ~3.5GB/s of bandwith, which is theoretically enough for 6xSATA-SSD and will be plenty for double that number in HDD. There even are Gen4x8-Controller but they cost a lot of money.

There doesn't seem to be any demand for high-bandwith SATA-Controller outside of very potent SAS-Controller. Marvell stopped developing their SATA-Controller around 2013, so they are still stuck on Gen2, while Gen3x2 is enough for 3 SATA-SSD or 6 HDD (even the most advanced HDD don't reach 300MB/s sustained).
I have 6 HDD´s right now and giving the way SATA is going and that i am somewhat limited by my PSU and its 5v rail i dont think i am going to add more
As long as there is motherboard out there with 6 SATA ports and a free slot away from the GPU to add my x1 card when i need to replace a drive its good enough

When they remove SATA altogether i am going to have a massive problem but i dont think they are going to kill off SATA for good soon
Even if boards only have 4 SATA ports if i can add two x1 cards or that x4 card that is only x2 its good enough

Those Nimbus Exadrive 50 and 100 TB SSD´s would be awesome to have 2-4 of those would be enough but they cost $10.000 for the 50 and $40.000 for the 100 TB and thats way out of my price range
Anyway enough of that

Edit: i will be dammed turns out there do exist PCI-E gen 4 HBA cards it just cost and arm and a leg
No idea how those work

Last edited:
Joined
Feb 14, 2012
Messages
8 (0.00/day)
VRM Temperatures & Power Consumption.
There is no power consumption data there?
One review listed idle system power use almost double 5950 & X570 from the wall so it would be good to have more info on this.

Under fan control you show being able to chose a temperature source other than CPU, what are the options? and is there something that could stop fans running loud every time the CPU core spikes to 95c like the option for a external sensor to control fan speeds or is there a temperature sensor for the IHS with these CPU?

Joined
Sep 11, 2007
Messages
304 (0.05/day)
Location
Ambugaton
Processor Intel i5 12600KF
Motherboard MSI PRO Z690-P DDR4, Socket 1700
Cooling MSI Ventus AIO
Memory Corsair Vengeance LPX Black 32GB, DDR4, 3200MHz
Video Card(s) MSI VentusRTX 3060 12Gb
Storage XPS 1TB | 2x Kingston 2TB Sata | Sinology 4TB (Raid1) |
Display(s) 24" Dell U2417H
Case Msi Mpg Odin
Audio Device(s) Realtek ALC887 + Microlab Solo 6C
Power Supply Seasonic PRIME TX-750, 80
Mouse Razer
Keyboard Razer
Software Windows 10 x64
I find fake marble design tacky AF in interior design, let alone in a motherboard. What's next? tiger skin?

NZXT N7 Z690 - N7-Z69XT-B1 got the good design IMHO

Last edited:

ir_cow

Staff member
Joined
Sep 4, 2008
Messages
1,339 (0.26/day)
Location
USA
Review updated again: MDDIO_MEM_S3 and VDD_MISC power stages were mixed up. Text is now fixed. Image added for VDD_MIC as well in the VRM breakdown section.

VRM Temperatures & Power Consumption.
There is no power consumption data there?
One review listed idle system power use almost double 5950 & X570 from the wall so it would be good to have more info on this.

Under fan control you show being able to chose a temperature source other than CPU, what are the options? and is there something that could stop fans running loud every time the CPU core spikes to 95c like the option for a external sensor to control fan speeds or is there a temperature sensor for the IHS with these CPU?
Good questions. By default CPU_Fan is set to Silent mode. CPU_Fan2 is set to standard and monitors the CPU temps. Looking at the Fan Tuning in the BIOS, this is set to ramp up to 70% at 80c. So if you have quick burst of 95c, I don't think it will jump to 100% and back down to say 50% every few seconds. Since I am using a Custom Loop for my test setup, I do not know the fan ramp-up / ramp-down cycle well. I will look into this more and see what I find.

As for why is there no power consumption data, that is because AMD Ryzen 7000 series is still new. I don't know what's normal yet. You can check out TPU CPU reviews for more information on power draw and amperage. This CPU data will be added at a later date. Maybe in a week or so.

Joined
Sep 4, 2020
Messages
92 (0.11/day)
All I want is a new AMD or Intel motherboard that will do PCIe 5.0 for vid card at x16 and also for NVMe M.2 drive without having to use half the graphics slot . And it must NOT cost me a kidney to do it,! Seriously insane prices for all and unfortunately RPL is looking even worse!

Joined
May 11, 2020
Messages
61 (0.07/day)
All I want is a new AMD or Intel motherboard that will do PCIe 5.0 for vid card at x16 and also for NVMe M.2 drive without having to use half the graphics slot . And it must NOT cost me a kidney to do it,! Seriously insane prices for all and unfortunately RPL is looking even worse!
Let's wait for B650E boards, they should be presented on 4-th Oct.

Joined
Oct 17, 2019
Messages
34 (0.03/day)
Location
The Last Frontier
Review has been updated to reflect some clarification.

1: Weak memory support is likely to be a AMD AGEAS issue. (no surprise here)
2: USB4 is using a TB4 controller. This is linked through Gen3 x4 (1 GB/s)
3: Blazing OC Tuner software tested
4: Blazing M.2 heatsink thermals tested with Gen4 x4 NVMe drive
5: Realtek ALC4080 Codec /ESS SANRE0219 DAC is wrong. Updated to ALC4082+ESS9218
6: BIOS is now 256MB as listed on the website specification page.
7: Clarify that the Kingston DDR5-6000 FURY RGB was used for this review and with EXPO enabled.
8: Price updated to $529 US
9: Charts and text updated to say Taichi Carrara (ASRock really wanted this even though its the same MB)

256Mbit, not 256MB. ;)

Also, I seriously do not understand the audio situation on this otherwise fairly high end motherboard. Stereo output only, and no line in? No 7.1, no 5.1. Am I missing something?

Joined
Jun 18, 2021
Messages
1,079 (2.03/day)
Also, I seriously do not understand the audio situation on this otherwise fairly high end motherboard. Stereo output only, and no line in? No 7.1, no 5.1. Am I missing something?

That's indeed weird but I feel like the 5.1 ports boards use to come with are kind of a meme anyway, more interesting to know if the dac they use is any good.

The board still has spdif and hdmi so anyone looking for surround options could use those

Joined
Oct 27, 2014
Messages
150 (0.05/day)
For sure it seems only Asrock and Gigabyte boards are ok ish price wise. MSI and Asus boards are pretty ridiculous.

Never thought I'd see the day where a Taichi board was more appealing to me than an Ace or Hero one.
I've always found the Taichi to be one of the best premium priced models in the market.
They are also one of the best, can't really go wrong with them.


ir_cow

Staff member
Joined
Sep 4, 2008
Messages
1,339 (0.26/day)
Location
USA
256Mbit, not 256MB. ;)
Copied and pasted from ASRock website. Take it up with them if 256Mb is wrong :)

I've always found the Taichi to be one of the best premium priced models in the market.
They are also one of the best, can't really go wrong with them.
Looking at the $500 price range for X670E, this one is a pretty good choice. They all have strengths and weaknesses. So it comes down to personal preferences.

Joined
Feb 18, 2013
Messages
2,120 (0.59/day)
Location
Federal Territory Kuala Lumpur, Malaysia
System Name Rainbow Puke Machine :D
Processor Intel Core i5-11400 (MCE enabled, PL removed, "OC" all-core boost at 4.4GHz stable)
Motherboard ASUS STRIX B560-G GAMING WIFI mATX
Cooling Corsair H60i RGB PRO XT AIO + HD120 RGB (x3) + SP120 RGB PRO (x3) + Commander PRO
Memory Corsair Vengeance RGB RT 2 x 8GB 3200MHz DDR4 C16
Video Card(s) Zotac RTX2060 Twin Fan 6GB GDDR6 (Stock)
Storage Corsair MP600 PRO 1TB M.2 PCIe Gen4 x4 SSD
Display(s) LG 29WK600-W Ultrawide 1080p IPS Monitor (primary display)
Case Corsair iCUE 220T RGB Airflow (White) w/Lighting Node CORE + Lighting Node PRO RGB LED Strips (x4).
Audio Device(s) ASUS ROG Supreme FX S1220A w/ Savitech SV3H712 AMP + Sonic Studio 3 suite
Power Supply Corsair RM750x 80 Plus Gold Fully Modular
Mouse Corsair M65 RGB FPS Gaming (White)
Keyboard Corsair K60 PRO RGB Mechanical w/ Cherry VIOLA Switches
VR HMD wish I own one if it wasn't for the whole Meta BS...
Software Windows 10 Professional x64 (Update 21H2)
the board looks more like a part of a marble wall/ceiling than an actual board IMO. XD

Joined
Oct 17, 2019
Messages
34 (0.03/day)
Location
The Last Frontier

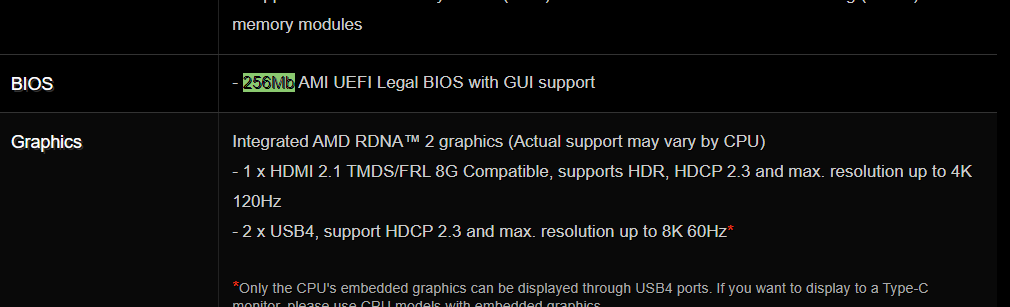

Copied and pasted from ASRock website. Take it up with them if 256Mb is wrong :)

I checked before I replied. :D



ir_cow

Staff member
Joined
Sep 4, 2008
Messages
1,339 (0.26/day)
Location
USA
Review update:
  1. VRM test section now lists stock Current and Power draw.
  2. Clarification text for reddit complaintive about the VRM test. A fan is placed on the VRM heatsink(s) for 5-8 minutes to simulate case airflow. If a VRM heatstink has a internal fan, it is not disabled for these tests.
  3. Beta BIOS 1.08A does not change the scores, temperatures or memory support.

Joined
Jan 3, 2021
Messages
1,189 (1.70/day)
Location
Slovenia
Processor i5-6600K
Motherboard Asus Z170A
Cooling some cheap Cooler Master
Memory 16GB DDR4-2400
Video Card(s) IGP
Storage Samsung 850 EVO 250GB
Display(s) 2x Oldell 24" 1920x1200
Case Bitfenix Nova white windowless
Audio Device(s) E-mu 1212m PCI
Power Supply Seasonic G-360
Mouse Logitech Marble trackball, never had a mouse
Keyboard Key Tronic KT2000, no Win key because 1994
Software Oldwin
For people worried about bottlenecks on chipset buses, it might be useful if the "Storage Interfaces" table on page 9 was extended to show which ports are connected to which PROM21.

Joined
Jun 2, 2017
Messages
4,861 (2.42/day)
System Name Best AMD Computer
Processor AMD 5950X
Motherboard MSI X570S ACE Max
Cooling In Win SR36
Memory ADATA D60 3600MHZ 32 GB
Video Card(s) MSI 6800XT Gaming Trio X
Storage Seagate 530 2Tb, Adata SX8200 2TBx2, Kingston 2 TBx2, Micron 8 TB
Display(s) GIGABYTE 32QC
Case PHANTEKS ENTHOO PRO 2
Audio Device(s) Corsair Void Pro, Logitch Z523 5.1
Power Supply Corsair HX1200!
Mouse Logitech g7 gaming mouse
Keyboard Logitech G510
Software Windows 10 Pro 64 Steam. GOG, Uplay, Origin
Benchmark Scores Firestrike: 24955 Time Spy: 13500
All I want is a new AMD or Intel motherboard that will do PCIe 5.0 for vid card at x16 and also for NVMe M.2 drive without having to use half the graphics slot . And it must NOT cost me a kidney to do it,! Seriously insane prices for all and unfortunately RPL is looking even worse!
I have a 6800XT and I have all of my expansion slots used up. There is literally a 2% difference in speed vs running at x16. PCie 4.0 x8 is fine for current GPUs. I expect that to hold even more true for AM5 as 5.0x8 is the same bandwidth as 4.0 x 16. They really need to give us a decent HEDT chip as some of us have been taking advantage of PCie storage since the OCZ Revodrive. I just hope that RDNA3 cards are not super large either.

Joined
Nov 20, 2012
Messages
72 (0.02/day)
All I want is a new AMD or Intel motherboard that will do PCIe 5.0 for vid card at x16 and also for NVMe M.2 drive without having to use half the graphics slot . And it must NOT cost me a kidney to do it,! Seriously insane prices for all and unfortunately RPL is looking even worse!
Well you won't get that on 1700 since there are only 16 Lanes Gen5 in Alder Lake and Raptor Lake.

Joined
Jun 2, 2017
Messages
4,861 (2.42/day)
System Name Best AMD Computer
Processor AMD 5950X
Motherboard MSI X570S ACE Max
Cooling In Win SR36
Memory ADATA D60 3600MHZ 32 GB
Video Card(s) MSI 6800XT Gaming Trio X
Storage Seagate 530 2Tb, Adata SX8200 2TBx2, Kingston 2 TBx2, Micron 8 TB
Display(s) GIGABYTE 32QC
Case PHANTEKS ENTHOO PRO 2
Audio Device(s) Corsair Void Pro, Logitch Z523 5.1
Power Supply Corsair HX1200!
Mouse Logitech g7 gaming mouse
Keyboard Logitech G510
Software Windows 10 Pro 64 Steam. GOG, Uplay, Origin
Benchmark Scores Firestrike: 24955 Time Spy: 13500
All I want is a new AMD or Intel motherboard that will do PCIe 5.0 for vid card at x16 and also for NVMe M.2 drive without having to use half the graphics slot . And it must NOT cost me a kidney to do it,! Seriously insane prices for all and unfortunately RPL is looking even worse!
The board I have found that could satisfy your requirement could be the Asus X670E Pro Art. There is no post code though and that is a risk with a brand new platform


Rakyr

New Member
Joined
Oct 6, 2022
Messages
2 (0.04/day)
How is it possible to use the EKWB Quantum Velocity Water Block on the Taichi Carrara without changing the backplate ? Is there an upgrade Kit or is it compatible with the original backplate ?.


ir_cow

Staff member
Joined
Sep 4, 2008
Messages
1,339 (0.26/day)
Location
USA
How is it possible to use the EKWB Quantum Velocity Water Block on the Taichi Carrara without changing the backplate ? Is there an upgrade Kit or is it compatible with the original backplate ?.
EKWB did announce that they would have some compatibility kits coming. I couldn't wait so I devised my own adapter :). I used the mounting posts from a Bitspower CPU Block Summit MS (AMD/AM4) waterblock. Works well in a pinch, but not recommended because you have to even the block out while your mounting, otherwise one side will not make contact.


Rakyr

New Member
Joined
Oct 6, 2022
Messages
2 (0.04/day)
EKWB did announce that they would have some compatibility kits coming. I couldn't wait so I devised my own adapter :). I used the mounting posts from a Bitspower CPU Block Summit MS (AMD/AM4) waterblock. Works well in a pinch, but not recommended because you have to even the block out while your mounting, otherwise one side will not make contact.
A nice workaround ;) , thanks for responding, but i think i will wait until the upgrade kits are available. :)

Joined
Oct 17, 2019
Messages
34 (0.03/day)
Location
The Last Frontier

ir_cow

Staff member
Joined
Sep 4, 2008
Messages
1,339 (0.26/day)
Location
USA
@AKBrian I blame the proofreader for not catching the 10GB lol. Thanks for the catch. Will fix now.
