ASUS Announces the ROG ARES II Limited Edition Graphics Card

Joined
Dec 6, 2011
Messages
4,785 (2.14/day)
Likes
1,187
Location
Still on the East Side
#1
ASUS ROG presents the fastest and most powerful graphics card currently available with the limited edition ARES II. Its dual Radeon HD 7970 GHz Edition GPUs and 6 GB GDDR5 memory support provide the ultimate PC gaming experience in a space-saving 2-slot design. The ARES II features exclusive ASUS DIGI+ VRM and Super Alloy Power technologies for greater stability and product longevity. The bundled ROG Edition GPU Tweak utility allows customers direct access to graphics card overclocking and tuning options via a user-friendly interface.

Continuing the ARES legacy with collectible hardware for enthusiasts
Launched in the summer of 2010, the original ROG ARES provided a new milestone in graphics power that soon became an in-demand commodity among hardware enthusiasts and collectors. ARES II likewise debuts as a limited edition product, with only 1000 units produced. It ships in a special ROG-themed case, with each card featuring a laser-etched serial number on the aluminum backplate to denote its collectible status.





New thermal cooling design enables maximum performance

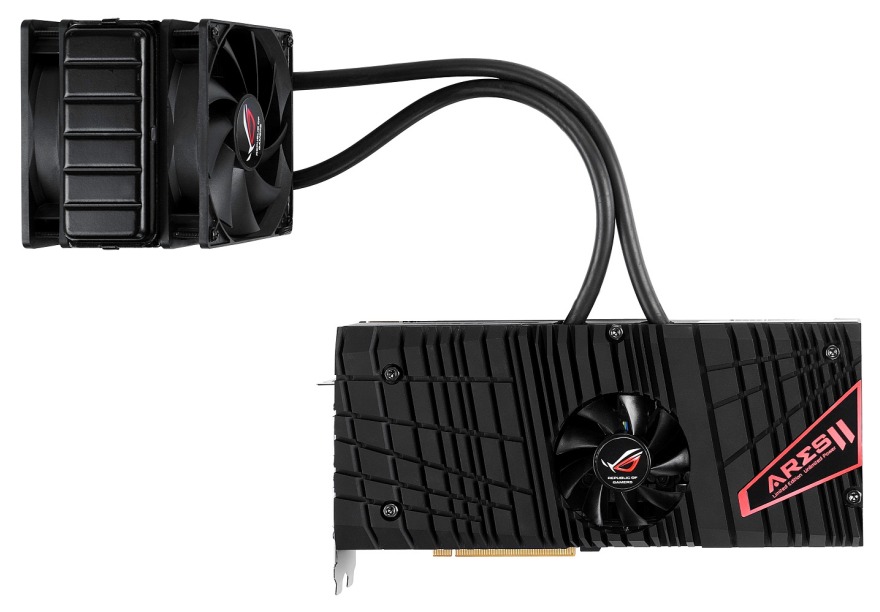

ARES II provides a custom cooler that utilizes liquid and air cooling to achieve drastically improved heat dissipation over reference design cards. The hybrid design consists of a closed-cycle liquid system with dual 120 mm fans and a radiator block that easily fits in most PC cases. The card itself includes an 80 mm dust-proof fan to enable additional cooling for critical components such as video memory and power delivery components. The new design assures continuous stability even under full load, and achieves up to 31C cooler operation compared to a reference GTX 690. ARES II features a 2-slot height design, making it accessible to most PC cases on the market.

DIGI+ VRM, Super Alloy Power, and GPU Tweak provide unparalleled power
Exclusive ASUS DIGI+ digital voltage regulation technology provides precise power delivery to bolster graphics card stability and help increase overclocking flexibility. The 20-phase Super Alloy Power architecture, consisting of heavy duty solid state capacitors, high quality chokes and MOSFETs can withstand higher temperatures and stress loads than typical designs while providing a much longer lifespan. Users can modify card parameters including core and memory speeds, fan performance, and voltages using the bundled ROG Edition GPU Tweak utility, all via a user-friendly interface. Multiple profiles for individual games and applications can also be set up, and GPU Tweak doubles as a monitoring program for keeping an eye on ARES II temperatures and power consumption levels.

Specifications:
Model name: ARES2-6GD5
Graphics engine: 2 x AMD Radeon HD 7970 GHz Edition
System bus: PCI Express 3.0 x 16
Video memory: 6 GB GDDR5
Boost clock: 1100 MHz (base clock: 1050 MHz)
Memory clock: 6600 MHz (1650 MHz GDDR5)
Memory interface: 768-bit (2 x 384-bit)
Maximum DVI resolution: 2560 x 1600
Maximum VGA resolution: 2048 x 1536
Microsoft Direct3D version: DirectX 11
I/O: 1 x single link DVI / 1 x dual link DVI / 1 x HDMI via adapter/ 4 x native DisplayPort
Bundled accessories: 3 x 8-pin power cable / 1 x DVI to HDMI adapter / 1 x extended CrossFireX bridge
Minimum recommended power supply: 850 W (42A on the 12V rail)
Power connectors: 3 x 8-pin
Dimensions: Card: 11.8" x 5.5" x 1.8"
Fan block: 4.6" x 5.8" x 1.9"
Fan: 4.7" x 4.7" x 1"
Liquid cooling tube length: 13.4"

Joined
Jul 18, 2012
Messages
246 (0.12/day)
Likes
83
Location
Germany
System Name NoMo El Cheapo
Processor i5-2500k
Motherboard Z68Pro3-M
Cooling HR-02 Macho
Memory 8 Gig
Video Card(s) f̶̶u̶̶r̶̶y̶̶ ̶̶t̶̶r̶̶i̶-̶x̶̶ ̶@̶ ̶̶4̶̶0̶̶9̶̶6̶̶ ̶̶s̶̶h̶̶a̶̶d̶̶e̶̶r̶ dead
Storage 850 EVO 512
Case Don't believe in cases...
Power Supply SS G-650
#2
Better late than never...

Joined
Oct 8, 2012
Messages
1,364 (0.71/day)
Likes
411
Location
Israel
Processor Intel Core i5 3570K @ 4.5Ghz
Motherboard Gigabyte Z77X UD5H
Cooling Antec H20 920
Memory Corsair Dominator Platinum DDR3 4x4GB 2000mhz 9-11-10-24 CR-1
Video Card(s) EVGA GTX 970 SC
Storage Crucial M500 240Gb/Seagate Barracuda 2TB
Display(s) LG 29UM67 2560x1080 75hz IPS
Case Coolermaster 690
Audio Device(s) Creative X-FI Titanium + Sennheiser PC360
Power Supply Corsair TX850
Mouse Logitech G502 Proteus Spectrum
Keyboard Logitech G710+
Software Windows 7 Ultimate 64bit
#3
Hope TPU gets to review this card.

Joined
Nov 19, 2012
Messages
750 (0.40/day)
Likes
430
System Name Chaos
Processor Intel Core i5 4590K @ 4.0 GHz
Motherboard MSI Z97 MPower MAX AC
Cooling Arctic Cooling Freezer i30 + MX4
Memory 2x4 GB Kingston HyperX Beast 2400 GT/s CL11
Video Card(s) Sapphire HD7950 Vapor X, 800/1400 @ 1.075V/1.45V
Storage 256GB Samsung 840 Pro SSD + 1 TB WD Green (Idle timer off) + 320 GB WD Blue
Display(s) Dell U2515H
Case Fractal Design Define R3
Audio Device(s) Onboard
Power Supply Seasonic SS-380GB
Mouse CM Storm Recon
Keyboard CM Storm Quickfire Pro (MX Red)
#4
Do I dare ask about the price of this?
Would be interesting to pit it against the GTX 690...


cadaveca

My name is Dave
Staff member
Joined
Apr 10, 2006
Messages
16,576 (3.85/day)
Likes
10,942
Location
Parkland County, Alberta
#5
All I can think about is what case I am going to buy now to fit that. I wonder if I can squish into a BitFenix Prodigy?

I'm sure we'll see pics of the card from CES.

Joined
Oct 26, 2011
Messages
3,121 (1.37/day)
Likes
892
Processor Ci7 5960X
Motherboard RVE
Cooling Triple Aquacomputer AMS 840 with D5
Memory Some random DDR4
Video Card(s) GTX 1080 Ti
Storage 960 EVO
Display(s) Dell U3011 2560x1600 + Dell 2408WFP 1200x1920 (Portrait)
Case Dimastech Bench EasyXL
Audio Device(s) Essence STX
Power Supply AX 1500i
Software Win10
#6
I like the fact that it is a dual slot card it'll enable so much performance in small cases/builds.

I wonder what it could've costed them to connect the tubes on the GPU with G1/4 and fittings, would have been nice for who already has a loop to swap that tiny 120mm.

Let's hope this time they binned the GPUs on the SKU because the 7970 Platinum wasn't and it blew.

Joined
Nov 19, 2012
Messages
750 (0.40/day)
Likes
430
System Name Chaos
Processor Intel Core i5 4590K @ 4.0 GHz
Motherboard MSI Z97 MPower MAX AC
Cooling Arctic Cooling Freezer i30 + MX4
Memory 2x4 GB Kingston HyperX Beast 2400 GT/s CL11
Video Card(s) Sapphire HD7950 Vapor X, 800/1400 @ 1.075V/1.45V
Storage 256GB Samsung 840 Pro SSD + 1 TB WD Green (Idle timer off) + 320 GB WD Blue
Display(s) Dell U2515H
Case Fractal Design Define R3
Audio Device(s) Onboard
Power Supply Seasonic SS-380GB
Mouse CM Storm Recon
Keyboard CM Storm Quickfire Pro (MX Red)
#7
I'd say that double thickness dual fan rad can handle 300-320W @ 85°C, I really can't see it being more capable than that. Perhaps with some screamer Deltas or Nidecs, but then, what's the point...

Joined
Mar 24, 2012
Messages
248 (0.12/day)
Likes
46
#8
i'm sure this beast will be able to beat 690. hoping to see this get bench at TPU but i wonder if wiz can get his hand on this limited baby to play around with it

Joined
Nov 21, 2010
Messages
642 (0.25/day)
Likes
206
Location
Right where I want to be
System Name Ratchet
Processor Ryzen 1700X
Motherboard Crosshair VI Hero
Cooling Custom Loop, Ek blocks 280mm Rad
Memory 16gb TridentZ RGB DDR4 3000
Video Card(s) 1x ASUS STRIX RX480 OC(flashed to 580)
Storage JBOD
Display(s) HP ZR24w
Audio Device(s) Asus Xonar STX II
Power Supply Seasonic X-series Gold 850W
Mouse Corsair Scimitar
Keyboard Corsair K70 Rapidfire
Software Windows 10
#9
For a second there I thought it came with it's own power supply.

Joined
Dec 22, 2011
Messages
2,120 (0.96/day)
Likes
1,193
System Name Zimmer Frame Rates
Processor Intel i7 920 @ Stock speeds baby
Motherboard EVGA X58 3X SLI
Cooling True 120
Memory Corsair Vengeance 12GB
Video Card(s) Palit GTX 980 Ti Super JetStream
Storage Of course
Display(s) Crossover 27Q 27" 2560x1440
Case Antec 1200
Audio Device(s) Don't be silly
Power Supply XFX 650W Core
Mouse Razer Deathadder Chroma
Keyboard Logitech UltraX
Software Windows 10
Benchmark Scores Epic
#10
i'm sure this beast will be able to beat 690. hoping to see this get bench at TPU but i wonder if wiz can get his hand on this limited baby to play around with it
Pretty sure the other unofficial 7990's do already.

The 690 however offers a far better balance of performance, taking into account the usual heat, noise and power consumption.

This product is horribly late and it's gonna be way overpriced.

Joined
Jun 12, 2007
Messages
4,815 (1.24/day)
Likes
639
Location
Wangas, New Zealand
System Name Darth Obsidious
Processor Intel i5 2500K
Motherboard ASUS P8Z68-V/Gen3
Cooling Cooler Master Hyper 212+ in Push Pull
Memory 2X4GB Corsair Vengeance DDR3 1600
Video Card(s) ASUS R9 270x TOP
Storage 128GB Samsung 830 SSD, 1TB WD Black, 2TB WD Green
Display(s) LG IPS234V-PN
Case Corsair Obsidian 650D
Audio Device(s) Infrasonic Quartet
Power Supply Corsair HX650w
Software Windows 7 64bit and Windows XP Home
Benchmark Scores 2cm mark on bench with a razor blade.
#11
At this time in the game, this is a novelty item.

Joined
Mar 24, 2012
Messages
248 (0.12/day)
Likes
46
#12
personally i dont think this product as late because this is Asus Ares. nor does it compete with regular cards because this is premium product. to me this is just to show the prowess of Asus engineering. to be honest i'm not surprise if the price tag is between 1500-2000 for a piece.

Joined
Mar 31, 2012
Messages
546 (0.26/day)
Likes
113
System Name SIGSEGV
Processor Intel | AMD
Motherboard INVALID| X399
Cooling 2 Heatpipes | EK
Memory 16 Gb DDR4 2400 | 32 GB DDR4
Video Card(s) 1060 | MI25 / Vega Frontier | Tesla K
Storage 1TB 7200/256 SSD PCIE | ~ TB
Display(s) 15,5" / 27" LEDTV | No Display
Case Black & Grey
Audio Device(s) Realtek
Power Supply Silverstone 850W | Unrated PSU
Software LinuxMint KDE | XFCE
Benchmark Scores i dont care about scores
#13
i couldn't agree more this card is beast. i'd like to see how this card performs on hitman absolution and also max payne with 8x MSAA (or with ultra setting) :rockout:

Joined
Dec 22, 2011
Messages
2,120 (0.96/day)
Likes
1,193
System Name Zimmer Frame Rates
Processor Intel i7 920 @ Stock speeds baby
Motherboard EVGA X58 3X SLI
Cooling True 120
Memory Corsair Vengeance 12GB
Video Card(s) Palit GTX 980 Ti Super JetStream
Storage Of course
Display(s) Crossover 27Q 27" 2560x1440
Case Antec 1200
Audio Device(s) Don't be silly
Power Supply XFX 650W Core
Mouse Razer Deathadder Chroma
Keyboard Logitech UltraX
Software Windows 10
Benchmark Scores Epic
#14
If the specs are correct, just look at other 7990 reviews.. then assume the heat and noise levels have dropped to what can only be describe as a reasonable level. ;)

Joined
Mar 31, 2012
Messages
546 (0.26/day)
Likes
113
System Name SIGSEGV
Processor Intel | AMD
Motherboard INVALID| X399
Cooling 2 Heatpipes | EK
Memory 16 Gb DDR4 2400 | 32 GB DDR4
Video Card(s) 1060 | MI25 / Vega Frontier | Tesla K
Storage 1TB 7200/256 SSD PCIE | ~ TB
Display(s) 15,5" / 27" LEDTV | No Display
Case Black & Grey
Audio Device(s) Realtek
Power Supply Silverstone 850W | Unrated PSU
Software LinuxMint KDE | XFCE
Benchmark Scores i dont care about scores
#15
Joined
Mar 24, 2012
Messages
248 (0.12/day)
Likes
46
#16
for this card it is not about heat, noise or power consumption. it is a tale about ultimate performance :p

Joined
Jan 19, 2012
Messages
273 (0.12/day)
Likes
25
Processor 3770k
Motherboard Z77 Sabertooth
Cooling Cryorig C1
Memory Crucial 2x8GB
Video Card(s) GTX 670 4GB
Storage 512GB Crucial MX100
Display(s) Asus 27"
Case NZXT S340
Audio Device(s) Audiotrack Prodigy Cube
Power Supply AX650
#17
Take my money sexy card

Joined
Dec 22, 2011
Messages
2,120 (0.96/day)
Likes
1,193
System Name Zimmer Frame Rates
Processor Intel i7 920 @ Stock speeds baby
Motherboard EVGA X58 3X SLI
Cooling True 120
Memory Corsair Vengeance 12GB
Video Card(s) Palit GTX 980 Ti Super JetStream
Storage Of course
Display(s) Crossover 27Q 27" 2560x1440
Case Antec 1200
Audio Device(s) Don't be silly
Power Supply XFX 650W Core
Mouse Razer Deathadder Chroma
Keyboard Logitech UltraX
Software Windows 10
Benchmark Scores Epic
#18
for this card it is not about heat, noise or power consumption. it is a tale about ultimate performance :p
It's also about a product that isn't officially supported by AMD, which means the driver support (for what it is worth in the first place) will drop off the edge off a cliff soon enough.

But I'm all for you die-hards buying one. :cool:

Joined
Oct 26, 2011
Messages
3,121 (1.37/day)
Likes
892
Processor Ci7 5960X
Motherboard RVE
Cooling Triple Aquacomputer AMS 840 with D5
Memory Some random DDR4
Video Card(s) GTX 1080 Ti
Storage 960 EVO
Display(s) Dell U3011 2560x1600 + Dell 2408WFP 1200x1920 (Portrait)
Case Dimastech Bench EasyXL
Audio Device(s) Essence STX
Power Supply AX 1500i
Software Win10
#19
It's also about a product that isn't officially supported by AMD, which means the driver support (for what it is worth in the first place) will drop off the edge off a cliff soon enough.

But I'm all for you die-hards buying one. :cool:
It's the same as having a 7970 crossfire, it's almost surely (99.9%) a board with two GPUs and a PLX chip to enable crossfire onboard.
This card doesn't require a specially tailored driver ;)

Joined
Dec 22, 2011
Messages
2,120 (0.96/day)
Likes
1,193
System Name Zimmer Frame Rates
Processor Intel i7 920 @ Stock speeds baby
Motherboard EVGA X58 3X SLI
Cooling True 120
Memory Corsair Vengeance 12GB
Video Card(s) Palit GTX 980 Ti Super JetStream
Storage Of course
Display(s) Crossover 27Q 27" 2560x1440
Case Antec 1200
Audio Device(s) Don't be silly
Power Supply XFX 650W Core
Mouse Razer Deathadder Chroma
Keyboard Logitech UltraX
Software Windows 10
Benchmark Scores Epic
#20
It's the same as having a 7970 crossfire, it's almost surely (99.9%) a board with two GPUs and a PLX chip to enable crossfire onboard.
This card doesn't require a specially tailored driver ;)
Hmm not entirely, and that's just looking at some reviews. Regardless I'd avoid crossfire like the plague ;)

Joined
Sep 7, 2011
Messages
2,785 (1.20/day)
Likes
1,672
Location
New Zealand
System Name MoneySink
Processor 2600K @ 4.8
Motherboard P8Z77-V
Cooling AC NexXxos XT45 360, RayStorm, D5T+XSPC tank, Tygon R-3603, Bitspower
Memory 16GB Crucial Ballistix DDR3-1600C8
Video Card(s) GTX 780 SLI (EVGA SC ACX + Giga GHz Ed.)
Storage Kingston HyperX SSD (128) OS, WD RE4 (1TB), RE2 (1TB), Cav. Black (2 x 500GB), Red (4TB)
Display(s) Achieva Shimian QH270-IPSMS (2560x1440) S-IPS
Case NZXT Switch 810
Audio Device(s) onboard Realtek yawn edition
Power Supply Seasonic X-1050
Software Win8.1 Pro
Benchmark Scores 3.5 litres of Pale Ale in 18 minutes.
#21
for this card it is not about heat, noise or power consumption. it is a tale about ultimate performance :p
...for a few months.

Asus' claims are 13% better performance over a (presumably stock) GTX 690

Not taken with the design personally. Two full-fat Tahiti GPU's being cooled by a single 120mm rad, and an 80mm intake fan with zero backplate airflow ( 2 x DVI, 4 x DP on a dual slot backplate) doesn't sound like a recipe for success.
It's the same as having a 7970 crossfire
Sounds good doesn't it...except in dual card Crossfire and no workable profile its an easy matter to drop one card out, whereas a duallie is going to ramp both GPU's regardless.

Last edited:
Joined
Oct 26, 2011
Messages
3,121 (1.37/day)
Likes
892
Processor Ci7 5960X
Motherboard RVE
Cooling Triple Aquacomputer AMS 840 with D5
Memory Some random DDR4
Video Card(s) GTX 1080 Ti
Storage 960 EVO
Display(s) Dell U3011 2560x1600 + Dell 2408WFP 1200x1920 (Portrait)
Case Dimastech Bench EasyXL
Audio Device(s) Essence STX
Power Supply AX 1500i
Software Win10
#22
...for a few months.

Asus' claims are 13% better performance over a (presumably stock) GTX 690

Not taken with the design personally. Two full-fat Tahiti GPU's being cooled by a single 120mm rad, and an 80mm intake fan with zero backplate airflow ( 2 x DVI, 4 x DP on a dual slot backplate) doesn't sound like a recipe for success.

Sounds good doesn't it...except in dual card Crossfire and no workable profile its an easy matter to drop one card out, whereas a duallie is going to ramp both GPU's regardless.
You can disable CFX on dual board GPUs, just go in windowed fullscreen, tadaaa CFX does not work on windowed mode ;)

Joined
Dec 22, 2011
Messages
2,120 (0.96/day)
Likes
1,193
System Name Zimmer Frame Rates
Processor Intel i7 920 @ Stock speeds baby
Motherboard EVGA X58 3X SLI
Cooling True 120
Memory Corsair Vengeance 12GB
Video Card(s) Palit GTX 980 Ti Super JetStream
Storage Of course
Display(s) Crossover 27Q 27" 2560x1440
Case Antec 1200
Audio Device(s) Don't be silly
Power Supply XFX 650W Core
Mouse Razer Deathadder Chroma
Keyboard Logitech UltraX
Software Windows 10
Benchmark Scores Epic
#23
You can disable CFX on dual board GPUs, just go in windowed fullscreen, tadaaa CFX does not work on windowed mode ;)
Such an elegant solution for a card that costs such silly money.

Joined
Sep 7, 2011
Messages
2,785 (1.20/day)
Likes
1,672
Location
New Zealand
System Name MoneySink
Processor 2600K @ 4.8
Motherboard P8Z77-V
Cooling AC NexXxos XT45 360, RayStorm, D5T+XSPC tank, Tygon R-3603, Bitspower
Memory 16GB Crucial Ballistix DDR3-1600C8
Video Card(s) GTX 780 SLI (EVGA SC ACX + Giga GHz Ed.)
Storage Kingston HyperX SSD (128) OS, WD RE4 (1TB), RE2 (1TB), Cav. Black (2 x 500GB), Red (4TB)
Display(s) Achieva Shimian QH270-IPSMS (2560x1440) S-IPS
Case NZXT Switch 810
Audio Device(s) onboard Realtek yawn edition
Power Supply Seasonic X-1050
Software Win8.1 Pro
Benchmark Scores 3.5 litres of Pale Ale in 18 minutes.
#24
You can disable CFX on dual board GPUs, just go in windowed fullscreen, tadaaa CFX does not work on windowed mode ;)
The card (and the likely target market) seems tailored for Eyefinity. What's full screen windowed mode functionality like with DX11 games these days?

Joined
Oct 26, 2011
Messages
3,121 (1.37/day)
Likes
892
Processor Ci7 5960X
Motherboard RVE
Cooling Triple Aquacomputer AMS 840 with D5
Memory Some random DDR4
Video Card(s) GTX 1080 Ti
Storage 960 EVO
Display(s) Dell U3011 2560x1600 + Dell 2408WFP 1200x1920 (Portrait)
Case Dimastech Bench EasyXL
Audio Device(s) Essence STX
Power Supply AX 1500i
Software Win10
#25
The card (and the likely target market) seems tailored for Eyefinity. What's full screen windowed mode functionality like with DX11 games these days?
It's been a while since I tried, I had to drop Eyefinity since it was too taxing playing with such an high resolution (and humongous borders ohmagad), I honestly don't know if fullscreen windowed fits on more than one monitor.

Such an elegant solution for a card that costs such silly money.
Heh, tell me about it ;) I've been forced since they removed that option on CCC, last time I could driver disable one GPU was with the 4870x2, not even 5970 if I remember well.
