ASUS Announces Trio of TRX40 Motherboards for AMD Threadripper: ROG Zenith II Extreme, ROG Strix TRX40-E Gaming, and Prime TRX40-Pro

Raevenlord

News Editor
Staff member
Joined
Aug 12, 2016
Messages
2,786 (2.34/day)
Location
Portugal
System Name The Ryzening
Processor Ryzen 7 1700 @ 3.7 GHz
Motherboard MSI X370 Gaming Pro Carbon
Cooling Arctic Cooling Liquid Freezer 120
Memory 16 GB G.Skill Trident Z F4-3200 (2x 8 GB)
Video Card(s) TPU's Awesome MSI GTX 1070 Gaming X
Storage Boot: Crucial MX100 128GB; Gaming: Crucial MX 300 525GB; Storage: Samsung 1TB HDD, Toshiba 2TB HDD
Display(s) LG 29UM68P (21:9 2560x1080 FreeSync Ultrawide)
Case NOX Hummer MC Black
Audio Device(s) ASUS Xonar DX
Power Supply Seasonic M12II Evo 620W 80+
Mouse Cooler Master Masterkeys Lite L
Keyboard Cooler Master Masterkeys Lite L
Software Windows 10 x64
ASUS today announced its all-new series of TRX40 motherboards, ROG Zenith II Extreme, ROG Strix TRX40-E Gaming and Prime TRX40-Pro, that come loaded with improvements and new features to help professionals, enthusiasts and gamers alike unleash the full potential of 3rd Generation AMD Ryzen Threadripper processors. Teamed up with the TRX40 chipset, 3rd Gen Threadripper CPUs bring PCI Express 4.0 to the high-end desktop for the first time, doubling bandwidth across a total of 64 PCIe 4.0 lanes to allow for even faster SSDs, graphics cards and AV gear. Every PCIe slot and M.2 slot in the ASUS TRX40 lineup is wired with PCIe 4.0 connectivity for maximum bandwidth, meaning any expansion cards slotted into an ASUS TRX40 board will run as fast as they possibly can.



Teamed up with the TRX40 chipset, 3rd Gen Threadripper CPUs bring PCI Express 4.0 to the high-end desktop for the first time, doubling bandwidth across a total of 64 PCIe 4.0 lanes to allow for even faster SSDs, graphics cards and AV gear. Every PCIe slot and M.2 slot in the ASUS TRX40 lineup is wired with PCIe 4.0 connectivity for maximum bandwidth, meaning any expansion cards slotted into an ASUS TRX40 board will run as fast as they possibly can. For high-end desktop users, the TRX40 series offers four memory channels for up to 256 GB of RAM across eight slots. The new 3rd Gen Threadripper CPUs maintain their predecessors' support for ECC memory, too. This empowers PC builders to take their rigs to new heights with bumped-up 3200 MHz stock RAM speeds and push the limits even further with an extra boost from exclusive OptiMem III technology in the Republic of Gamers (ROG) Zenith II Extreme. There's a ROG or ASUS TRX40 motherboard for everyone, from professionals who want the most of everything and hardcore gamers obsessed with performance to first-time builders seeking the ultimate PC experience. For further details about our ROG lineup please visit ASUS ROG. A guide with complete specifications and images for the entire lineup of TRX40 motherboards is located at ASUS Edge Up

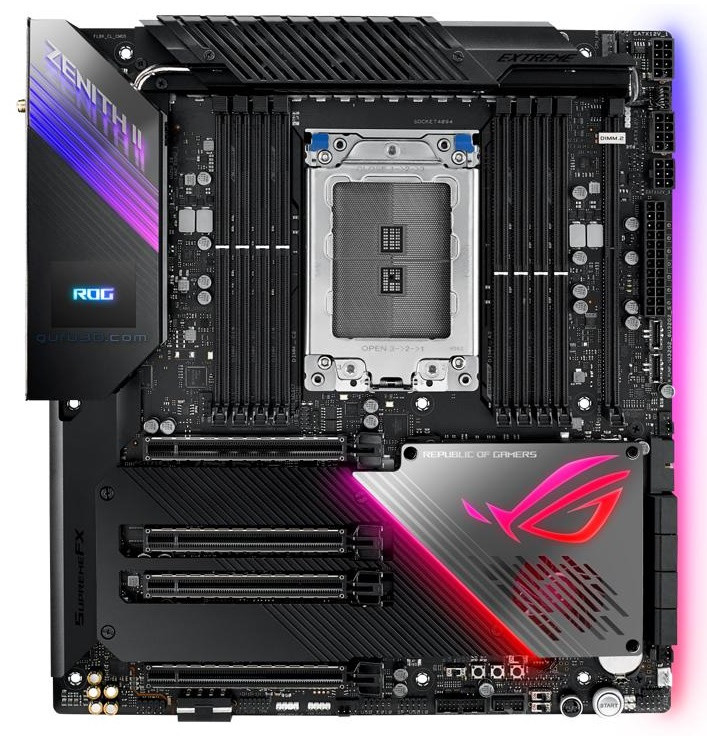

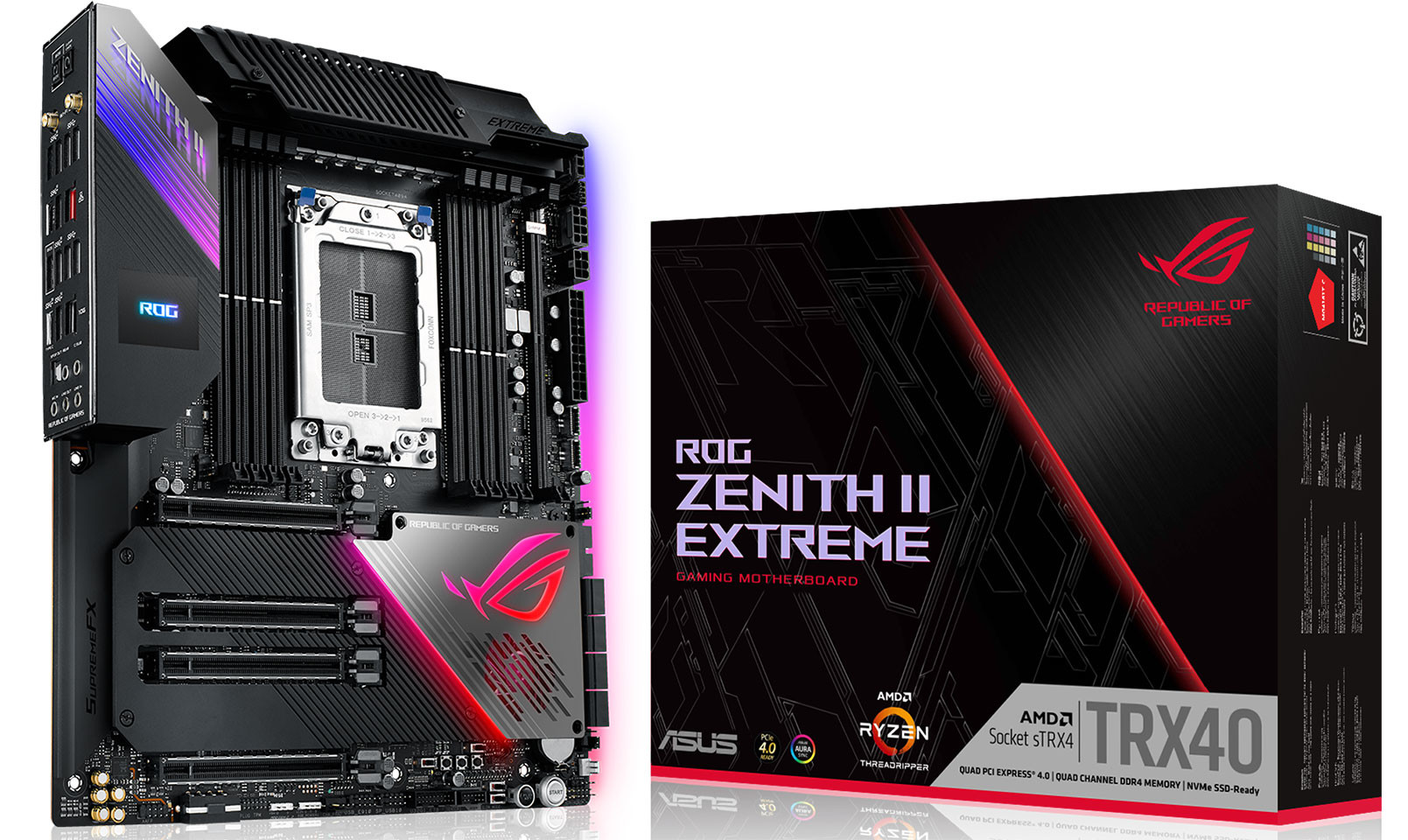

ROG Zenith II Extreme
Perfect for professional users and gaming enthusiasts looking to explore the limits of 3rd Gen Threadripper CPUs' core and memory clock speeds. It's filled to the brim with top-notch hardware to satisfy the most demanding users. The board's styling strikes a balance between industrial power and gamer-friendly flash. With the lights off, Zenith II Extreme epitomizes stealth and subtlety, but once the multi-zone Aura RGB LED lighting is fired up, the board becomes a high-end showpiece. The decorative panel atop the I/O shield has a holographic Infinity Lighting motif, while a full-color LiveDash OLED display can display POST codes, critical system information or custom graphics. Aluminium ROG Armor covers most of the front of the board, and a metal backplate fortifies the board against the weight of massive heatsinks and expansion cards.



Zenith II Extreme employs an enhanced 16-power-stage VRM design, suitable for the most extreme overclocking efforts. Many components in a high-end build can get a little toasty once workloads ramp up and the bits start flowing, so Zenith II Extreme's main VRM heatsink uses two semi-passive fans that turn on only when the underlying component temperatures reach 60 ºC. To further enhance heat dissipation, a heat pipe joins the main VRM heatsink with an auxiliary heatsink under the I/O shroud. Another fan underneath the chipset heatsink draws heat away from the main M.2 slots and the TRX40 silicon itself, and its airflow also helps keep the SoC VRM cool during memory overclocking. Every one of those those fans is smart enough to turn on only when they're needed and are controlled by the Fan Xpert 4 utility. Extensive storage capabilities are enabled by Zenith II Extreme's five M.2 slots each using up to four lanes of PCIe 4.0, with three slots directly onboard and two coming from the exclusive DIMM.2 module. Hard drives are still the kings of sheer capacity, and Zenith II Extreme provides eight SATA ports to meet even serious mass-storage needs.

Networking is a key aspect for workstation and high-end desktop machines, because workloads on these systems often involve shuffling large chunks of data from one machine to another. Zenith II Extreme features a trio of network interfaces. An Intel I211-AT Gigabit Ethernet controller gets the party started, but the Aquantia AQC-107 10GbE controller really fires things up, as it makes short work of multi-terabyte transfers. If wires aren't the order of the day, then Zenith II Extreme's future-proof connectivity with Intel AX200 Wi-Fi 6 and Bluetooth 5 support should satisfy. Every recent improvement in USB speed has made its way into Zenith II Extreme, so the board is more than ready for the latest peripherals. The back panel contains a total of seven USB 3.2 Gen 2 ports with 10 Gbps of throughput, but the real highlight is the super-fast USB 3.2 Gen 2x2 Type-C connector with 20 Gbps of bandwidth. It also includes a pair of front-panel USB 3.2 Gen 2 connectors, four USB 3.2 Gen 1 ports and three USB 2.0 headers.

ROG Strix TRX40-E Gaming: Take command of any arena
ROG Strix TRX40-E Gaming is the motherboard with all the high-end desktop credentials expected from such a standout component, and it fits all of that power into a standard ATX form factor with great customization options, sleek cybertext aesthetics and a 1.3-inch LiveDash OLED display. Its striking angular design extends to the M.2 heatsink and audio circuitry covers, and most of the board is blacked out so that it can look its best under any shade of RGB LED lighting. This new Strix board feeds its CPU with a 16-stage VRM with two semi-passive fans above the heatsink to keep things cool, even with demanding overlocks. ProCool II power plugs and their solid pins help ensure stable power delivery to Threadripper's many cores and keep the connectors themselves cool under load. The board also provides plenty of options for storage devices and peripherals. There are three M.2 sockets, each linked to four lanes of PCIe 4.0, as well as eight SATA ports that adorn the edge of the board. Around the back are eight USB 3.2 Gen 2 ports with 10 Gbps of bandwidth, including one TypeC, alongside another four USB 2.0 Type-A connectors. Strix TRX40-E Gaming also offers dedicated headers for both AIO and custom-loop pumps in addition to its standard arsenal of fan headers. The new board also comes with a trio of network controllers. The Intel AX200 Wi-Fi 6 adapter with Bluetooth 5 reprises its role, alongside a potent 2.5 Gbps Realtek Ethernet controller paired with the Intel I211-AT Gigabit Ethernet controller. For audio needs, Strix TRX40-E Gaming uses a SupremeFX S1220 audio codec in addition to providing DTS Sound Unbound support.



ASUS Prime TRX40-Pro: A rock-solid professional foundation for any 3rd Gen Threadripper
Prime TRX40-Pro is a reliable foundation for any enthusiast or professional with creative workloads like video editing and 3D rendering that benefit from the power of many-core CPUs. In addition to contributing to the board's clean and futuristic design, its brushed-aluminium VRM heatsink draws heat away from a 16-stage power-delivery subsystem comprising Infineon TDA21462 integrated power stages paired with premium chokes and components. Every single expansion slot comes loaded with the performance of PCIe 4.0, too: three PCIe x16 ASUS SafeSlots grace the main portion of the board, and they're poised to run all-out in an x16/x16/x16 configuration.



Prime TRX40-Pro includes three M.2 slots, wired up to PCIe 4.0 x4 bandwidth. Creators working with massive video files can RAID together multiple NVM Express (NVMe) devices for massive I/O bandwidth and seamless playback in their editing bays. Two of those slots rest under a dedicated heatsink for preventing SSD throttling under heavy loads. The third M.2 slot positions SSDs vertically to take advantage of ambient airflow around the CPU socket. The USB port selection on the back panel includes three USB 3.2 Gen 2 Type-A connectors and a reversible USB 3.2 Gen 2 Type-C port to provide up to 10 Gbps for connecting fast external storage, audio interfaces, dedicated video editing controllers and more. Prime TRX40-Pro also has a full set of fan and liquid-cooling headers controllable with our Fan Xpert 4 utility. The board also includes an E-key M.2 2230 socket for those who wish to add a Wi-Fi module. Wired connectivity comes from a Gigabit Ethernet port backed by an Intel I211-AT chip. The Realtek S1220 audio codec offers pristine audio quality, helped along by EMI shielding and separate PCB layers for the left and right channels to maintain signal integrity. When it's time to pump up the volume, DTS:X Ultra support brings immersive 3D spatial audio to existing headphones or speakers.



View at TechPowerUp Main Site

Joined
Sep 26, 2012
Messages
414 (0.16/day)
System Name ATHENA
Processor Intel 9900K
Motherboard MSI Z390 MEG Godlike
Cooling Noctua NH-U12S, 3xNoctua IndustrialPPC 120mm 2000RPM PWM, 3xSilverstone AP 180mm 1200RPM
Memory 4x16GB Trident-Z 16GB 3866mhz
Video Card(s) MSI 2080 Ti Gaming X Trio
Storage 3 x Samsung 970 2TB
Display(s) Acer X34P 34" 21:9 3440x1440 @ 120hz
Case Silverstone FT02
Power Supply Seasonic Prime Ultra Titanium 1000w
Mouse FinalMouse Classic Ergo 2 + Evoluent VerticalMouse C
Keyboard Logitech DinovoEdge
Software Windows 10 + OpenSUSE Tumbleweed
Good to see m.2 DIMM back, its a much better solution for mounting m.2 cards IMO.

Joined
Feb 11, 2009
Messages
2,271 (0.58/day)
System Name Cyberline
Processor Intel Core i7 2600k
Motherboard Asus P8P67 LE Rev 3.0
Cooling Tuniq Tower 120
Memory Corsair (4x2) 8gb 1600mhz
Video Card(s) AMD RX480
Storage Samsung 750 Evo 250gb SSD + WD 1tb x 2 + WD 2tb
Display(s) Philips 32inch LPF5605H (television)
Case antec 600
Audio Device(s) Focusrite 2i4 (USB)
Power Supply Seasonic 620watt 80+ Platinum
Mouse Elecom EX-G
Keyboard Rapoo V700
Software Windows 10 Pro 64bit
.... a Threadripper board...with the designation GAMING ? I mean I know it was meaningless but this goes a bit far.
Patiently waiting for an Asus GAMING headphone stand.

Joined
Jul 18, 2017
Messages
269 (0.32/day)
.... a Threadripper board...with the designation GAMING ? I mean I know it was meaningless but this goes a bit far.
Patiently waiting for an Asus GAMING headphone stand.
That's because Threadripper is HEDT and not pure workstation. Funny how some are still confused of the two.

Joined
Sep 19, 2017
Messages
39 (0.05/day)
Location
Germany
Processor R7 3700X
Motherboard X570 Aorus Master
Cooling MO-RA3 420 LT | 4x NF-A20
Memory F4-3200C14D-32GTZR @ 3733C16
Video Card(s) Aorus GTX 1080Ti XE 1987/6014 950mV
Storage 840 PRO 256GB | 840 EVO 500GB | 850 EVO 1TB
Display(s) AG271QG 165Hz | QX2710LED 110Hz
Case DBP 900 w/ airflow mod
Audio Device(s) AE-5 | DT880 600 Ohm | Rode NT-USB
Power Supply DPP 11 550W
Mouse G502 Proteus Core
Keyboard G710+
Zenith II Extreme employs an enhanced 16-power-stage VRM design
This new Strix board feeds its CPU with a 16-stage VRM
draws heat away from a 16-stage power-delivery subsystem comprising Infineon TDA21462
So that means they are still using an IR35201 in 8+0 mode on all three boards?

Joined
Sep 14, 2017
Messages
414 (0.52/day)
Good to see m.2 DIMM back, its a much better solution for mounting m.2 cards IMO.
I think so too. I'd rather have more PCIe slots rather than wasted them on ATX/EATX with M.2 slots. PCIe is way more versatile. I'd rather have the M.2 slots in other sections, by the PCH, the m.2 DIMM ASUS does or even on the back.

Joined
Nov 11, 2004
Messages
4,502 (0.82/day)
Location
Formosa
System Name Overlord Mk MXVI
Processor AMD Ryzen 7 3800X
Motherboard Gigabyte X570 Aorus Master
Cooling Corsair H115i Pro
Memory 32GB Viper Steel 3600 DDR4 @ 3800MHz 16-19-16-19-36
Video Card(s) Gigabyte RTX 2080 Gaming OC 8G
Storage 1TB WD Black NVMe (2018), 2TB Viper VPN100, 1TB WD Blue 3D NAND
Display(s) Asus PG27AQ
Case Corsair Carbide 275Q
Audio Device(s) Corsair Virtuoso SE
Power Supply Corsair RM750
Mouse Logitech G500s
Keyboard Wooting Two
Software Windows 10 Pro
Benchmark Scores https://valid.x86.fr/ztiub6
I think so too. I'd rather have more PCIe slots rather than wasted them on ATX/EATX with M.2 slots. PCIe is way more versatile. I'd rather have the M.2 slots in other sections, by the PCH, the m.2 DIMM ASUS does or even on the back.
3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors :
1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
2 x M.2 Socket 3, with M Key, type 2242/2260/2280 (PCIe 4.0 x4 mode)*1
3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors :
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 (PCIe 4.0 x4/x2 mode)*2
Support Raid 0, 1, 10


Joined
Feb 11, 2009
Messages
2,271 (0.58/day)
System Name Cyberline
Processor Intel Core i7 2600k
Motherboard Asus P8P67 LE Rev 3.0
Cooling Tuniq Tower 120
Memory Corsair (4x2) 8gb 1600mhz
Video Card(s) AMD RX480
Storage Samsung 750 Evo 250gb SSD + WD 1tb x 2 + WD 2tb
Display(s) Philips 32inch LPF5605H (television)
Case antec 600
Audio Device(s) Focusrite 2i4 (USB)
Power Supply Seasonic 620watt 80+ Platinum
Mouse Elecom EX-G
Keyboard Rapoo V700
Software Windows 10 Pro 64bit
That's because Threadripper is HEDT and not pure workstation. Funny how some are still confused of the two.
Funny how you think that that means its a good choice for gaming...

Joined
Jul 18, 2017
Messages
269 (0.32/day)
Funny how you think that that means its a good choice for gaming...
As Lisa Su said, TR is for those who wants no compromise... whether it’s gaming, overclocking, video editing, showboating... whatever you want it to be.


Vader

New Member
Joined
Mar 9, 2018
Messages
18 (0.03/day)
As Lisa Su said, TR is for those who wants no compromise... whether it’s gaming, overclocking, video editing, showboating... whatever you want it to be.
That description fits ryzen 9 cpus better, i think. With this launch they are moving the HEDT segment away from enthusiasts and closer to workstation/server class hardware

Joined
May 31, 2017
Messages
335 (0.37/day)
System Name Red
Processor AMD Ryzen 7 3700X
Motherboard MSI B450 Gaming Pro Carbon AC
Cooling AMD Wraith Prism
Memory 2x8GB DDR4 G.Skill FlareX 3200Mhz CL16
Video Card(s) Sapphire RX 480 NITRO+ 4GB
Storage 250 GB Samsung 850 EVO + 1TB Samsung 860 QVO
Display(s) Asus MG248Q
Case Fractal Design Define S
Audio Device(s) Logitech Z200
Power Supply Seasonic Focus+ Gold 750W
Mouse Logitech G400
Keyboard MasterKeys Pro S White (MX Brown)
Software Windows 10
Funny how you think that that means its a good choice for gaming...
That description fits ryzen 9 cpus better, i think. With this launch they are moving the HEDT segment away from enthusiasts and closer to workstation/server class hardware
According to AMD these two new HEDT CPUs have single threaded performance in the 3700X/3800X range, so they'll be perfectly fine for gaming (so long as the games don't have weird high core count bugs).


Vader

New Member
Joined
Mar 9, 2018
Messages
18 (0.03/day)
I'm pretty sure these will game well, much better than 2970wx and 2990wx did, but not better than 3950x will.
The prosumer crowd that need many cores will no doubt love these new threadrippers, while the enthusiast/gamer crowd will go for mainstream platform this time and get a 3950x, especially with those prices


eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
27,873 (6.17/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
I think TUF ZENIETH Sounds better than ROG

Joined
Sep 26, 2006
Messages
113 (0.02/day)
That Zenith II bears a striking resemblance to the ROG Rampage VI Extreme Encore for socket 2066. R&D costs must be nice & low.
