ASUS Gives Rampage III Extreme 4-way SLI Capability with ROG Xpander

btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
34,335 (9.22/day)
Likes
17,427
Location
Hyderabad, India
System Name Long shelf-life potato
Processor Intel Core i7-4770K
Motherboard ASUS Z97-A
Cooling Xigmatek Aegir CPU Cooler
Memory 16GB Kingston HyperX Beast DDR3-1866
Video Card(s) 2x GeForce GTX 970 SLI
Storage ADATA SU800 512GB
Display(s) Samsung U28D590D 28-inch 4K
Case Cooler Master CM690 Window
Audio Device(s) Creative Sound Blaster Recon3D PCIe
Power Supply Corsair HX850W
Mouse Razer Abyssus 2014
Keyboard Microsoft Sidewinder X4
Software Windows 10 Pro Creators Update
#1

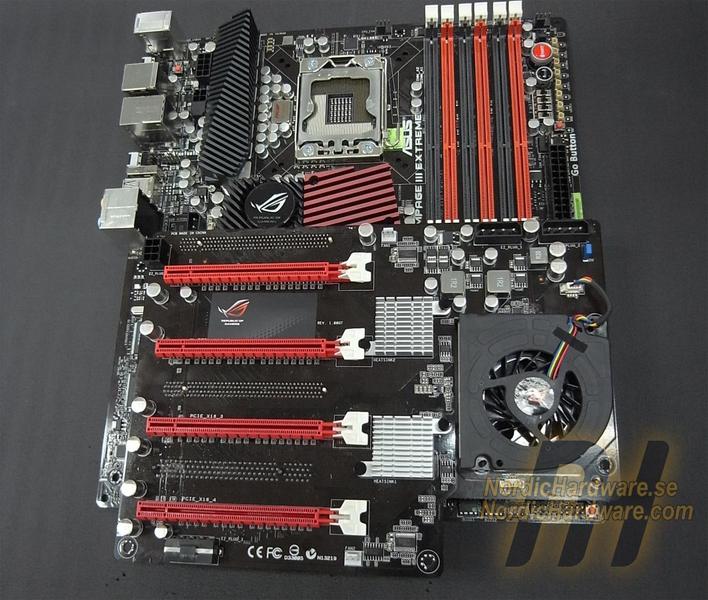

ASUS has come up with a Frankenstein solution which enables 4-way SLI on the Rampage III Extreme motherboard with full PCI-Express 2.0 x16 bandwidth, called the ROG Xpander. The device is a daughterboard that sits on the motherboard with connections to its PCI-E 2.0 x16 slots. While it might not fit into cases, it is intended to work on test-benches. The two PCI-E x16 connections from the motherboard are wired to two NVIDIA nForce 200 bridge chips, which give out two x16 links each, driving the four x16 slots on the daughterboard. It takes input from one 6-pin PCI-E power input, and three 4-pin Molex inputs, though not all may be required.

Show full news post
