ASUS Intros WS Z390 Pro Motherboard with Dual x16 PCIe Bridge Chip

btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
43,073 (8.00/day)
Location
Hyderabad, India
System Name RBMK-1000
Processor AMD Ryzen 7 5700G
Motherboard ASUS ROG Strix B450-E Gaming
Cooling DeepCool Gammax L240 V2
Memory 2x 8GB G.Skill Sniper X
Video Card(s) Palit GeForce RTX 2080 SUPER GameRock
Storage Western Digital Black NVMe 512GB
Display(s) BenQ 1440p 60 Hz 27-inch
Case Corsair Carbide 100R
Audio Device(s) ASUS SupremeFX S1220A
Power Supply Cooler Master MWE Gold 650W
Mouse ASUS ROG Strix Impact
Keyboard Gamdias Hermes E2
Software Windows 11 Pro

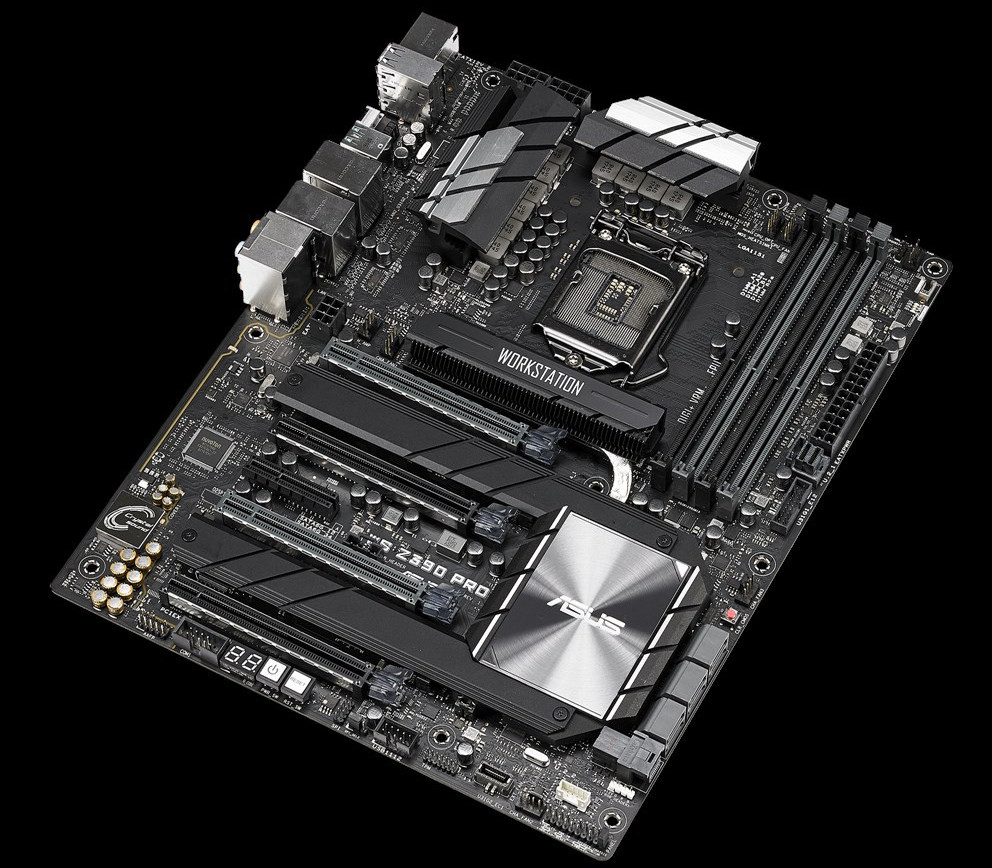

ASUS expanded its Workstation motherboard series with the new WS Z390 Pro, a socket LGA1151 board based on Intel Z390 Express chipset, featuring out-of-the-box support for 9th generation Core processors. Built in the ATX form-factor, the board draws power from a combination of one 24-pin ATX, two 8-pin EPS, and an optional 6-pin PCIe power. A 10-phase VRM (likely 8+2 phase incorporating smart-doubling on the Vcore side). This board appears to be using a PCI-Express 3.0 x48 bridge chip to convert 16 gen 3.0 lanes from the CPU to two x16 downstream slots, which are further split to four x8 slots, depending on how you populate the slots. The slot configuration options are x16/x16/NC/NC or x16/x8/x8/NC or x8/x8/x8/x8. An additional open-ended x4 slot wired to the PCH makes for the rest of the expansion.

Storage connectivity includes two each of M.2-22110, and U.2 ports, each with PCI-Express 3.0 x4 wiring; and six SATA 6 Gbps ports. Networking interfaces include two 1 GbE ports, one of which is driven by Intel i219-LM, and the other Intel i210-AT. USB connectivity includes six USB 3.1 gen 2 ports on the rear panel, from which one is type-C, two additional USB 3.1 gen 2 ports by header, and a USB 3.1 gen 1 2-port header. The 8-channel onboard audio solution combines an EMI-shielded Realtek ALC S1220A codec with audio-grade capacitors, a headphones amp, and ground-layer isolation. We expect a price of around $350 for this board.



View at TechPowerUp Main Site


GrandPhoenix

New Member
Joined
Oct 12, 2018
Messages
3 (0.00/day)
A bit disappointed with the USB 3.1 gen 1 front panel header like the Z270 WS, there is only one header. There should be 2 headers like the previous generation, Z97 WS and Z170 WS

Joined
Sep 15, 2011
Messages
5,825 (1.48/day)
Processor Intel Core i7 3770k @ 4.3GHz
Motherboard Asus P8Z77-V LK
Memory 16GB(2x8) DDR3@2133MHz 1.5v Patriot
Video Card(s) ZOTAC GAMING GeForce RTX 3080 Trinity
Storage 59.63GB Samsung SSD 830 + 465.76 GB Samsung SSD 840 EVO + 2TB Hitachi + 300GB Velociraptor HDD
Display(s) Acer Predator X34 3440x1440@100Hz G-Sync
Case NZXT PHANTOM410-BK
Audio Device(s) Creative X-Fi Titanium PCIe
Power Supply Corsair 850W
Mouse Anker
Software Win 10 Pro - 64bit
Benchmark Scores 30FPS in NFS:Rivals
The slot configuration options are x16/x16/NC/NC or x16/x8/x8/NC or x8/x8/x8/x8.
Hold on. The pictures clearly shows that there are 5 PCI-E slots not 4.
And how come you can only use 3 PCI-E slots if you install a videocard?!?

Joined
Jun 10, 2014
Messages
590 (0.20/day)
Location
Poland
Hold on. The pictures clearly shows that there are 5 PCI-E slots not 4.
And how come you can only use 3 PCI-E slots if you install a videocard?!?
It speaks of physical 16x slots - there are 4 of those. And You can assign max of 32 PCIe lanes, that's why You can use all four only when all of them work as 8x.

Joined
Sep 15, 2011
Messages
5,825 (1.48/day)
Processor Intel Core i7 3770k @ 4.3GHz
Motherboard Asus P8Z77-V LK
Memory 16GB(2x8) DDR3@2133MHz 1.5v Patriot
Video Card(s) ZOTAC GAMING GeForce RTX 3080 Trinity
Storage 59.63GB Samsung SSD 830 + 465.76 GB Samsung SSD 840 EVO + 2TB Hitachi + 300GB Velociraptor HDD
Display(s) Acer Predator X34 3440x1440@100Hz G-Sync
Case NZXT PHANTOM410-BK
Audio Device(s) Creative X-Fi Titanium PCIe
Power Supply Corsair 850W
Mouse Anker
Software Win 10 Pro - 64bit
Benchmark Scores 30FPS in NFS:Rivals
Sorry, but the pics CLEARLY shows a total of 5 PCI-E slots, 4 full length and 1 PCI-E 4x only...

Joined
Aug 18, 2017
Messages
339 (0.19/day)
Yes, but the x4 does not affect other slots, because it comes from the chipset.

The physical x16 slots are rather routed as on most other 115x PLX boards, what means the following:
x16/x0/x16/x0
x16/x0/x8/x8
x8/x8/x16/x0
x8/x8/x8/x8
depending whether slot is occupied or not.

Joined
Feb 18, 2005
Messages
3,528 (0.56/day)
Location
Ikenai borderline!
Why are motherboard manufacturers still putting U.2 ports on motherboards in 2018... why...

A bit disappointed with the USB 3.1 gen 1 front panel header like the Z270 WS, there is only one header. There should be 2 headers like the previous generation, Z97 WS and Z170 WS

Technically it does have two headers - one for USB 3.1 gen 2, one for USB 3.1 gen 1. The previous boards had none of the former and two of the latter.


GrandPhoenix

New Member
Joined
Oct 12, 2018
Messages
3 (0.00/day)
Why are motherboard manufacturers still putting U.2 ports on motherboards in 2018... why...



Technically it does have two headers - one for USB 3.1 gen 2, one for USB 3.1 gen 1. The previous boards had none of the former and two of the latter.

I think the Gen 2 one is a must nowadays. But at some High-end case like Cooler Master Cosmos series and MasterCase series, there are more than 2 USB 3.1 gen 1 ports at the front I/O.

Joined
Dec 10, 2011
Messages
326 (0.08/day)
On paper it's ideal for people who don't need million cores, but want useful workstation setup. However...

Considering the price of brand new platform (ignoring folks who just want to upgrade the board) it's stupid idea.

Especially now when you'll get 8/16 chip with 44 lanes on X299. You don't have to worry will my stuff work or not. How can I transfer my pooled storage to new platform, but just with 6 SATA ports on board. How lane switching will affect performance of my stuff? Etc, etc... Remember PLX are lane switcher unlike NF200 chips of old which added physical lanes on X58 platform. Especially for storage dependent task - like 4K coding/renders - it matters.

On balance I really don't see the point in this. Gamers will pick different boards. People with any kind of workload - if they can count to 3 - will select cheapest 8/16 CPU on X299 line.

Joined
May 23, 2015
Messages
14 (0.01/day)
System Name SMUT
Processor i3-8350K
Motherboard Asrock Z370 Extreme4
Cooling Thermalright Macho Rev. B
Memory 16GB DDR4 3200 Cosair Vengance
Video Card(s) GTX 980 EVGA HYBRID
Storage 250GB 840 EVO, 3x 1TB WD Green, 1x 2TB Samsung F4, 3x 3TB Seagate Constellation, 1x 6TB Toshiba X300
Display(s) BenQ XL2411Z 24 inch 144 Hz
Case Fractal Design Define R5
Power Supply Corsair RM1000i
Software Win10 x64 Pro
On paper it's ideal for people who don't need million cores, but want useful workstation setup. However...

Considering the price of brand new platform (ignoring folks who just want to upgrade the board) it's stupid idea.

Especially now when you'll get 8/16 chip with 44 lanes on X299. You don't have to worry will my stuff work or not. How can I transfer my pooled storage to new platform, but just with 6 SATA ports on board. How lane switching will affect performance of my stuff? Etc, etc... Remember PLX are lane switcher unlike NF200 chips of old which added physical lanes on X58 platform. Especially for storage dependent task - like 4K coding/renders - it matters.

On balance I really don't see the point in this. Gamers will pick different boards. People with any kind of workload - if they can count to 3 - will select cheapest 8/16 CPU on X299 line.

Er no - a very close minded comment "count to 3". A lot us who can count to 10, avoid AMD like the plague. 24 lanes on Intel, is more than enough for most. Oh BTW, the next numbers are 4 & 5 - let me know once you've learnt them and I'll feed you some more. Baby steps...


Thrillhouse

New Member
Joined
Sep 25, 2020
Messages
1 (0.00/day)
Would this board be able to have 2Nr m.2 nvme ssds (x4 + x4) + 1Nr u.2 nvm ssd (x4) + 1Nr pice network card (x1) (in the physical x4 slot) + 2Nr gpu’s (not too sure how the lanes would be divided, x8 + x8 Or x16 + x16?)

A total of 29 lanes if the gpu uses x8 + x8

This must be too many components in regards to pice lanes? I’m confused how this XPL chip works - would it allow this many pcie lanes to be used?

From what I can work out that XPL chip is only affiliated with it’s the physical 4Nr x16 slots and basically allows x32 lanes (taken and converted from the x16 cpu lanes) to be used from those slots only. So even with that there is still always only x8 lanes from the chipset itself and no more?

Therefore the 3Nr ssd’s and pcie network card are over by 5 lanes?

And if so, what happens then if they are all installed?
