ASUS Plans Optional SATA 6 Gbps Addon Cards

btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
35,252 (8.96/day)
Likes
17,886
Location
Hyderabad, India
System Name Crypto-plague Survival Kit
Processor Intel Core i7-4770K
Motherboard ASUS Z97-A
Cooling Xigmatek Aegir CPU Cooler
Memory 2x 8GB Kingston HyperX Beast DDR3-1866
Video Card(s) Colorful iGame GTX 1070 Ti Vulcan X
Storage ADATA SU800 512GB + Intel SSD320 120GB + Patriot WildFire 120GB
Display(s) Samsung U28D590 28-inch 4K UHD
Case Corsair Carbide 100R
Audio Device(s) Creative Sound Blaster Recon3D PCIe
Power Supply Corsair HX850W
Mouse Razer Abyssus
Keyboard Microsoft Sidewinder X4
Software Windows 10 Pro
#1

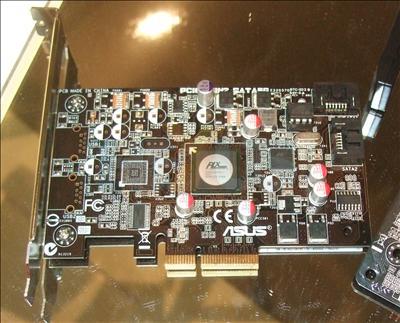

ASUS implemented an interesting design with its high-end P7P55D Premium motherboard, that makes use of a PLX PEX8613 3-port/12-lane PCI-E 2.0 bridge chip across its PCI-E 1.1 x4 from the PCH to drive the Marvell 88SE9123 2-port SATA 6 Gbps controller to its full-potential. Apparently the company plans to provide SATA 6 Gbps support using essentially the same design, for all its Intel P55 series motherboards by means of an optional addon card. Much larger than the SATA 6 Gbps card from ASRock, the card from ASUS uses the same basic design that involves PLX PEX8613 as a PCI-E x4 device. The card uses the same SATA 6 Gbps controller to provide 2 internal SATA ports. From the looks of it, the card has placeholders for two controllers, with the second (absent) NEC µPD720200 controller providing USB 3.0 ports. Perhaps a future revision makes use of it. Planned to be offered as an optional accessory, this card could make for a premium over the base models.



Source: Hexus.net
