ASUS Ready with Rampage IV Formula; Rampage IV Gene in the Pipeline

btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
34,496 (9.18/day)
Likes
17,519
Location
Hyderabad, India
#1
This week, ASUS, along with the rest of the PC motherboard industry, launched its socket LGA2011 board lineup, with its three main lines: P9X79, ROG Rampage IV, and TUF Sabertooth X79. The ROG line included the Rampage IV Extreme, which ended up being ASUS' flagship socket LGA2011 motherboard for the platform's launch. It's filled to the brim with all the features gamers and overclockers will ever need. But as with most ROG lines, Rampage IV will have a complete triad: Extreme (already launched), Formula (a notch below Extreme, but still offers great features), and Gene (Micro-ATX, stuffed with features).

Press shots and presentation slides of the Rampage IV Formula started making waves today. Pictures reveal the board to be standard ATX. Unlike the Extreme, Formula has just four DDR3 DIMM slots (one slot per memory channel), yet it supports all the DRAM multipliers Extreme does. The CPU is powered by a 11-phase Digi+ VRM. It is wired to four PCI-Express 3.0 (capable) x16 slots, among which two are PCI-Express 3.0 x16 capable, and all four are x8 capable, depending on the way they are populated with addon cards. Apart from these long slots, there are two PCI-E 2.0 x1. 4-way SLI and CrossFireX are supported. Storage connectivity includes four SATA 3 Gb/s (black), four SATA 6 Gb/s (red, two from the PCH, two from third-party controller), and two eSATA 6 Gb/s (also from a third-party controller).



ASUS deployed a new audio solution on this board, putting its experience with audiophile-grade sound cards to 'sound' use. The board features what's called ASUS SupremeFX III. It combines a new conventional high signal-noise ratio (high-quality/fidelity) HD Audio CODEC (probably ALC898), with an active circuit that works to eliminate EMI noises commonly found on motherboards. The circuit consists of a 1500 uF capacitor that works to dampen EMI noises, the CODEC chip is covered with an EMI shield, and the area where the CODEC is located is electrically isolated from the rest of the board. At the analog output cluster, the audio jacks are gold-plated. As a neat cosmetic touch, ASUS used its PCB printer to lay a fiber-optic trace like a wire on the topmost PCB layer, at one of its ends is a blood-red LED, this wire ends up looking a a groovy red line connecting the CODEC to the audio jack cluster and front-panel HDA header, and a glowing ROG "eye" logo. Again, this is a purely cosmetic touch.



There is one Ethernet connection, driven by an Intel-made controller. There are six USB 3.0 ports, four on the rear panel, two via header. A bunch of USB 2.0 and PS/2 combo make for the rest of the rear panel. Here, you will also find ROG connect and CMOS clear switches (can be disabled), and a BIOS flashback button that helps the UEFI BIOS recover from bad settings/flashes. It's basically a panic button.

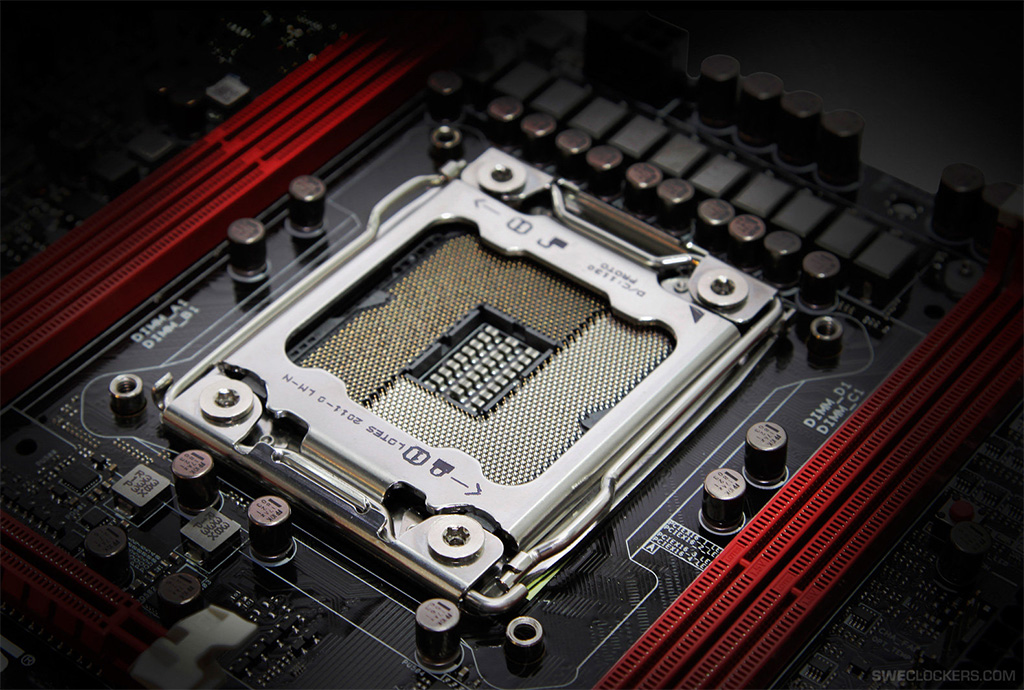

ROG exclusives include a feature-rich ROG UEFI firmware setup program, TweakIT, ProbeIT, LN2-safe mode, Voltiminder, onboard OC switches, ROG Connect, ROG Flashback, ROG Gamefirst, and XSocket. XSocket is a unique CPU socket retention clip custom-made by ASUS, which lets you use any socket LGA1366-supporting cooler or water-block on the LGA2011 socket. Expect the ASUS Rampage IV Formula to have a sweet price.



Rampage IV Gene

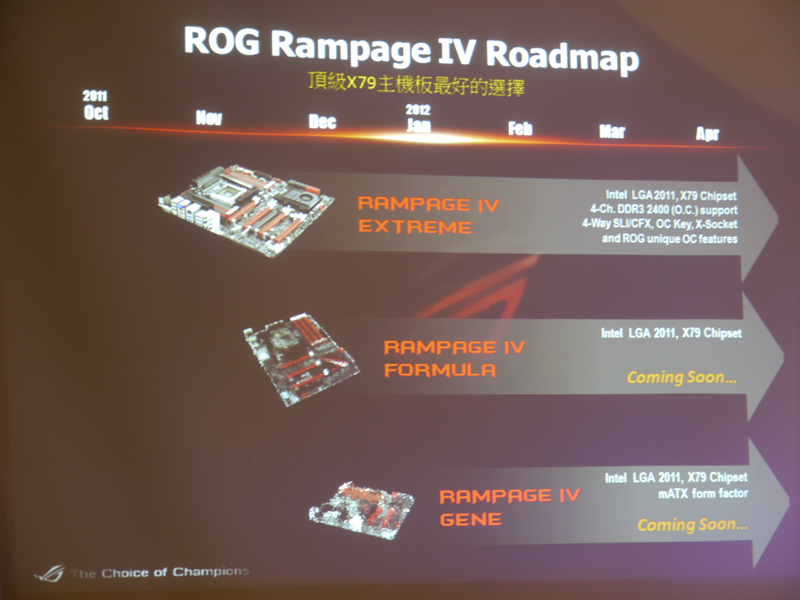

ASUS announced Rampage IV Gene to its internal partners (and not to the general public), it is a micro-ATX motherboard for the LGA2011 platform, though it didn't talk about it much. In fact the slide detailing it had its picture blurred, and used the wrong picture for Rampage IV Formula picture. We'll try to find out more about this board in the coming days.



Sources: SweClockers, Maximum Tech

Last edited:
Joined
Feb 8, 2008
Messages
2,313 (0.64/day)
Likes
715
Location
Switzerland
System Name Keep spending on me
Processor i7 4790K ( 4.4 Ghz stock )
Motherboard Maximus VII Impact z97
Cooling Corsair H90 140mm AIO
Memory 16 GB Corsair Dominator Platinum DDR3 1866 Mhz
Video Card(s) ASUS GTX 1050Ti Strix
Storage M.2 Samsung NVMe 960 Pro 512 GB
Display(s) Asus PG258Q 1080p 240Hz G-sync
Case Cooler Master Mastercase 3
Audio Device(s) SupremeFX II Impact
Power Supply Corsair AX760
Mouse Razer Deathadder Chroma
Software Win 10 64 Bit
Benchmark Scores Gaming at high performance is my priority
#2
This is THE REAL DEAL !! Trust me !


BUCK NASTY

F@H Mod & 4P Enthusiust
Staff member
Joined
Aug 8, 2007
Messages
4,973 (1.30/day)
Likes
4,639
Location
Port St Lucie, FL. U.S.A.
System Name Main Rig
Processor AMD FX-4130 @ 4.8Ghz
Motherboard ASUS M5A99X Evo
Cooling Coolermaster Hyper 212+
Memory 8GB GSkill DDR3 1600
Video Card(s) ASUS GTX 970 Strix @ 1503Mhz Core
Storage Corsair Force 90gb SSD/ WD Caviar Blue 750gb
Display(s) ASUS 24" IPS
Case Coolermaster Centurion 590
Audio Device(s) Onboard
Power Supply Antec TP750 80+
Software Windows 7 Ultimate 64
#3
Is it me or does anyone think of Tron concerning the 2nd pic?
:laugh:

Joined
Aug 13, 2010
Messages
3,192 (1.17/day)
Likes
1,638
System Name kom pu tor
Processor Core i7 8700K 5Ghz
Motherboard Gigabyte Z370 Ultra Gaming
Cooling Custom 240MM WC loop
Memory G.Skill RipJawsZ 2666Mhz 16GB
Video Card(s) Palit GTX 1080 Jetstream
Storage A salad of SSDs
Case Corsair Air 540
Power Supply Antec Egde 750W
Mouse Logitec G400
Keyboard Cougar 600K
#6
I just wish to see more boards like the EVGA SR-3, just other brands


..'Ant'..

New Member
Joined
Apr 16, 2008
Messages
294 (0.08/day)
Likes
163
Location
█♣█
System Name Anth's Old i7 Monster™
Processor i7 940 @ 3.8Ghz
Motherboard ASUS P6TD Deluxe
Cooling Prolimatech Megahalems
Memory 12GB (6x2GB) G.Skill DDR3-1600Mhz
Video Card(s) Gigabyte GTX 680 2GB W/Accelero Twin Turbo II
Storage Crucial M4 SSD 128GB / 2 x Samsung F3 Spinpoint 1TB RAID 0 /WD VelociRaptor 150GB
Display(s) Sharp Aquos 40LE700UN LED 40" Widescreen @ [1920x1080] 1080p
Case Cooler Master Cosmos 2
Audio Device(s) Auzentech X-Fi Forte 7.1 + Logitech Z-5500 5.1 Speakers
Power Supply Corsair AX1200W
Software Windows 7 Ultimate x64
#7
Sweet looking board!

Joined
Mar 7, 2011
Messages
1,662 (0.66/day)
Likes
427
Location
Pune
#8
If only Asus dumped the SupremeFX in favour of either Xonar or Creative X-Fi this board would be perfect for gamers.


wolf

Performance Enthusiast
Joined
May 7, 2007
Messages
5,576 (1.43/day)
Likes
864
System Name MightyX (MITX)
Processor Core i7 4770K @ 4.2ghz
Motherboard Asus Z87i-Pro
Cooling Noctua NH-L12
Memory 16gb DDR3 1600 LP
Video Card(s) Gigabyte GTX1080 G1 OC
Storage Lots of SSD's
Display(s) AOC AGON AG352QCX
Case Raven RVZ-01
Power Supply SFX 450 G
Mouse Razer Mamba Tournament Chroma
Keyboard Razer Blackwidow X Chroma
#9


Anyone notice thin this pic that the Formula and Gene appear to be X58/P67/Z68 boards? definitely don't look like that have the quad channel memory setup with DIMM slots on either side of the CPU socket.

the gene sounds mighty good tho, you could build one honking M-ATX system based on that.


mav2000

New Member
Joined
Nov 26, 2008
Messages
451 (0.13/day)
Likes
53
Location
Bangalore, India
System Name Project [E]
Processor 3570k @ 4.5 Ghz
Motherboard Asus Maximus V Gene
Cooling Custom Water cooled
Memory 8 GB Gskill 2400 @ CL 11
Video Card(s) Powercolor 6950 unlocked
Storage 120 GB OCZ/1 TB Seagate
Display(s) 22" Benq Full HD
Case Coolermaster ATCS 840
Audio Device(s) Onboard
Power Supply 850W Antec HCP
Software Windows 7 Ultimate
#11
Why would Asus dump their own card and promote a competitors card/product/chip?


btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
34,496 (9.18/day)
Likes
17,519
Location
Hyderabad, India
#12
Why would Asus dump their own card and promote a competitors card/product/chip?
Because they don't have their own chip. They use C-Media, and that they don't have their own HD audio, either.

X-Fi MB2 is able to add some "gamer-friendly" audio features to a largely gamer-centric product line that Republic of Gamers is. Whereas Xonar is more of an audiophile and HTPC-centric brand.


btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
34,496 (9.18/day)
Likes
17,519
Location
Hyderabad, India
#14
Any word on when the SR-3 competitor that I've heard about is coming?
I haven't heard about any 2P LGA2011 enthusiast workstation boards from ASUS. They will make workstation 2P LGA2011 boards, only it won't be marketed as an enthusiast product. It will be marketed like the previous generation Z8 series.

Joined
Mar 6, 2008
Messages
2,700 (0.75/day)
Likes
1,364
Location
Minnesota
#15
I can't remember where I read it, but I swear I remember a site said that there was going to be a board that would give SR-3 a run for its money.


btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
34,496 (9.18/day)
Likes
17,519
Location
Hyderabad, India
#16
I can't remember where I read it, but I swear I remember a site said that there was going to be a board that would give SR-3 a run for its money.
That's probably just the Rampage IV Extreme, and that statement was probably made in several other contexts than the fact that R4E is 1P and SR3 is 2P.

Joined
Mar 6, 2008
Messages
2,700 (0.75/day)
Likes
1,364
Location
Minnesota
#17
I'm pretty sure they weren't referring to the R4E. It was in an roundup article with the R4E in it. I went back to the article I thought I remembered it from but there's no mention of it. I think they were asked to remove it.

Joined
Nov 13, 2009
Messages
5,614 (1.88/day)
Likes
1,678
Location
San Diego, CA
System Name White Boy
Processor Core i7 3770k @4.6 Ghz
Motherboard ASUS P8Z77-I Deluxe
Cooling CORSAIR H100
Memory CORSAIR Vengeance 16GB @ 2177
Video Card(s) EVGA GTX 680 CLASSIEFIED @ 1250 Core
Storage 2 Samsung 830 256 GB (Raid 0) 1 Hitachi 4 TB
Display(s) 1 Dell 30U11 30"
Case BIT FENIX Prodigy
Audio Device(s) none
Power Supply SeaSonic X750 Gold 750W Modular
Software Windows Pro 7 64 bit || Ubuntu 64 Bit
Benchmark Scores 2017 Unigine Heaven :: P37239 3D Mark Vantage
#18
wonder when this will show
